Heat Shrink Male Terminal
TONFUL Electric RSMD heat shrink male terminals combine a polyolefin heat-shrink sleeve with a tin-plated brass contact. Compare 14 original catalog entries by conductor size, contact dimensions and color.
- 14 catalog entries across three wire-size groups.
- Listed conductor sections: 0.5–1.5, 1.5–2.5 and 4.0–6.0 mm².
- Polyolefin insulation and tin-plated brass contact.
- The exposed male blade mates with a compatible female receptacle.
Overview
TONFUL Electric RSMD heat shrink male terminals combine a polyolefin heat-shrink sleeve with a tin-plated brass contact. Compare 14 original catalog entries by conductor size, contact dimensions and color. The exposed male blade mates with a compatible female receptacle.
Features
- Connection interface: The exposed male blade mates with a compatible female receptacle.
- Contact material: tin-plated brass as stated in the original catalog.
- Heat-shrink insulation: a polyolefin sleeve covers the crimp barrel.

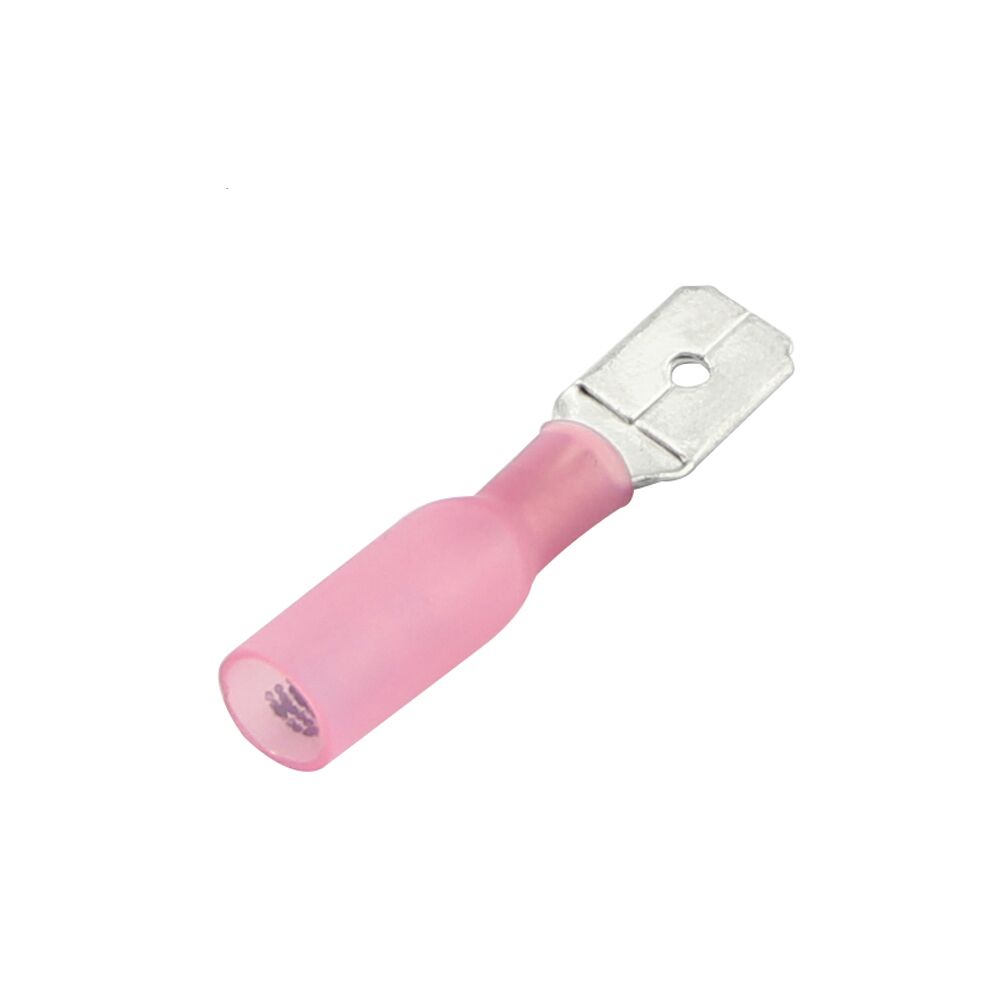

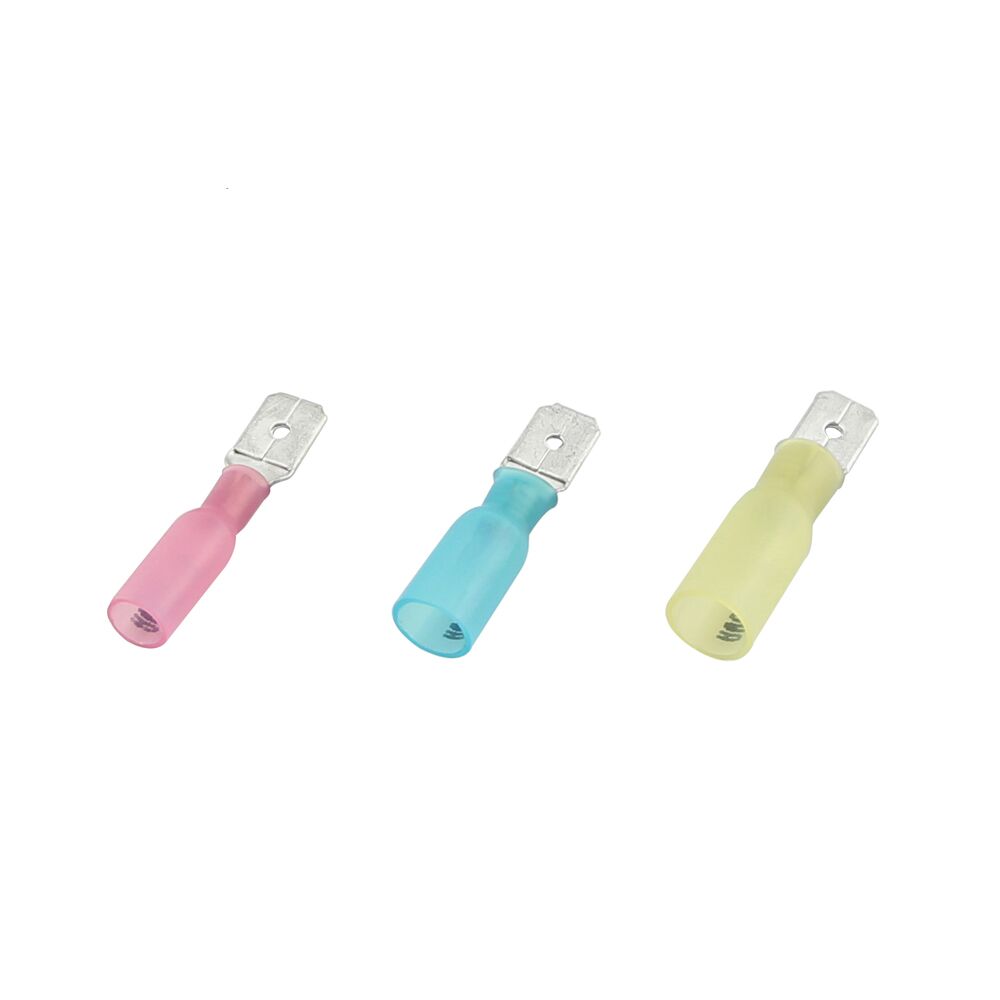

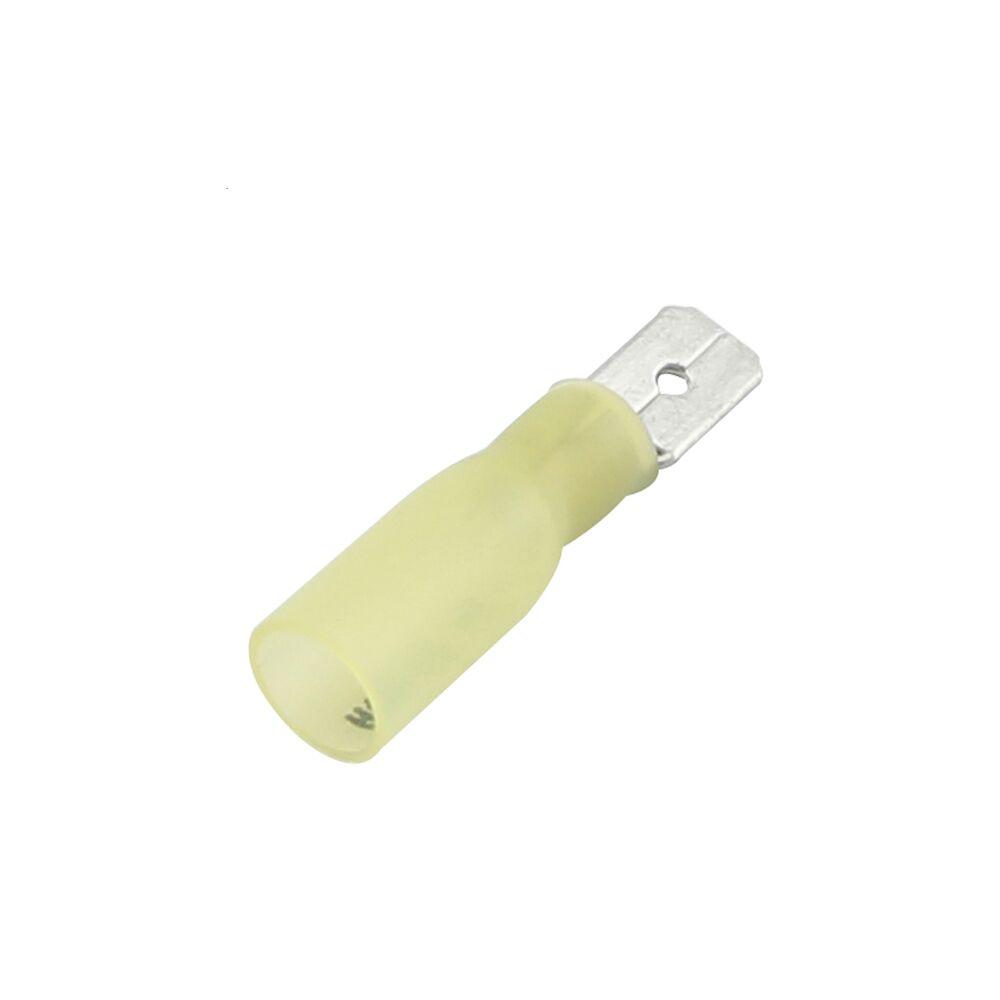

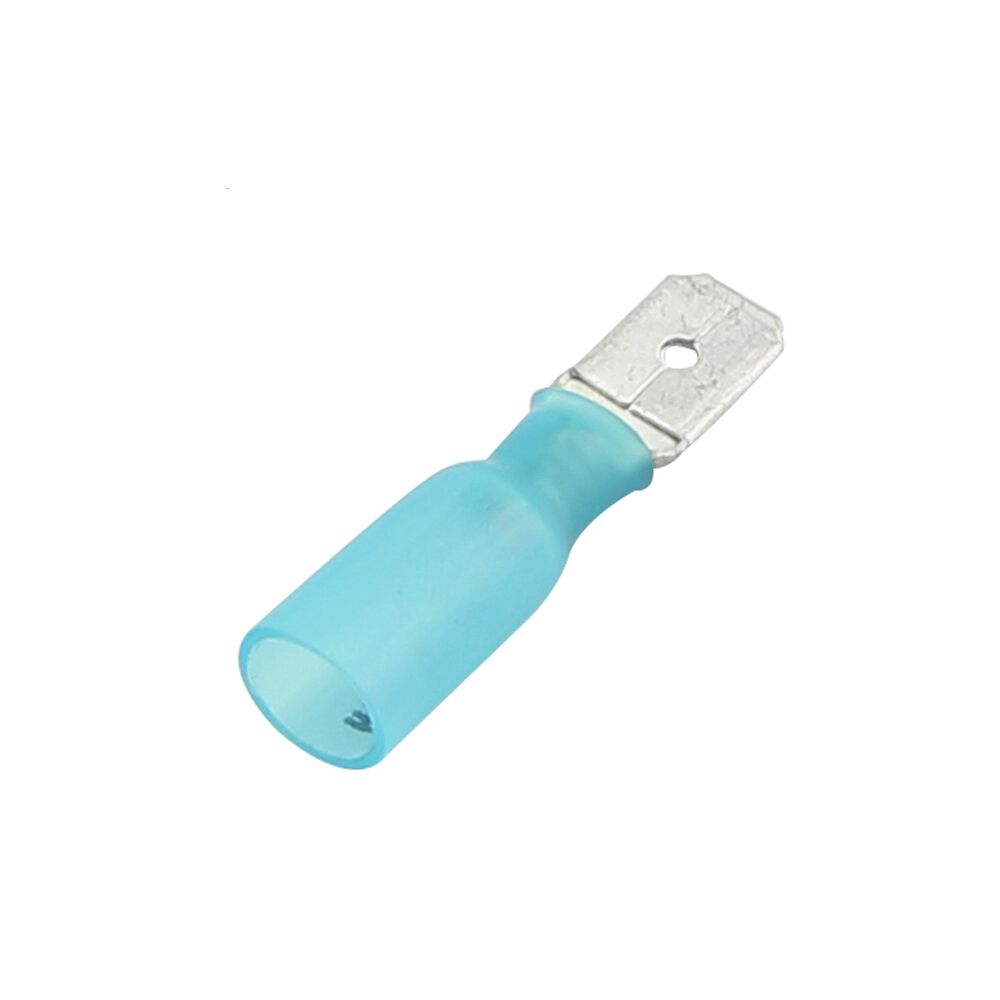

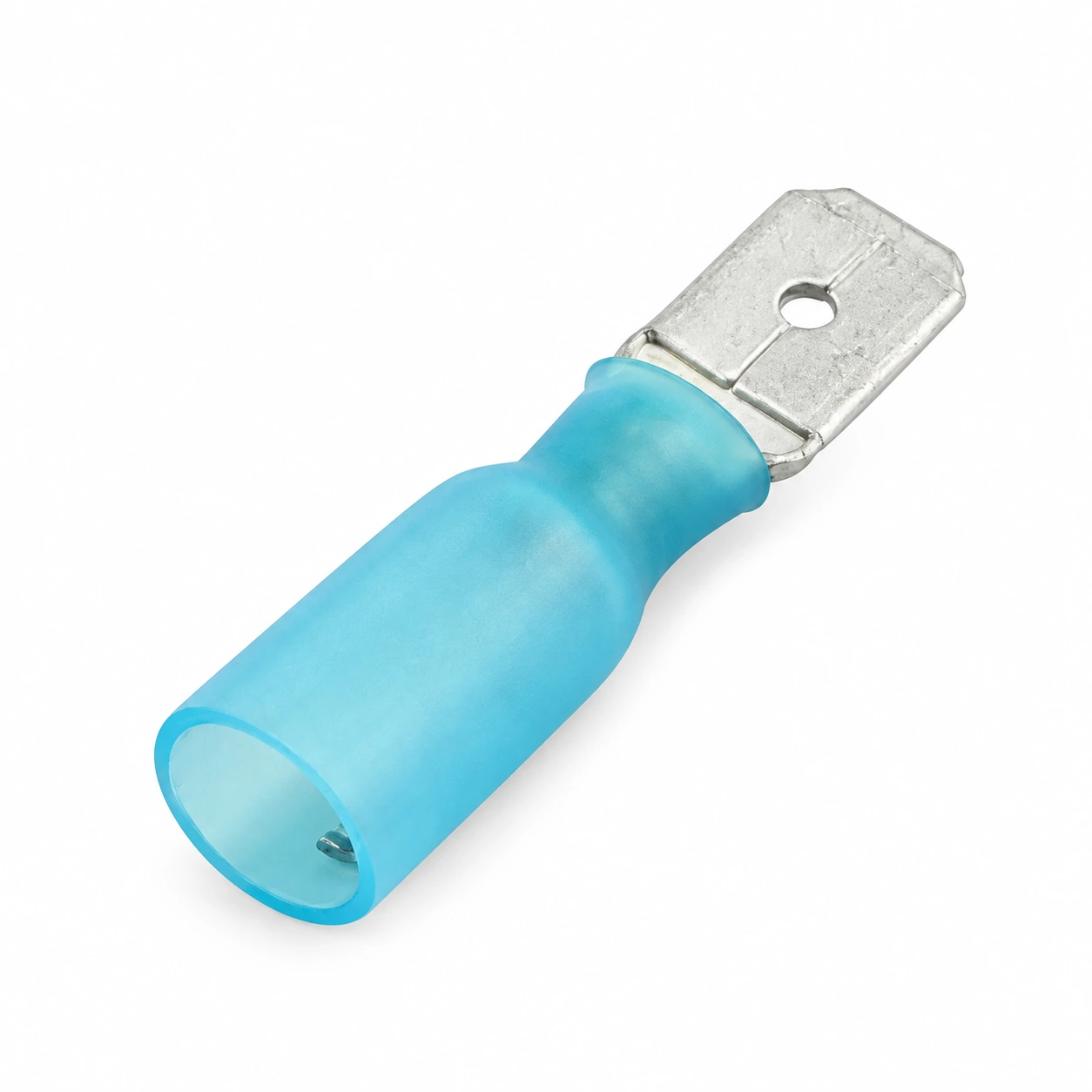

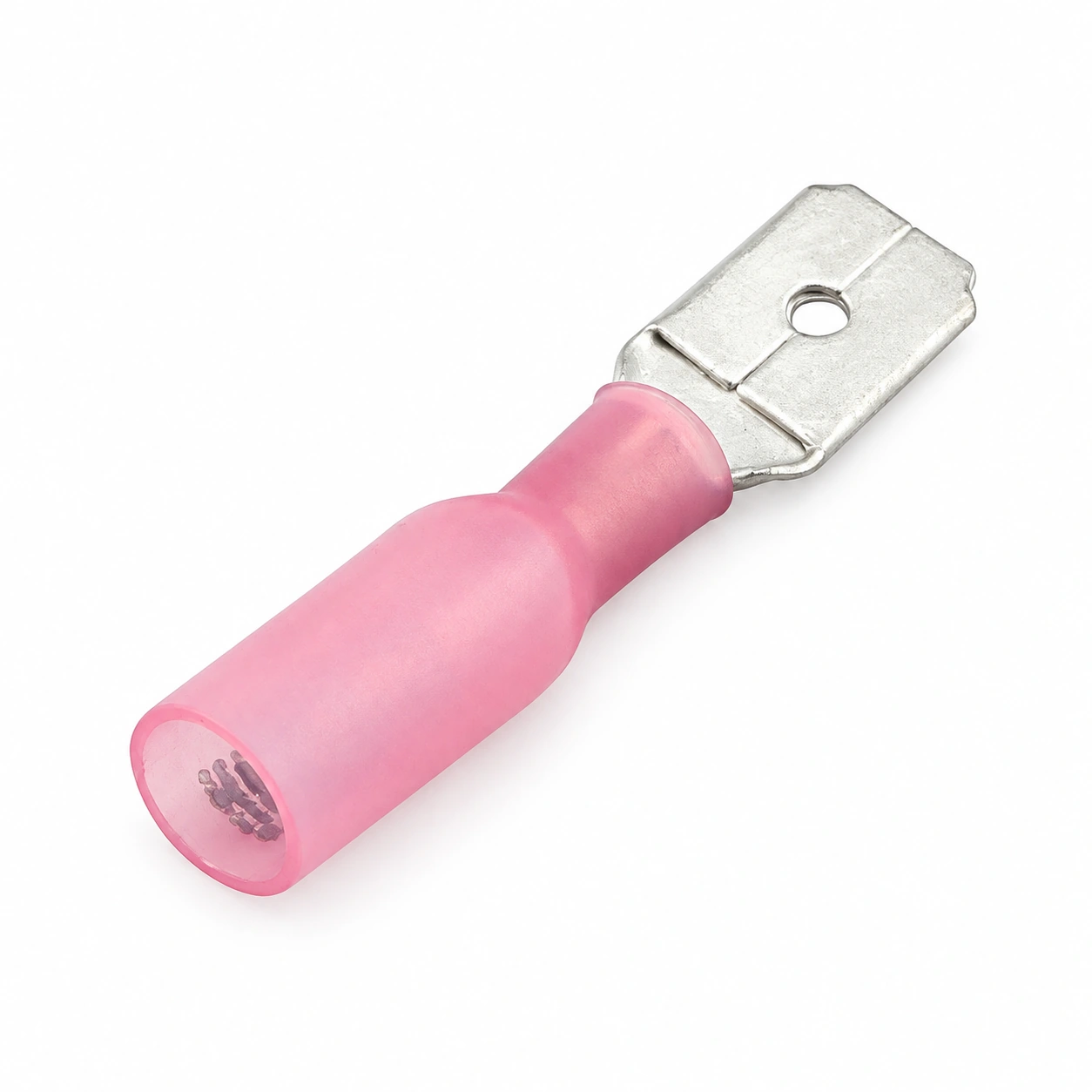

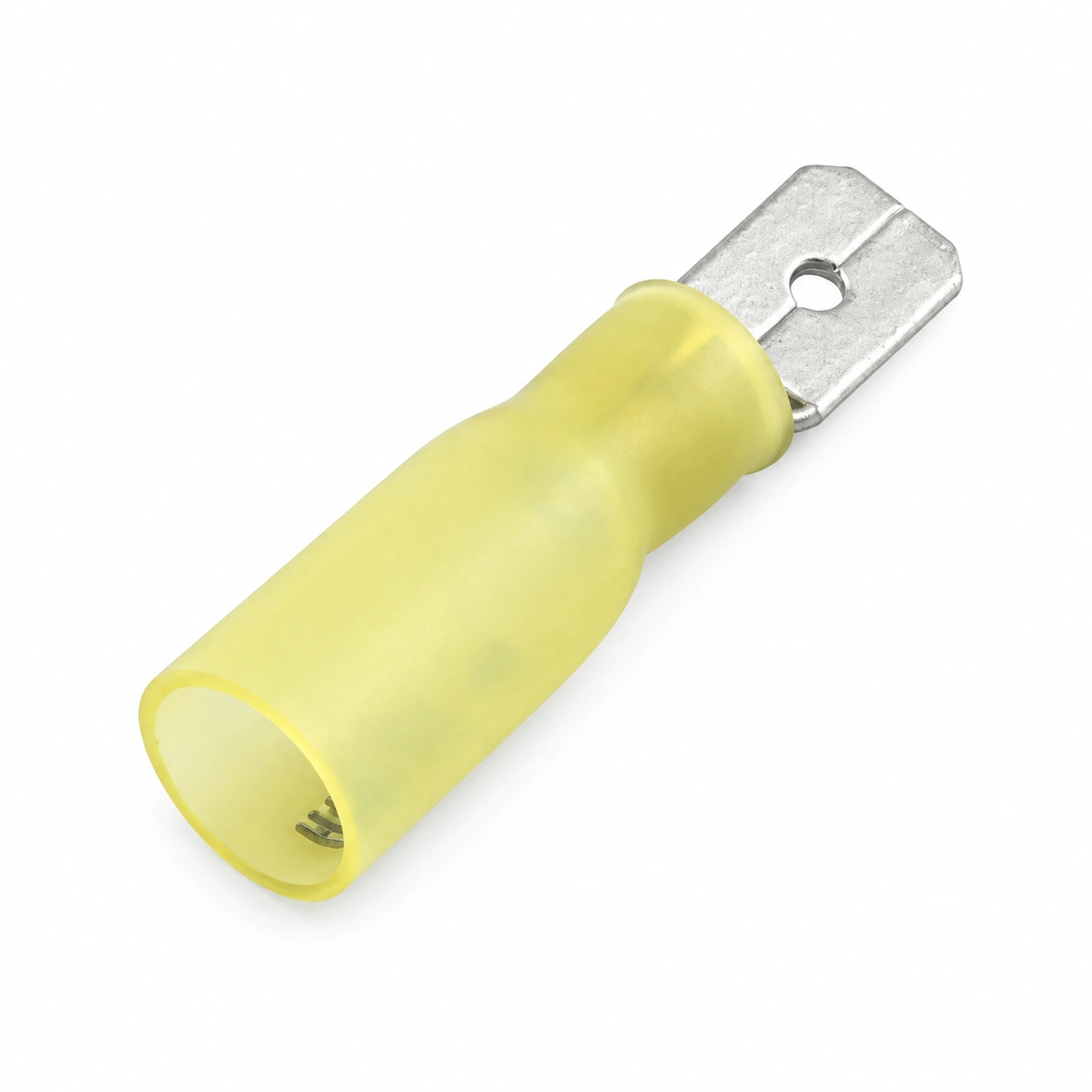

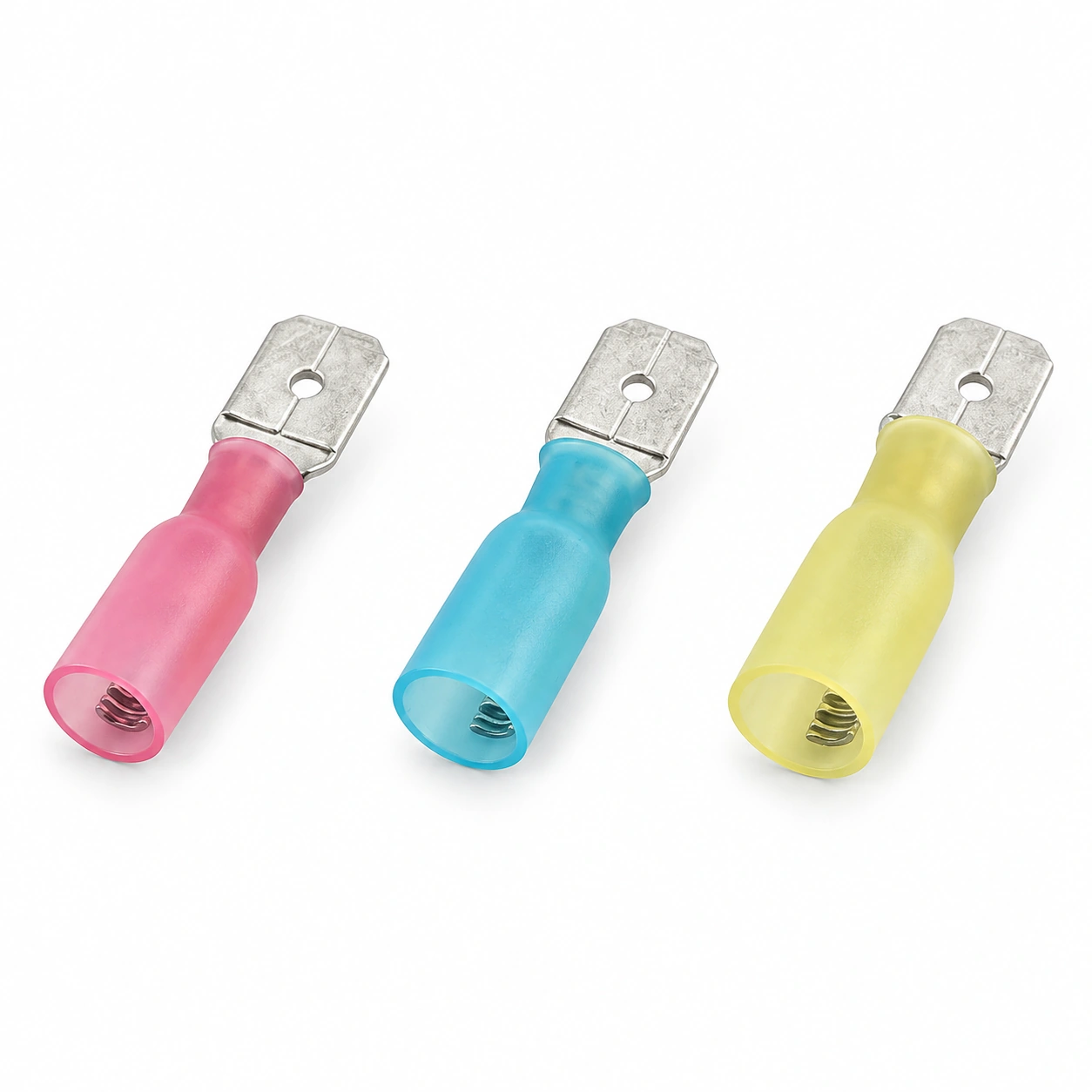

- Color identification: red, blue and yellow distinguish the listed conductor-size groups.
- Model-specific dimensions: compare the contact interface and sleeve dimensions before ordering.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | RSMD |
| Terminal type | Male flat-blade quick-disconnect terminal |
| Insulation | Polyolefin heat-shrink sleeve |
| Contact material | Brass |
| Plating | Tin |
| Wire-size groups | 0.5–1.5 / 1.5–2.5 / 4.0–6.0 mm² |
| Color groups | Red / blue / yellow |
| Operating temperature (original catalog) | 55°C–125°C; confirm the selected model specification |
| Shrink initiation temperature (catalog) | 80°C |
| Minimum complete-shrink temperature (catalog) | 130°C |
Temperature and current entries retain the original catalog values. Confirm the selected terminal, conductor, crimp tooling and heating process for the finished assembly.

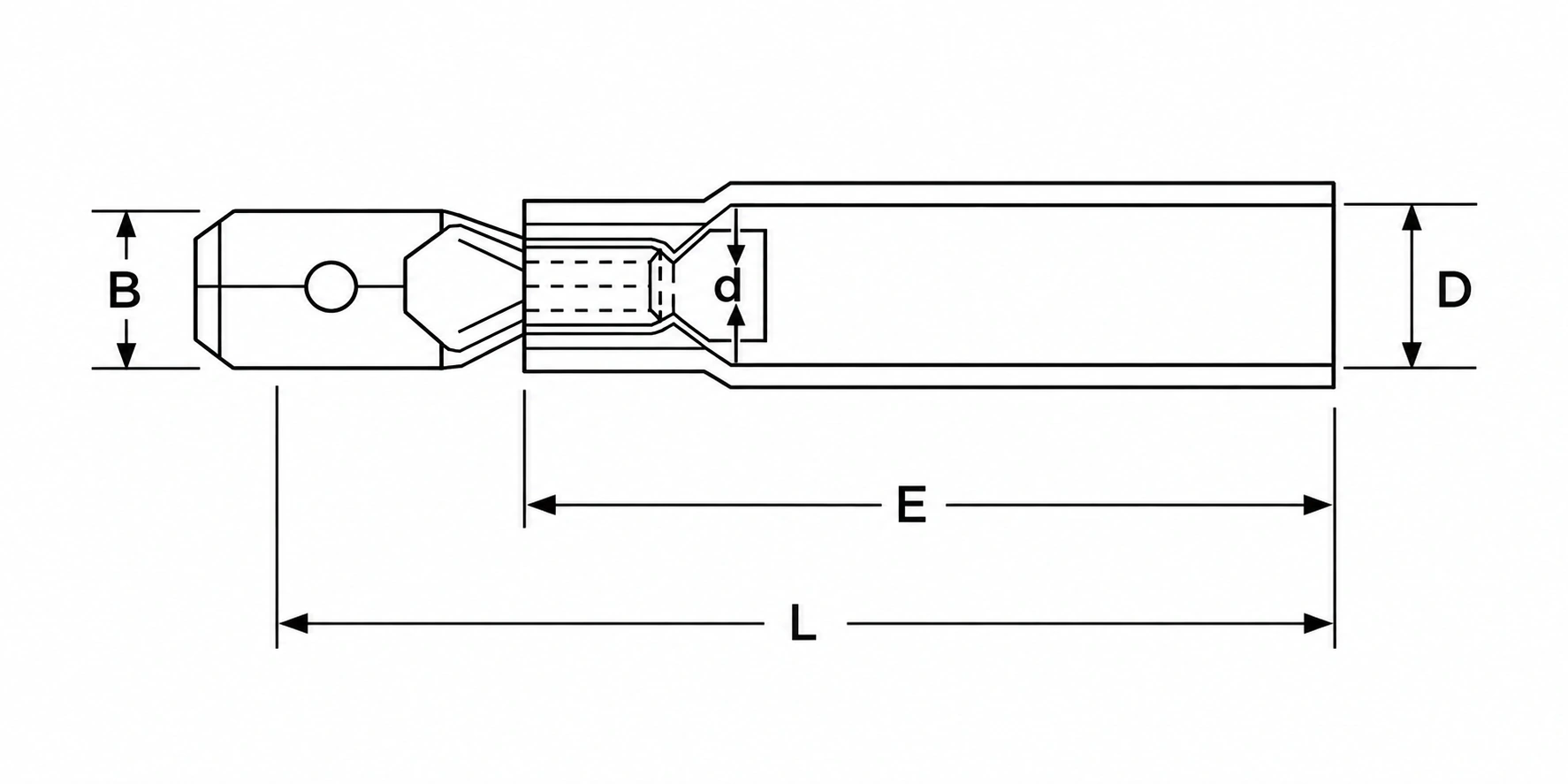

Dimension
Dimensions are in millimeters and conductor sections are in mm². Model references and dimension values are retained from the original TONFUL catalog.
| Model | AWG | Wire section (mm²) | Catalog max current (A) | NEMA tab (mm) | Thickness (mm) | B (mm) | dΦ (mm) | DΦ (mm) | L (mm) | E (mm) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RSMD1.25-110(5) | 22–16 | 0.5–1.5 | 10 | 0.5*2.8 | 0.5 | 2.8 | 1.7 | 4.8 | 26.5 | 19 | red |
| RSMD1.25-110(8) | 22–16 | 0.5–1.5 | 10 | 0.8*2.8 | 0.8 | 2.8 | 1.7 | 4.8 | 26.5 | 19 | red |
| RSMD1.25-187(5) | 22–16 | 0.5–1.5 | 10 | 0.5*4.75 | 0.5 | 4.8 | 1.7 | 4.8 | 28.8 | 19 | red |
| RSMD1.25-187(8) | 22–16 | 0.5–1.5 | 10 | 0.4*4.75 | 0.4*2 | 4.8 | 1.7 | 4.8 | 28.8 | 19 | red |
| RSMD1.25-250 | 22–16 | 0.5–1.5 | 10 | 0.8*6.35 | 0.4*2 | 6.4 | 1.7 | 4.8 | 29.8 | 19 | red |
| RSMD2-110(5) | 16–14 | 1.5–2.5 | 15 | 0.5*2.8 | 0.5 | 2.8 | 2.3 | 5.8 | 26.5 | 19 | blue |
| RSMD2-110(8) | 16–14 | 1.5–2.5 | 15 | 0.8*2.8 | 0.8 | 2.8 | 2.3 | 5.8 | 26.5 | 19 | blue |
| RSMD2-187(5) | 16–14 | 1.5–2.5 | 15 | 0.5*4.75 | 0.5 | 4.8 | 2.3 | 5.8 | 28.8 | 19 | blue |
| RSMD2-187(8) | 16–14 | 1.5–2.5 | 15 | 0.4*4.75 | 0.4*2 | 4.8 | 2.3 | 5.8 | 28.8 | 19 | blue |
| RSMD2-250 | 16–14 | 1.5–2.5 | 15 | 0.8*6.35 | 0.4*2 | 6.4 | 2.3 | 5.8 | 29.8 | 19 | blue |
| RSMD5.5-110(5) | 12–10 | 4.0–6.0 | 24 | 0.5*2.8 | 0.5 | 2.8 | 3.4 | 6.8 | 28.8 | 22 | yellow |
| RSMD5.5-110(8) | 12–10 | 4.0–6.0 | 24 | 0.8*2.8 | 0.8 | 2.8 | 3.4 | 6.8 | 28.8 | 22 | yellow |
| RSMD5.5-187 | 12–10 | 4.0–6.0 | 24 | 0.5*4.75 | 0.5 | 4.8 | 3.4 | 6.8 | 30.8 | 22 | yellow |
| RSMD5.5-250 | 12–10 | 4.0–6.0 | 24 | 0.8*6.35 | 0.4*2 | 6.4 | 3.4 | 6.8 | 31.8 | 22 | yellow |
Selection Guide
Start with the conductor section and corresponding color group. Match the NEMA tab size and blade thickness to the female receptacle, then check the available assembly space. Use crimp tooling suitable for the terminal and conductor, then apply heat according to the approved installation instructions. Send the mating-part reference or assembly drawing for selection assistance.
Applications
Compatible detachable blade connections in appliance wiring, equipment assemblies and harness servicing. Confirm the mating hardware, conductor, operating conditions and connection requirements for the exact model and finished assembly.
Ordering Information
Provide the full RSMD model reference, conductor size and mating-part dimensions, order quantity and intended application. Include packaging, labeling and delivery requirements for OEM and wholesale enquiries.
