HV Hook Insulated Terminal
HV Hook Insulated Terminal
TONFUL Electric HV hook insulated terminals combine a tin-plated copper hook contact with vinyl insulation for crimped wire connections. Choose the model to match your conductor size and bolt connection.

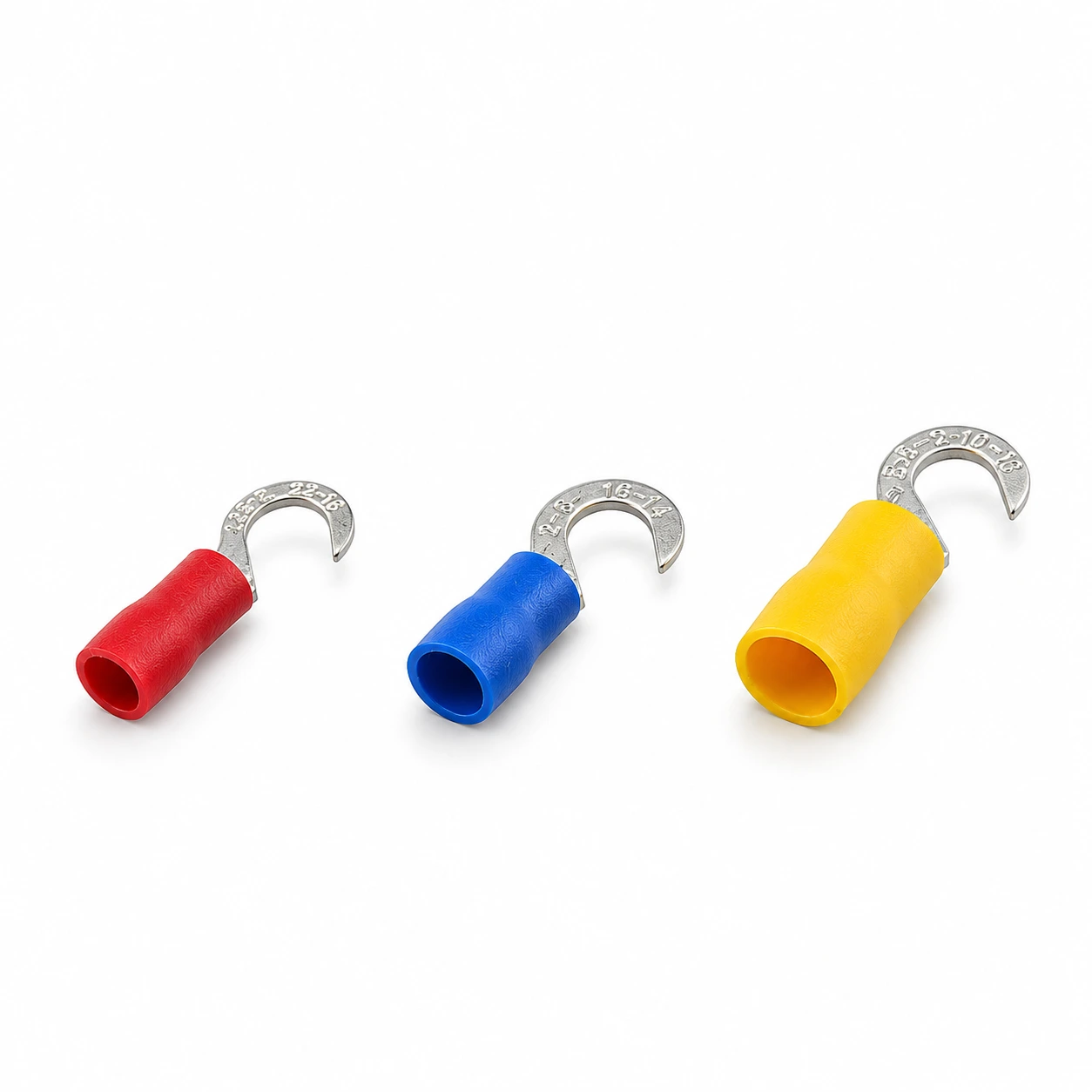

- 13 HV models with red, blue and yellow insulation.
- Listed conductor sizes: 0.5–1.5, 1.5–2.5 and 4.0–6.0 mm².
- Model-specific maximum current: 19, 27 or 48 A.
- Compare bolt reference, hook opening and terminal dimensions.
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Overview
TONFUL Electric HV hook insulated terminals combine a tin-plated copper hook contact with vinyl insulation for crimped wire connections. Choose the model to match your conductor size and bolt connection. The existing range includes 13 models, with wire sizes, current values and dimensions specified below.
The open hook interface is selected for the intended bolt or stud connection. Confirm hook orientation, fit and assembly requirements against your drawing or approved sample.
Features

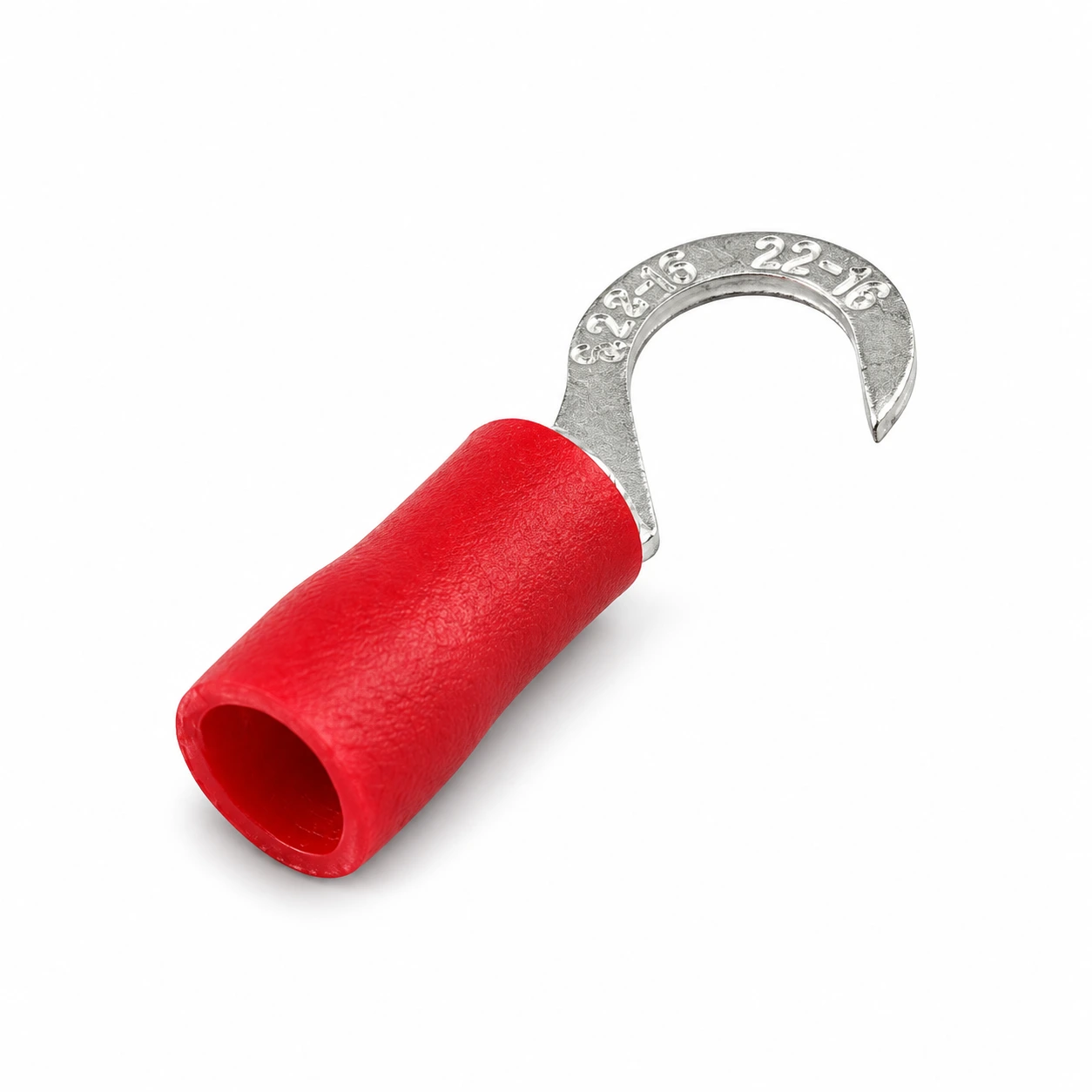

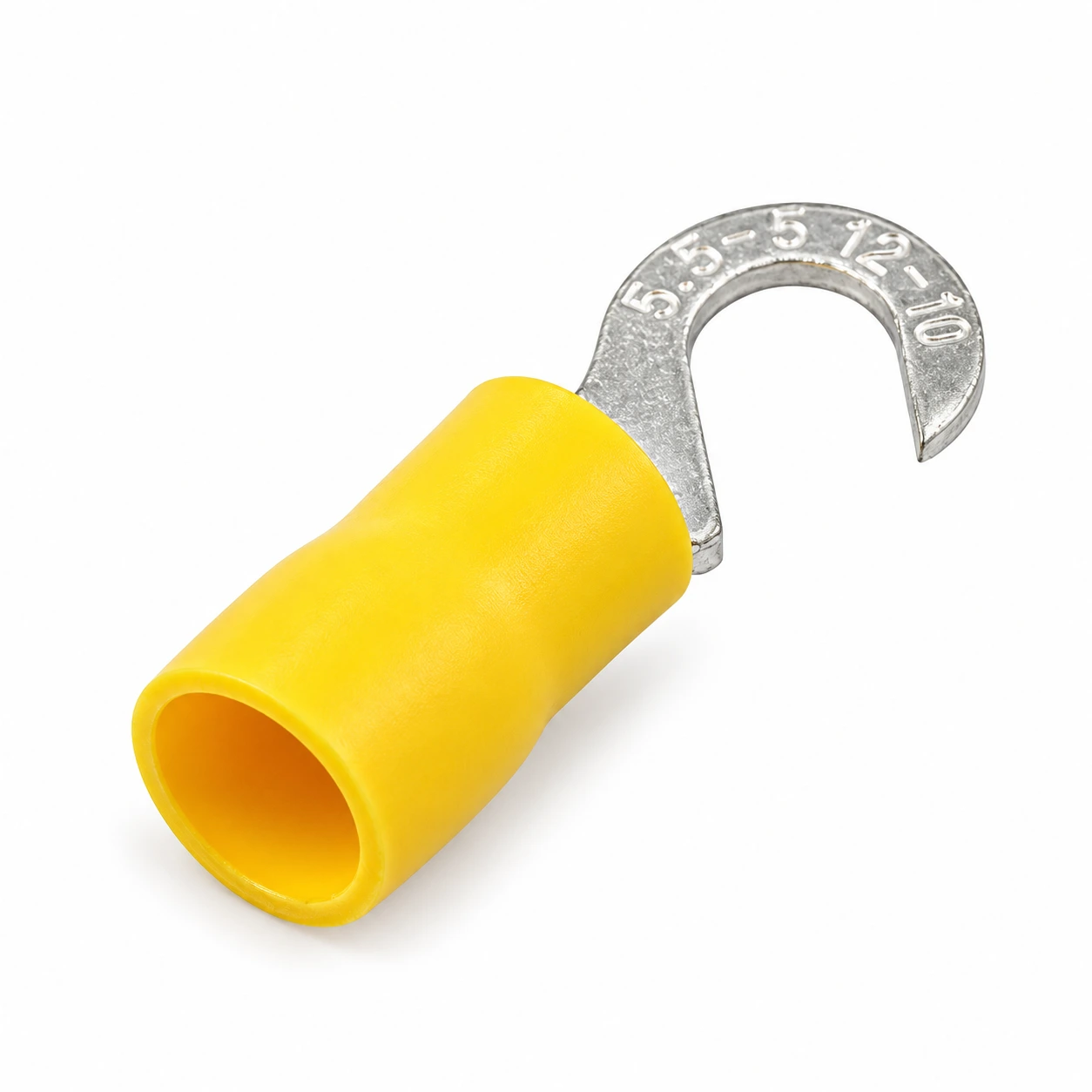

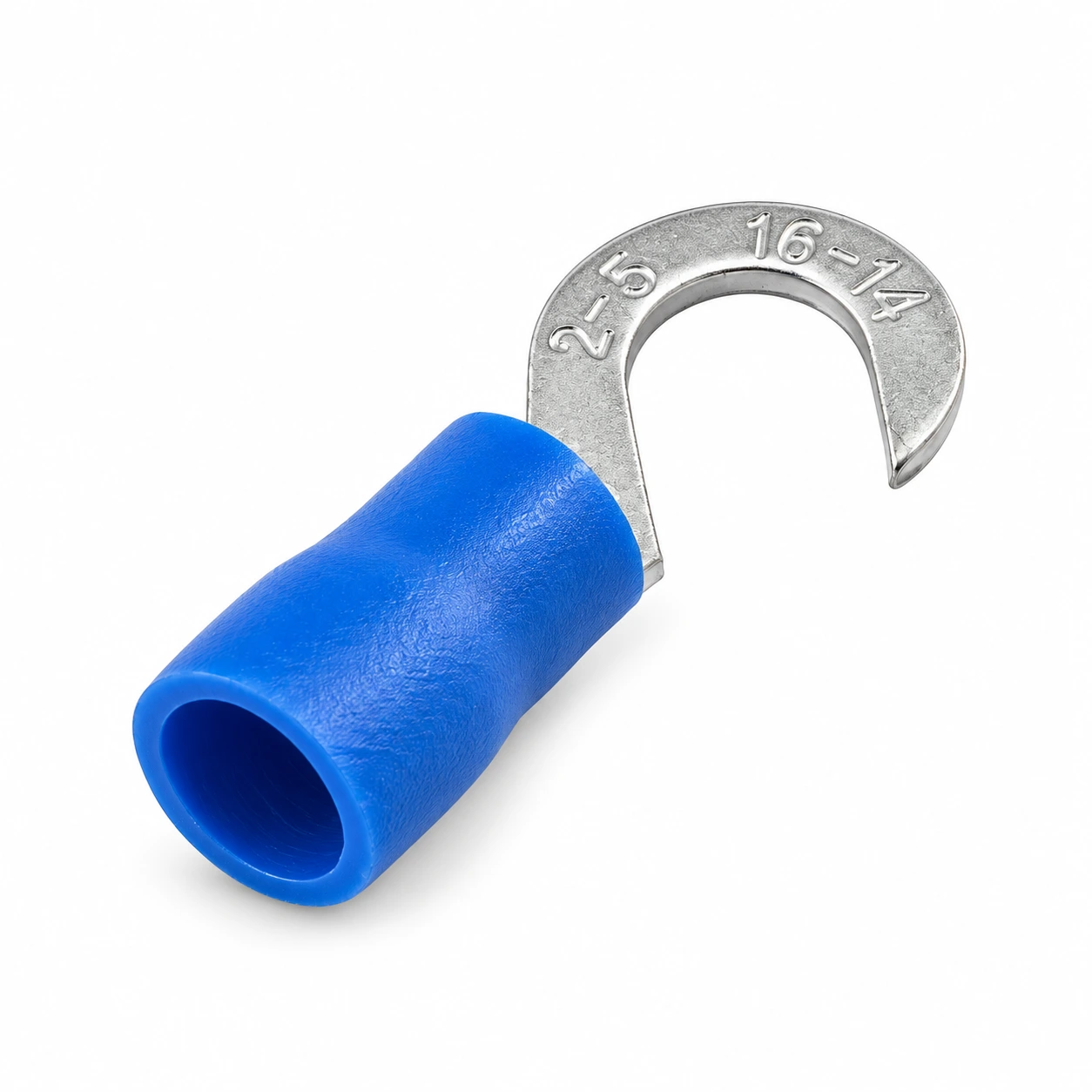

- Vinyl insulation: red, blue and yellow sleeves identify the listed conductor-size groups.
- Tin-plated copper contact: material and plating retained from TONFUL specifications.
- Open hook interface: compare bolt reference and opening dimension d2.
- Model-specific selection: current and thickness vary by conductor-size group.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product family | Hook insulated crimp terminal |
| Series | HV |
| Terminal material | Copper |
| Plating | Tin |
| Insulation material | Vinyl |
| Listed models | 13 |
| Conductor section | 0.5–1.5 / 1.5–2.5 / 4.0–6.0 mm² |
| Maximum current | 19 / 27 / 48 A, depending on model |
Current values are model-specific catalog values. Confirm the conductor, installation and operating conditions for your assembly.

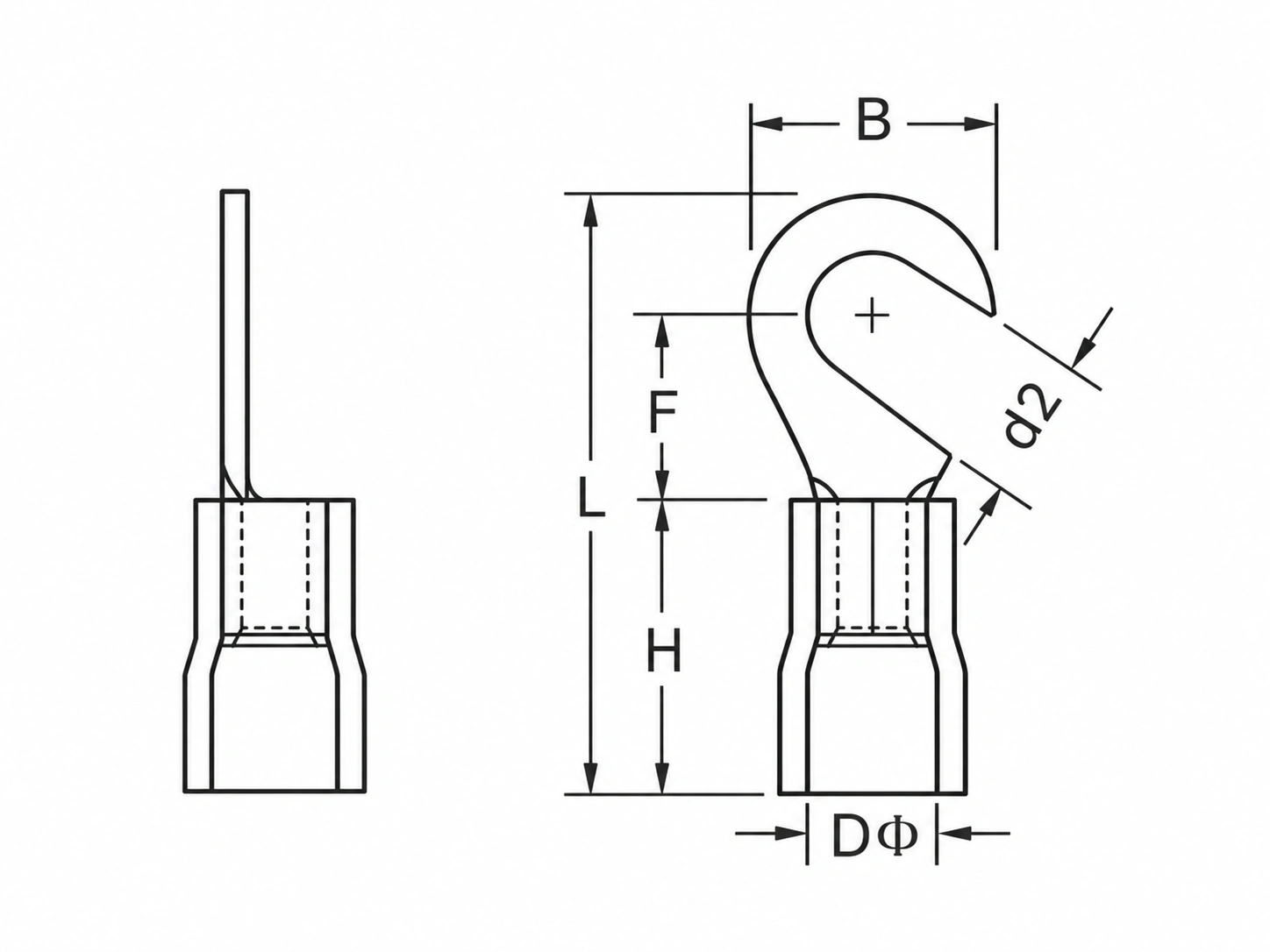

Dimension
All terminal dimensions are in millimeters; conductor section is in mm² and current is in A. Values below are retained from TONFUL’s original product information.
| Model | Wire section (mm²) |
AWG | Max current (A) |
Thickness (mm) |
USA bolt reference |
d2 (mm) |
B (mm) |
F (mm) |
L (mm) |
E (mm) |
DΦ (mm) |
Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HV1.25-3.5 | 0.5–1.5 | 22–16 | 19 | 0.7 | #6 | 3.7 | 8.0 | 7.0 | 21.0 | 10.0 | 4.3 | Red |
| HV1.25-4 | 0.5–1.5 | 22–16 | 19 | 0.7 | #8 | 4.3 | 8.0 | 7.0 | 21.0 | 10.0 | 4.3 | Red |
| HV1.25-5 | 0.5–1.5 | 22–16 | 19 | 0.7 | #10 | 5.3 | 8.0 | 7.0 | 21.0 | 10.0 | 4.3 | Red |
| HV1.25-6 | 0.5–1.5 | 22–16 | 19 | 0.7 | 1/4 | 6.5 | 11.6 | 11.0 | 27.0 | 10.0 | 4.3 | Red |
| HV2-3.5 | 1.5–2.5 | 16–14 | 27 | 0.8 | #6 | 3.7 | 8.5 | 7.4 | 22.0 | 10.0 | 4.9 | Blue |
| HV2-4 | 1.5–2.5 | 16–14 | 27 | 0.8 | #8 | 4.3 | 8.5 | 7.4 | 22.0 | 10.0 | 4.9 | Blue |
| HV2-5 | 1.5–2.5 | 16–14 | 27 | 0.8 | #10 | 5.3 | 9.5 | 7.3 | 22.0 | 10.0 | 4.9 | Blue |
| HV2-6 | 1.5–2.5 | 16–14 | 27 | 0.8 | 1/4 | 6.5 | 12.0 | 11.0 | 27.0 | 10.0 | 4.9 | Blue |
| HV5.5-3.5 | 4.0–6.0 | 12–10 | 48 | 1.0 | #6 | 3.7 | 7.2 | 6.1 | 22.7 | 13.0 | 6.7 | Yellow |
| HV5.5-4 | 4.0–6.0 | 12–10 | 48 | 1.0 | #8 | 4.3 | 9.5 | 9.5 | 26.8 | 13.0 | 6.7 | Yellow |
| HV5.5-5 | 4.0–6.0 | 12–10 | 48 | 1.0 | #10 | 5.3 | 9.5 | 9.5 | 26.8 | 13.0 | 6.7 | Yellow |
| HV5.5-6 | 4.0–6.0 | 12–10 | 48 | 1.0 | 1/4 | 6.5 | 12.0 | 10.3 | 29.5 | 13.0 | 6.7 | Yellow |
| HV5.5-8 | 4.0–6.0 | 12–10 | 48 | 1.0 | 5/16 | 8.5 | 15.0 | 13.5 | 34.0 | 13.0 | 6.7 | Yellow |
Selection Guide
Start with conductor section and AWG range, then compare the model-specific maximum current and thickness. Match the bolt reference and d2 opening dimension, and verify B, F and L against the available connection space.
Use a compatible insulated-terminal crimping tool and confirm bolt tightening and retention requirements for the approved assembly. Do not select by sleeve color alone.
Applications
For crimped wire connections requiring an open hook interface on a compatible bolt or stud. Potential uses include equipment wiring, panel assemblies and cable harnesses where the selected model meets the installation requirements.
Confirm voltage, temperature, environmental protection and required approvals for your selected model. These ratings are not stated on the original page.
Ordering Information
Provide the full HV model number, conductor size, bolt or stud reference, order quantity and application requirements when requesting a quotation. Include samples, packaging and inspection requirements.
