Non-Insulated Cord End Terminal
TONFUL Electric EN non-insulated cord end terminals are bare tubular ferrules for terminating compatible stranded conductors. Compare 68 catalog entries by wire section, AWG, sleeve length and barrel dimensions.
- 68 original catalog entries.
- Listed conductor sections span 0.2–185 mm², depending on model.
- Copper / brass terminal; tin / silver (catalog options) finish options.

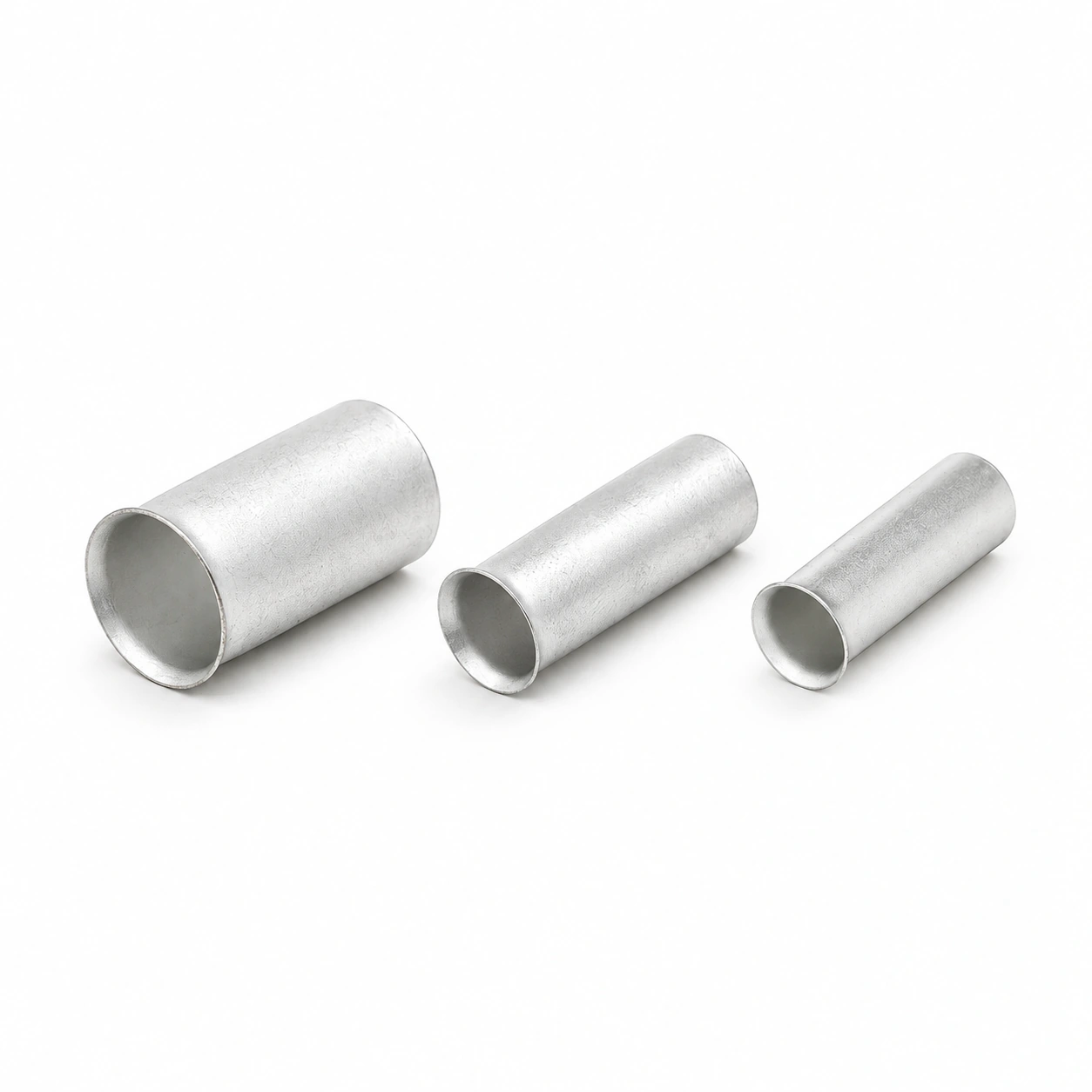

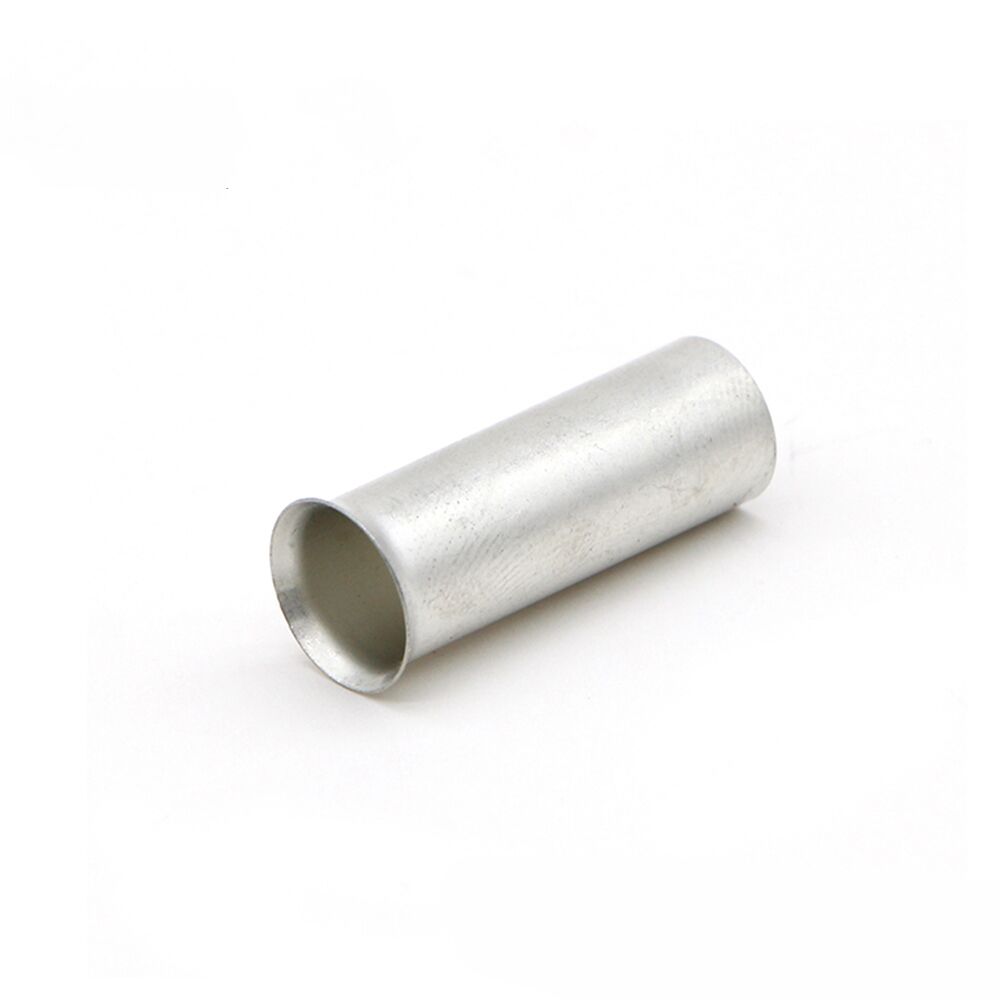

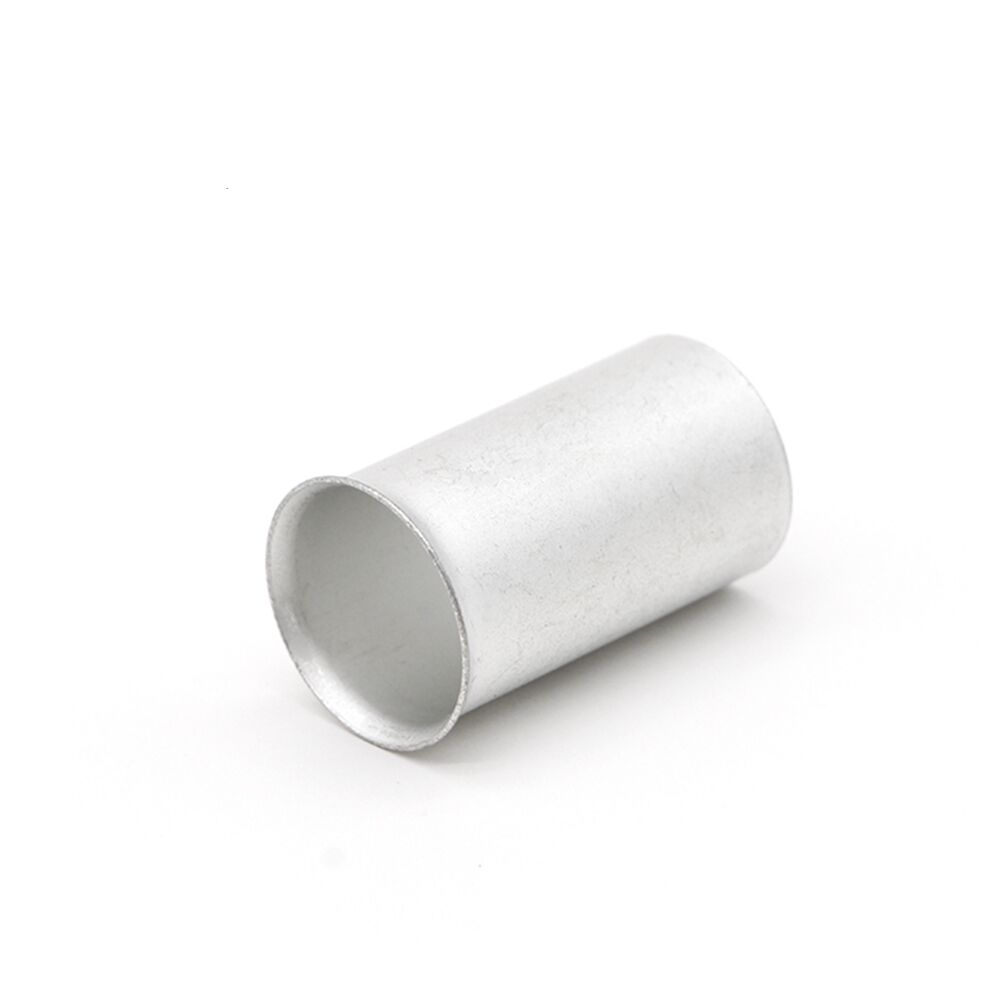

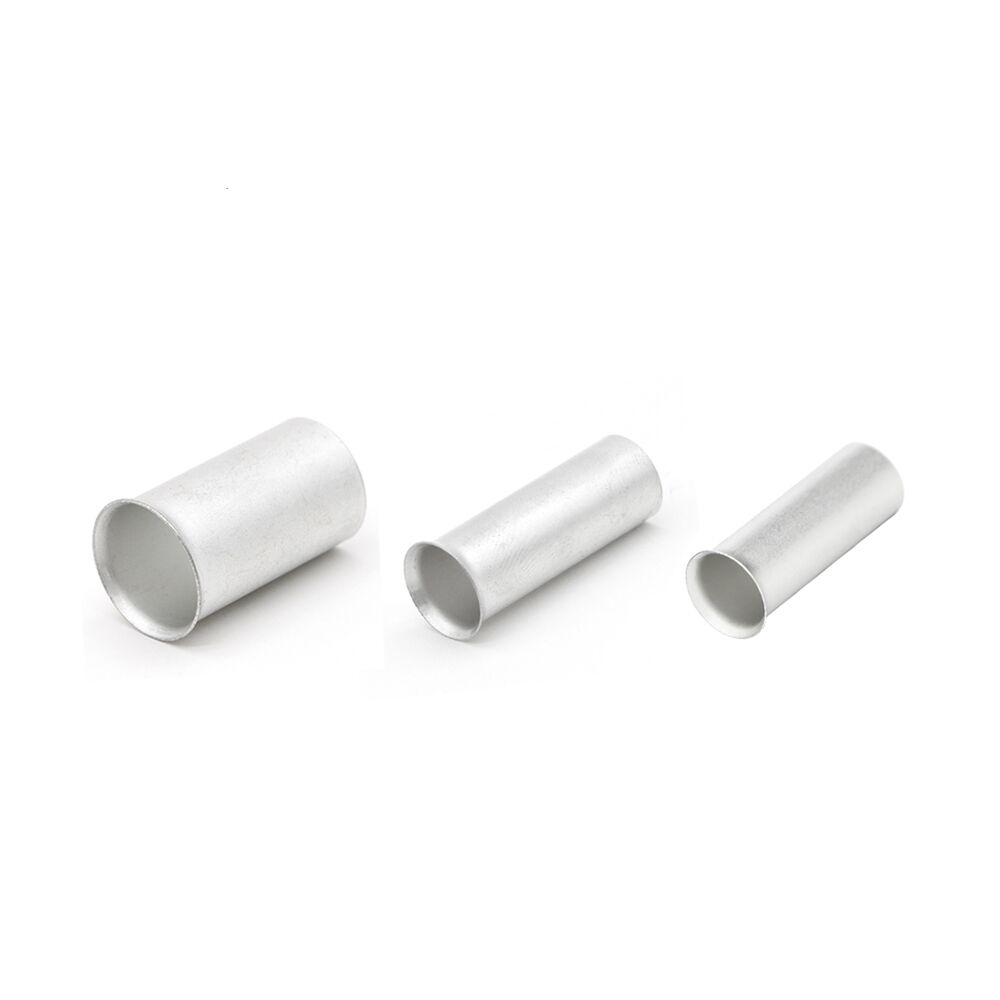

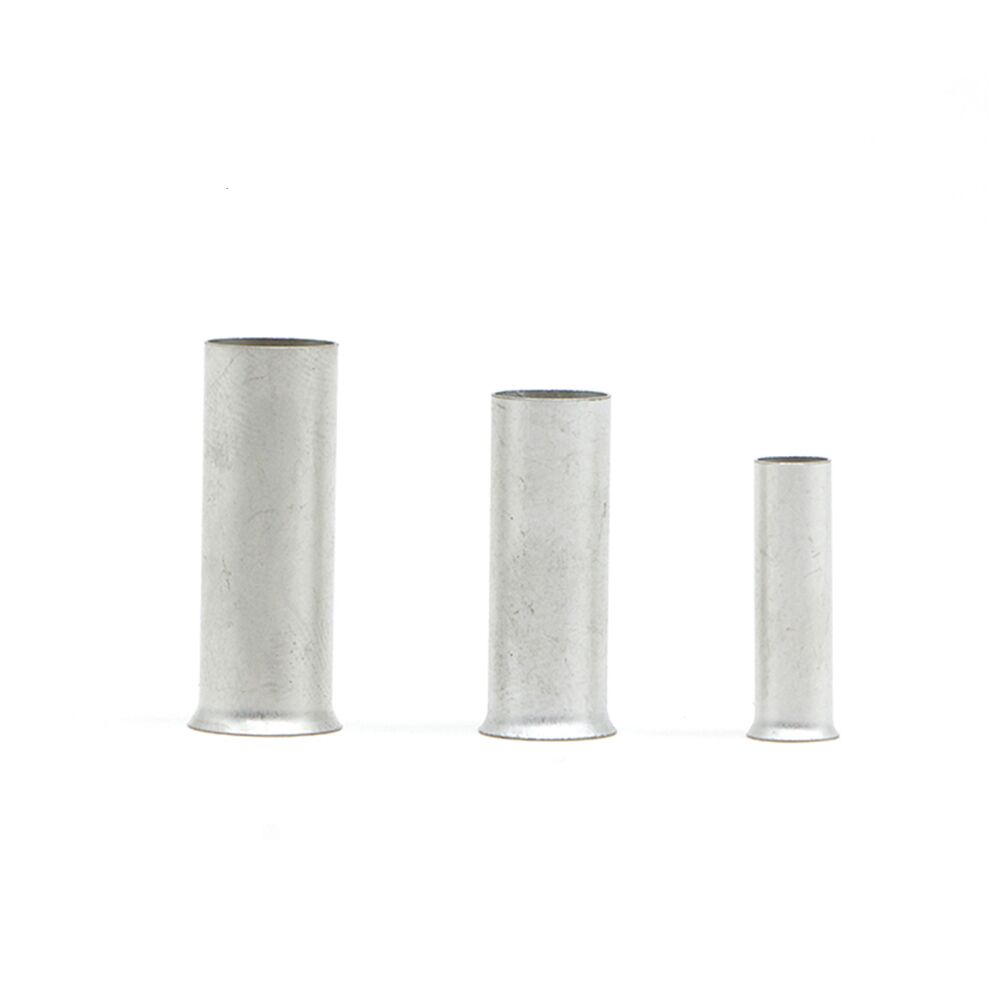

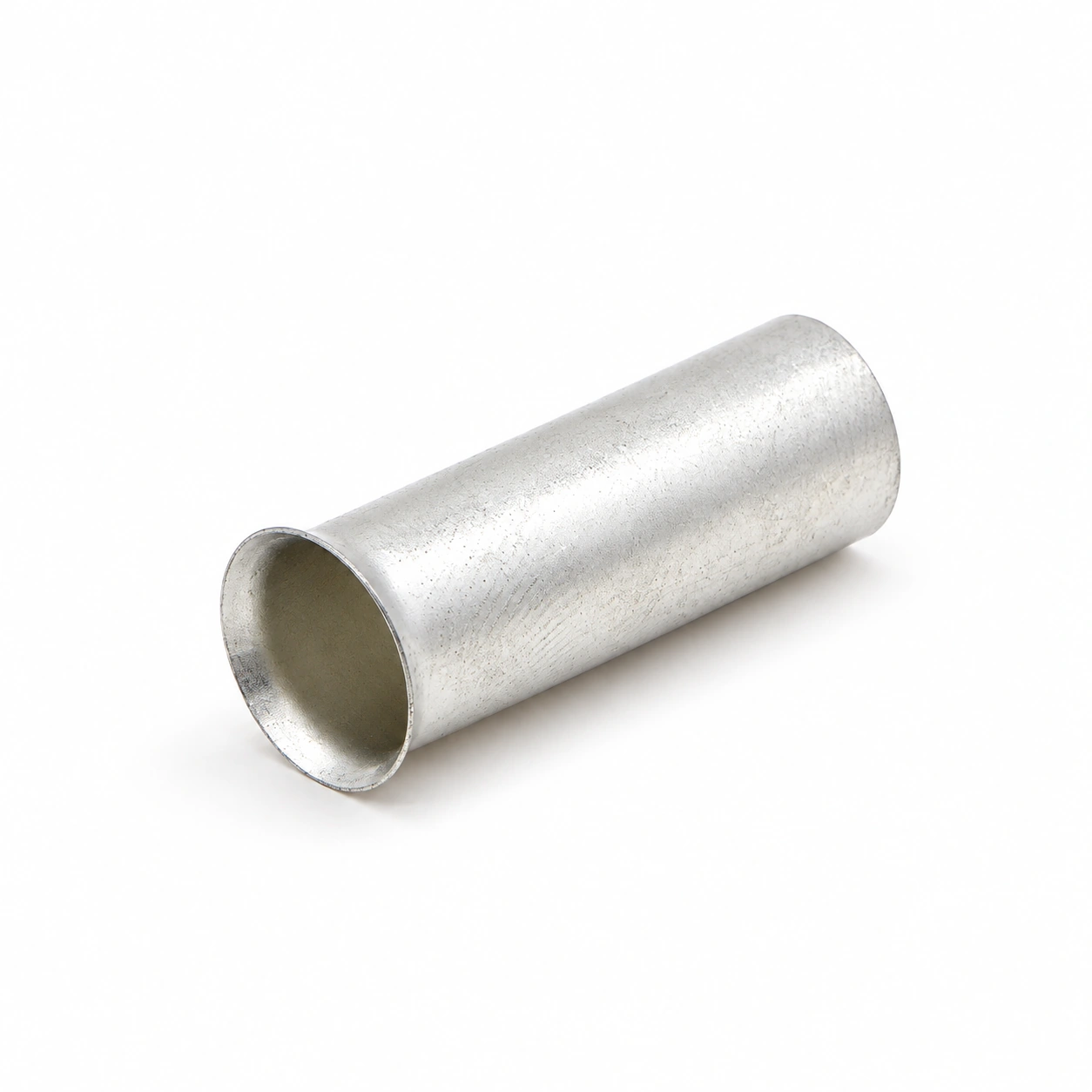

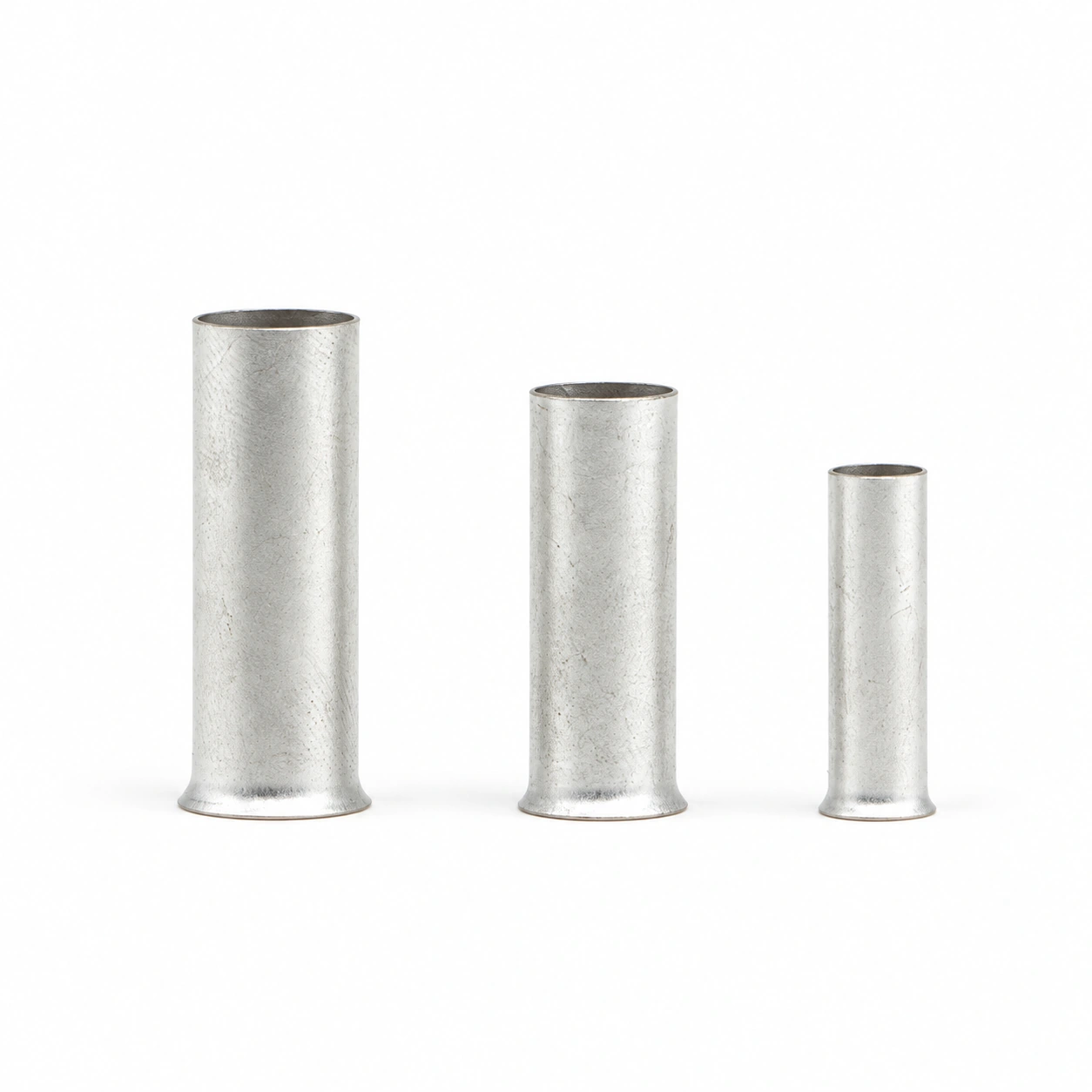

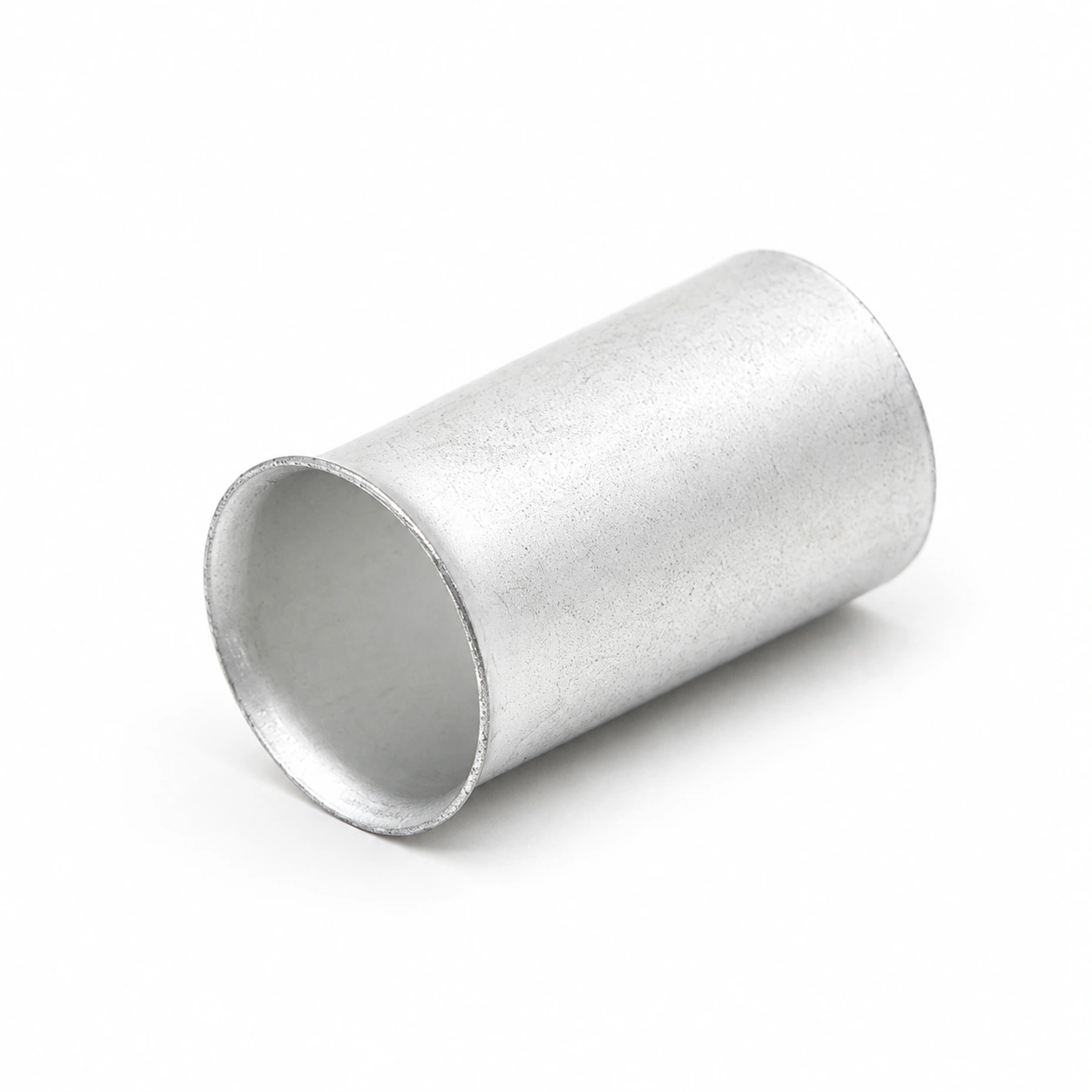

- The thin-walled tubular sleeve gathers the conductor strands at the wire end.
Overview
TONFUL Electric EN non-insulated cord end terminals are bare tubular ferrules for terminating compatible stranded conductors. Compare 68 catalog entries by wire section, AWG, sleeve length and barrel dimensions. The thin-walled tubular sleeve gathers the conductor strands at the wire end.
Features
- Connection interface: The thin-walled tubular sleeve gathers the conductor strands at the wire end.
- Terminal material: copper / brass as stated in the original catalog.
- Bare construction: the terminal has no integral insulating sleeve.
- Model-specific fit: compare the conductor section, contact geometry and assembly space before selection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | EN |
| Terminal type | Bare tubular wire ferrule |
| Terminal material | Copper / brass |
| Insulation | Non-insulated |
| Listed catalog entries | 68 |
| Plating | Tin / silver (catalog options) |
| Listed wire-section range | 0.2–185 mm², depending on model |
Select the terminal material, finish and conductor dimensions for the intended assembly.
Dimension

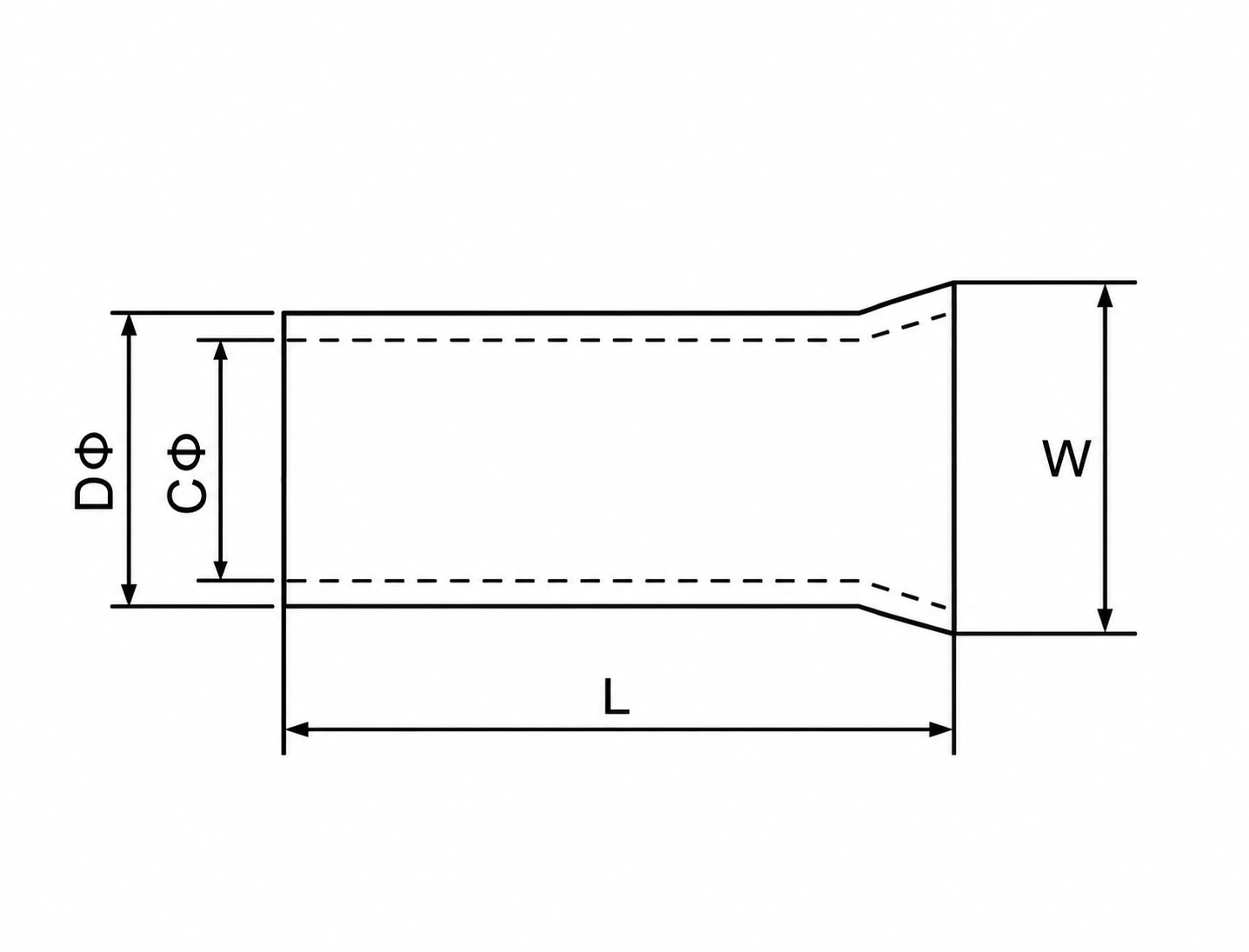

Dimensions are in millimeters, conductor sections are in mm² and current values are in amperes. Model references and dimensions retain the original TONFUL catalog data.
| Model | L (mm) | DΦ (mm) | CΦ (mm) | W (mm) | AWG | Wire section (mm²) |
|---|---|---|---|---|---|---|
| EN0206 | 6.0 | 1.0 | 0.7 | 1.4 | #26 | 0.2 |
| EN0207 | 7.0 | 1.0 | 0.7 | 1.4 | #26 | 0.2 |
| EN0208 | 8.0 | 1.0 | 0.7 | 1.4 | #26 | 0.2 |
| EN0306 | 6.0 | 1.1 | 0.8 | 1.5 | #24 | 0.3 |
| EN0308 | 8.0 | 1.1 | 0.8 | 1.5 | #24 | 0.3 |
| EN0505 | 5.0 | 1.3 | 1.0 | 1.7 | #22 | 0.5 |
| EN0506 | 6.0 | 1.3 | 1.0 | 1.7 | #22 | 0.5 |
| EN0508 | 8.0 | 1.3 | 1.0 | 1.7 | #22 | 0.5 |
| EN0510 | 10.0 | 1.3 | 1.0 | 1.7 | #22 | 0.5 |
| EN0512 | 12.0 | 1.3 | 1.0 | 1.7 | #22 | 0.5 |
| EN7506 | 6.0 | 1.6 | 1.3 | 1.9 | #20 | 0.75 |
| EN7508 | 8.0 | 1.6 | 1.3 | 1.9 | #20 | 0.75 |
| EN7510 | 10.0 | 1.6 | 1.3 | 1.9 | #20 | 0.75 |
| EN7512 | 12.0 | 1.6 | 1.3 | 1.9 | #20 | 0.75 |
| EN1006 | 6.0 | 1.8 | 1.5 | 2.2 | #18 | 1.0 |
| EN1008 | 8.0 | 1.8 | 1.5 | 2.2 | #18 | 1.0 |
| EN1010 | 10.0 | 1.8 | 1.5 | 2.2 | #18 | 1.0 |
| EN1012 | 12.0 | 1.8 | 1.5 | 2.2 | #18 | 1.0 |
| EN1507 | 7.0 | 2.1 | 1.8 | 2.5 | #16 | 1.5 |
| EN1508 | 8.0 | 2.1 | 1.8 | 2.5 | #16 | 1.5 |
| EN1510 | 10.0 | 2.1 | 1.8 | 2.5 | #16 | 1.5 |
| EN1512 | 12.0 | 2.1 | 1.8 | 2.5 | #16 | 1.5 |
| EN1518 | 18.0 | 2.1 | 1.8 | 2.5 | #16 | 1.5 |
| EN2507 | 7.0 | 2.6 | 2.3 | 3.3 | #14 | 2.5 |
| EN2508 | 8.0 | 2.6 | 2.3 | 3.3 | #14 | 2.5 |
| EN2510 | 10.0 | 2.6 | 2.3 | 3.3 | #14 | 2.5 |
| EN2512 | 12.0 | 2.6 | 2.3 | 3.3 | #14 | 2.5 |
| EN2518 | 18.0 | 2.6 | 2.3 | 3.3 | #14 | 2.5 |
| EN4009 | 9.0 | 3.2 | 2.8 | 3.9 | #12 | 4.0 |
| EN4012 | 12.0 | 3.2 | 2.8 | 3.9 | #12 | 4.0 |
| EN4018 | 18.0 | 3.2 | 2.8 | 3.9 | #12 | 4.0 |
| EN6010 | 10.0 | 3.9 | 3.5 | 4.8 | #10 | 6.0 |
| EN6012 | 12.0 | 3.9 | 3.5 | 4.8 | #10 | 6.0 |
| EN6015 | 15.0 | 3.9 | 3.5 | 4.8 | #10 | 6.0 |
| EN6018 | 18.0 | 3.9 | 3.5 | 4.8 | #10 | 6.0 |
| EN10-12 | 12.0 | 4.9 | 4.5 | 5.8 | #7 | 10.0 |
| EN10-15 | 15.0 | 4.9 | 4.5 | 5.8 | #7 | 10.0 |
| EN10-18 | 18.0 | 4.9 | 4.5 | 5.8 | #7 | 10.0 |
| EN16-12 | 12.0 | 6.2 | 5.8 | 7.2 | #5 | 16.0 |
| EN16-15 | 15.0 | 6.2 | 5.8 | 7.2 | #5 | 16.0 |
| EN16-18 | 18.0 | 6.2 | 5.8 | 7.2 | #5 | 16.0 |
| EN25-16 | 16.0 | 7.9 | 7.5 | 9.1 | #4 | 25.0 |
| EN25-22 | 22.0 | 7.9 | 7.5 | 9.1 | #4 | 25.0 |
| EN35-16 | 16.0 | 8.7 | 8.3 | 10.2 | #2 | 35.0 |
| EN35-25 | 25.0 | 8.7 | 8.3 | 10.2 | #2 | 35.0 |
| EN50-20 | 20.0 | 10.9 | 10.3 | 12.4 | #1 | 50.0 |
| EN50-25 | 25.0 | 10.9 | 10.3 | 12.4 | #1 | 50.0 |
| EN50-30 | 30.0 | 10.9 | 10.3 | 12.7 | 1/0 | 50.0 |
| EN50-32 | 32.0 | 10.9 | 10.3 | 12.7 | 1/0 | 50.0 |
| EN70-22 | 22.0 | 14.3 | 13.5 | 15.8 | 2/0 | 70.0 |
| EN70-25 | 25.0 | 14.3 | 13.5 | 15.8 | 2/0 | 70.0 |
| EN70-30 | 30.0 | 14.3 | 13.5 | 15.8 | 2/0 | 70.0 |
| EN70-32 | 32.0 | 14.3 | 13.5 | 15.8 | 2/0 | 70.0 |
| EN95-25 | 25.0 | 15.3 | 14.5 | 17.3 | 3/0 | 95.0 |
| EN95-30 | 30.0 | 15.3 | 14.5 | 17.3 | 3/0 | 95.0 |
| EN95-32 | 32.0 | 15.3 | 14.5 | 17.3 | 3/0 | 95.0 |
| EN95-34 | 34.0 | 15.3 | 14.5 | 17.3 | 3/0 | 95.0 |
| EN120-30 | 30.0 | 17.5 | 16.5 | 20.2 | 4/0 | 120.0 |
| EN120-32 | 32.0 | 17.5 | 16.5 | 20.2 | 4/0 | 120.0 |
| EN120-34 | 34.0 | 17.5 | 16.5 | 20.2 | 4/0 | 120.0 |
| EN120-38 | 38.0 | 17.5 | 16.5 | 20.2 | 4/0 | 120.0 |
| EN120-40 | 40.0 | 17.5 | 16.5 | 20.2 | 4/0 | 120.0 |
| EN150-32 | 32.0 | 20.6 | 19.6 | 23.0 | 250/300. | 150.0 |
| EN150-34 | 34.0 | 20.6 | 19.6 | 23.0 | 250/300. | 150.0 |
| EN150-38 | 38.0 | 20.6 | 19.6 | 23.0 | 250/300. | 150.0 |
| EN150-40 | 40.0 | 20.6 | 19.6 | 23.0 | 250/300. | 150.0 |
| EN185-32 | 32.0 | 21.4 | 20.2 | 23.9 | 250/300. | 185.0 |
| EN185-40 | 40.0 | 21.4 | 20.2 | 23.9 | 250/300. | 185.0 |
Selection Guide
Match the conductor section and strand construction, then compare L, DΦ, CΦ and W with the terminal block and crimp tooling. Use tooling suitable for the selected terminal and conductor, and provide any insulation or enclosure required by the installation. Send a mating-part reference or assembly drawing for selection assistance.
Applications
Compatible stranded-wire terminations in control panels, terminal blocks, equipment wiring and electrical maintenance. Select the terminal against the conductor, mating components, installation conditions and finished-assembly requirements.
Ordering Information
Provide the full EN model reference, conductor section, sleeve length and barrel dimensions, order quantity and intended application. Include packaging, labeling and delivery requirements for OEM and wholesale enquiries.
Request a EN terminal quote or email ivan@tonful.com.
