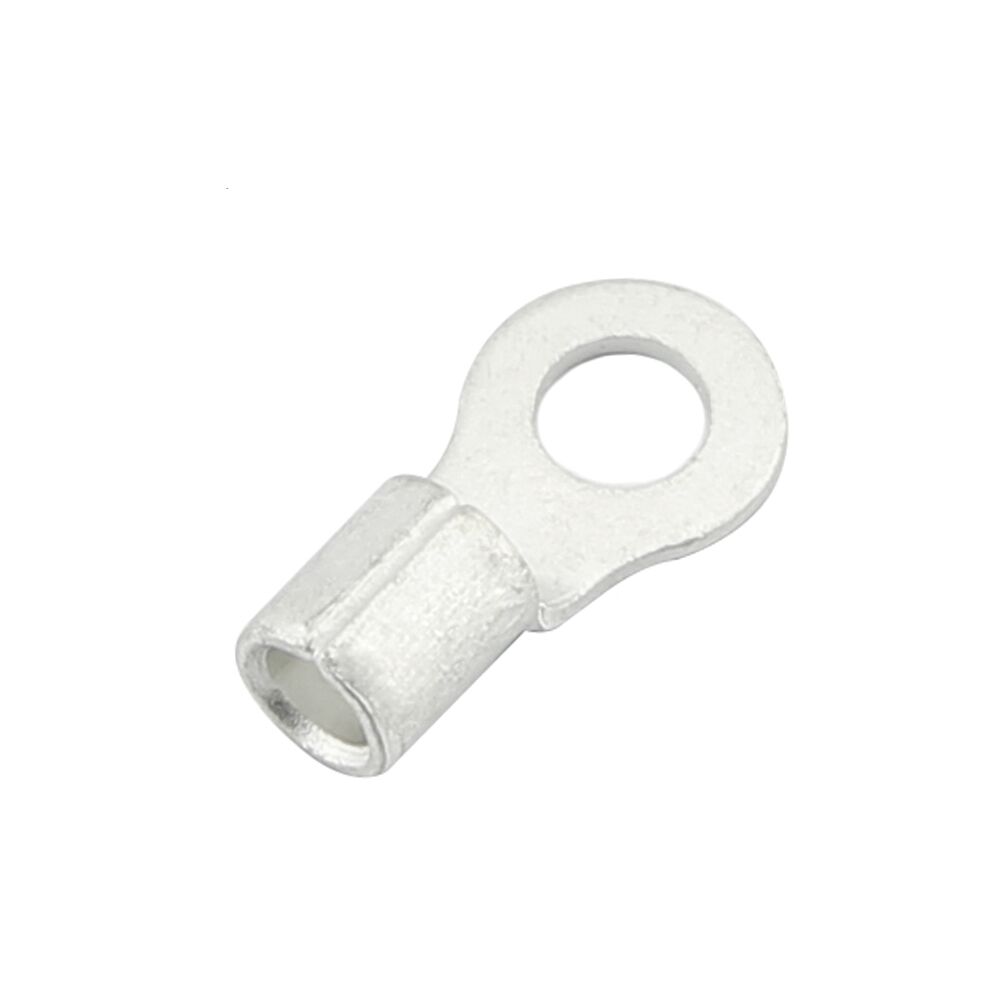

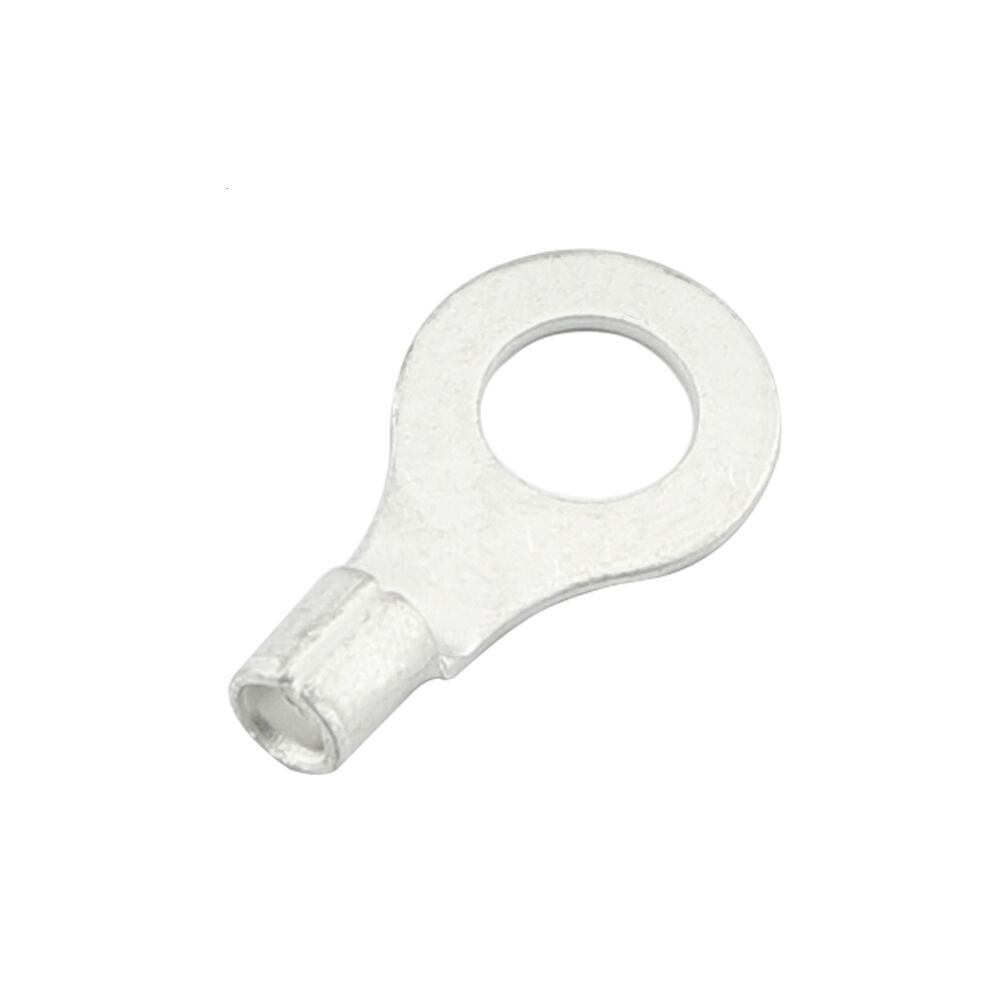

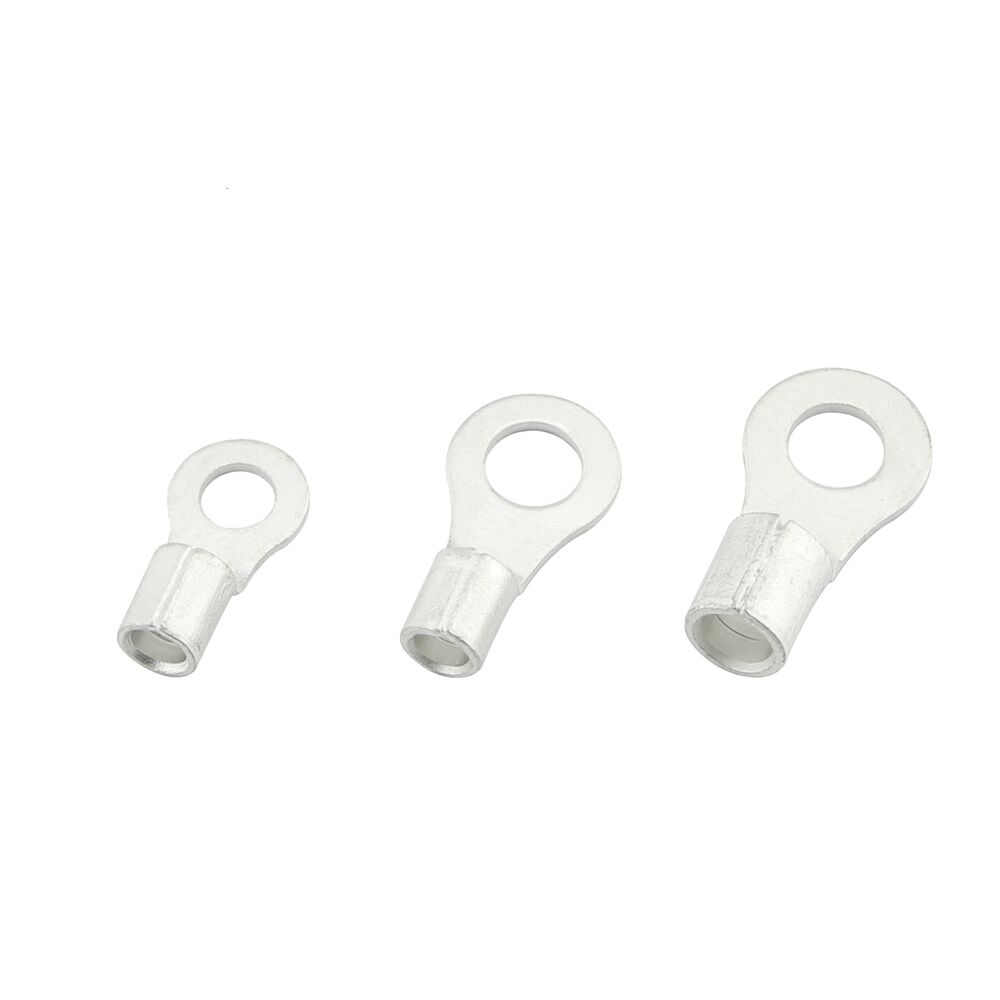

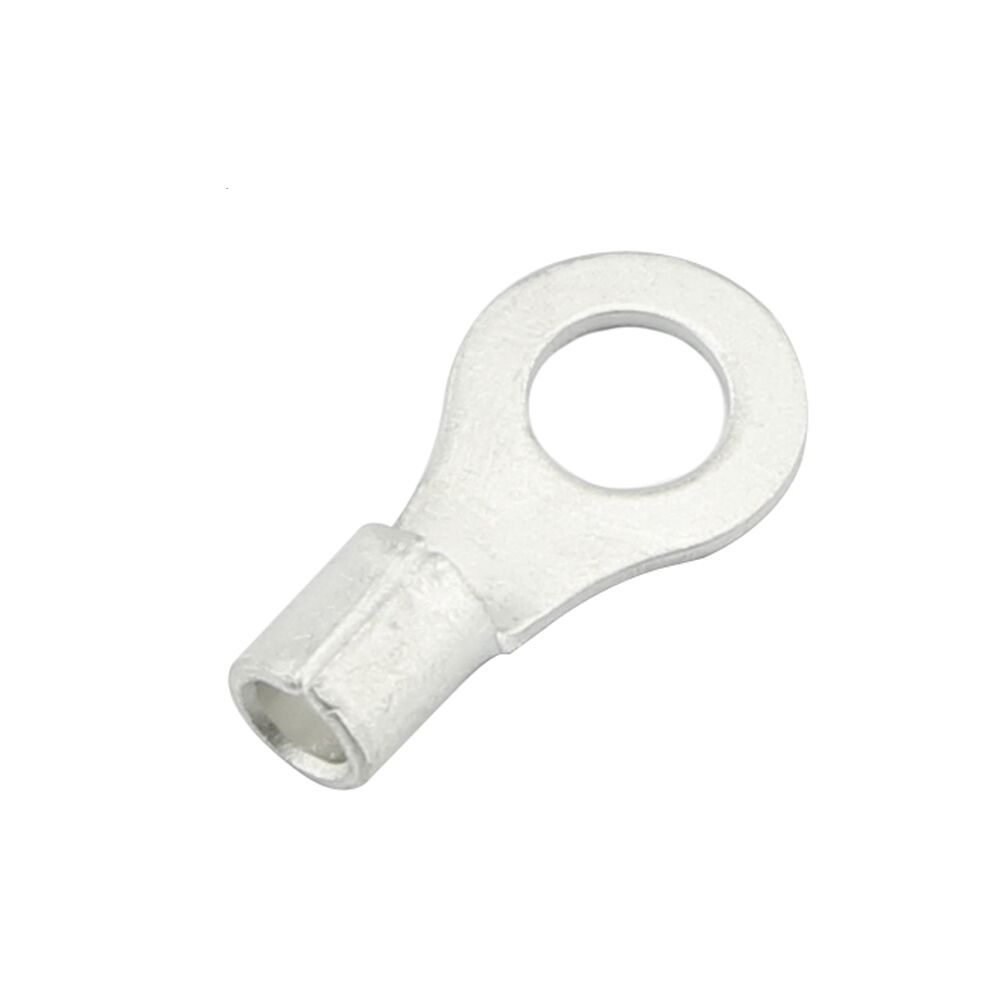

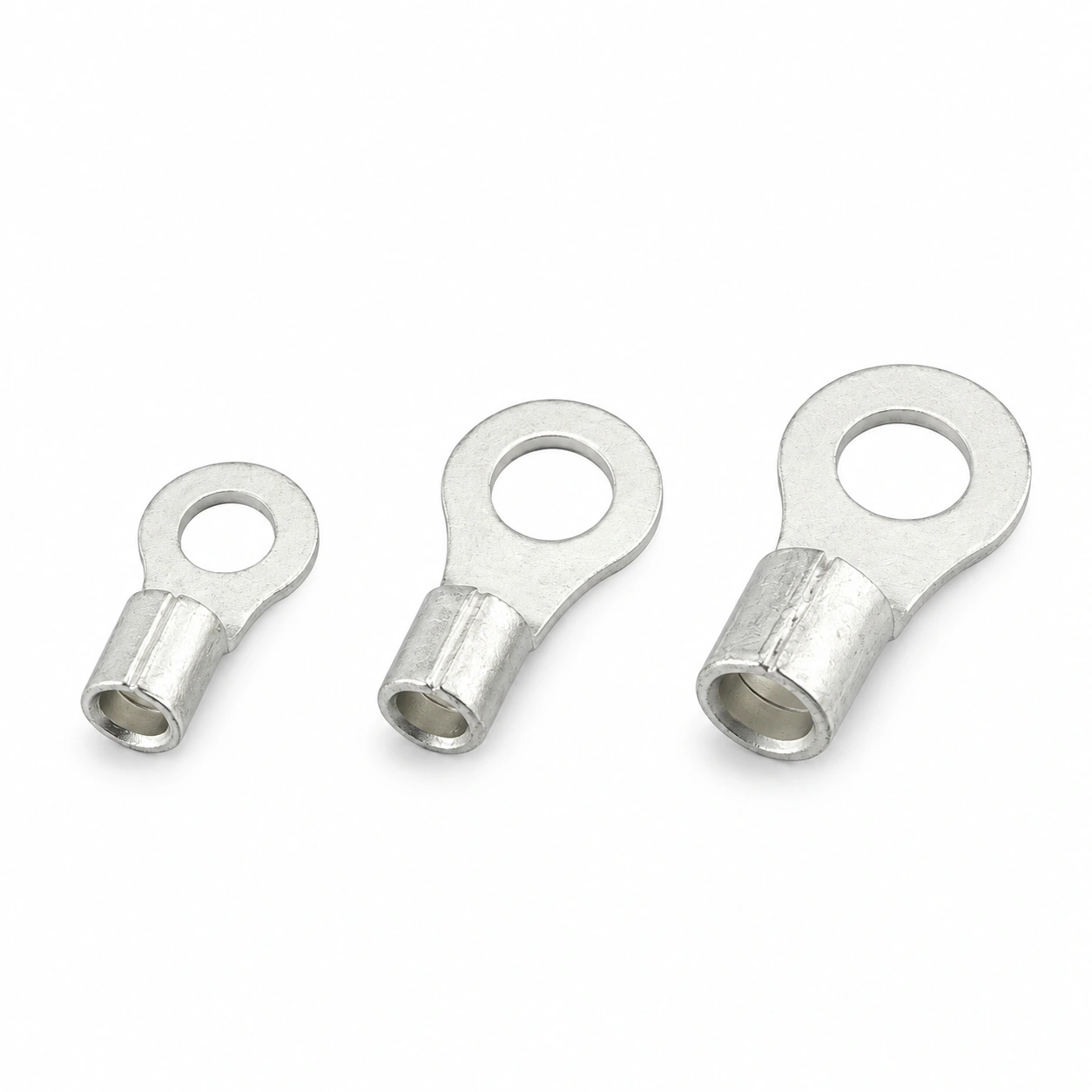

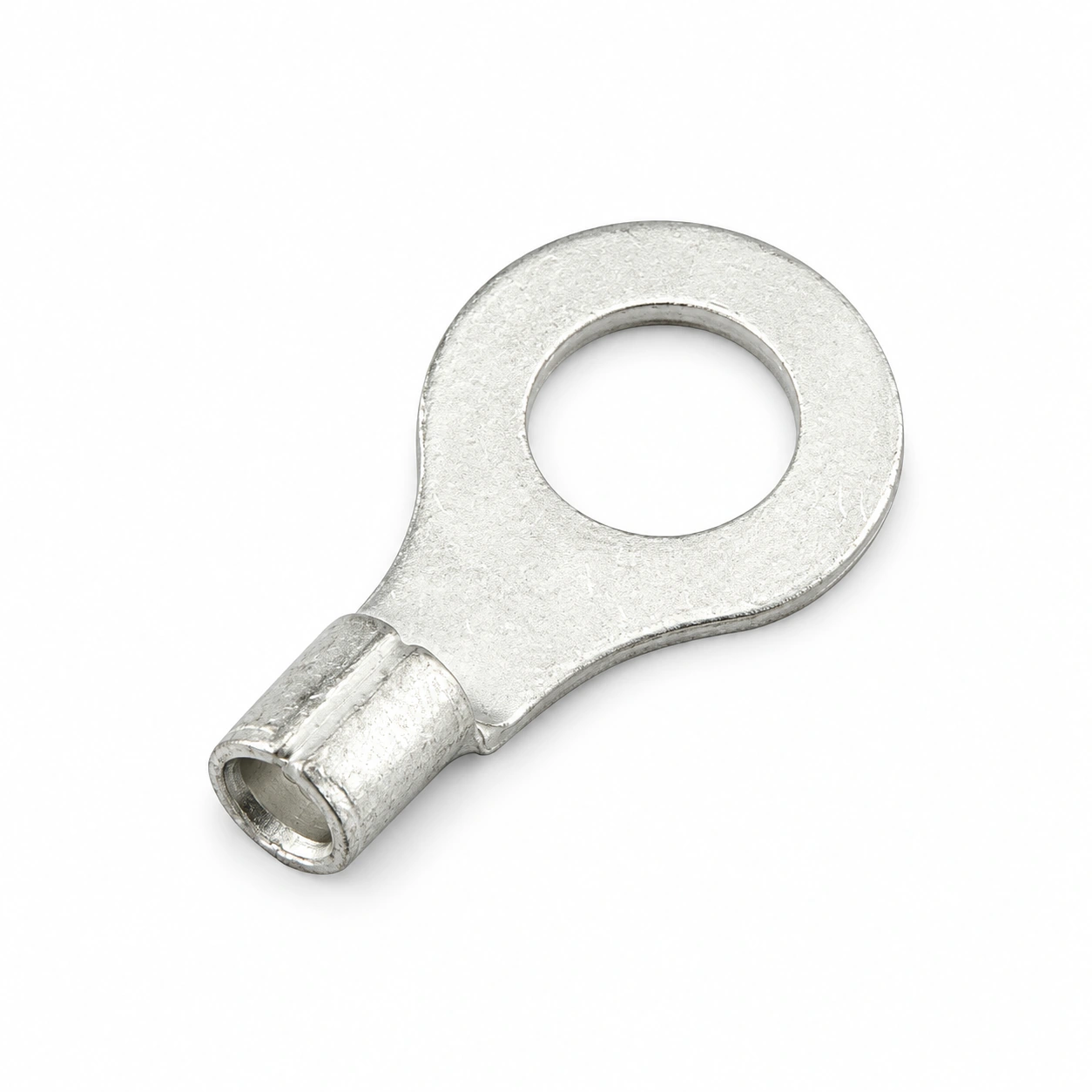

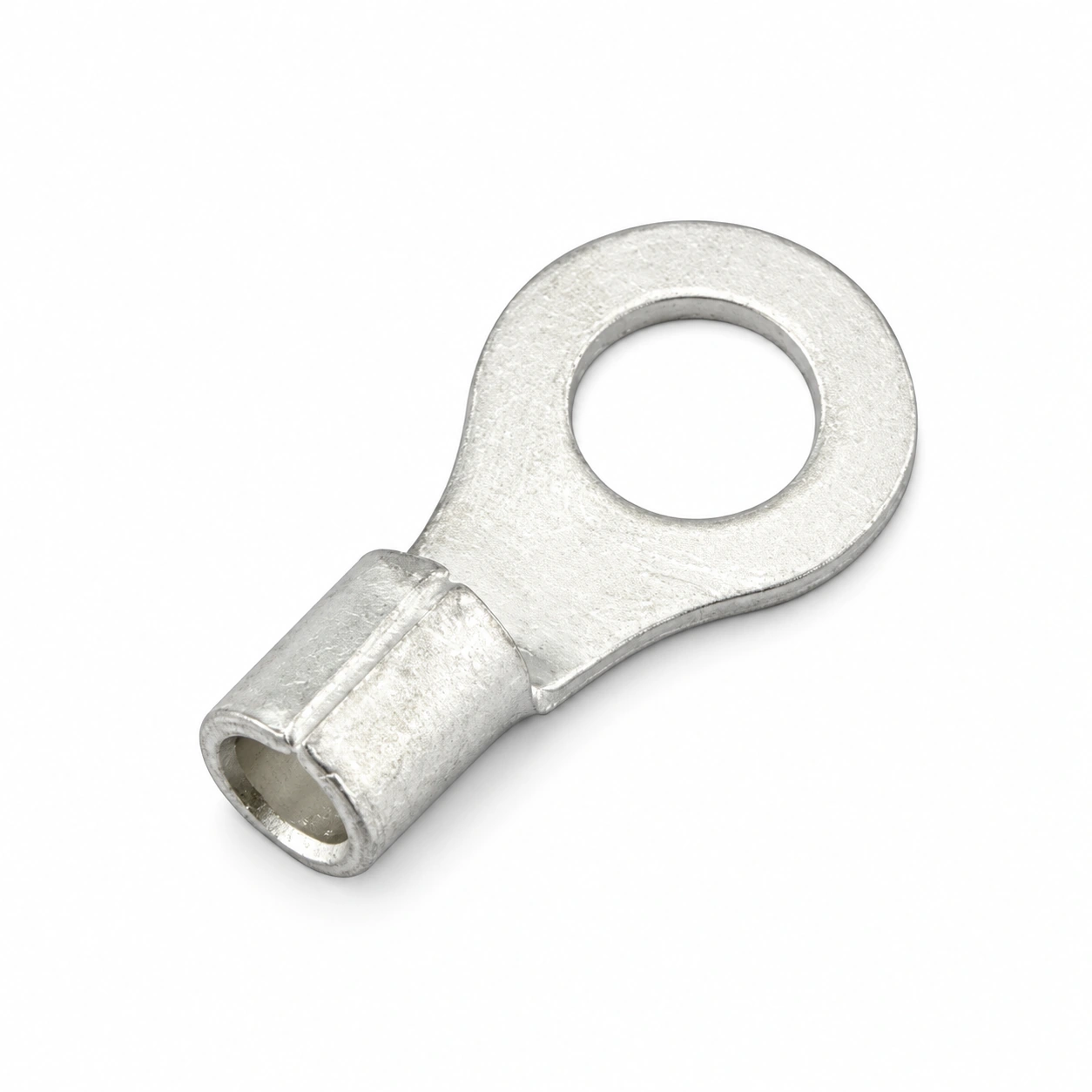

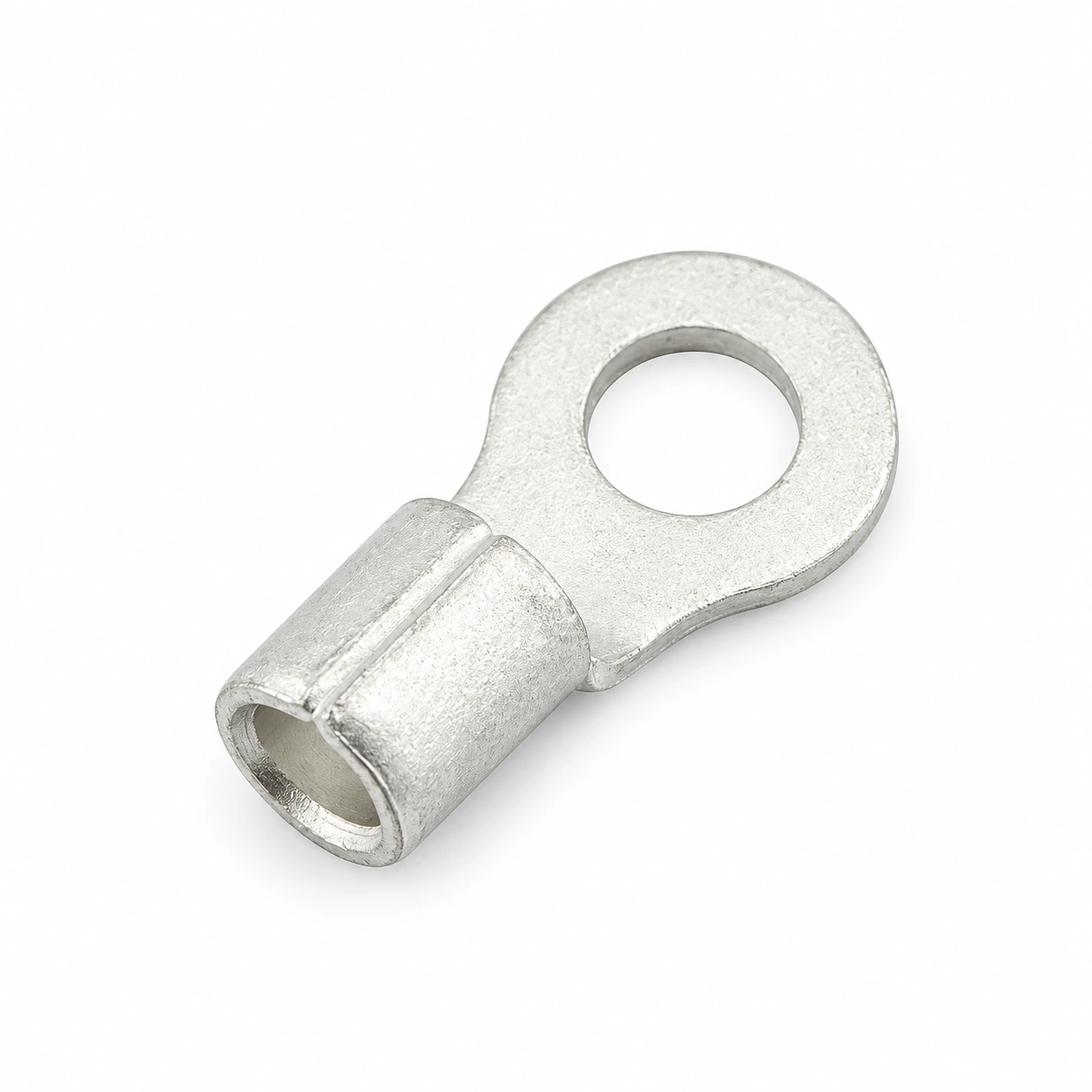

Non-Insulated Ring Terminal
TONFUL Electric RNB non-insulated ring terminals combine a closed ring eyelet with a hollow crimp barrel. Compare 172 original catalog entries by wire section, stud size, tongue dimensions and model-specific current.
- 172 original catalog entries.
- Compare conductor sections, barrel dimensions and current by model.
- Copper terminal; tin finish options.
- The closed ring eyelet connects to compatible screw or stud hardware.
Overview
TONFUL Electric RNB non-insulated ring terminals combine a closed ring eyelet with a hollow crimp barrel. Compare 172 original catalog entries by wire section, stud size, tongue dimensions and model-specific current. The closed ring eyelet connects to compatible screw or stud hardware.
Features
- Connection interface: The closed ring eyelet connects to compatible screw or stud hardware.
- Terminal material: copper as stated in the original catalog.
- Bare construction: the terminal has no integral insulating sleeve.
- Model-specific fit: compare the conductor section, contact geometry and assembly space before selection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | RNB |
| Terminal type | Bare ring crimp terminal |
| Terminal material | Copper |
| Insulation | Non-insulated |
| Listed catalog entries | 172 |
| Plating | Tin |
| Wire-size groups | 0.5-1.5 mm²; 1.5-2.5 mm²; 2.5-4.0 mm²; 4.0-6.0 mm²; 6.0-10.0 mm²; 10.0-16.0 mm²; 16.0-25.0 mm²; 30-50 mm²; 50-70 mm²; 70-95 mm²; 95-120 mm²; 120-150 mm²; 50-70 mm²; 185-240 mm²; 240-300 mm²; 300-400 mm² |
| Catalog current range | 19–650 A, according to wire-size group |
Current values retain the original catalog entries; confirm the exact terminal, conductor, connection method and operating conditions for the finished assembly.

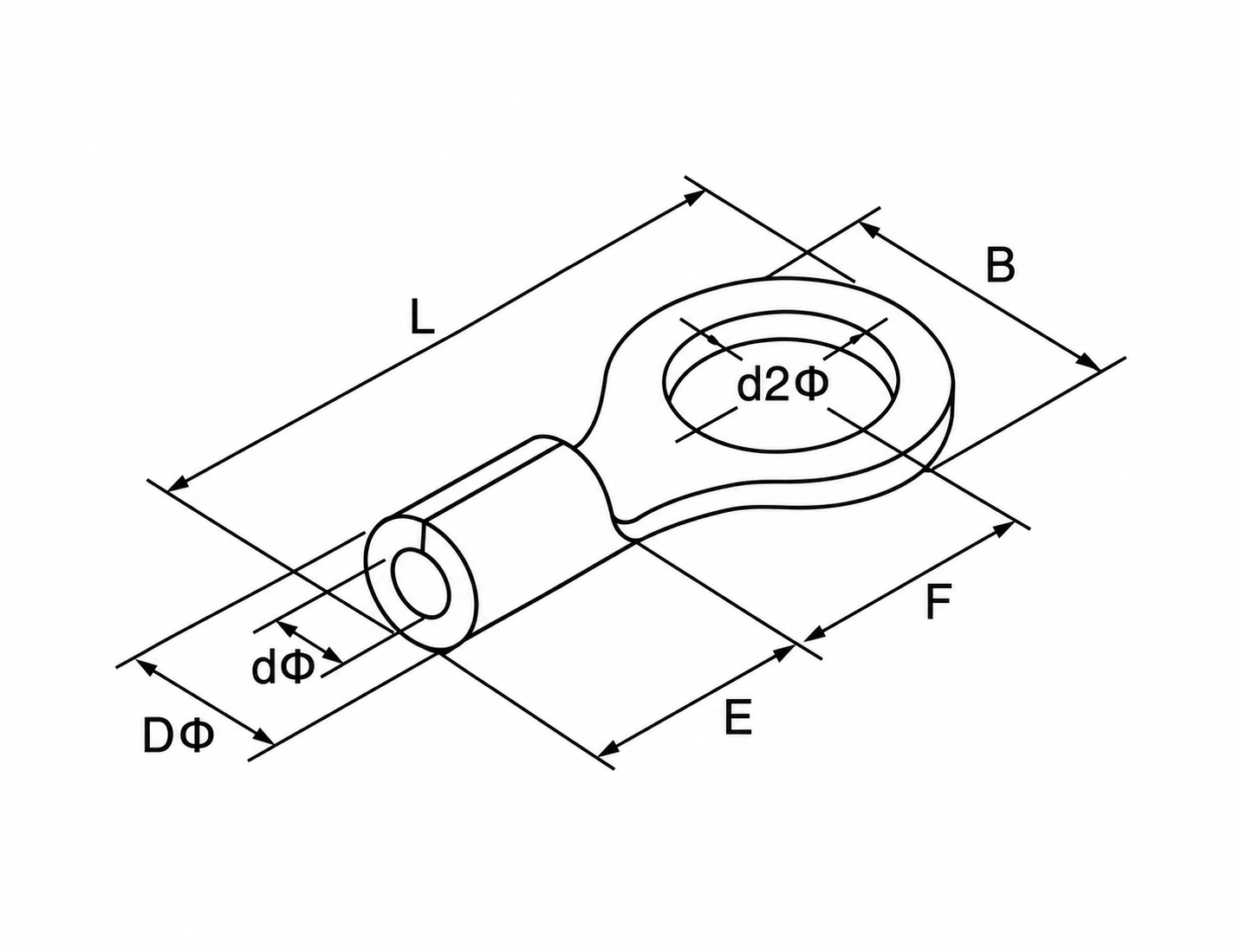

Dimension
Dimensions are in millimeters, conductor sections are in mm² and current values are in amperes. Model references and dimensions retain the original TONFUL catalog data. The original RNB150 group repeats a 50–70 mm² conductor range and 215 A value; confirm this group against the current model datasheet when ordering.
| Model | AWG | Wire section (mm²) | Catalog max current (A) | Contact thickness (mm) | USA bolt no. | d2 (mm) | B (mm) | F (mm) | L (mm) | E (mm) | DΦ (mm) | dΦ (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RNB1.25-3 | 22-16 | 0.5-1.5 | 19 | 0.7 | #4 | 3.2 | 5.7 | 4.95 | 12.6 | 4.8 | 3.4 | 1.7 |
| RNB1.25-3.5S | 22-16 | 0.5-1.5 | 19 | 0.7 | #6 | 3.7 | 5.7 | 4.95 | 12.6 | 4.8 | 3.4 | 1.7 |
| RNB1.25-3.5M | 22-16 | 0.5-1.5 | 19 | 0.7 | #6 | 3.7 | 6.6 | 6.3 | 14.4 | 4.8 | 3.4 | 1.7 |
| RNB1.25-3.5L | 22-16 | 0.5-1.5 | 19 | 0.7 | #6 | 3.7 | 8.0 | 7.0 | 15.8 | 4.8 | 3.4 | 1.7 |
| RNB1.25-4S | 22-16 | 0.5-1.5 | 19 | 0.7 | #8 | 4.3 | 6.6 | 6.3 | 14.4 | 4.8 | 3.4 | 1.7 |
| RNB1.25-4L | 22-16 | 0.5-1.5 | 19 | 0.7 | #8 | 4.3 | 8.0 | 7.0 | 15.8 | 4.8 | 3.4 | 1.7 |
| RNB1.25-5S | 22-16 | 0.5-1.5 | 19 | 0.7 | #10 | 5.3 | 8.0 | 7.0 | 15.8 | 4.8 | 3.4 | 1.7 |
| RNB1.25-5L | 22-16 | 0.5-1.5 | 19 | 0.7 | #10 | 5.3 | 9.5 | 8.5 | 17.0 | 4.8 | 3.4 | 1.7 |
| RNB1.25-5LL | 22-16 | 0.5-1.5 | 19 | 0.7 | #10 | 5.3 | 11.6 | 11.1 | 21.8 | 4.8 | 3.4 | 1.7 |
| RNB1.25-6S | 22-16 | 0.5-1.5 | 19 | 0.7 | 1/4 | 6.5 | 9.5 | 8.5 | 17.0 | 4.8 | 3.4 | 1.7 |
| RNB1.25-6L | 22-16 | 0.5-1.5 | 19 | 0.7 | 1/4 | 6.5 | 11.6 | 11.1 | 21.8 | 4.8 | 3.4 | 1.7 |
| RNB1.25-8 | 22-16 | 0.5-1.5 | 19 | 0.7 | 5/16 | 8.5 | 11.6 | 11.1 | 21.8 | 4.8 | 3.4 | 1.7 |
| RNB1.25-10 | 22-16 | 0.5-1.5 | 19 | 0.7 | 3/8 | 10.5 | 13.6 | 13.9 | 25.5 | 4.8 | 3.4 | 1.7 |
| RNB1.25-10L | 22-16 | 0.5-1.5 | 19 | 0.7 | 3/8 | 10.5 | 19.2 | 16.0 | 30.4 | 4.8 | 3.4 | 1.7 |
| RNB1.25-12 | 22-16 | 0.5-1.5 | 19 | 0.7 | 1/2 | 13.0 | 19.2 | 16.0 | 30.4 | 4.8 | 3.4 | 1.7 |
| RNB1.25-14 | 22-16 | 0.5-1.5 | 19 | 0.7 | 9/16 | 15.0 | 27.0 | 21.0 | 39.3 | 4.8 | 3.4 | 1.7 |
| RNB1.25-16 | 22-16 | 0.5-1.5 | 19 | 0.7 | 5/8 | 17.0 | 27.0 | 21.0 | 39.3 | 4.8 | 3.4 | 1.7 |
| RNB1.25-20 | 22-16 | 0.5-1.5 | 19 | 0.7 | 3/4 | 21.0 | 27.0 | 21.0 | 39.3 | 4.8 | 3.4 | 1.7 |
| RNB2-3 | 16-14 | 1.5-2.5 | 27 | 0.8 | #4 | 3.2 | 6.6 | 4.3 | 12.5 | 4.8 | 4.1 | 2.3 |
| RNB2-3.5S | 16-14 | 1.5-2.5 | 27 | 0.8 | #6 | 3.7 | 6.6 | 4.3 | 12.5 | 4.8 | 4.1 | 2.3 |
| RNB2-3.5M | 16-14 | 1.5-2.5 | 27 | 0.8 | #6 | 3.7 | 6.6 | 6.3 | 14.5 | 4.8 | 4.1 | 2.3 |
| RNB2-3.5L | 16-14 | 1.5-2.5 | 27 | 0.8 | #6 | 3.7 | 8.5 | 7.4 | 16.5 | 4.8 | 4.1 | 2.3 |
| RNB2-4S | 16-14 | 1.5-2.5 | 27 | 0.8 | #8 | 4.3 | 6.6 | 6.3 | 14.5 | 4.8 | 4.1 | 2.3 |
| RNB2-4L | 16-14 | 1.5-2.5 | 27 | 0.8 | #8 | 4.3 | 8.5 | 7.4 | 16.5 | 4.8 | 4.1 | 2.3 |
| RNB2-5S | 16-14 | 1.5-2.5 | 27 | 0.8 | #10 | 5.3 | 8.5 | 7.4 | 16.5 | 4.8 | 4.1 | 2.3 |
| RNB2-5L | 16-14 | 1.5-2.5 | 27 | 0.8 | #10 | 5.3 | 9.5 | 7.4 | 17.0 | 4.8 | 4.1 | 2.3 |
| RNB2-6S | 16-14 | 1.5-2.5 | 27 | 0.8 | 1/4 | 6.5 | 9.5 | 7.4 | 17.0 | 4.8 | 4.1 | 2.3 |
| RNB2-6L | 16-14 | 1.5-2.5 | 27 | 0.8 | 1/4 | 6.5 | 12.0 | 11.0 | 21.8 | 4.8 | 4.1 | 2.3 |
| RNB2-8 | 16-14 | 1.5-2.5 | 27 | 0.8 | 5/16 | 8.5 | 12.0 | 11.0 | 21.8 | 4.8 | 4.1 | 2.3 |
| RNB2-10 | 16-14 | 1.5-2.5 | 27 | 0.8 | 3/8 | 10.5 | 13.6 | 13.9 | 25.5 | 4.8 | 4.1 | 2.3 |
| RNB2-10L | 16-14 | 1.5-2.5 | 27 | 0.8 | 3/8 | 10.5 | 19.2 | 16.0 | 30.4 | 4.8 | 4.1 | 2.3 |
| RNB2-12 | 16-14 | 1.5-2.5 | 27 | 0.8 | 1/2 | 13.0 | 19.2 | 16.0 | 30.4 | 4.8 | 4.1 | 2.3 |
| RNB2-14 | 16-14 | 1.5-2.5 | 27 | 0.8 | 9/16 | 15.0 | 27.0 | 21.0 | 39.3 | 4.8 | 4.1 | 2.3 |
| RNB2-16 | 16-14 | 1.5-2.5 | 27 | 0.8 | 5/8 | 17.0 | 27.0 | 21.0 | 39.3 | 4.8 | 4.1 | 2.3 |
| RNB2-20 | 16-14 | 1.5-2.5 | 27 | 0.8 | 3/4 | 21.0 | 27.0 | 21.0 | 39.3 | 4.8 | 4.1 | 2.3 |
| RNB3.5-4 | 14-12 | 2.5-4.0 | 37 | 1.0 | #8 | 4.3 | 8.0 | 8.0 | 18.0 | 6.0 | 5.1 | 3.0 |
| RNB3.5-5S | 14-12 | 2.5-4.0 | 37 | 1.0 | #10 | 5.3 | 8.0 | 8.0 | 18.0 | 6.0 | 5.1 | 3.0 |
| RNB3.5-5L | 14-12 | 2.5-4.0 | 37 | 1.0 | #10 | 5.3 | 12.0 | 9.4 | 21.4 | 6.0 | 5.1 | 3.0 |
| RNB3.5-6 | 14-12 | 2.5-4.0 | 37 | 1.0 | 1/4 | 6.5 | 12.0 | 9.4 | 21.4 | 6.0 | 5.1 | 3.0 |
| RNB3.5-8 | 14-12 | 2.5-4.0 | 37 | 1.0 | 5/16 | 8.5 | 15.0 | 13.5 | 27.0 | 6.0 | 5.1 | 3.0 |
| RNB3.5-10 | 14-12 | 2.5-4.0 | 37 | 1.0 | 3/8 | 10.5 | 15.0 | 13.5 | 27.0 | 6.0 | 5.1 | 3.0 |
| RNB3.5-12 | 14-12 | 2.5-4.0 | 37 | 1.0 | 1/2 | 13.0 | 19.2 | 16.0 | 32.4 | 6.0 | 5.1 | 3.0 |
| RNB5.5-3.5 | 12-10 | 4.0-6.0 | 48 | 1.0 | #6 | 3.7 | 7.2 | 6.1 | 15.7 | 6.0 | 5.6 | 3.4 |
| RNB5.5-4S | 12-10 | 4.0-6.0 | 48 | 1.0 | #8 | 4.3 | 7.2 | 6.1 | 15.7 | 6.0 | 5.6 | 3.4 |
| RNB5.5-4L | 12-10 | 4.0-6.0 | 48 | 1.0 | #8 | 4.3 | 9.5 | 8.3 | 19.0 | 6.0 | 5.6 | 3.4 |
| RNB5.5-5 | 12-10 | 4.0-6.0 | 48 | 1.0 | #10 | 5.3 | 9.5 | 8.3 | 19.0 | 6.0 | 5.6 | 3.4 |
| RNB5.5-6 | 12-10 | 4.0-6.0 | 48 | 1.0 | 1/4 | 6.5 | 12.0 | 10.5 | 22.5 | 6.0 | 5.6 | 3.4 |
| RNB5.5-6M | 12-10 | 4.0-6.0 | 48 | 1.0 | 1/4 | 6.5 | 12.0 | 13.0 | 25.0 | 6.0 | 5.6 | 3.4 |
| RNB5.5-8 | 12-10 | 4.0-6.0 | 48 | 1.0 | 5/16 | 8.5 | 15.0 | 13.7 | 28.0 | 6.0 | 5.6 | 3.4 |
| RNB5.5-10 | 12-10 | 4.0-6.0 | 48 | 1.0 | 3/8 | 10.5 | 15.0 | 13.7 | 28.0 | 6.0 | 5.6 | 3.4 |
| RNB5.5-12 | 12-10 | 4.0-6.0 | 48 | 1.0 | 1/2 | 13.0 | 19.2 | 16.0 | 32.4 | 6.0 | 5.6 | 3.4 |
| RNB5.5-14 | 12-10 | 4.0-6.0 | 48 | 1.0 | 9/16 | 15.0 | 32.0 | 25.2 | 47.2 | 6.0 | 5.6 | 3.4 |
| RNB5.5-16 | 12-10 | 4.0-6.0 | 48 | 1.0 | 5/8 | 17.0 | 32.0 | 25.2 | 47.2 | 6.0 | 5.6 | 3.4 |
| RNB5.5-20 | 12-10 | 4.0-6.0 | 48 | 1.0 | 3/4 | 21.0 | 32.0 | 25.2 | 47.2 | 6.0 | 5.6 | 3.4 |
| RNB8-4S | 8 | 6.0-10.0 | 62 | 1.2 | #8 | 4.3 | 8.8 | 10.5 | 23.8 | 8.5 | 7.2 | 4.5 |
| RNB8-4L | 8 | 6.0-10.0 | 62 | 1.2 | #8 | 4.3 | 12.0 | 9.3 | 23.8 | 8.5 | 7.2 | 4.5 |
| RNB8-5S | 8 | 6.0-10.0 | 62 | 1.2 | #10 | 5.3 | 8.8 | 10.5 | 23.8 | 8.5 | 7.2 | 4.5 |
| RNB8-5M | 8 | 6.0-10.0 | 62 | 1.2 | #10 | 5.3 | 12.0 | 9.3 | 23.8 | 8.5 | 7.2 | 4.5 |
| RNB8-5L | 8 | 6.0-10.0 | 62 | 1.2 | #10 | 5.3 | 15.0 | 13.8 | 29.8 | 8.5 | 7.2 | 4.5 |
| RNB8-6S | 8 | 6.0-10.0 | 62 | 1.2 | 1/4 | 6.5 | 12.0 | 9.3 | 23.8 | 8.5 | 7.2 | 4.5 |
| RNB8-6L | 8 | 6.0-10.0 | 62 | 1.2 | 1/4 | 6.5 | 15.0 | 13.8 | 29.8 | 8.5 | 7.2 | 4.5 |
| RNB8-8 | 8 | 6.0-10.0 | 62 | 1.2 | 5/16 | 8.5 | 15.0 | 13.8 | 29.8 | 8.5 | 7.2 | 4.5 |
| RNB8-10 | 8 | 6.0-10.0 | 62 | 1.2 | 3/8 | 10.5 | 15.0 | 13.8 | 29.8 | 8.5 | 7.2 | 4.5 |
| RNB8-12 | 8 | 6.0-10.0 | 62 | 1.2 | 1/2 | 13.0 | 20.0 | 15.0 | 33.5 | 8.5 | 7.2 | 4.5 |
| RNB14-4 | 6 | 10.0-16.0 | 88 | 1.5 | #8 | 4.3 | 12.0 | 13.3 | 29.8 | 10.5 | 9 | 5.8 |
| RNB14-5 | 6 | 10.0-16.0 | 88 | 1.5 | #10 | 5.3 | 12.0 | 13.3 | 29.8 | 10.5 | 9 | 5.8 |
| RNB14-5L | 6 | 10.0-16.0 | 88 | 1.5 | #10 | 5.3 | 16.0 | 14.5 | 32.5 | 10.5 | 9 | 5.8 |
| RNB14-6S | 6 | 10.0-16.0 | 88 | 1.5 | 1/4 | 6.5 | 12.0 | 13.3 | 29.8 | 10.5 | 9 | 5.8 |
| RNB14-6L | 6 | 10.0-16.0 | 88 | 1.5 | 1/4 | 6.5 | 16.0 | 14.2 | 32.5 | 10.5 | 9 | 5.8 |
| RNB14-8 | 6 | 10.0-16.0 | 88 | 1.5 | 5/16 | 8.5 | 16.0 | 14.2 | 32.5 | 10.5 | 9 | 5.8 |
| RNB14-10 | 6 | 10.0-16.0 | 88 | 1.5 | 3/8 | 10.5 | 16.0 | 14.2 | 32.5 | 10.5 | 9 | 5.8 |
| RNB14-12 | 6 | 10.0-16.0 | 88 | 1.5 | 1/2 | 13.0 | 22.0 | 19.8 | 41.0 | 10.5 | 9 | 5.8 |
| RNB22-5S | 4 | 16.0-25.0 | 115 | 1.7 | #10 | 5.3 | 12.2 | 14.5 | 33.2 | 12.0 | 11.5 | 7.7 |
| RNB22-5L | 4 | 16.0-25.0 | 115 | 1.7 | #10 | 5.3 | 16.5 | 13.5 | 33.5 | 12.0 | 11.5 | 7.7 |
| RNB22-6S | 4 | 16.0-25.0 | 115 | 1.7 | 1/4 | 6.5 | 12.2 | 14.5 | 33.2 | 12.0 | 11.5 | 7.7 |
| RNB22-6L | 4 | 16.0-25.0 | 115 | 1.7 | 1/4 | 6.5 | 16.5 | 13.5 | 33.5 | 12.0 | 11.5 | 7.7 |
| RNB22-8 | 4 | 16.0-25.0 | 115 | 1.7 | 5/16 | 8.5 | 16.5 | 13.5 | 33.5 | 12.0 | 11.5 | 7.7 |
| RNB22-10 | 4 | 16.0-25.0 | 115 | 1.7 | 3/8 | 10.5 | 16.5 | 13.5 | 33.5 | 12.0 | 11.5 | 7.7 |
| RNB22-12 | 4 | 16.0-25.0 | 115 | 1.7 | 1/2 | 13.0 | 22.0 | 19.7 | 42.5 | 12.0 | 11.5 | 7.7 |
| RNB38-5 | 2 | 30-50 | 160 | 1.8 | #10 | 5.3 | 15.3 | 17.4 | 39.0 | 14.0 | 13.3 | 9.4 |
| RNB38-6S | 2 | 30-50 | 160 | 1.8 | 1/4 | 6.5 | 15.3 | 17.4 | 39.0 | 14.0 | 13.3 | 9.4 |
| RNB38-6L | 2 | 30-50 | 160 | 1.8 | 1/4 | 6.5 | 22.0 | 17.7 | 42.7 | 14.0 | 13.3 | 9.4 |
| RNB38-8S | 2 | 30-50 | 160 | 1.8 | 5/16 | 8.5 | 15.3 | 17.4 | 39.0 | 14.0 | 13.3 | 9.4 |
| RNB38-8L | 2 | 30-50 | 160 | 1.8 | 5/16 | 8.5 | 22.0 | 17.7 | 42.7 | 14.0 | 13.3 | 9.4 |
| RNB38-10S | 2 | 30-50 | 160 | 1.8 | 3/8 | 10.5 | 15.3 | 17.4 | 39.0 | 14.0 | 13.3 | 9.4 |
| RNB38-10L | 2 | 30-50 | 160 | 1.8 | 3/8 | 10.5 | 22.0 | 17.7 | 42.7 | 14.0 | 13.3 | 9.4 |
| RNB38-11 | 2 | 30-50 | 160 | 1.8 | 7/16 | 11.5 | 22.0 | 17.7 | 42.7 | 14.0 | 13.3 | 9.4 |
| RNB38-12 | 2 | 30-50 | 160 | 1.8 | 1/2 | 13.0 | 22.0 | 17.7 | 42.7 | 14.0 | 13.3 | 9.4 |
| RNB60-6 | 1/0 | 50-70 | 215 | 1.8 | 1/4 | 6.5 | 22.0 | 20.7 | 49.7 | 18.0 | 15.4 | 11.4 |
| RNB60-8 | 1/0 | 50-70 | 215 | 1.8 | 5/16 | 8.5 | 22.0 | 20.7 | 49.7 | 18.0 | 15.4 | 11.4 |
| RNB60-10 | 1/0 | 50-70 | 215 | 1.8 | 3/8 | 10.5 | 22.0 | 20.7 | 49.7 | 18.0 | 15.4 | 11.4 |
| RNB60-11 | 1/0 | 50-70 | 215 | 1.8 | 7/16 | 11.5 | 22.0 | 20.7 | 49.7 | 18.0 | 15.4 | 11.4 |
| RNB60-12 | 1/0 | 50-70 | 215 | 1.8 | 1/2 | 13.0 | 22.0 | 20.7 | 49.7 | 18.0 | 15.4 | 11.4 |
| RNB60-14 | 1/0 | 50-70 | 215 | 1.8 | 9/16 | 15.0 | 32.0 | 23.5 | 57.5 | 18.0 | 15.4 | 11.4 |
| RNB60-16 | 1/0 | 50-70 | 215 | 1.8 | 5/8 | 17.0 | 32.0 | 23.5 | 57.5 | 18.0 | 15.4 | 11.4 |
| RNB60-18 | 1/0 | 50-70 | 215 | 1.8 | 11/16 | 19.0 | 32.0 | 23.5 | 57.5 | 18.0 | 15.4 | 11.4 |
| RNB60-20 | 1/0 | 50-70 | 215 | 1.8 | 3/4 | 21.0 | 32.0 | 23.5 | 57.5 | 18.0 | 15.4 | 11.4 |
| RNB60-22 | 1/0 | 50-70 | 215 | 1.8 | 7/8 | 23.0 | 32.0 | 23.5 | 57.5 | 18.0 | 15.4 | 11.4 |
| RNB70-6 | 2/0 | 70-95 | 235 | 2.0 | 1/4 | 6.5 | 24.0 | 20.0 | 50.0 | 18.0 | 17.5 | 13.3 |
| RNB70-8 | 2/0 | 70-95 | 235 | 2.0 | 5/16 | 8.5 | 24.0 | 20.0 | 50.0 | 18.0 | 17.5 | 13.3 |
| RNB70-10 | 2/0 | 70-95 | 235 | 2.0 | 3/8 | 10.5 | 24.0 | 20.0 | 50.0 | 18.0 | 17.5 | 13.3 |
| RNB70-11 | 2/0 | 70-95 | 235 | 2.0 | 7/16 | 11.5 | 24.0 | 20.0 | 50.0 | 18.0 | 17.5 | 13.3 |
| RNB70-12 | 2/0 | 70-95 | 235 | 2.0 | 1/2 | 13.0 | 24.0 | 20.0 | 50.0 | 18.0 | 17.5 | 13.3 |
| RNB70-14 | 2/0 | 70-95 | 235 | 2.0 | 9/16 | 15.0 | 32.0 | 26.0 | 61.0 | 18.0 | 17.5 | 13.3 |
| RNB70-16 | 2/0 | 70-95 | 235 | 2.0 | 5/8 | 17.0 | 32.0 | 26.0 | 61.0 | 18.0 | 17.5 | 13.3 |
| RNB70-18 | 2/0 | 70-95 | 235 | 2.0 | 11/16 | 19.0 | 32.0 | 26.0 | 61.0 | 18.0 | 17.5 | 13.3 |
| RNB70-20 | 2/0 | 70-95 | 235 | 2.0 | 3/4 | 21.0 | 32.0 | 26.0 | 61.0 | 18.0 | 17.5 | 13.3 |
| RNB70-22 | 2/0 | 70-95 | 235 | 2.0 | 7/8 | 23.0 | 32.0 | 26.0 | 61.0 | 18.0 | 17.5 | 13.3 |
| RNB80-6 | 3/0 | 95-120 | 255 | 2.3 | 1/4 | 6.5 | 27.0 | 20.7 | 54.2 | 20.0 | 19.5 | 14.5 |
| RNB80-8 | 3/0 | 95-120 | 255 | 2.3 | 5/16 | 8.5 | 27.0 | 20.7 | 54.2 | 20.0 | 19.5 | 14.5 |
| RNB80-10 | 3/0 | 95-120 | 255 | 2.3 | 3/8 | 10.5 | 27.0 | 20.7 | 54.2 | 20.0 | 19.5 | 14.5 |
| RNB80-11 | 3/0 | 95-120 | 255 | 2.3 | 7/16 | 11.5 | 27.0 | 20.7 | 54.2 | 20.0 | 19.5 | 14.5 |
| RNB80-12 | 3/0 | 95-120 | 255 | 2.3 | 1/2 | 13.0 | 27.0 | 20.7 | 54.2 | 20.0 | 19.5 | 14.5 |
| RNB80-14 | 3/0 | 95-120 | 255 | 2.3 | 9/16 | 15.0 | 32.0 | 32.0 | 68.0 | 20.0 | 19.5 | 14.5 |
| RNB80-16 | 3/0 | 95-120 | 255 | 2.3 | 5/8 | 17.0 | 32.0 | 32.0 | 68.0 | 20.0 | 19.5 | 14.5 |
| RNB80-18 | 3/0 | 95-120 | 255 | 2.3 | 11/16 | 19.0 | 32.0 | 32.0 | 68.0 | 20.0 | 19.5 | 14.5 |
| RNB80-20 | 3/0 | 95-120 | 255 | 2.3 | 3/4 | 21.0 | 32.0 | 32.0 | 68.0 | 20.0 | 19.5 | 14.5 |
| RNB80-22 | 3/0 | 95-120 | 255 | 2.3 | 7/8 | 23.0 | 32.0 | 32.0 | 68.0 | 20.0 | 19.5 | 14.5 |
| RNB100-6 | 4/0 | 120-150 | 300 | 2.7 | 1/4 | 6.5 | 28.5 | 20.4 | 55.6 | 21.0 | 22.1 | 16.4 |
| RNB100-8 | 4/0 | 120-150 | 300 | 2.7 | 5/16 | 8.5 | 28.5 | 20.4 | 55.6 | 21.0 | 22.1 | 16.4 |
| RNB100-10 | 4/0 | 120-150 | 300 | 2.7 | 3/8 | 10.5 | 28.5 | 20.4 | 55.6 | 21.0 | 22.1 | 16.4 |
| RNB100-11 | 4/0 | 120-150 | 300 | 2.7 | 7/16 | 11.5 | 28.5 | 20.4 | 55.6 | 21.0 | 22.1 | 16.4 |
| RNB100-12 | 4/0 | 120-150 | 300 | 2.7 | 1/2 | 13.0 | 28.5 | 20.4 | 55.6 | 21.0 | 22.1 | 16.4 |
| RNB100-14 | 4/0 | 120-150 | 300 | 2.7 | 9/16 | 15.0 | 32.0 | 32.0 | 69.0 | 21.0 | 22.1 | 16.4 |
| RNB100-16 | 4/0 | 120-150 | 300 | 2.7 | 5/8 | 17.0 | 32.0 | 32.0 | 69.0 | 21.0 | 22.1 | 16.4 |
| RNB100-18 | 4/0 | 120-150 | 300 | 2.7 | 11/16 | 19.0 | 32.0 | 32.0 | 69.0 | 21.0 | 22.1 | 16.4 |
| RNB100-20 | 4/0 | 120-150 | 300 | 2.7 | 3/4 | 21.0 | 32.0 | 32.0 | 69.0 | 21.0 | 22.1 | 16.4 |
| RNB100-22 | 4/0 | 120-150 | 300 | 2.7 | 7/8 | 23.0 | 32.0 | 32.0 | 69.0 | 21.0 | 22.1 | 16.4 |
| RNB150-8 | 1/0 | 50-70 | 215 | 1.8 | 5/16 | 8.5 | 36.0 | 23.0 | 66.0 | 27.0 | 26.6 | 19.5 |
| RNB150-10 | 1/0 | 50-70 | 215 | 1.8 | 3/8 | 10.5 | 36.0 | 23.0 | 66.0 | 27.0 | 26.6 | 19.5 |
| RNB150-11 | 1/0 | 50-70 | 215 | 1.8 | 7/16 | 11.5 | 36.0 | 23.0 | 66.0 | 27.0 | 26.6 | 19.5 |
| RNB150-12 | 1/0 | 50-70 | 215 | 1.8 | 1/2 | 13.0 | 36.0 | 23.0 | 66.0 | 27.0 | 26.6 | 19.5 |
| RNB150-14 | 1/0 | 50-70 | 215 | 1.8 | 9/16 | 15.0 | 36.0 | 23.0 | 66.0 | 27.0 | 26.6 | 19.5 |
| RNB150-16 | 1/0 | 50-70 | 215 | 1.8 | 5/8 | 17.0 | 36.0 | 23.0 | 66.0 | 27.0 | 26.6 | 19.5 |
| RNB150-18 | 1/0 | 50-70 | 215 | 1.8 | 11/16 | 19.0 | 36.0 | 36.0 | 81.0 | 27.0 | 26.6 | 19.5 |
| RNB150-20 | 1/0 | 50-70 | 215 | 1.8 | 3/4 | 21.0 | 36.0 | 36.0 | 81.0 | 27.0 | 26.6 | 19.5 |
| RNB150-22 | 1/0 | 50-70 | 215 | 1.8 | 7/8 | 23.0 | 36.0 | 36.0 | 81.0 | 27.0 | 26.6 | 19.5 |
| RNB150-24 | 1/0 | 50-70 | 215 | 1.8 | 15/16 | 25.0 | 36.0 | 36.0 | 81.0 | 27.0 | 26.6 | 19.5 |
| RNB150-27 | 1/0 | 50-70 | 215 | 1.8 | 1 | 28.0 | 36.0 | 36.0 | 81.0 | 27.0 | 26.6 | 19.5 |
| RNB180-8 | 300/350 | 185-240 | 440 | 3.5 | 5/16 | 8.5 | 38.5 | 24.5 | 69.0 | 28.5 | 28.6 | 21.0 |
| RNB180-10 | 300/350 | 185-240 | 440 | 3.5 | 3/8 | 10.5 | 38.5 | 24.5 | 69.0 | 28.5 | 28.6 | 21.0 |
| RNB180-11 | 300/350 | 185-240 | 440 | 3.5 | 7/16 | 11.5 | 38.5 | 24.5 | 69.0 | 28.5 | 28.6 | 21.0 |
| RNB180-12 | 300/350 | 185-240 | 440 | 3.5 | 1/2 | 13.0 | 38.5 | 24.5 | 69.0 | 28.5 | 28.6 | 21.0 |
| RNB180-14 | 300/350 | 185-240 | 440 | 3.5 | 9/16 | 15.0 | 38.5 | 24.5 | 69.0 | 28.5 | 28.6 | 21.0 |
| RNB180-16 | 300/350 | 185-240 | 440 | 3.5 | 5/8 | 17.0 | 38.5 | 24.5 | 69.0 | 28.5 | 28.6 | 21.0 |
| RNB180-18 | 300/350 | 185-240 | 440 | 3.5 | 11/16 | 19.0 | 38.5 | 39.0 | 86.6 | 28.5 | 28.6 | 21.0 |
| RNB180-20 | 300/350 | 185-240 | 440 | 3.5 | 3/4 | 21.0 | 38.5 | 39.0 | 86.6 | 28.5 | 28.6 | 21.0 |
| RNB180-22 | 300/350 | 185-240 | 440 | 3.5 | 7/8 | 23.0 | 38.5 | 39.0 | 86.6 | 28.5 | 28.6 | 21.0 |
| RNB180-24 | 300/350 | 185-240 | 440 | 3.5 | 15/16 | 25.0 | 38.5 | 39.0 | 86.6 | 28.5 | 28.6 | 21.0 |
| RNB180-27 | 300/350 | 185-240 | 440 | 3.5 | 1 | 28.0 | 38.5 | 39.0 | 86.6 | 28.5 | 28.6 | 21.0 |
| RNB200-8 | 400/500MCB | 240-300 | 470 | 4.0 | 5/16 | 8.5 | 44.0 | 24.5 | 72.0 | 31.5 | 32.6 | 24.0 |
| RNB200-10 | 400/500MCB | 240-300 | 470 | 4.0 | 3/8 | 10.5 | 44.0 | 24.5 | 72.0 | 31.5 | 32.6 | 24.0 |
| RNB200-11 | 400/500MCB | 240-300 | 470 | 4.0 | 7/16 | 11.5 | 44.0 | 24.5 | 72.0 | 31.5 | 32.6 | 24.0 |
| RNB200-12 | 400/500MCB | 240-300 | 470 | 4.0 | 1/2 | 13.0 | 44.0 | 24.5 | 72.0 | 31.5 | 32.6 | 24.0 |
| RNB200-14 | 400/500MCB | 240-300 | 470 | 4.0 | 9/16 | 15.0 | 44.0 | 24.5 | 72.0 | 31.5 | 32.6 | 24.0 |
| RNB200-16 | 400/500MCB | 240-300 | 470 | 4.0 | 5/8 | 17.0 | 44.0 | 24.5 | 72.0 | 31.5 | 32.6 | 24.0 |
| RNB200-18 | 400/500MCB | 240-300 | 470 | 4.0 | 11/16 | 19.0 | 44.0 | 37.5 | 91.0 | 31.5 | 32.6 | 24.0 |
| RNB200-20 | 400/500MCB | 240-300 | 470 | 4.0 | 3/4 | 21.0 | 44.0 | 37.5 | 91.0 | 31.5 | 32.6 | 24.0 |
| RNB200-22 | 400/500MCB | 240-300 | 470 | 4.0 | 7/8 | 23.0 | 44.0 | 37.5 | 91.0 | 31.5 | 32.6 | 24.0 |
| RNB200-24 | 400/500MCB | 240-300 | 470 | 4.0 | 15/16 | 25.0 | 44.0 | 37.5 | 91.0 | 31.5 | 32.6 | 24.0 |
| RNB200-27 | 400/500MCB | 240-300 | 470 | 4.0 | 1 | 28.0 | 44.0 | 37.5 | 91.0 | 31.5 | 32.6 | 24.0 |
| RNB325-8 | 500/600MCB | 300-400 | 650 | 4.3 | 5/16 | 8.5 | 50.5 | 33.5 | 88.0 | 35.5 | 37.6 | 28.0 |
| RNB325-10 | 500/600MCB | 300-400 | 650 | 4.3 | 3/8 | 10.5 | 50.5 | 33.5 | 88.0 | 35.5 | 37.6 | 28.0 |
| RNB325-11 | 500/600MCB | 300-400 | 650 | 4.3 | 7/16 | 11.5 | 50.5 | 33.5 | 88.0 | 35.5 | 37.6 | 28.0 |
| RNB325-12 | 500/600MCB | 300-400 | 650 | 4.3 | 1/2 | 13.0 | 50.5 | 33.5 | 88.0 | 35.5 | 37.6 | 28.0 |
| RNB325-14 | 500/600MCB | 300-400 | 650 | 4.3 | 9/16 | 15.0 | 50.5 | 33.5 | 88.0 | 35.5 | 37.6 | 28.0 |
| RNB325-16 | 500/600MCB | 300-400 | 650 | 4.3 | 5/8 | 17.0 | 50.5 | 33.5 | 88.0 | 35.5 | 37.6 | 28.0 |
| RNB325-18 | 500/600MCB | 300-400 | 650 | 4.3 | 11/16 | 19.0 | 50.5 | 45.0 | 105.7 | 35.5 | 37.6 | 28.0 |
| RNB325-20 | 500/600MCB | 300-400 | 650 | 4.3 | 3/4 | 21.0 | 50.5 | 45.0 | 105.7 | 35.5 | 37.6 | 28.0 |
| RNB325-22 | 500/600MCB | 300-400 | 650 | 4.3 | 7/8 | 23.0 | 50.5 | 45.0 | 105.7 | 35.5 | 37.6 | 28.0 |
| RNB325-24 | 500/600MCB | 300-400 | 650 | 4.3 | 15/16 | 25.0 | 50.5 | 45.0 | 105.7 | 35.5 | 37.6 | 28.0 |
| RNB325-27 | 500/600MCB | 300-400 | 650 | 4.3 | 1 | 28.0 | 50.5 | 45.0 | 105.7 | 35.5 | 37.6 | 28.0 |
Selection Guide
Match the conductor section and barrel size, then compare the ring hole diameter, tongue width and clamping space with the screw or stud hardware. Use tooling suitable for the selected terminal and conductor, and provide any insulation or enclosure required by the installation. Send a mating-part reference or assembly drawing for selection assistance.
Applications
Compatible stud connections in equipment wiring, control panels, wiring-harness assemblies and electrical maintenance. Select the terminal against the conductor, mating components, installation conditions and finished-assembly requirements.
Ordering Information
Provide the full RNB model reference, conductor section, stud size and barrel dimensions, order quantity and intended application. Include packaging, labeling and delivery requirements for OEM and wholesale enquiries.
Request a RNB terminal quote or email ivan@tonful.com.
