Nylon Butt Connector
Nylon Butt Connector
Join two conductors with TONFUL BNYF nylon-insulated butt connectors. Compare the original wire ranges, barrel diameters and overall lengths to select a compatible crimp splice.
- BNYF series · 3 original catalog models
- Nylon
- Model-specific wire ranges and dimensions
- Samples and packaging reviewed with your enquiry
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Overview
Join two conductors with TONFUL BNYF nylon-insulated butt connectors. Compare the original wire ranges, barrel diameters and overall lengths to select a compatible crimp splice.
Compare 3 original catalog models below. Send the complete model number, conductor size and application so TONFUL can review your product enquiry.
Features

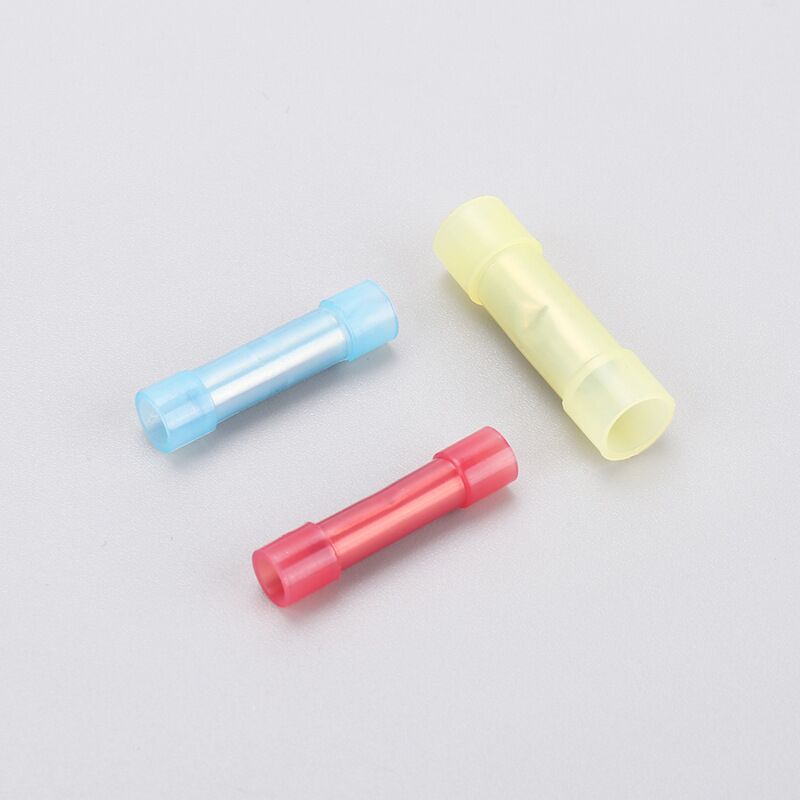

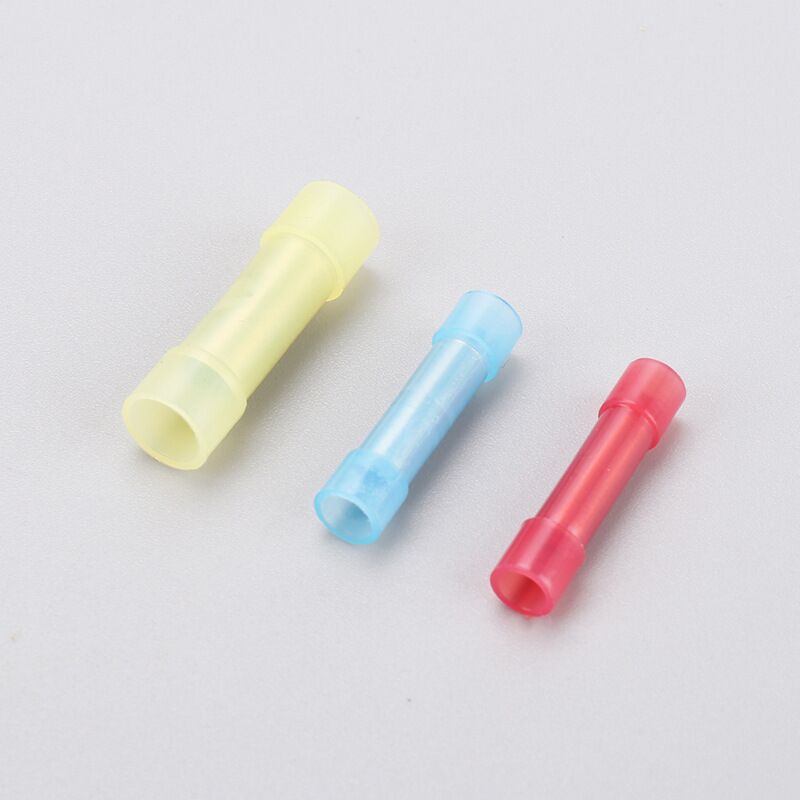

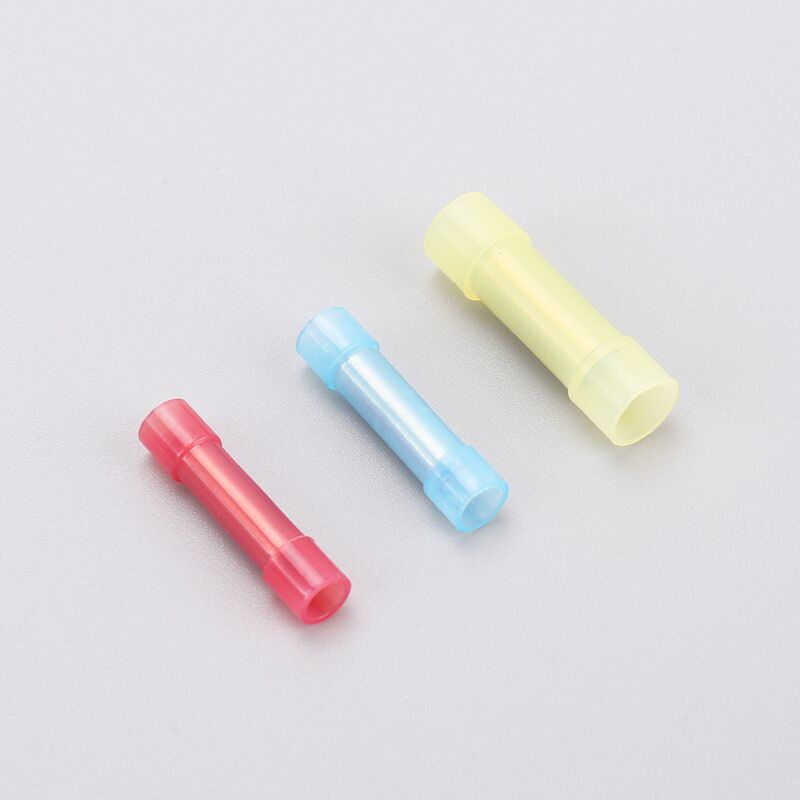

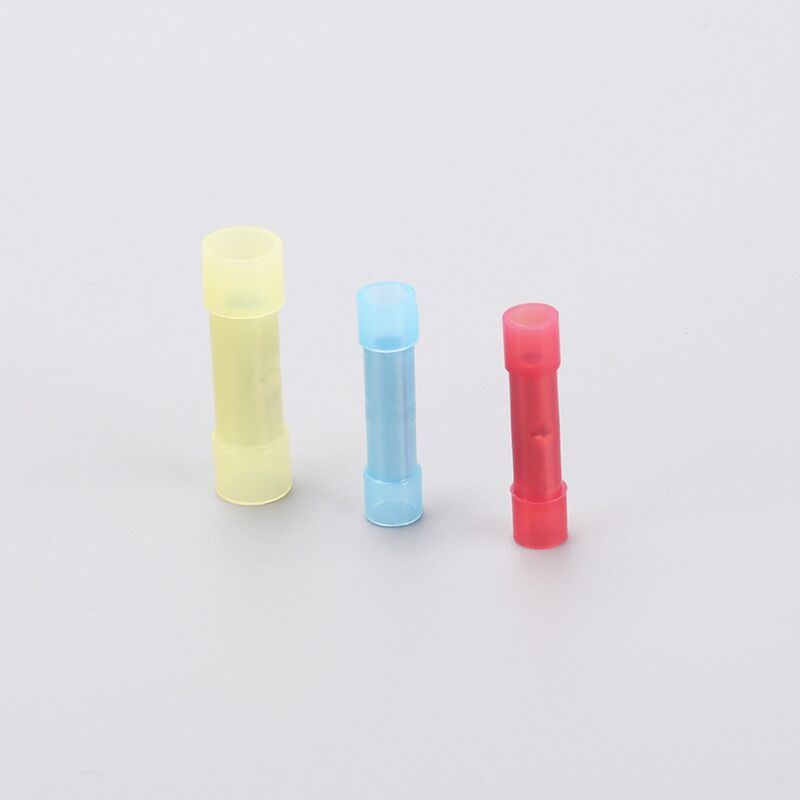

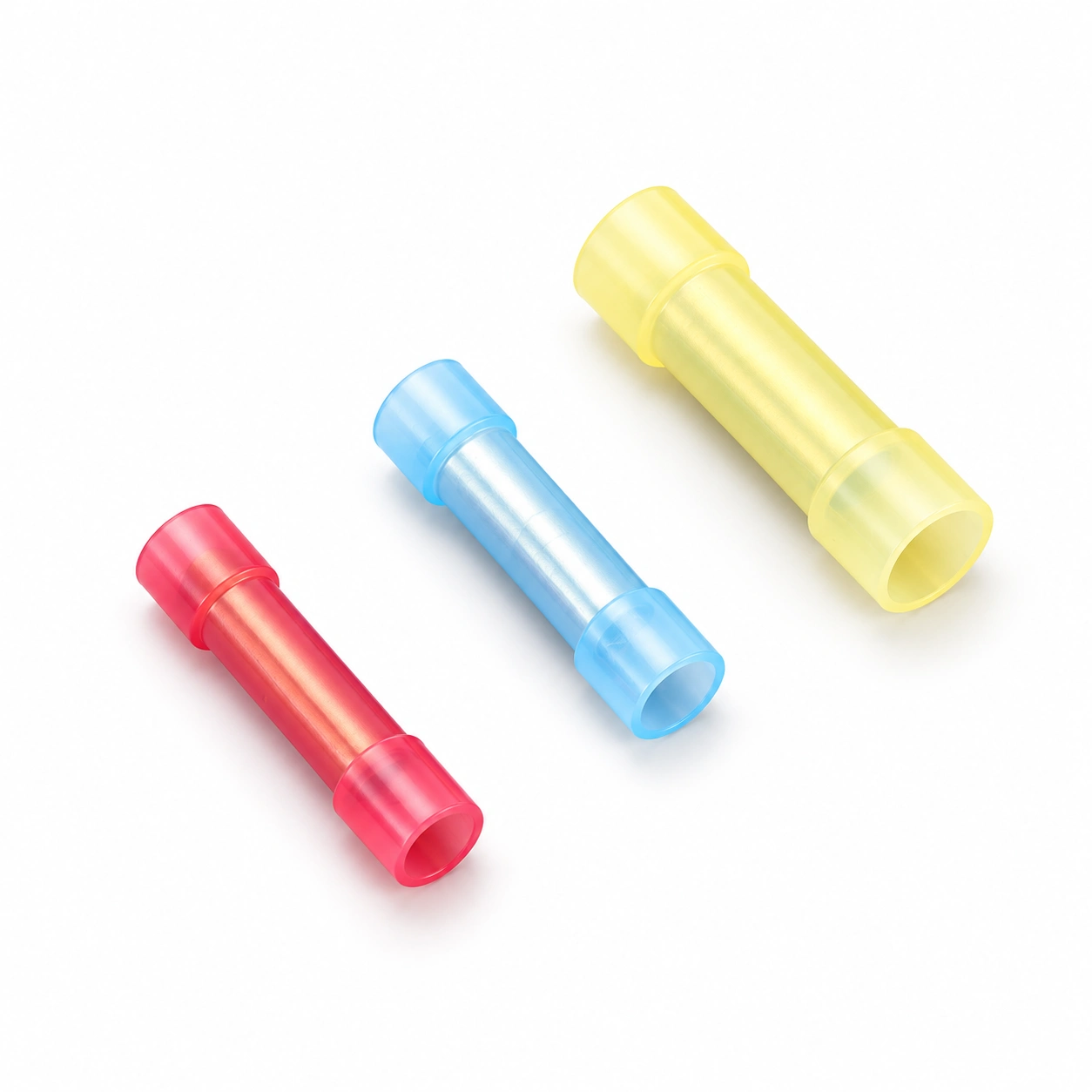

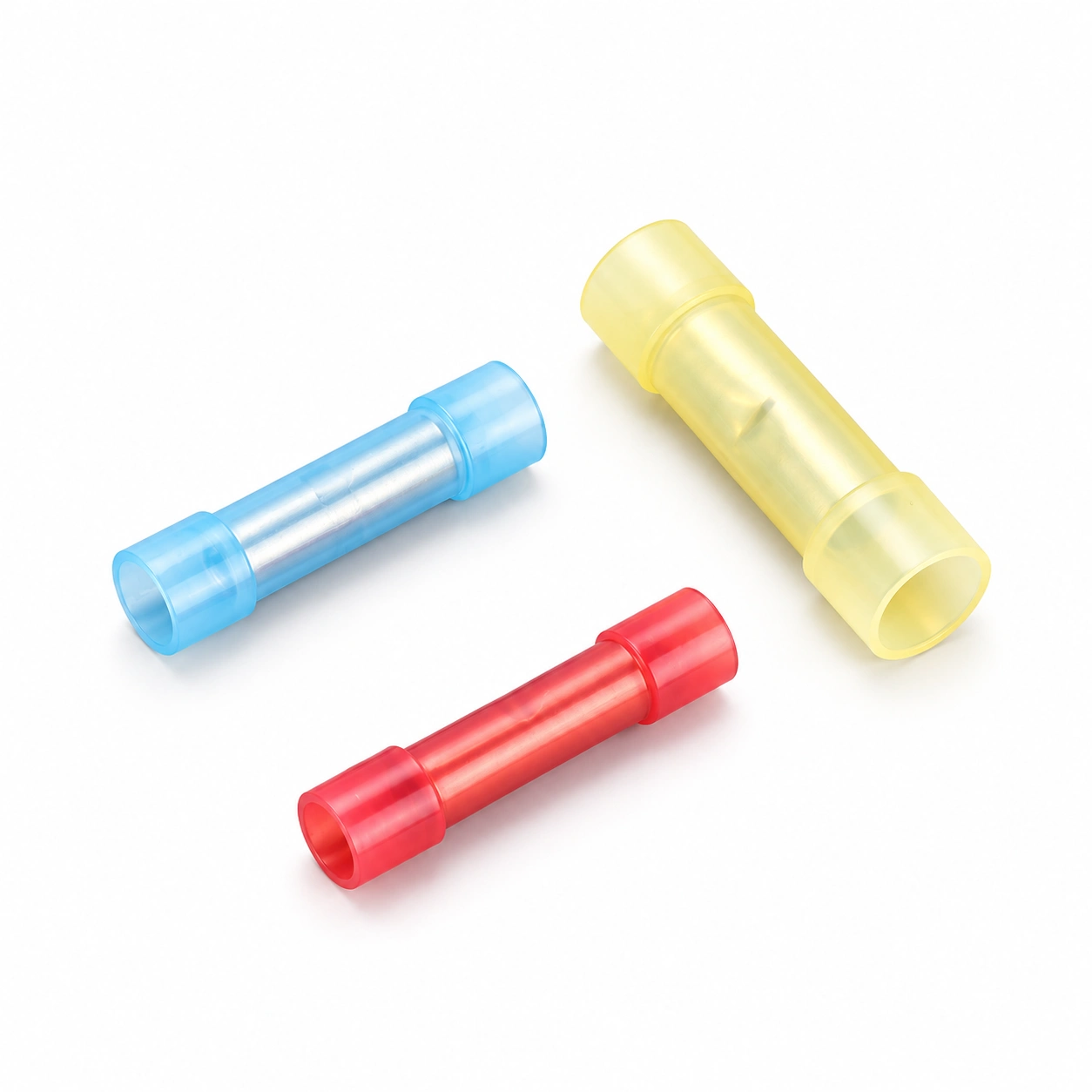

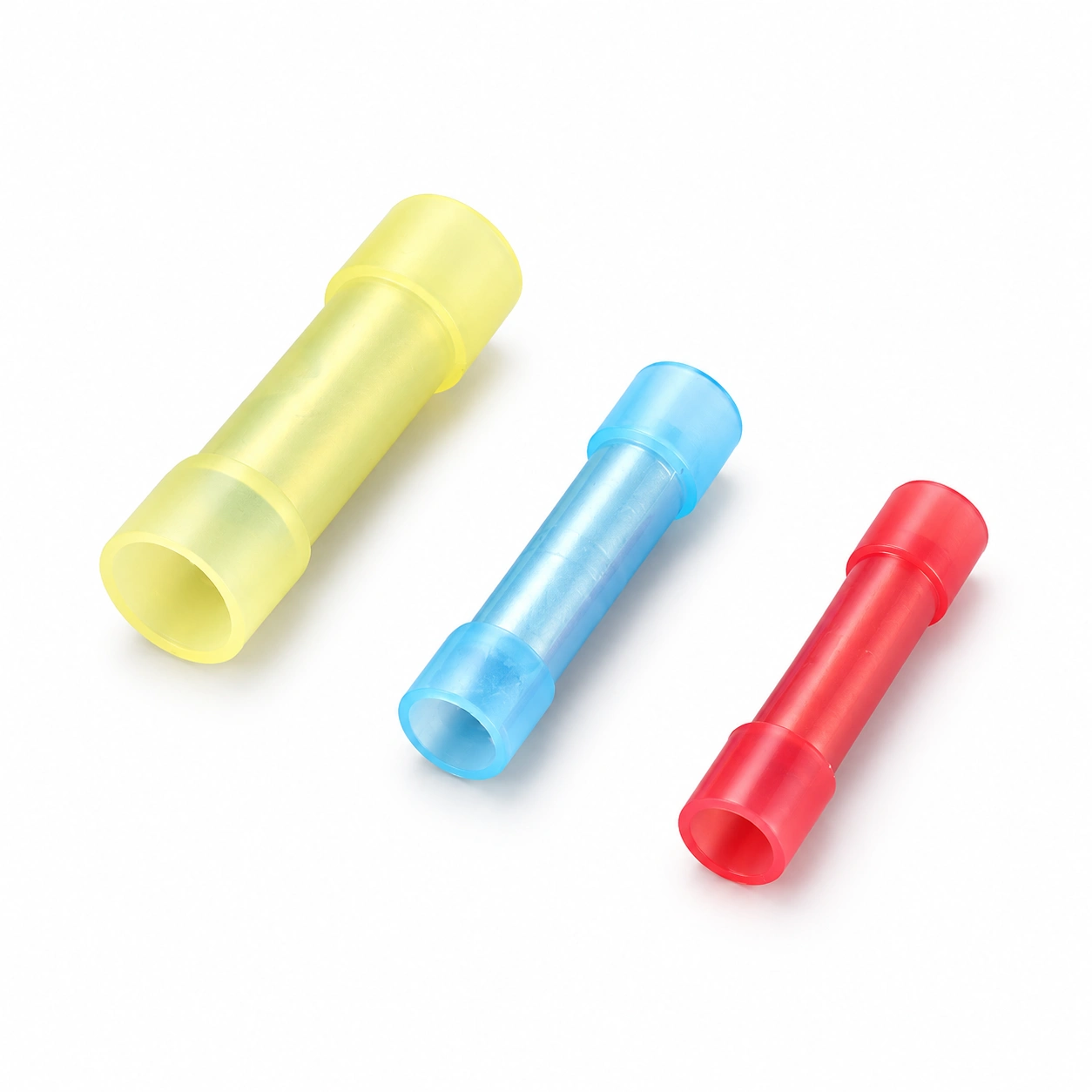

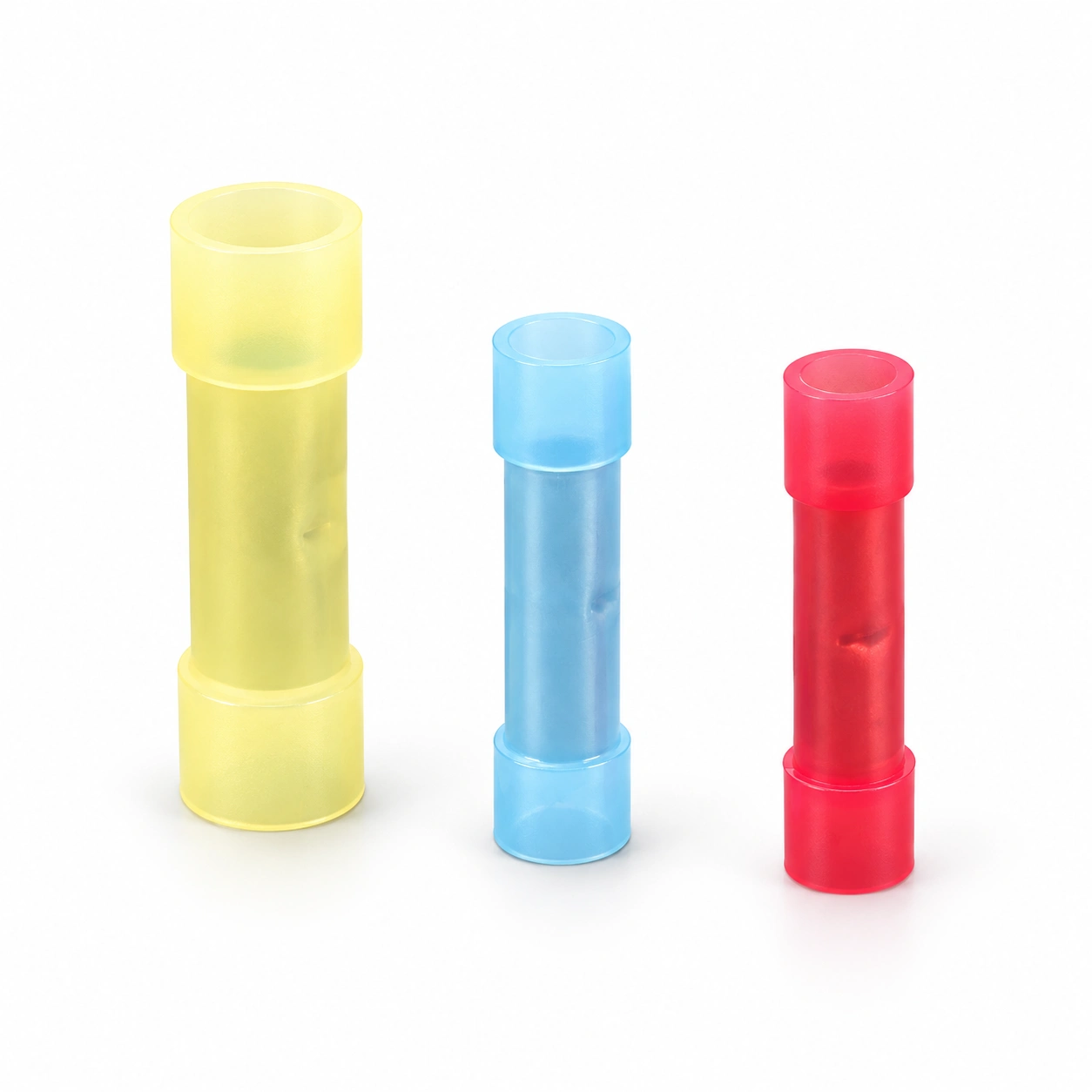

- Nylon insulation: Translucent coloured sleeves surround the crimp barrel and allow visual inspection.
- Butt-splice design: Insert a conductor from each end and crimp the barrel with suitable tooling.
- Colour identification: Red, blue and yellow variants correspond to the model-specific wire ranges.
- Catalog dimensions: Three original BNYF models are listed for selection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | BNYF |
| Insulation | Nylon |
| Connection type | Butt splice · crimp |
| Catalog wire range | 0.5–6 mm², depending on model |
| Colours | Red, blue and yellow |
| Contact material and finish | Confirm for the selected model |
Confirm voltage, temperature, inspection criteria and required documentation for the selected model and completed assembly.

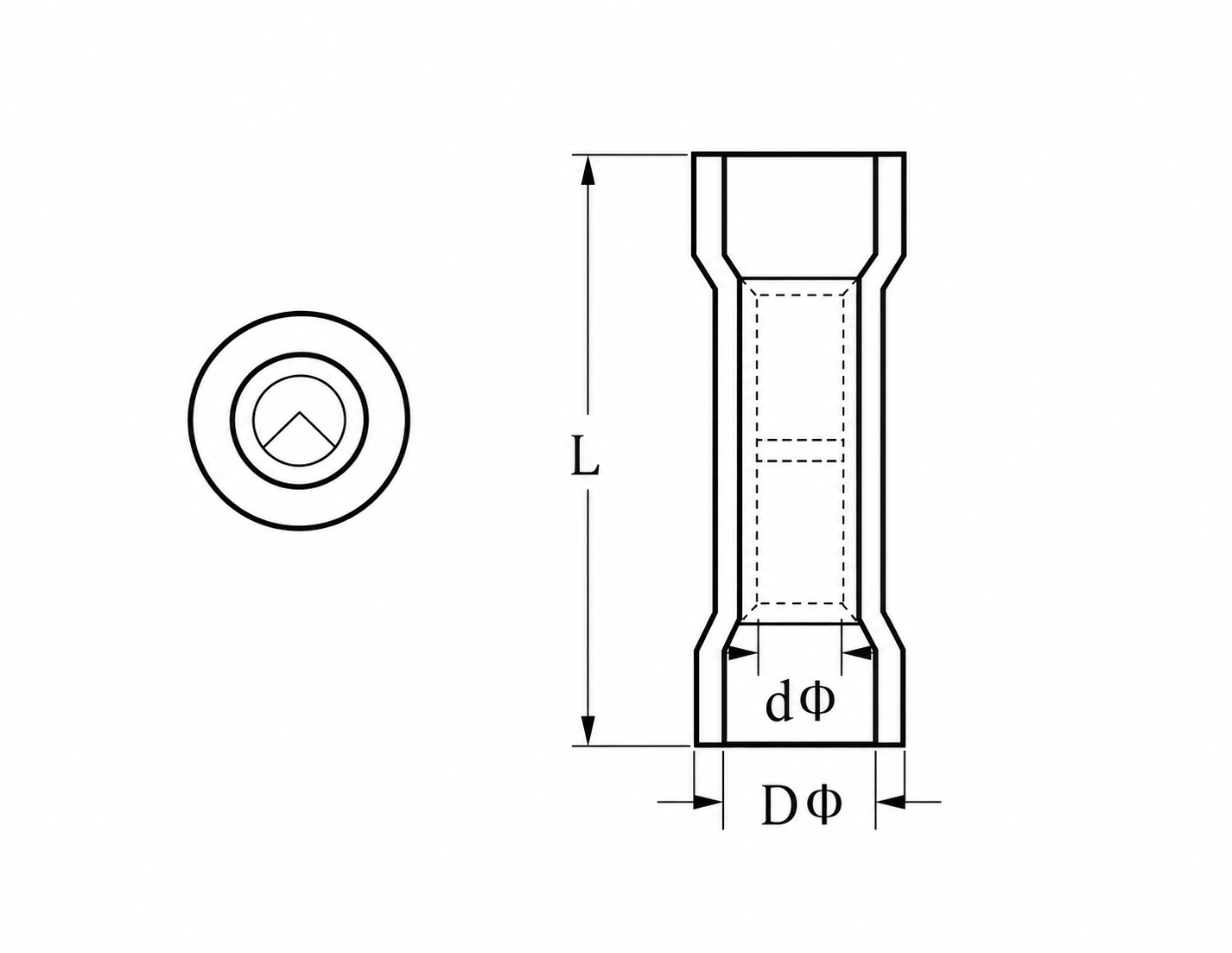

Dimension
Dimensions are in millimeters unless otherwise indicated. Original model references and catalog values are preserved. On small screens, scroll the table horizontally.
| Item No | Dimension(mm) | Wire range | Imax | Color | |||
|---|---|---|---|---|---|---|---|
| L | Dφ | dφ | A.W.G. | mm2 | |||
| BNYF 1.25 | 25.2 | 3.2 | 1.7 | 22-16 | 0.5-1.5 | 19A | Red |
| BNYF 2 | 25.4 | 3.8 | 2.3 | 16-14 | 1.5-2.5 | 27A | Blue |
| BNYF 5.5 | 27.7 | 5.3 | 3.4 | 12-10 | 4-6 | 48A | Yellow |
The original descriptive text lists red as 22–18 AWG, while the BNYF 1.25 model table lists 22–16 AWG. The table is retained as supplied; confirm the approved conductor combination before ordering.
Selection Guide
Match both conductors to the model table, then check L, Dφ and dφ against your assembly. Use the model-specific wire range rather than selecting by colour alone.
Strip to the approved length, insert both conductors fully and crimp each end with compatible insulated-terminal tooling. Inspect conductor insertion and retention before use. Nylon insulation does not by itself establish a sealed or waterproof splice.
Applications
Potential uses include cable splicing, equipment wiring, lighting assemblies and wire harness repair where a nylon-insulated crimp butt splice is specified.
Product compatibility and qualification depend on the model, installation process and approved assembly.
Ordering Information
Send the complete BNYF model number, wire sizes, application and order quantity. Include your sample, inspection, packaging and documentation requirements.
Explore nylon-insulated terminals or contact TONFUL Electric to discuss product selection and supply.
Product photos are high-definition illustrative recreations of the original images. Confirm the supplied product against an approved sample.
