Nylon Fully Insulated Female Terminal

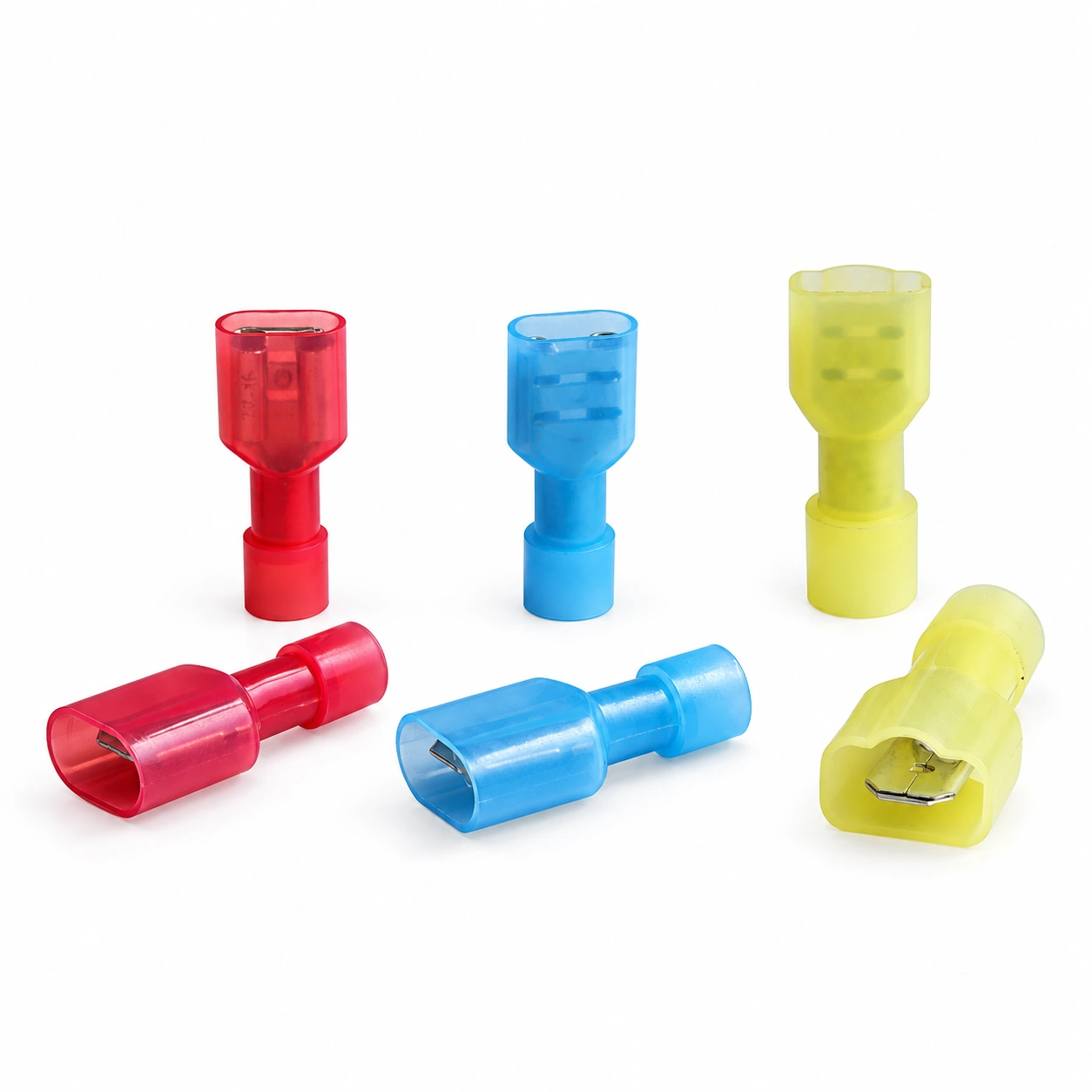

TONFUL Electric FDFN nylon fully insulated female receptacle terminals combine a tin-plated brass contact with a translucent nylon cover. Compare three color-coded models for 0.5–6 mm² conductors, then match the mating contact and crimp-tool requirements.
- Three original catalog models.
- 0.5–6 mm² conductors; AWG 22–10 by model.
- Tin-plated brass contact with translucent nylon insulation.
- The rolled female receptacle accepts a compatible male spade.
Overview
TONFUL Electric FDFN nylon fully insulated female receptacle terminals combine a tin-plated brass contact with a translucent nylon cover. Compare three color-coded models for 0.5–6 mm² conductors, then match the mating contact and crimp-tool requirements. The rolled female receptacle accepts a compatible male spade. The insulating cover surrounds the contact and wire-crimp area; the mating opening and wire entry remain accessible.
Features
- Contact interface: The rolled female receptacle accepts a compatible male spade.
- Translucent nylon: allows visual inspection of wire insertion and the contact area.

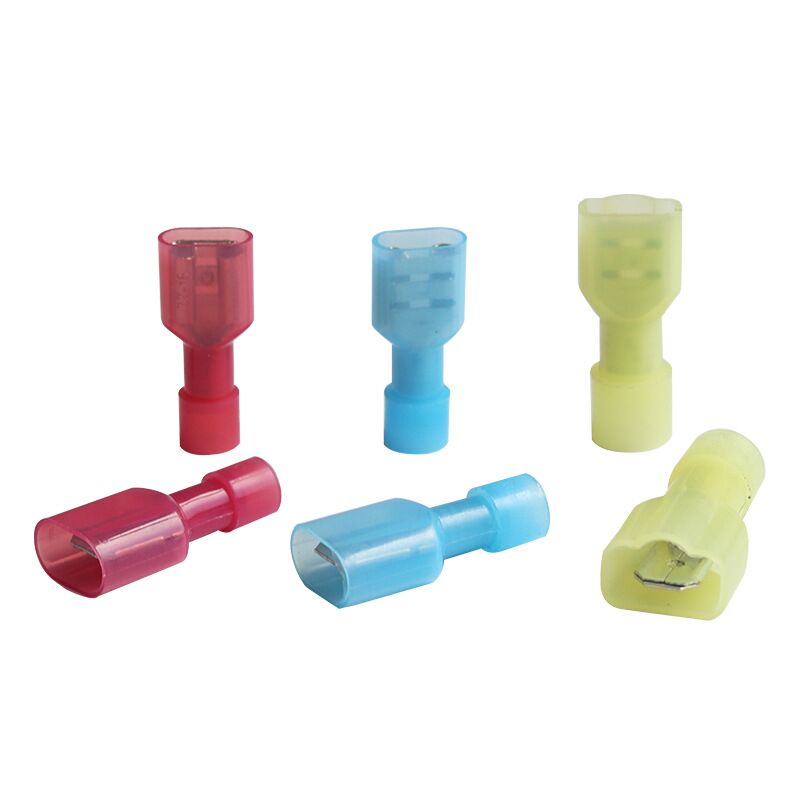

- Color-coded selection: red, blue and yellow identify the catalog wire-size groups.
- Crimp termination: choose tooling and conductor dimensions for the selected model.
- Disconnectable connection: supports compatible serviceable wiring connections.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | FDFN |
| Terminal type | Fully insulated female quick-disconnect receptacle |
| Contact material | Brass |
| Contact finish | Tin coating |
| Insulation | Translucent nylon |
| Wire-section range | 0.5–6 mm², according to model |
| Colors | Red / blue / yellow, according to model |
| Catalog operating voltage | 600 V |
| Catalog temperature withstand | 105°C |
| Catalog maximum currents | 10 / 15 / 24 A, according to model |
Voltage, temperature and current values are original catalog entries. Confirm the exact model, mating pair and installation conditions for the finished assembly.

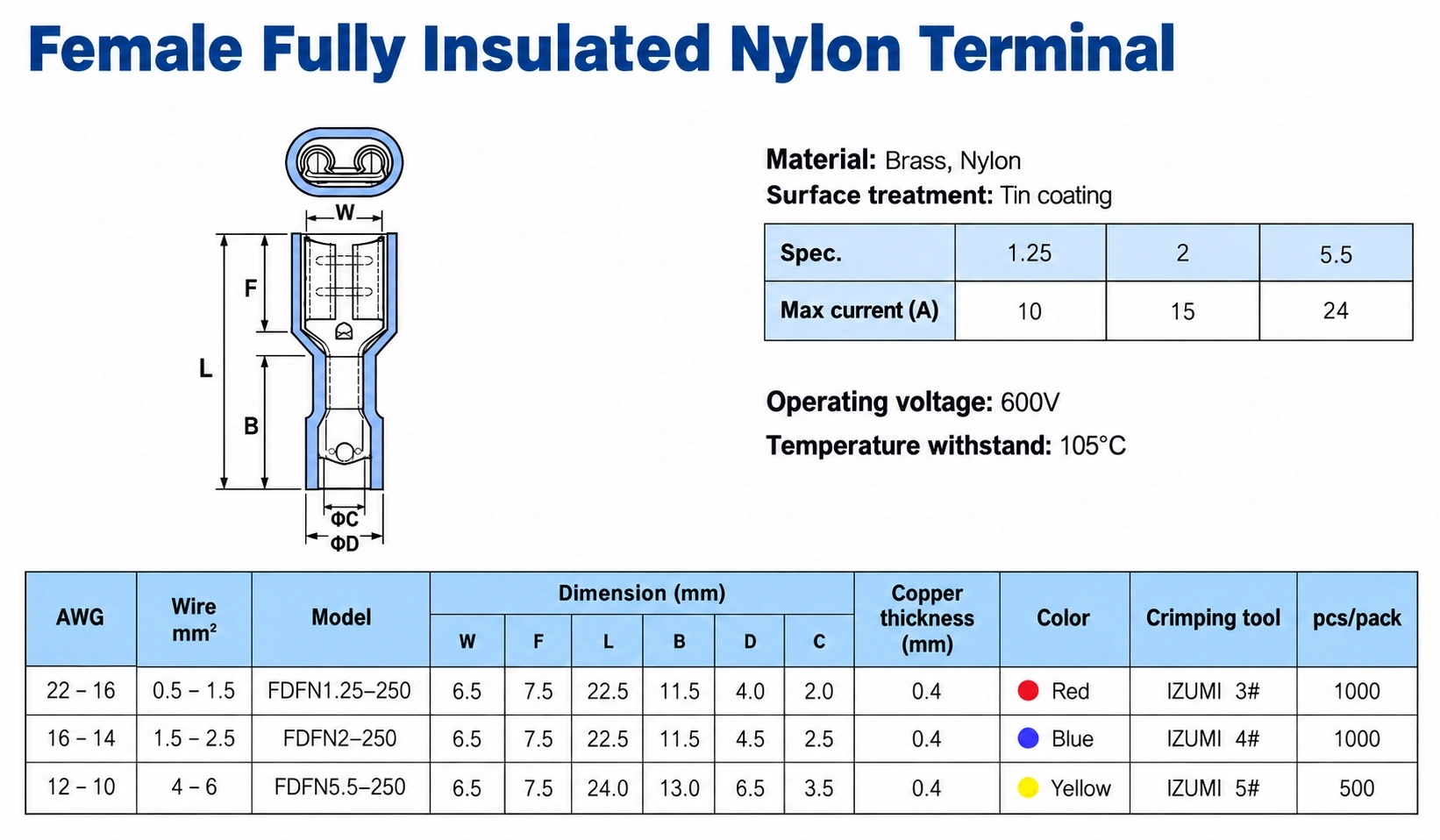

Dimension
Dimensions are in millimeters. The original catalog lists 10, 15 and 24 A for the three size groups; the older product introduction stated 27 A for the blue version. This draft follows the model chart. Confirm the current datasheet when ordering.
| Model | AWG | Wire section (mm²) | W (mm) | F (mm) | L (mm) | B (mm) | D (mm) | C (mm) | Contact thickness (mm) | Color | Catalog max current (A) | Crimp tool (catalog) | PCS / pack (catalog) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

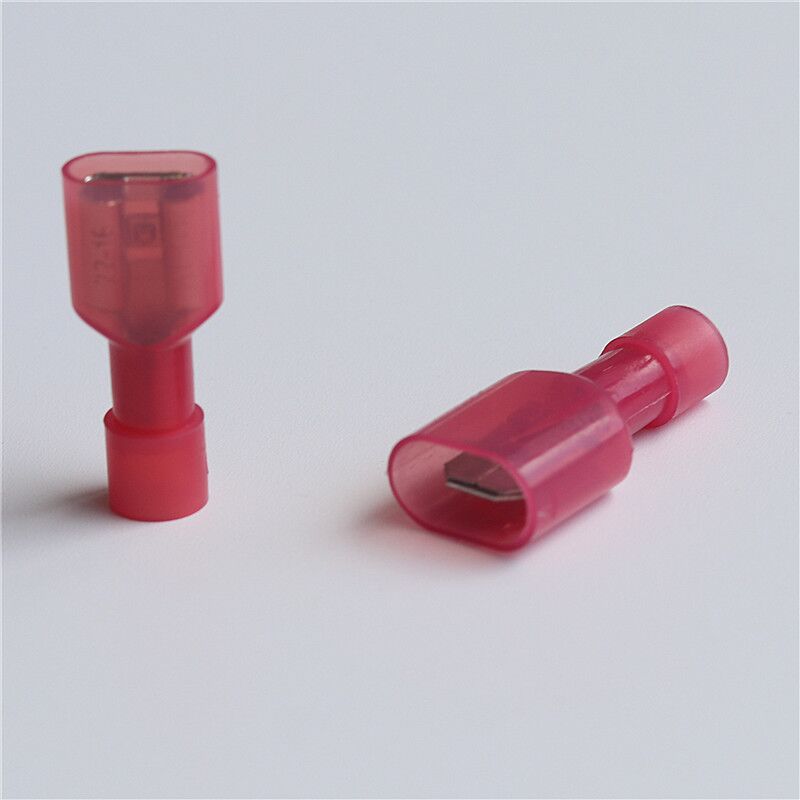

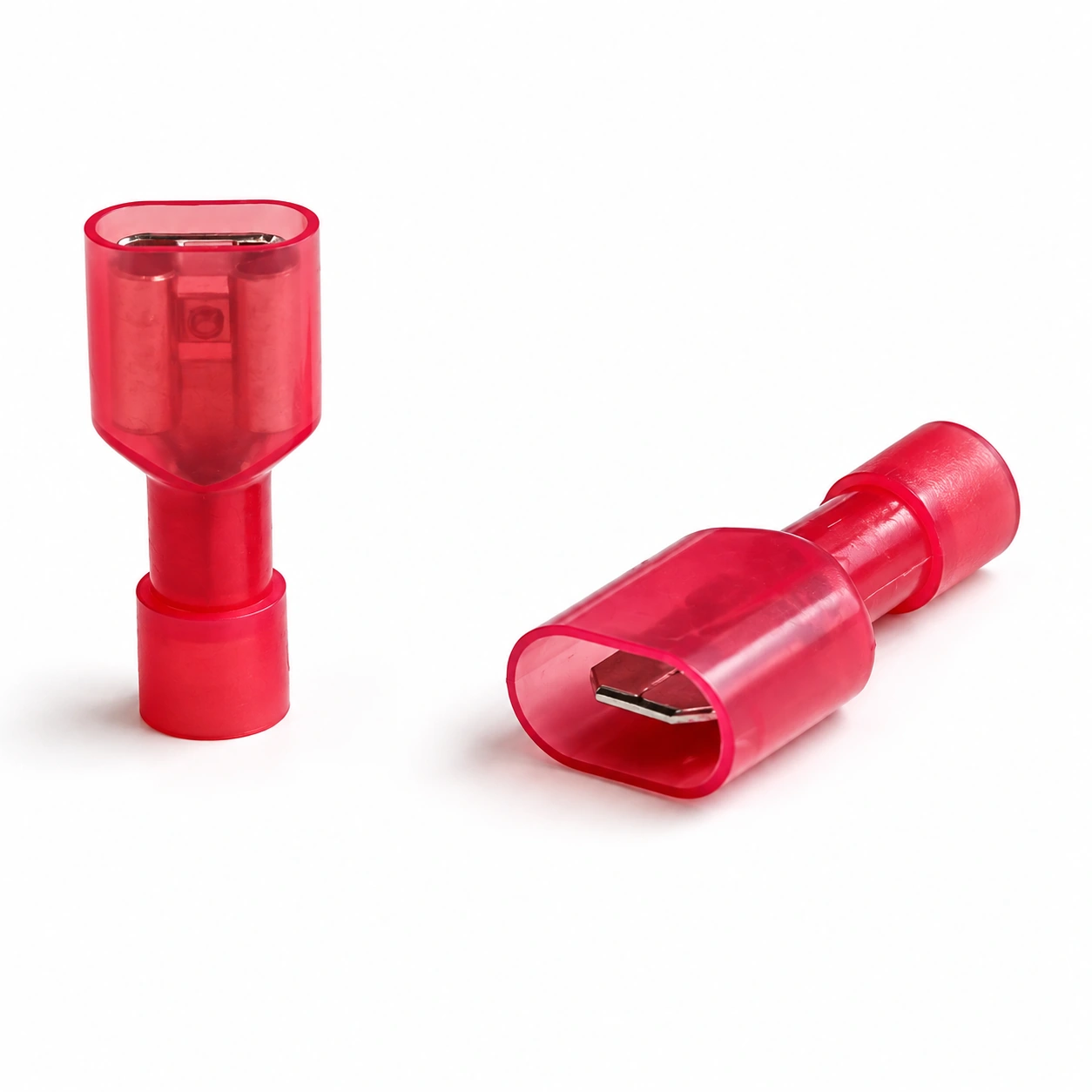

| FDFN1.25-250 | 22–16 | 0.5–1.5 | 6.5 | 7.5 | 22.5 | 11.5 | 4.0 | 2.0 | 0.4 | Red | 10 | IZUMI 3# | 1000 |

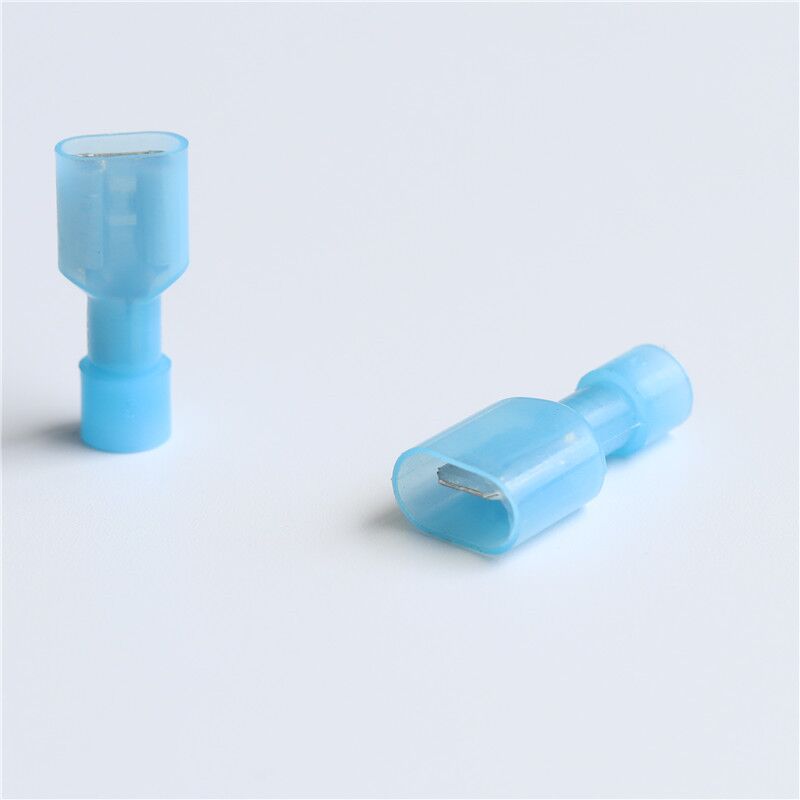

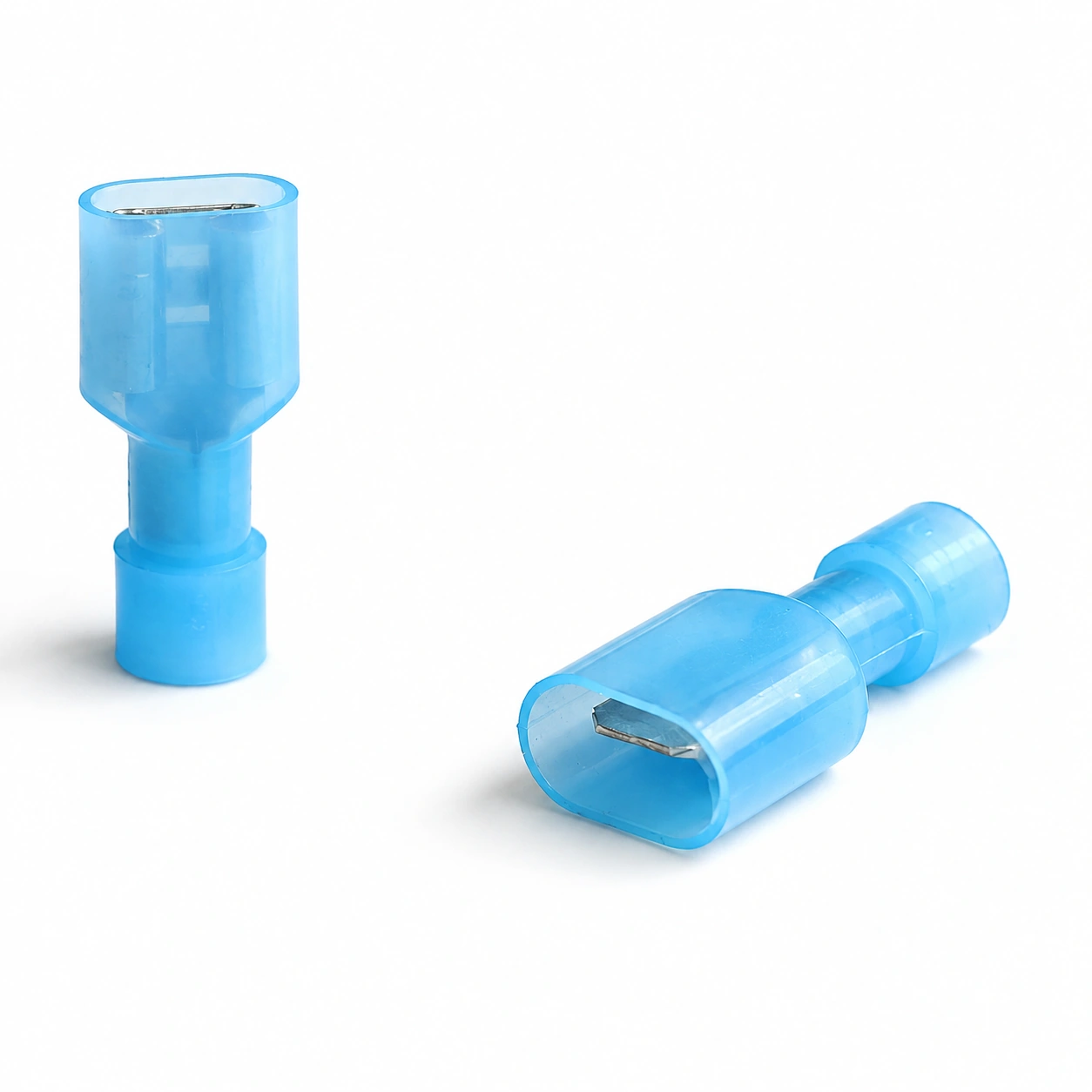

| FDFN2-250 | 16–14 | 1.5–2.5 | 6.5 | 7.5 | 22.5 | 11.5 | 4.5 | 2.5 | 0.4 | Blue | 15 | IZUMI 4# | 1000 |

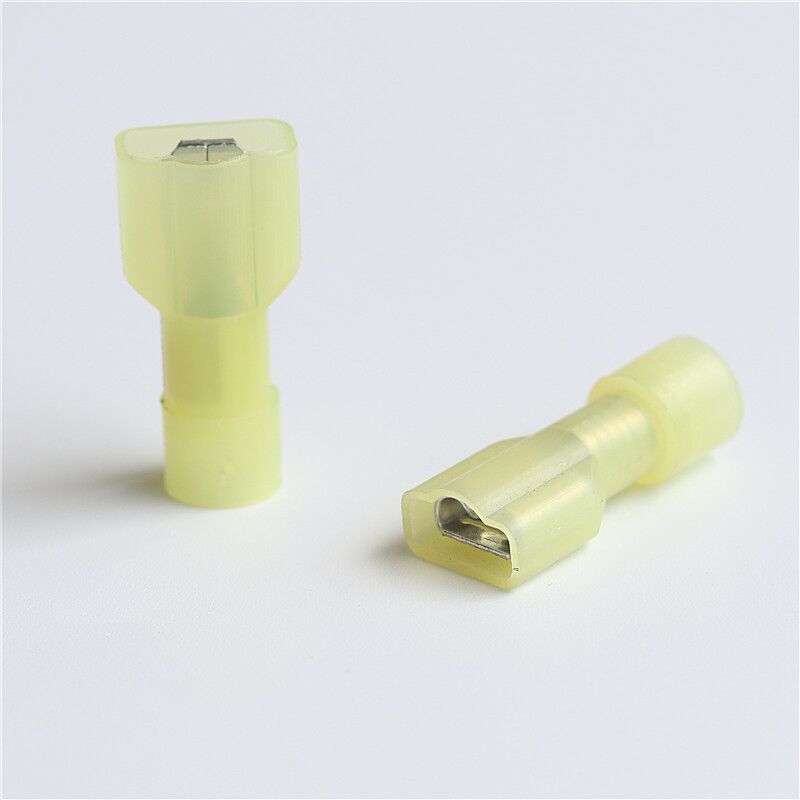

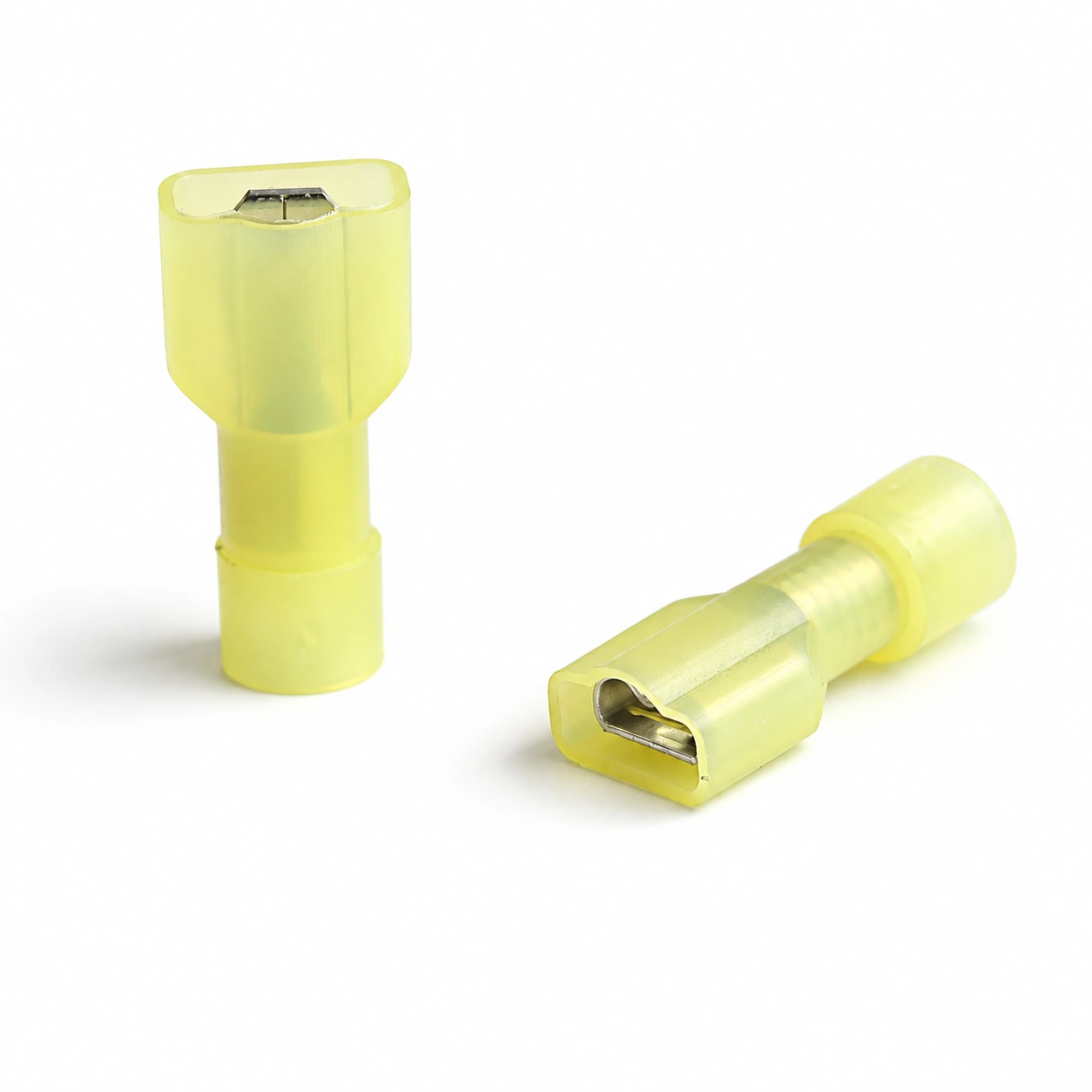

| FDFN5.5-250 | 12–10 | 4–6 | 6.5 | 7.5 | 24.0 | 13.0 | 6.5 | 3.5 | 0.4 | Yellow | 24 | IZUMI 5# | 500 |
Selection Guide
Select the conductor section and color-coded model, then verify the female receptacle dimensions against the mating connector. Compare insertion clearance, wire-entry diameter and crimp-tool compatibility. Inspect the finished crimp and provide any additional protection required by the assembly.
Applications
Suitable enquiry examples include appliance wiring, equipment controls, automotive harness servicing and industrial maintenance with compatible quick-disconnect interfaces. Confirm the terminal, enclosure and environmental requirements for the actual installation; the nylon cover does not establish a waterproof connection.
Ordering Information
Send the full FDFN reference, conductor size, mating-contact drawing, quantity and intended application. Catalog pack quantities are listed by model; confirm retail pack size, bulk packaging, labeling and delivery terms in the quotation.
Request a FDFN terminal quote or email ivan@tonful.com.
