Nylon Insulated Flag Terminal
Nylon Insulated Flag Terminal
TONFUL FLDNY nylon-insulated flag terminals provide a right-angle female tab connection. Match the tab size, conductor range and terminal dimensions to your equipment interface.
- FLDNY series · 5 original catalog models
- Nylon
- Model-specific wire ranges and dimensions
- Samples and packaging reviewed with your enquiry
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Overview
TONFUL FLDNY nylon-insulated flag terminals provide a right-angle female tab connection. Match the tab size, conductor range and terminal dimensions to your equipment interface.
Compare 5 original catalog models below. Send the complete model number, conductor size and application so TONFUL can review your product enquiry.
Features
- Right-angle flag profile: A compact connection layout for assemblies with limited routing clearance.
- Nylon insulation: Coloured housings cover the contact and crimp connection.
- Tin-plated brass contact: Material and finish retained from the original product specification.
- Model-specific tab sizes: Compare 4.75 mm and 6.35 mm tab references in the catalog.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | FLDNY |
| Insulation | Nylon |
| Terminal material | Brass |
| Plating | Tin |
| Interface | Right-angle female flag disconnect |
| Catalog wire range | 0.5–6 mm², depending on model |
Confirm voltage, temperature, inspection criteria and required documentation for the selected model and completed assembly.

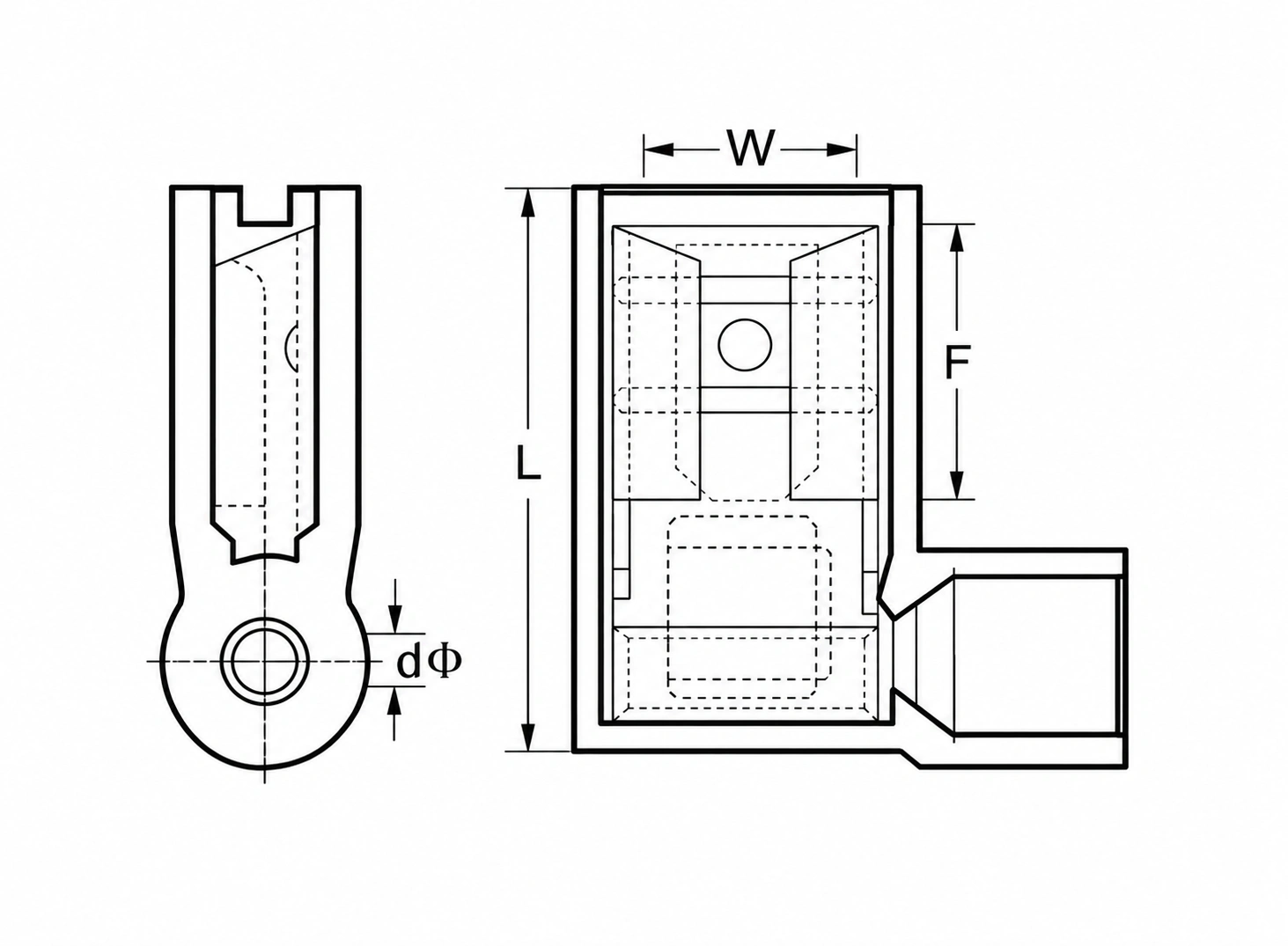

Dimension
Dimensions are in millimeters unless otherwise indicated. Original model references and catalog values are preserved. On small screens, scroll the table horizontally.
| Item No | Name Tab (mm) |
Dimension(mm) | Wire range | Imax | Color | ||||
|---|---|---|---|---|---|---|---|---|---|
| W | F | L | dφ | A.W.G. | mm2 | ||||
| FLDNY1.25-187 | 0.5 x 4.75 | 5.0 | 7.0 | 15.0 | 1.7 | 22-16 | 0.5-1.5 | 10A | Red |
| FLDNY1.25-250 | 0.8 x 6.35 | 6.6 | 7.6 | 16.0 | 1.7 | 22-16 | 0.5-1.5 | 10A | Red |
| FLDNY2-187 | 0.5 x 4.75 | 5.0 | 7.0 | 15.2 | 2.3 | 16-14 | 1.5-2.5 | 15A | Blue |
| FLDNY2-250 | 0.8 x 6.35 | 6.6 | 7.6 | 16.0 | 2.3 | 16-14 | 1.5-2.5 | 15A | Blue |
| FLDNY5.5-250 | 0.8 x 6.35 | 7.0 | 7.6 | 17.5 | 3.4 | 12-10 | 4-6 | 24A | Yellow |
Current values are original catalog references, not a rating for every complete assembly. The original specification identifies brass with tin plating; confirm material, temperature and required documentation for the selected model.
Selection Guide
Select the mating tab thickness and width first, then check the listed conductor range, W, F, L and dφ. Confirm insertion clearance, contact retention and crimp-barrel compatibility against your drawing or sample.
Use compatible insulated-terminal crimp tooling and the approved strip length. Inspect the crimp, housing and mating contact, then confirm the finished assembly meets your retention and electrical requirements.
Applications
Potential uses include appliances, lighting fixtures, control equipment and automotive harness assemblies with a compatible female flag tab interface.
Product compatibility and qualification depend on the model, installation process and approved assembly.
Ordering Information
Send the complete FLDNY model number, wire sizes, application and order quantity. Include your sample, inspection, packaging and documentation requirements.
Explore nylon-insulated terminals or contact TONFUL Electric to discuss product selection and supply.

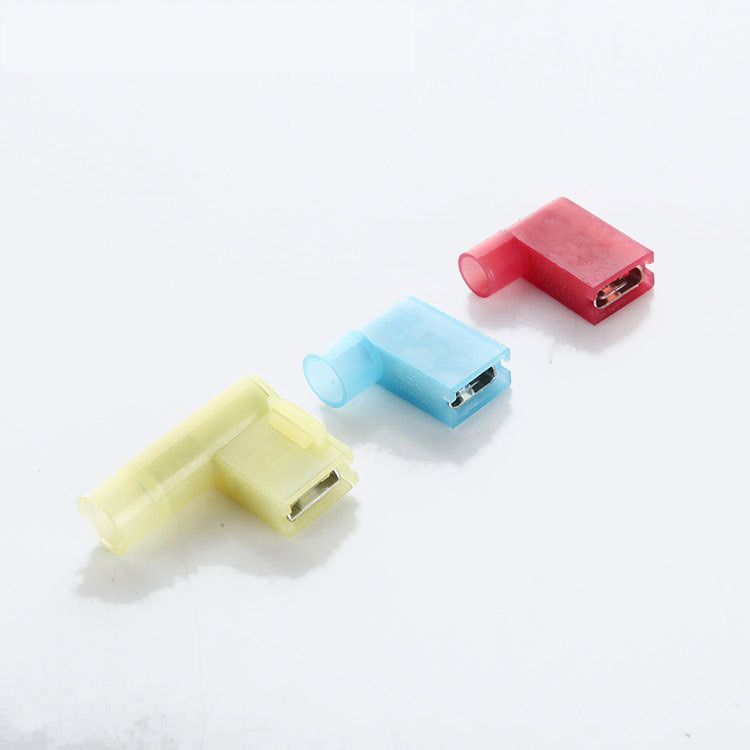

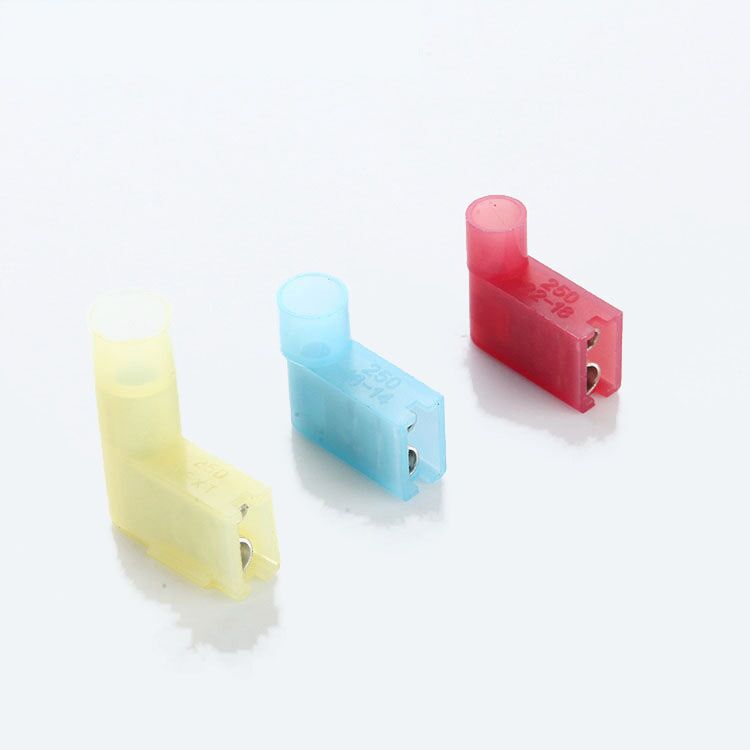

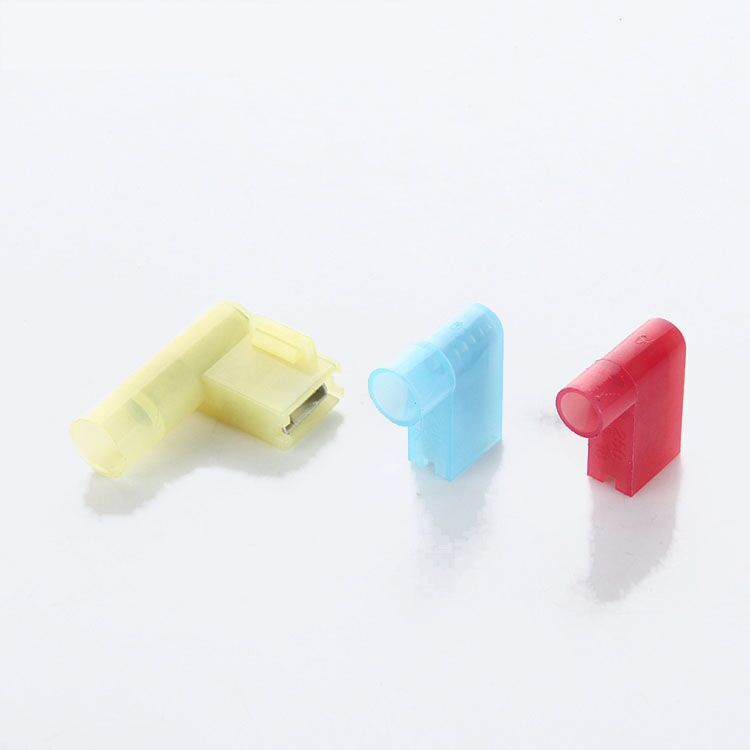

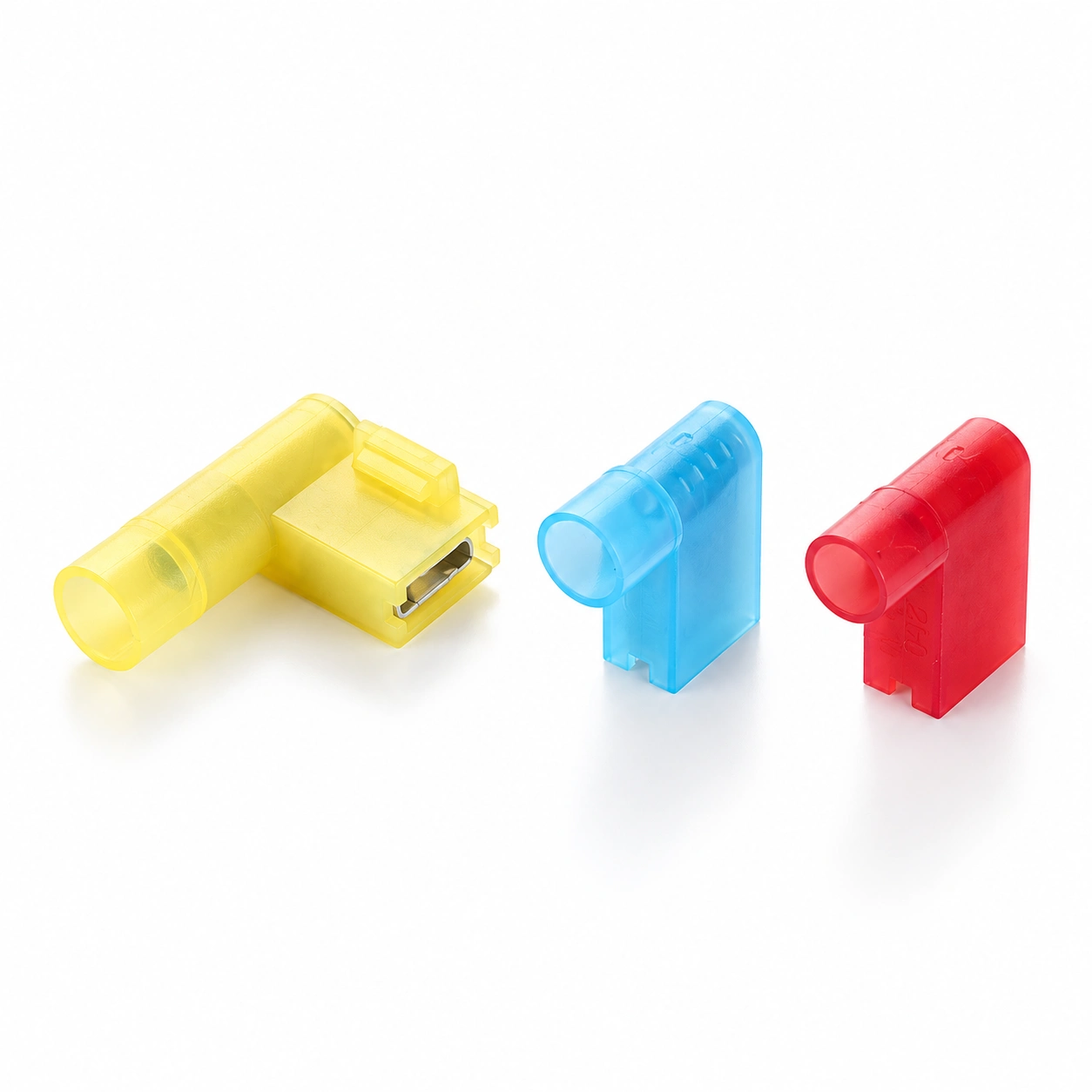

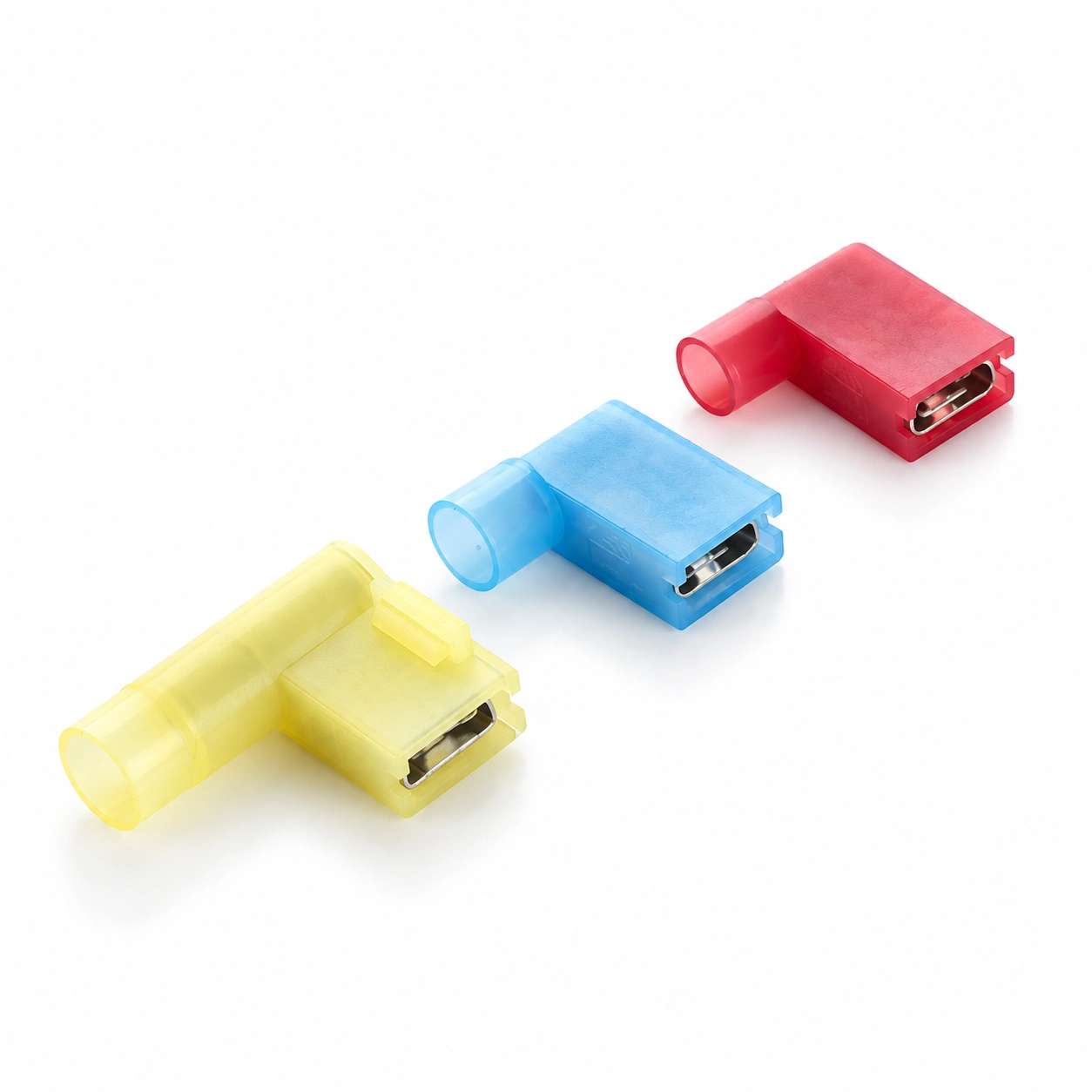

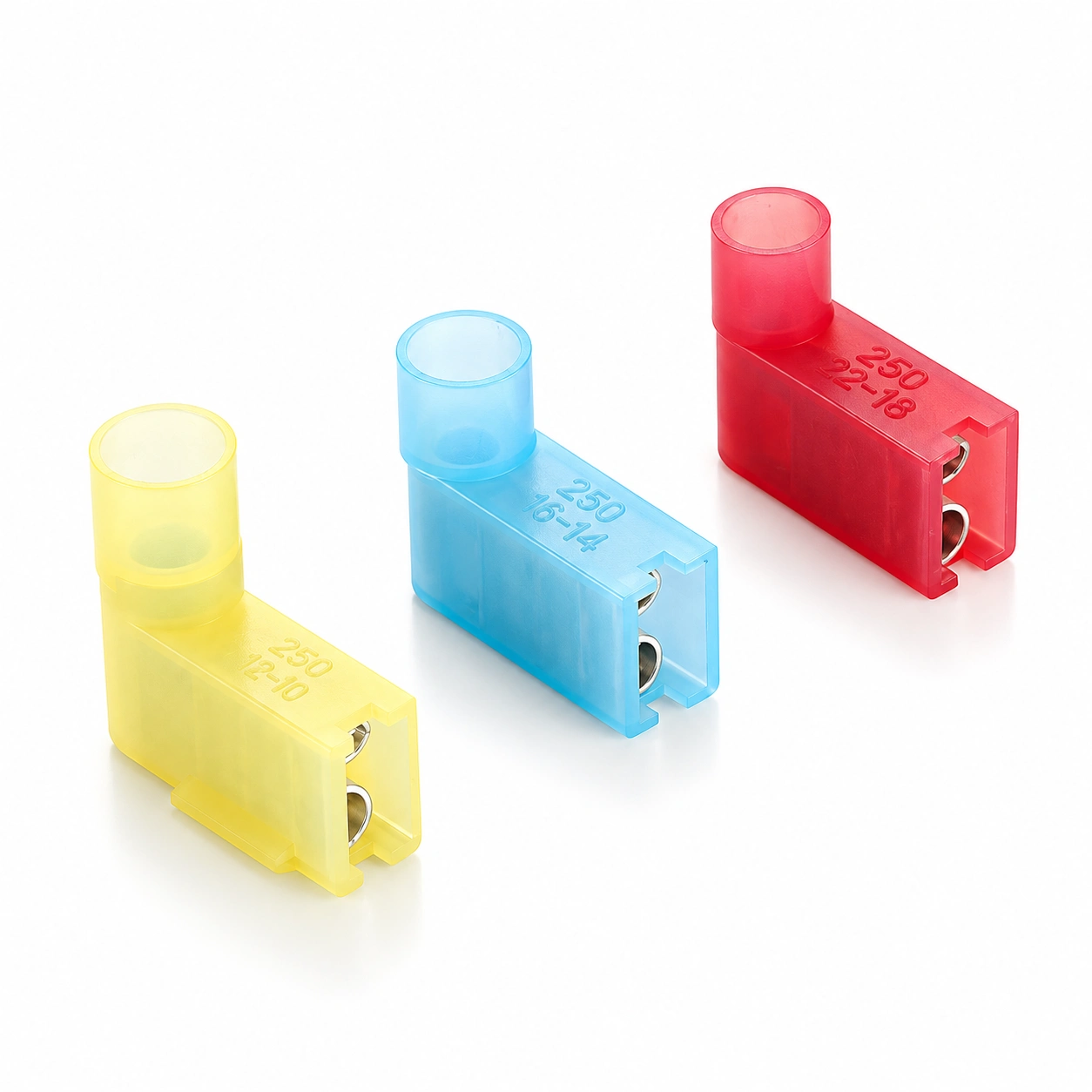

Product photos are high-definition illustrative recreations of the original images. Confirm the supplied product against an approved sample.
