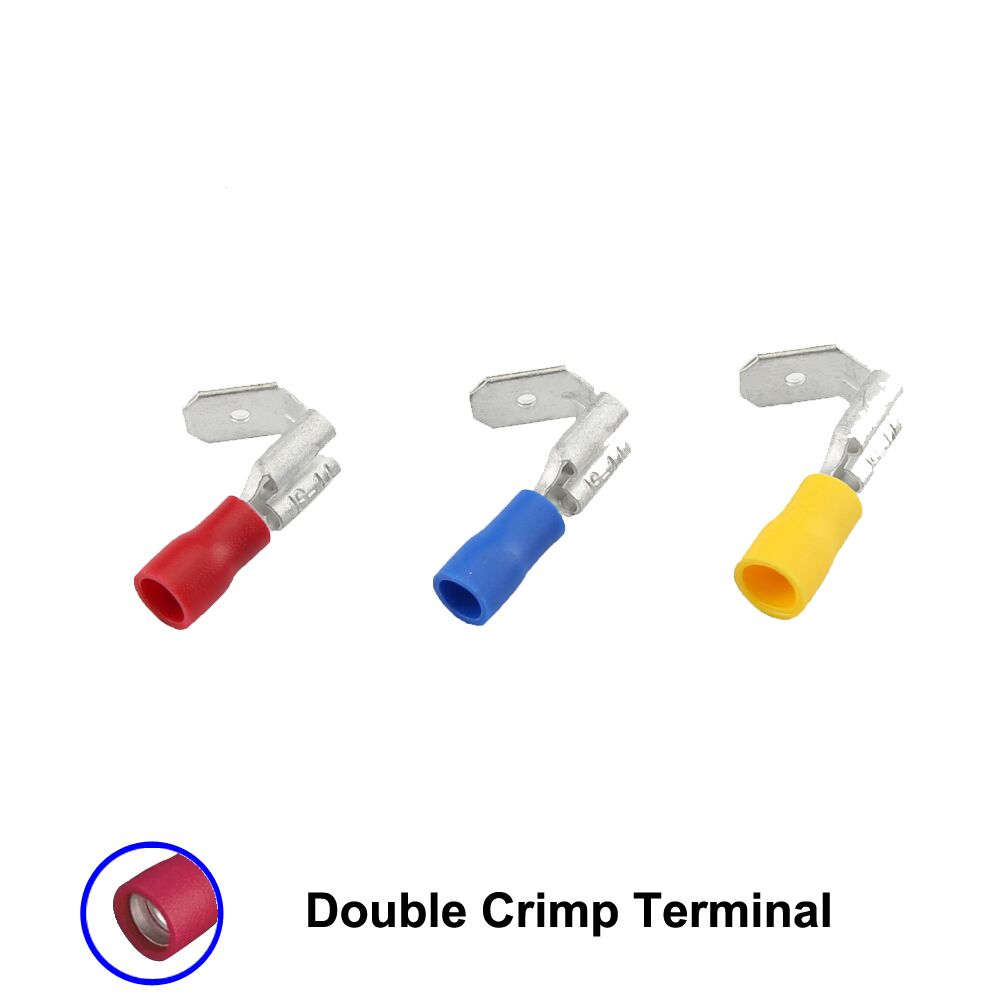

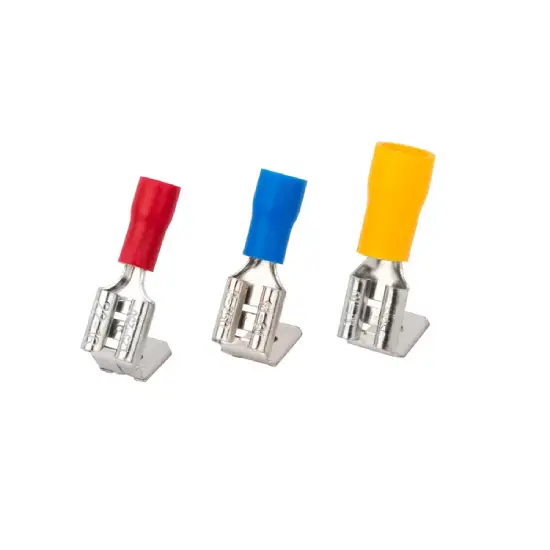

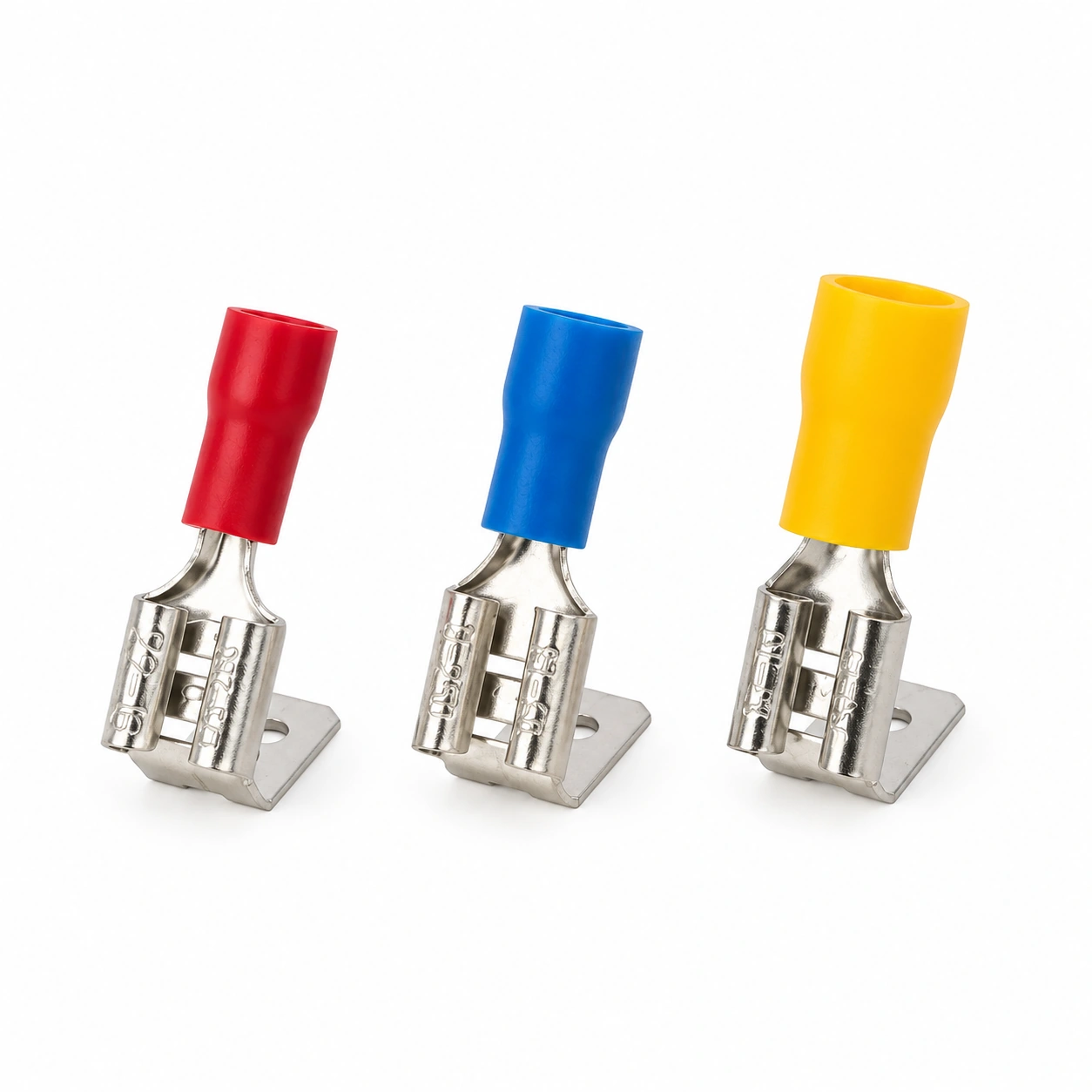

Piggy-back Insulated Terminal
TONFUL Electric PBDN terminals combine a female receptacle and an additional male tab with a vinyl-insulated double-crimp sleeve. Compare the original catalog entries by conductor section, mating interface and terminal dimensions.
- 3 catalog entries across three wire-size groups.
- Listed conductor sections: 0.5–1.5, 1.5–2.5 and 4.0–6.0 mm².
- Vinyl insulation and tin-plated copper contact.
- The combined female receptacle and offset male tab provide two compatible mating interfaces on one terminal.
Overview
TONFUL Electric PBDN terminals combine a female receptacle and an additional male tab with a vinyl-insulated double-crimp sleeve. Compare the original catalog entries by conductor section, mating interface and terminal dimensions. The combined female receptacle and offset male tab provide two compatible mating interfaces on one terminal. Select the conductor size and mating configuration together for the finished electrical assembly.
Features
- Mating interface: The combined female receptacle and offset male tab provide two compatible mating interfaces on one terminal.
- Contact material: tin-plated copper as stated in the original catalog.

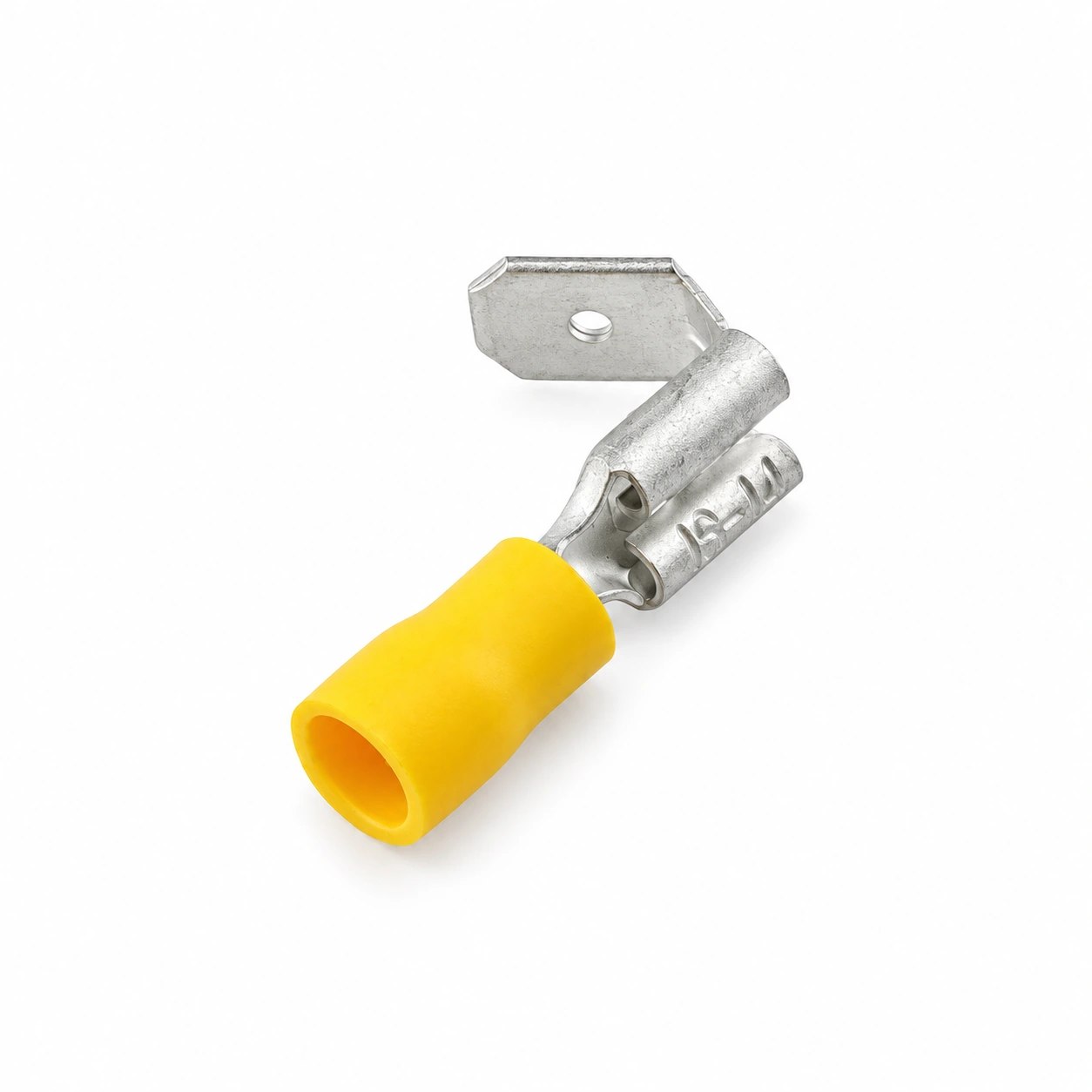

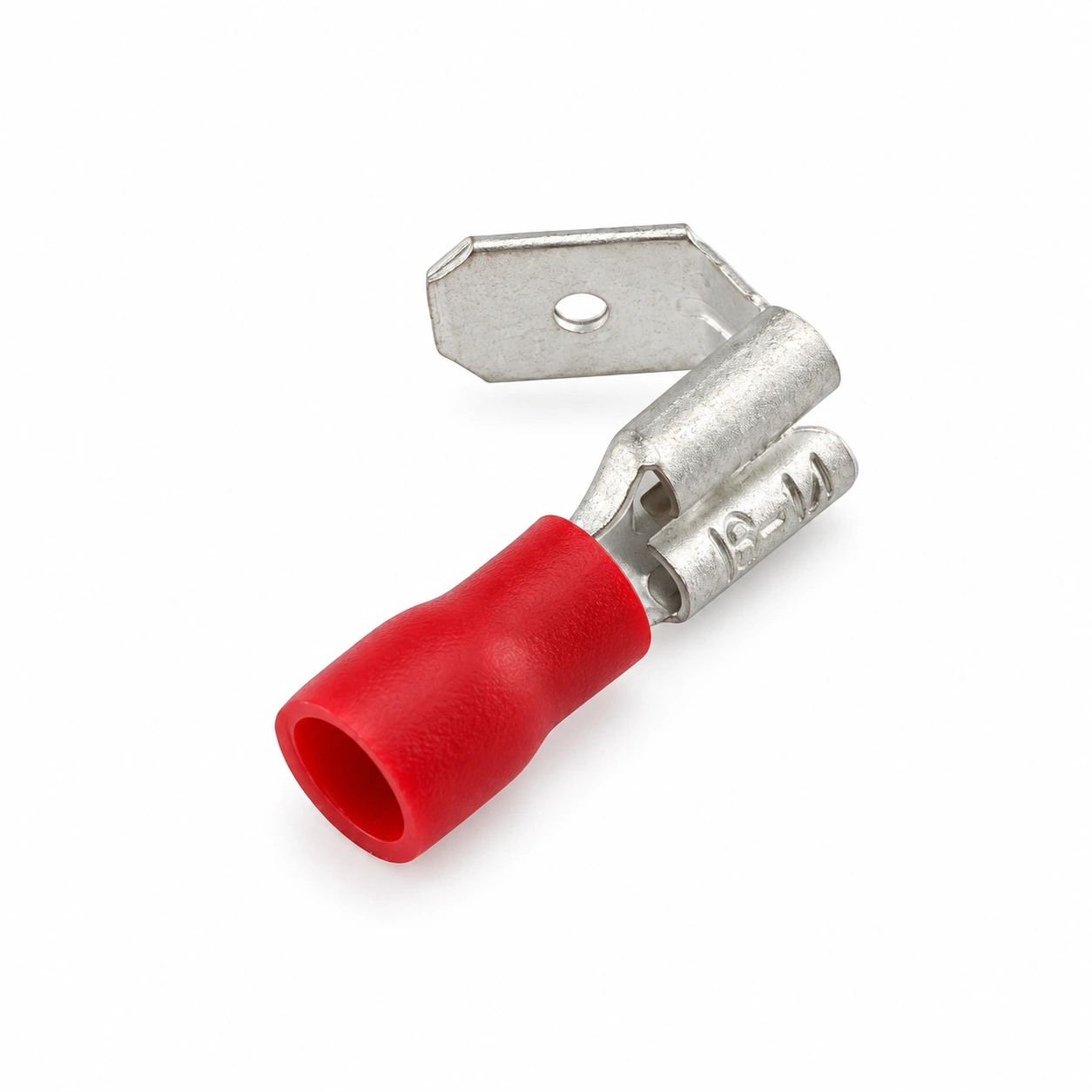

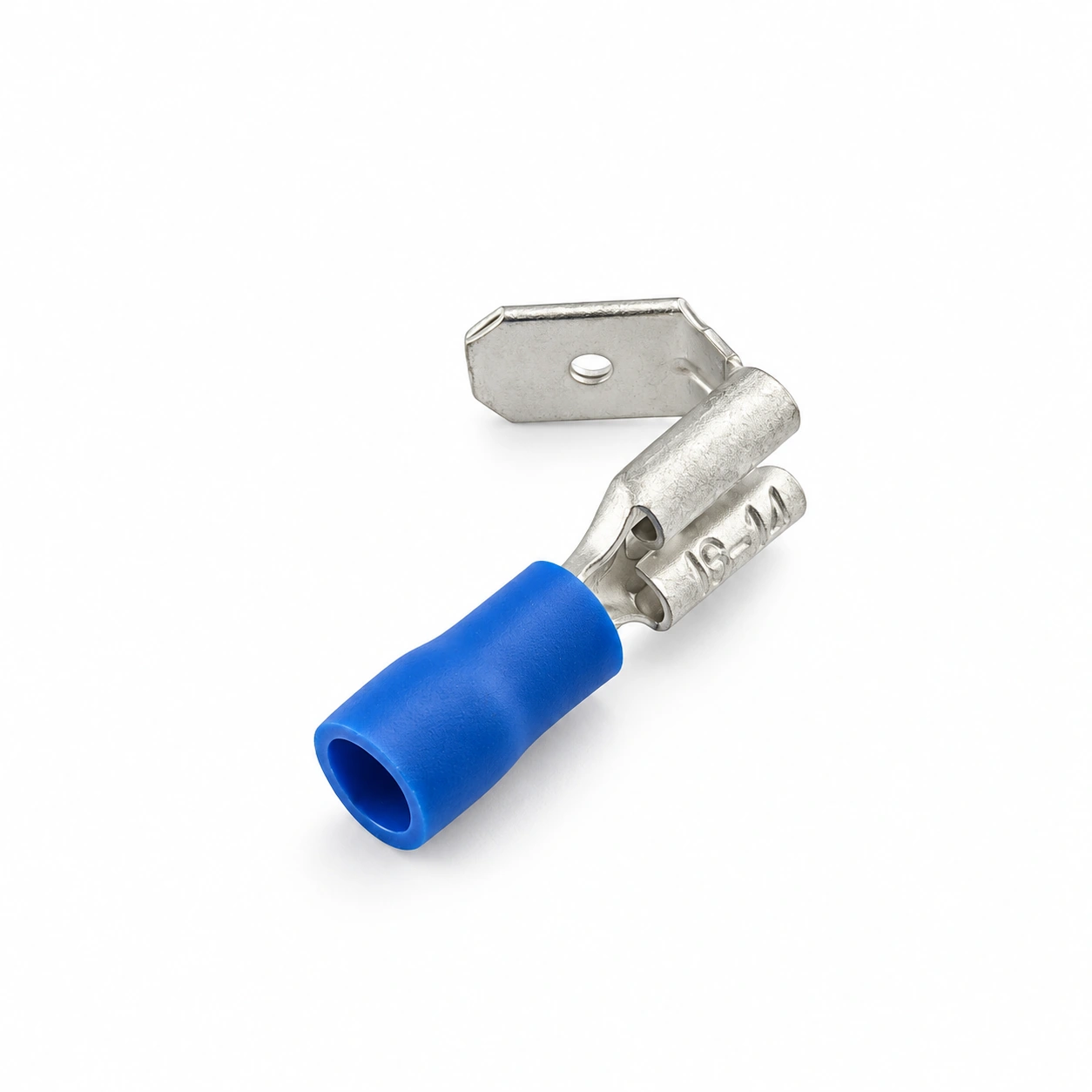

- Insulated wire entry: the vinyl sleeve identifies the red, blue and yellow conductor-size groups.
- Double crimp construction: the original product range specifies double crimp.
- Catalog dimensions: compare each model with the terminal drawing and connection hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product family | Male and female piggy-back disconnect |
| Series | PBDN |
| Insulation | Vinyl |
| Terminal material | Copper |
| Plating | Tin |
| Catalog entries | 3 |
| Wire sections | 0.5–1.5, 1.5–2.5 and 4.0–6.0 mm² |
Current values in the model table retain the original catalog values for each wire-size group. Confirm the selected terminal, conductor and crimp connection for your assembly.

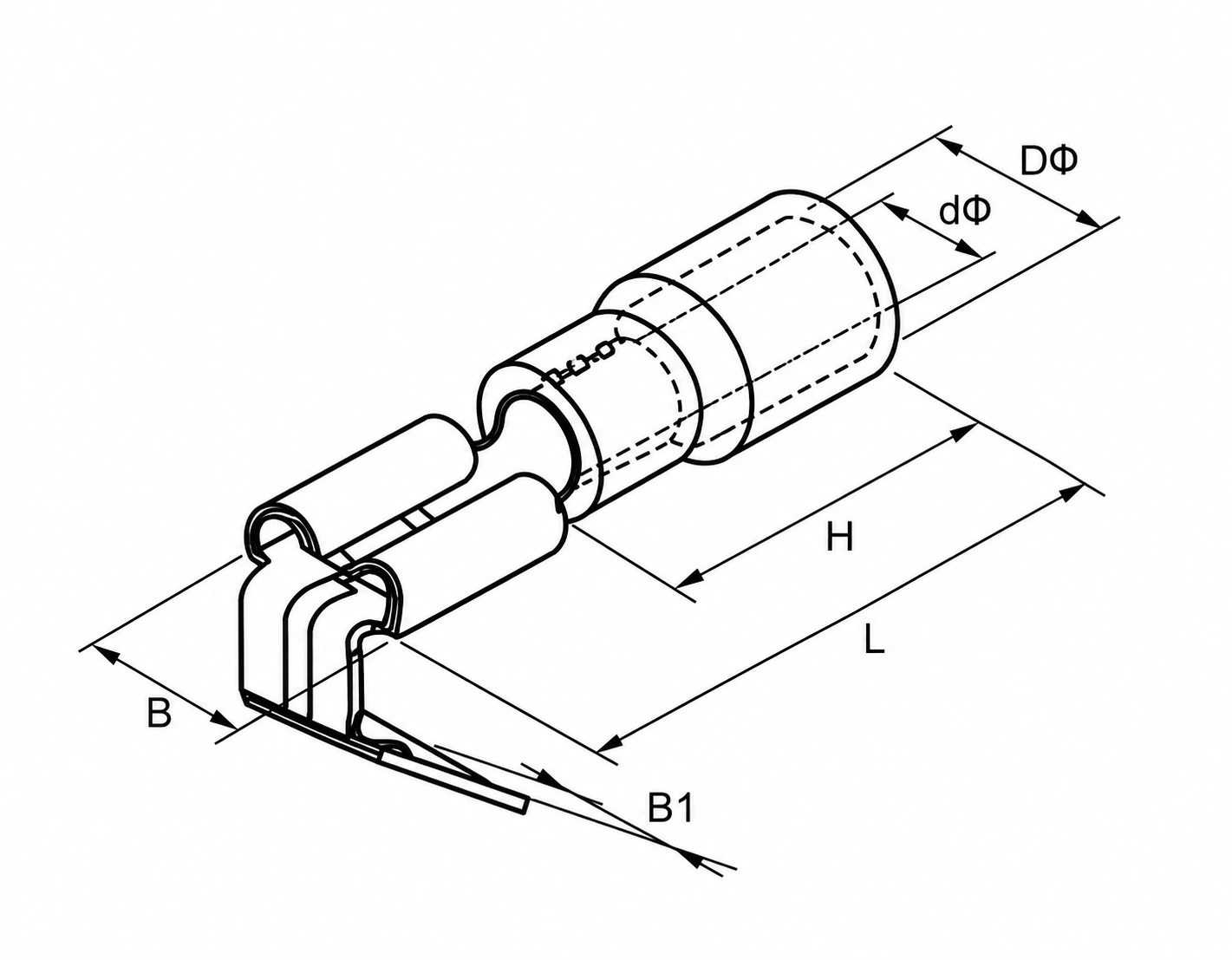

Dimension
Dimensions are in millimeters; wire sections are in mm² and current is in amperes. Model references and dimension values are retained from the original TONFUL catalog.
| Model | AWG | Wire section (mm²) | Catalog max current (A) | NEMA tab (mm) | B (mm) | B1 (mm) | E (mm) | DΦ (mm) | dΦ (mm) | L (mm) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PBDN1.25-250 | 22–16 | 0.5–1.5 | 10 | 0.8×6.35 | 6.6 | 6.35 | 10.0 | 3.8 | 1.7 | 22.5 | red |
| PBDN2-250 | 16–14 | 1.5–2.5 | 15 | 0.8×6.35 | 6.6 | 6.35 | 10.0 | 4.3 | 2.3 | 22.5 | blue |
| PBDN5.5-250 | 12–10 | 4.0–6.0 | 24 | 0.8×6.35 | 6.6 | 6.35 | 13.0 | 5.7 | 3.4 | 24.5 | yellow |
Selection Guide
Start with the conductor section and select the corresponding color group. Match both the female receptacle and male tab to the mating parts, then check the branch clearance, wire-entry diameter and overall length. Use a crimp tool and die suitable for the terminal and conductor. Send a mating-part reference or assembly drawing for selection assistance.
Applications
For compatible detachable flat-blade connections in appliance wiring, equipment assemblies, control wiring and electrical maintenance. The additional male tab can support a compatible branch connection where the assembly permits the required clearance. Select the terminal against the conductor, mating components and installation requirements.
Ordering Information
Provide the full PBDN model reference, conductor size, mating tab dimensions and order quantity. Include packaging, labeling and delivery requirements for OEM and wholesale enquiries.
