Quick Splice Connector
Quick Splice Connector
Create a wire tap or splice with TONFUL quick splice connectors. The hinged housing and insulation-displacement contact provide a connection without stripping the main wire; match each model to the complete conductor combination.
- Hinged snap housing with paired wire channels
- Insulation-displacement contact for wire tapping

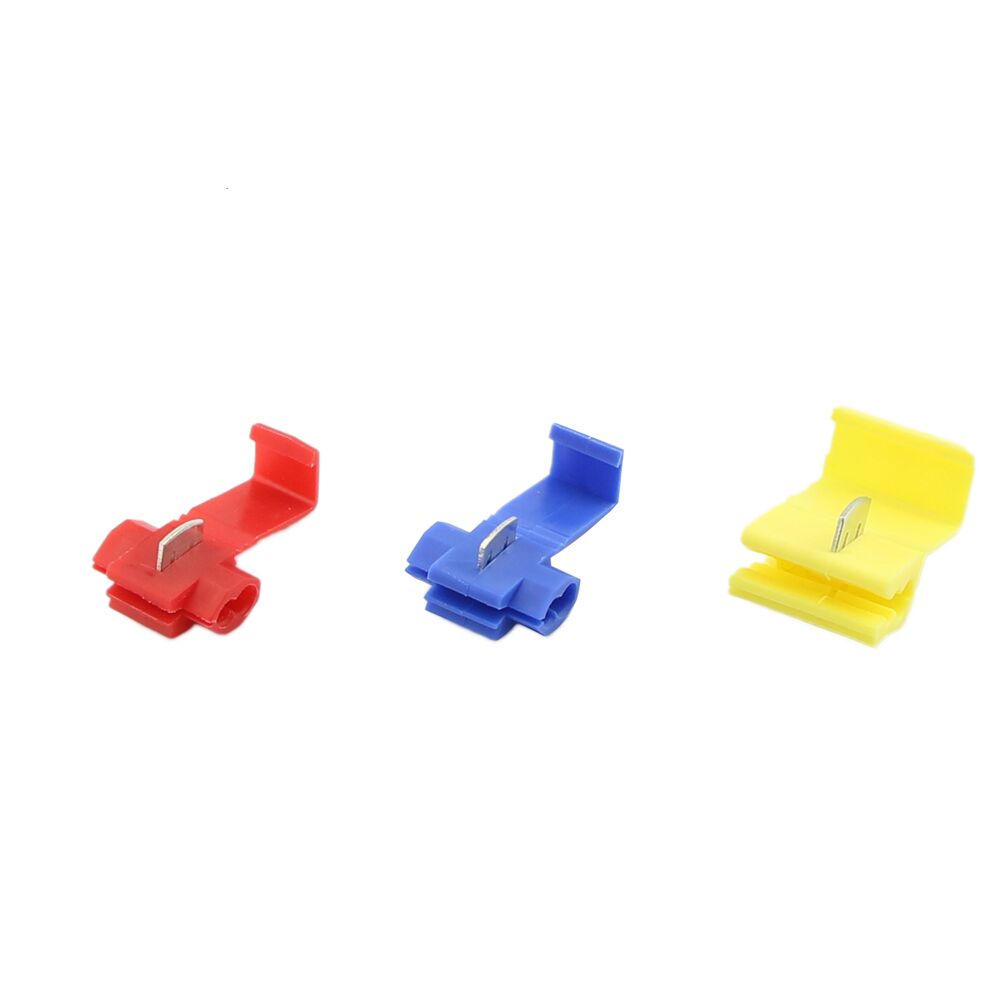

- Red, blue and yellow catalogue models
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Overview
Create a wire tap or splice with TONFUL quick splice connectors. The hinged housing and insulation-displacement contact provide a connection without stripping the main wire; match each model to the complete conductor combination.
Features
- Hinged snap housing with paired wire channels
- Insulation-displacement contact for wire tapping
- Red, blue and yellow catalogue models
- Check conductor size and insulation fit before selection
Technical Specifications
| Parameter | Specification |
|---|---|
| Connection | Insulation-displacement quick splice |
| Housing | PP, as described in the original page |
| Contact | Copper contact; original description states 0.8 mm thickness |
| Original voltage reference | 300 V; confirm model-specific documentation |
| Models | 801P3, 802P3, 803P3 |
Confirm the model, installation conditions and required documentation before approving an order.

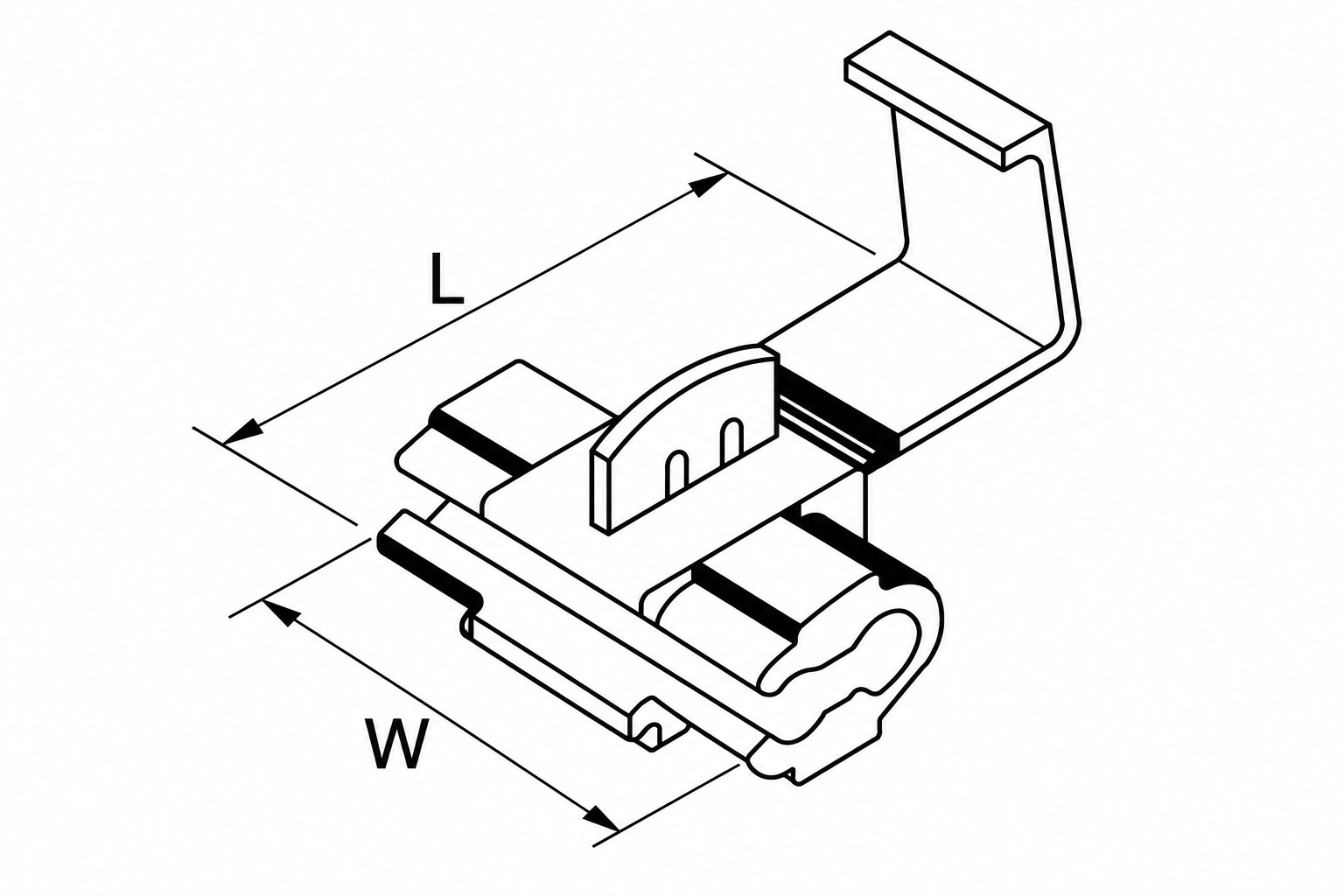

Dimension
Dimensions are in millimeters. Original catalogue values are retained below; confirm the approved drawing for the selected model.

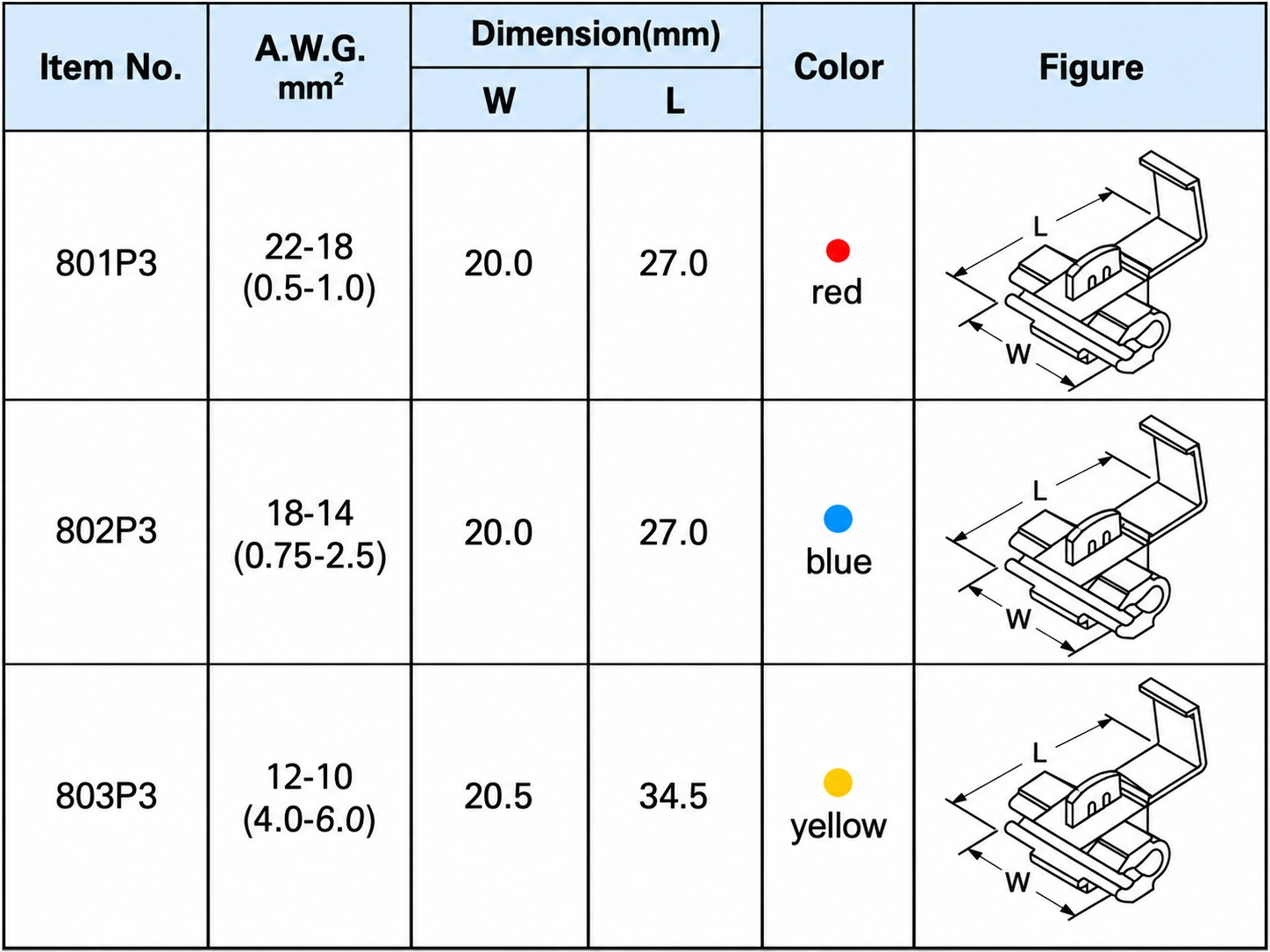

| Model | Wire range AWG | Wire section mm² | W mm | L mm | Colour |
|---|---|---|---|---|---|

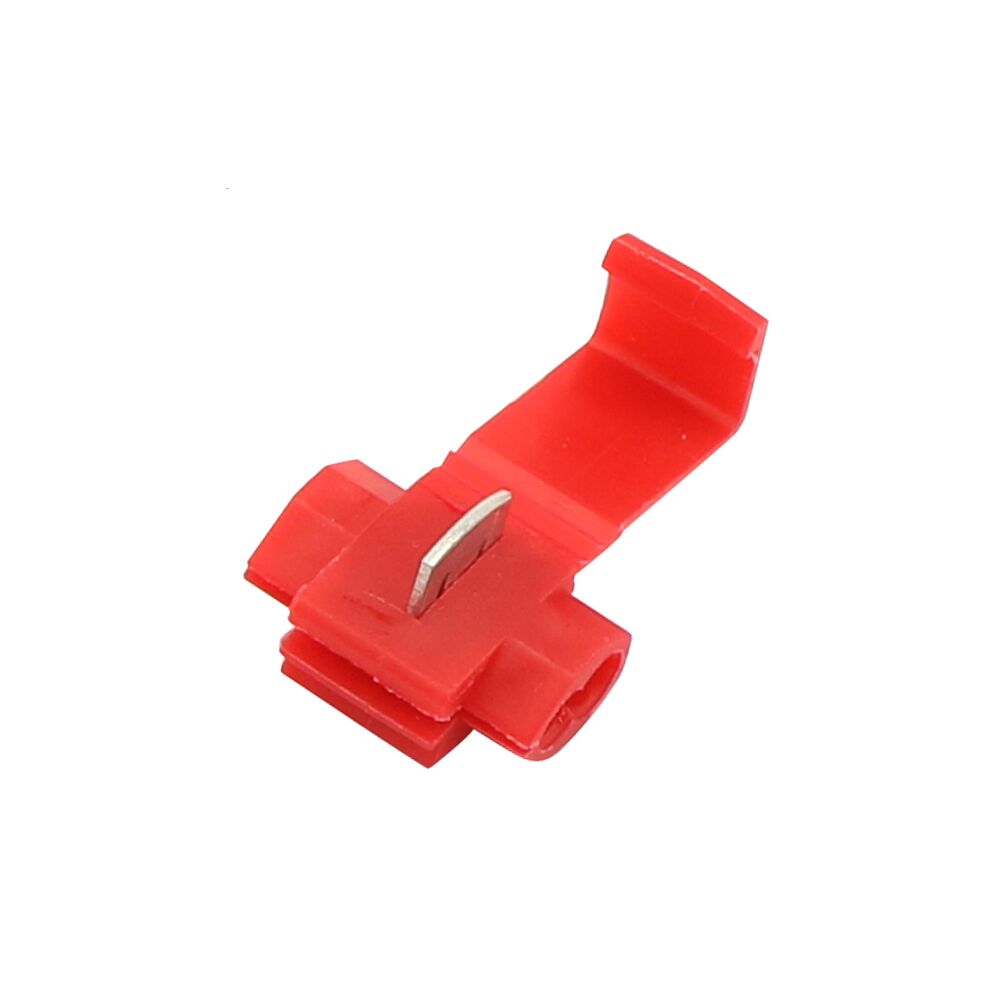

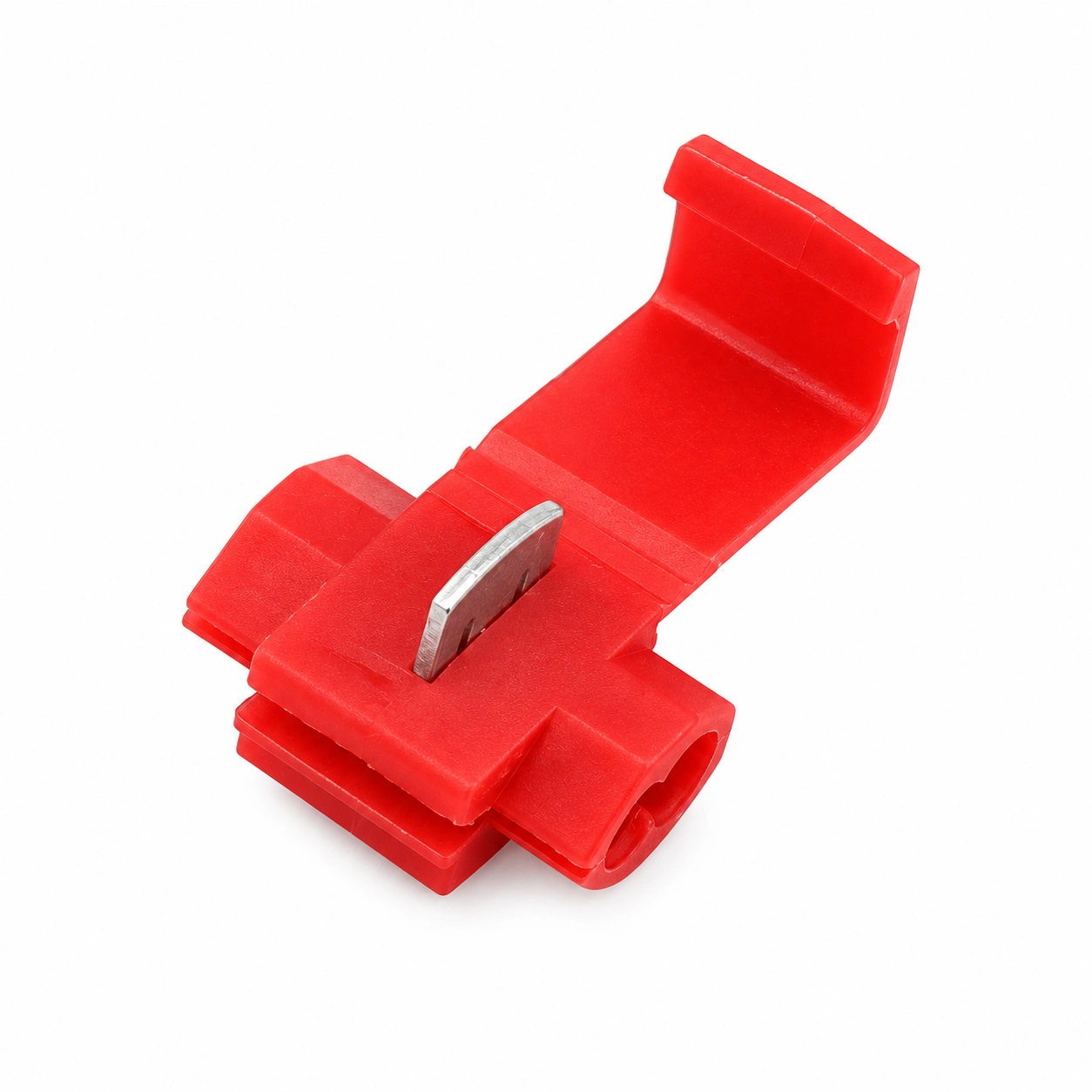

| 801P3 | 22–18 | 0.5–1.0 | 20.0 | 27.0 | Red |

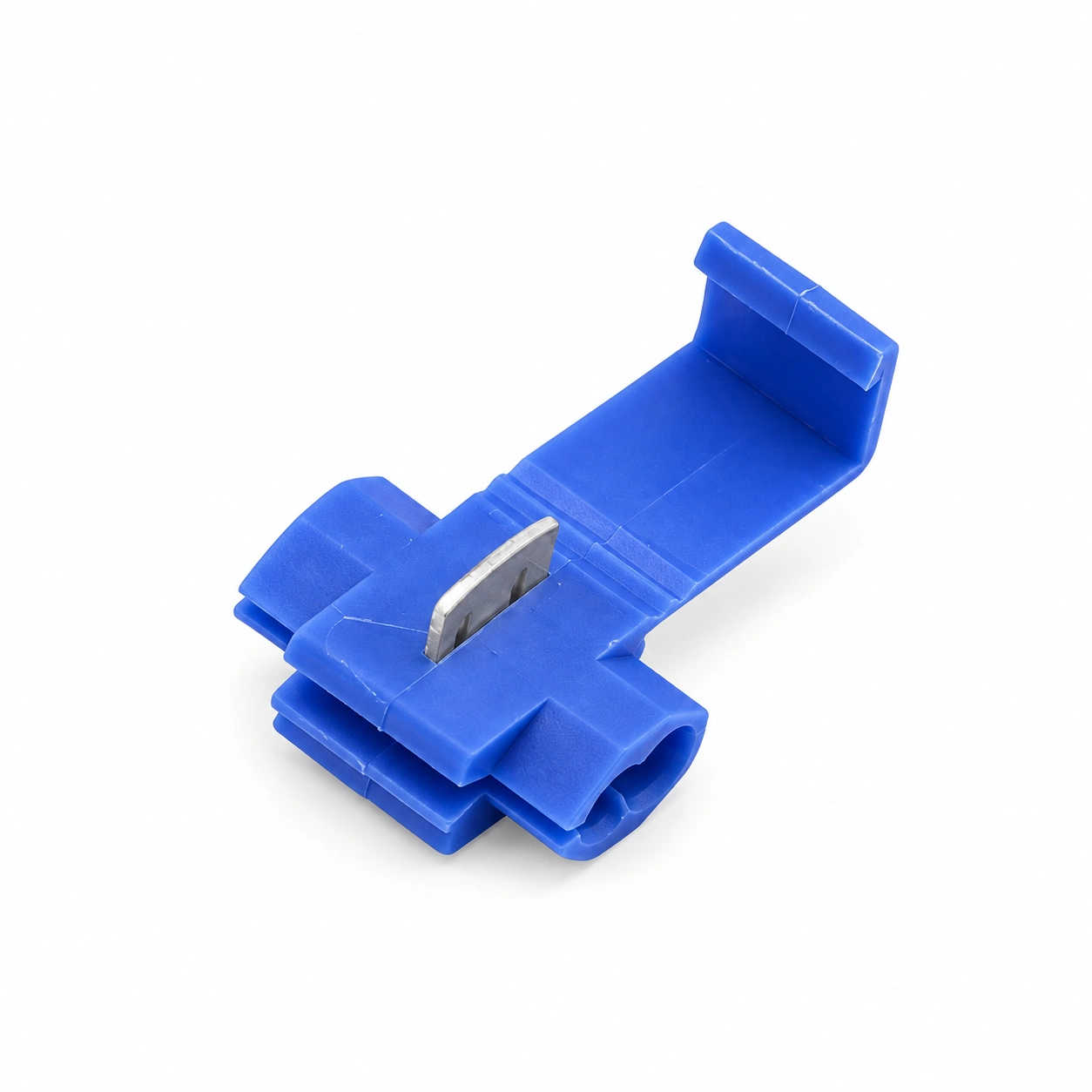

| 802P3 | 18–14 | 0.75–2.5 | 20.0 | 27.0 | Blue |

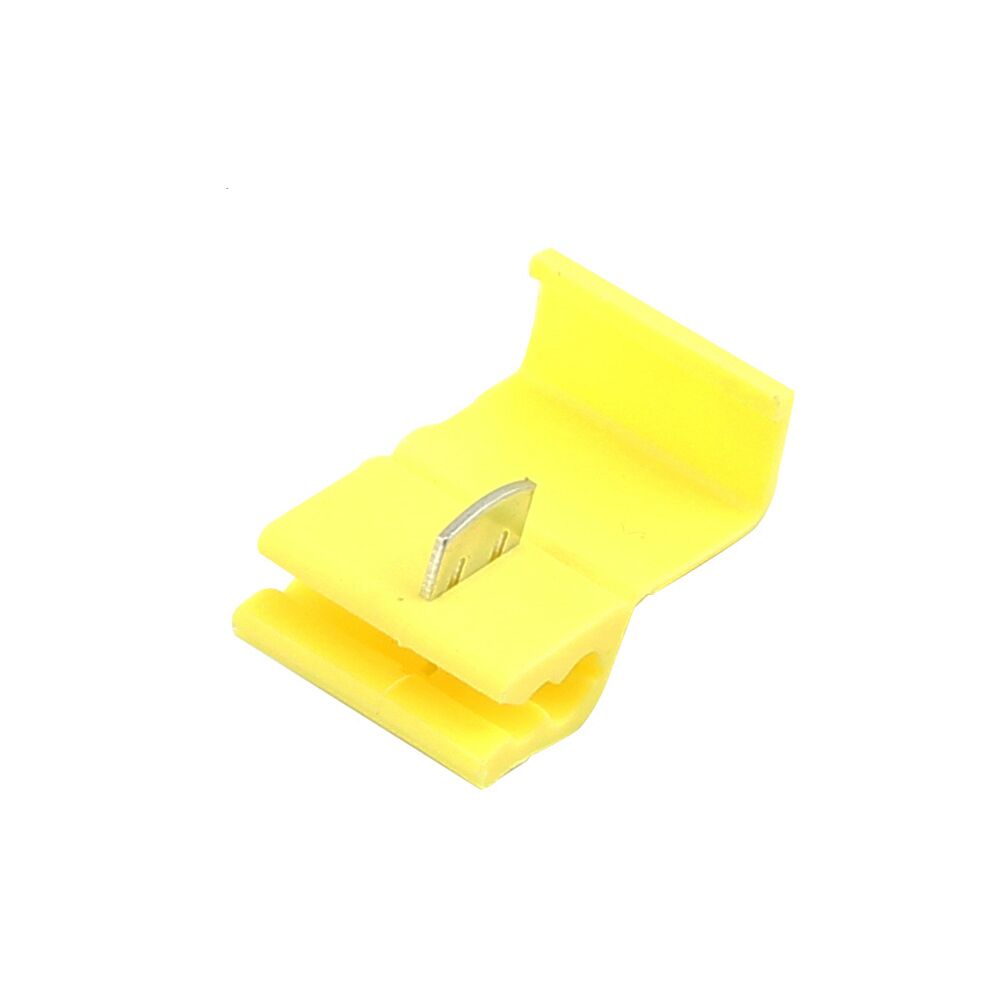

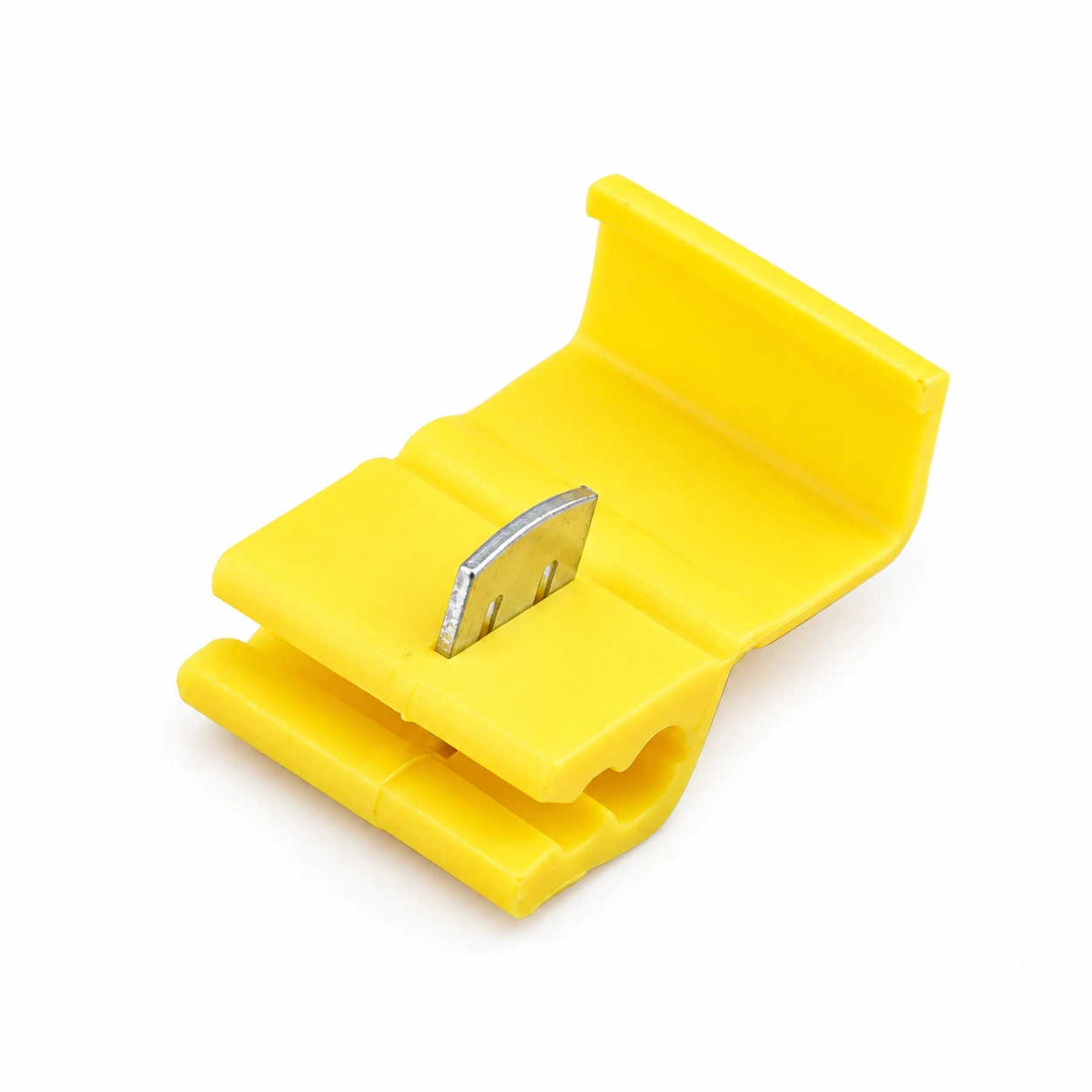

| 803P3 | 12–10 | 4.0–6.0 | 20.5 | 34.5 | Yellow |
The legacy description gives red as 16–22 AWG and blue as 14–16 AWG, while the original model table gives different ranges. The table is retained as supplied; confirm the approved wire combination before ordering. Certification claims require model-specific supporting documents.
Selection Guide
Match the conductor construction and insulation diameter to the exact model. Seat each wire in the designated channel and close the contact using compatible pliers or tooling according to the approved instructions. Inspect closure and wire retention with power isolated.
Applications
Potential uses include automotive harness work, lighting circuits and equipment wiring where an insulation-displacement splice is specified. Confirm installation environment and circuit requirements before use.
Ordering Information
Send the complete 801P3 / 802P3 / 803P3 model reference, conductor sizes and count, application, quantity and required documents. Include sample, inspection and packaging preferences.
Contact TONFUL Electric to confirm product selection and quotation details.
Product images are high-definition illustrative recreations of the original photos. Verify construction against the approved drawing or sample.
