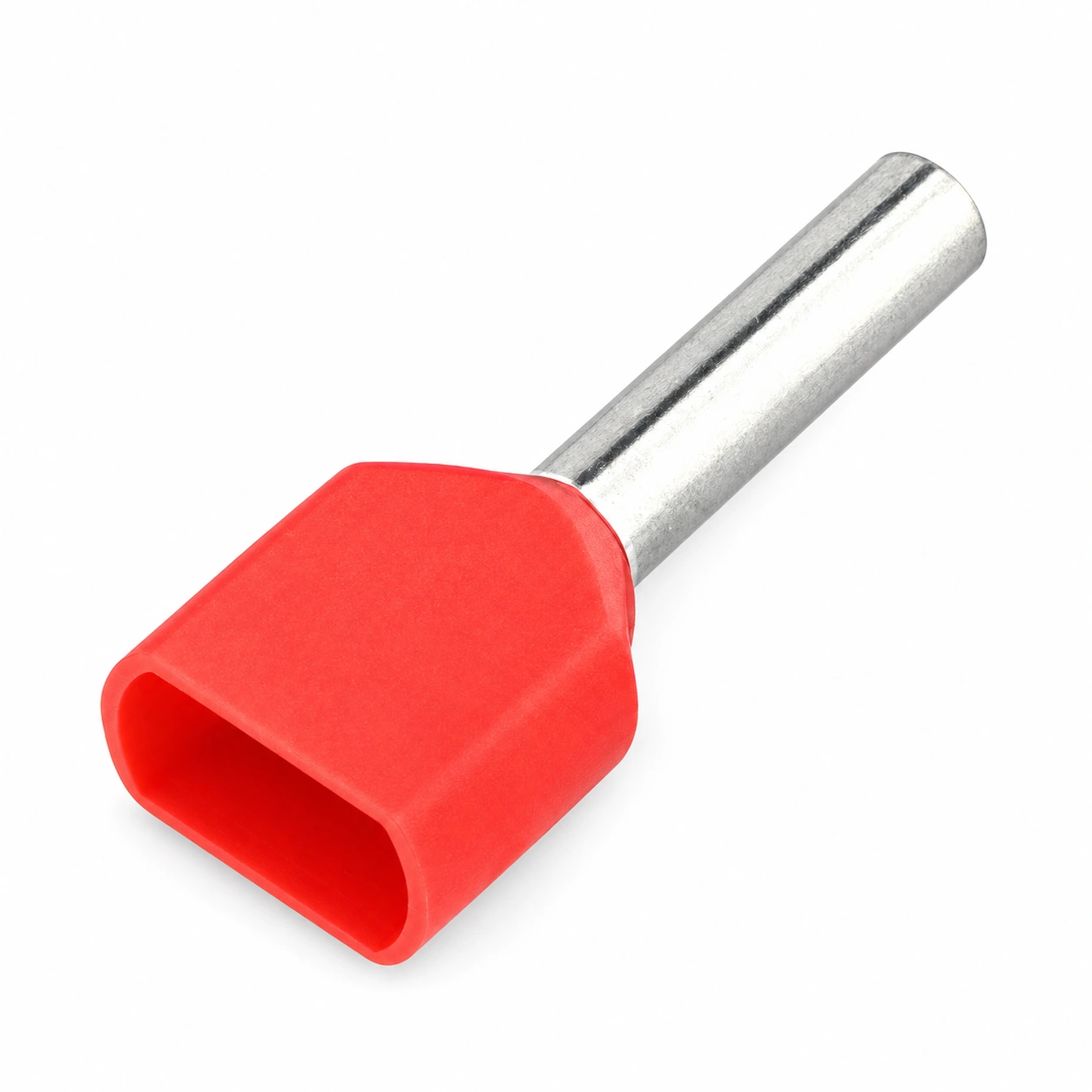

Twin Cord End Terminal
TONFUL Electric TE twin cord end terminals gather stranded conductors into a tin-plated tubular sleeve for compatible terminal connections. Compare 13 catalog models by two-wire section, sleeve length and collar dimensions, then share your assembly and crimp-tool requirements.

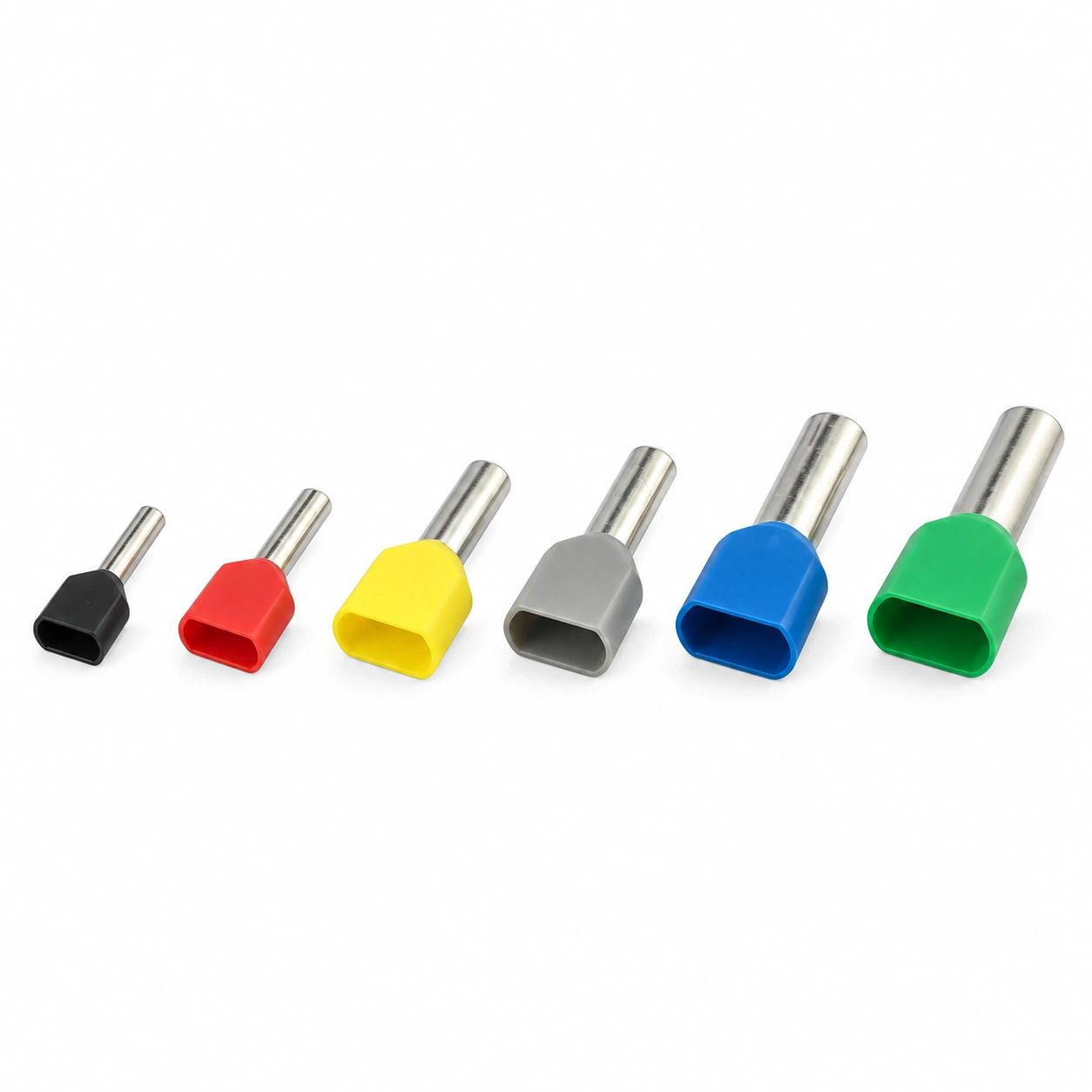

- 13 original catalog models.
- Two-wire sections from 2 × 0.5 to 2 × 16 mm², by model.
- Tin-plated metal sleeve; vinyl / nylon insulation options.
- A wide insulating collar accepts two conductors into one metal sleeve.
Overview
TONFUL Electric TE twin cord end terminals gather stranded conductors into a tin-plated tubular sleeve for compatible terminal connections. Compare 13 catalog models by two-wire section, sleeve length and collar dimensions, then share your assembly and crimp-tool requirements. A wide insulating collar accepts two conductors into one metal sleeve. Select the ferrule against the conductor and the terminal connection.

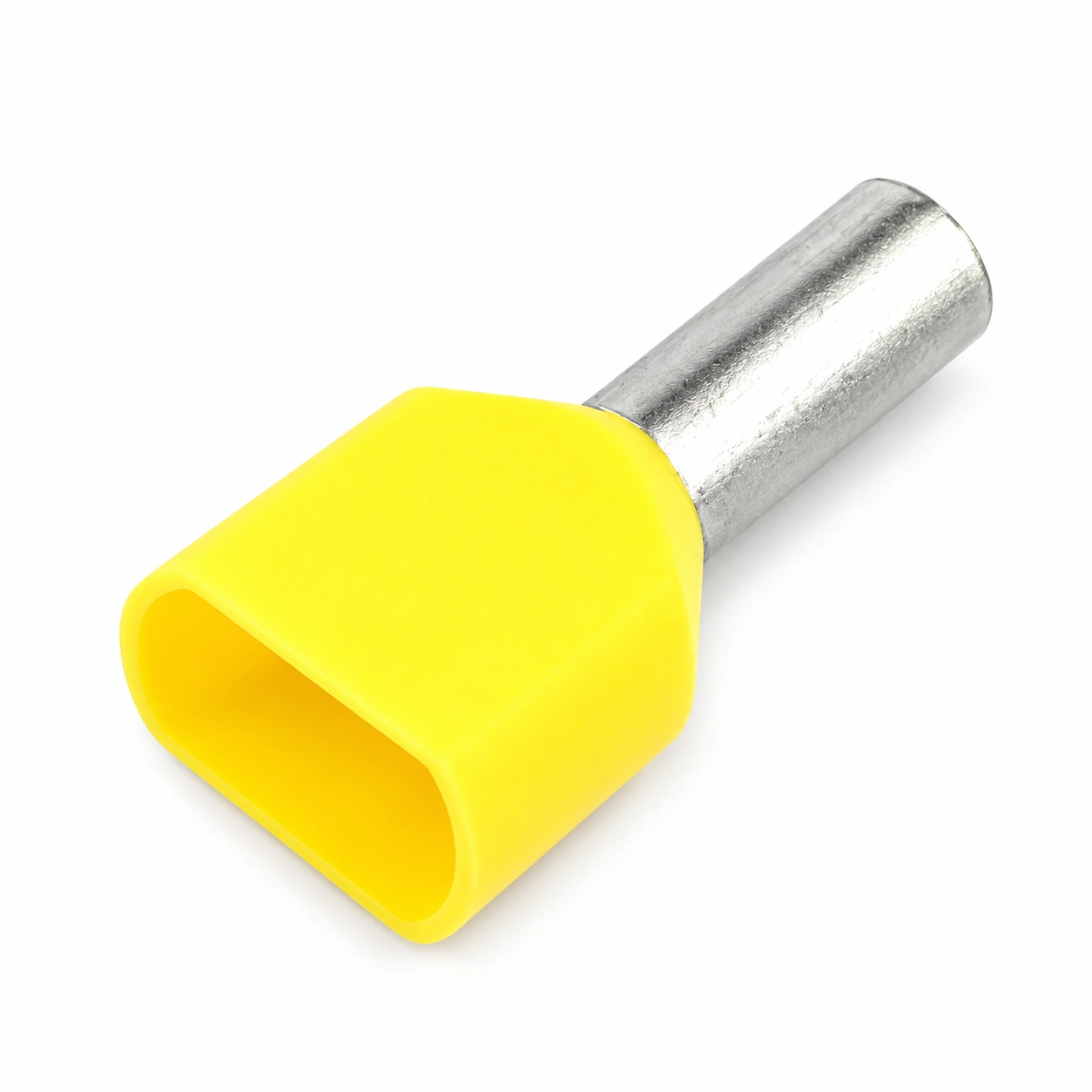

Features

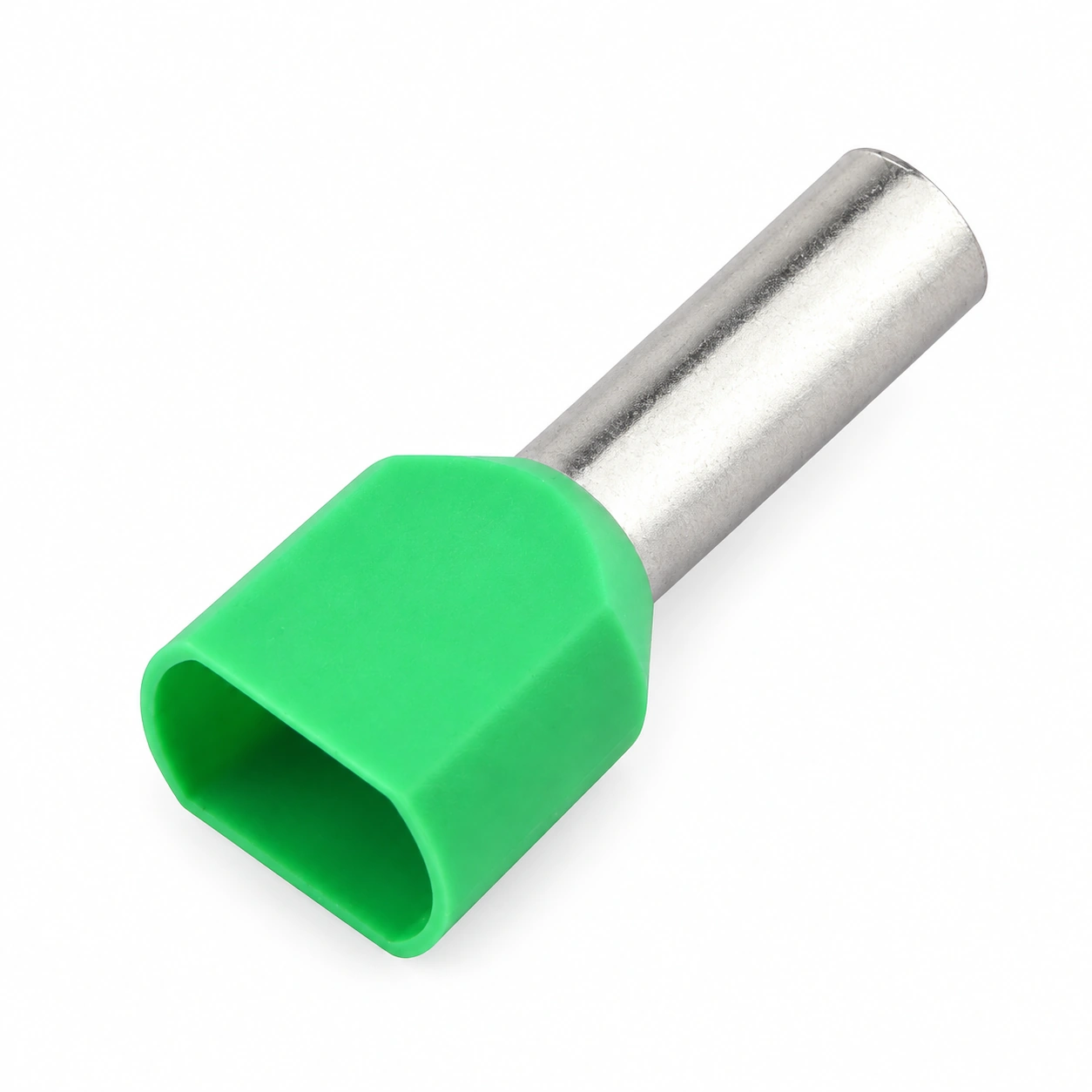

- Tubular metal sleeve: gathers conductor strands for insertion into a compatible terminal.
- Insulating collar: A wide insulating collar accepts two conductors into one metal sleeve.
- Tin plating: listed for the copper / brass terminal material.
- Model-specific dimensions: compare sleeve length, bore and collar size before ordering.
- Color references: choose the required catalog color convention and confirm it in the quotation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | TE |
| Terminal type | Twin-wire insulated ferrule |
| Terminal material | Copper / brass, as listed in the original catalog |
| Plating | Tin |
| Insulation options | Vinyl / nylon, according to supplied variant |
| Catalog models | 13 |
| Wire sections (catalog) | 2×0.5; 2×0.75; 2×1.0; 2×1.5; 2×2.5; 2×4.0; 2×6.0; 2×10.0; 2×16.0 mm² |
| Color references | German / French / DIN catalog columns |
Confirm terminal material, insulation type and color convention for the exact supplied model. Catalog color columns are selection references.

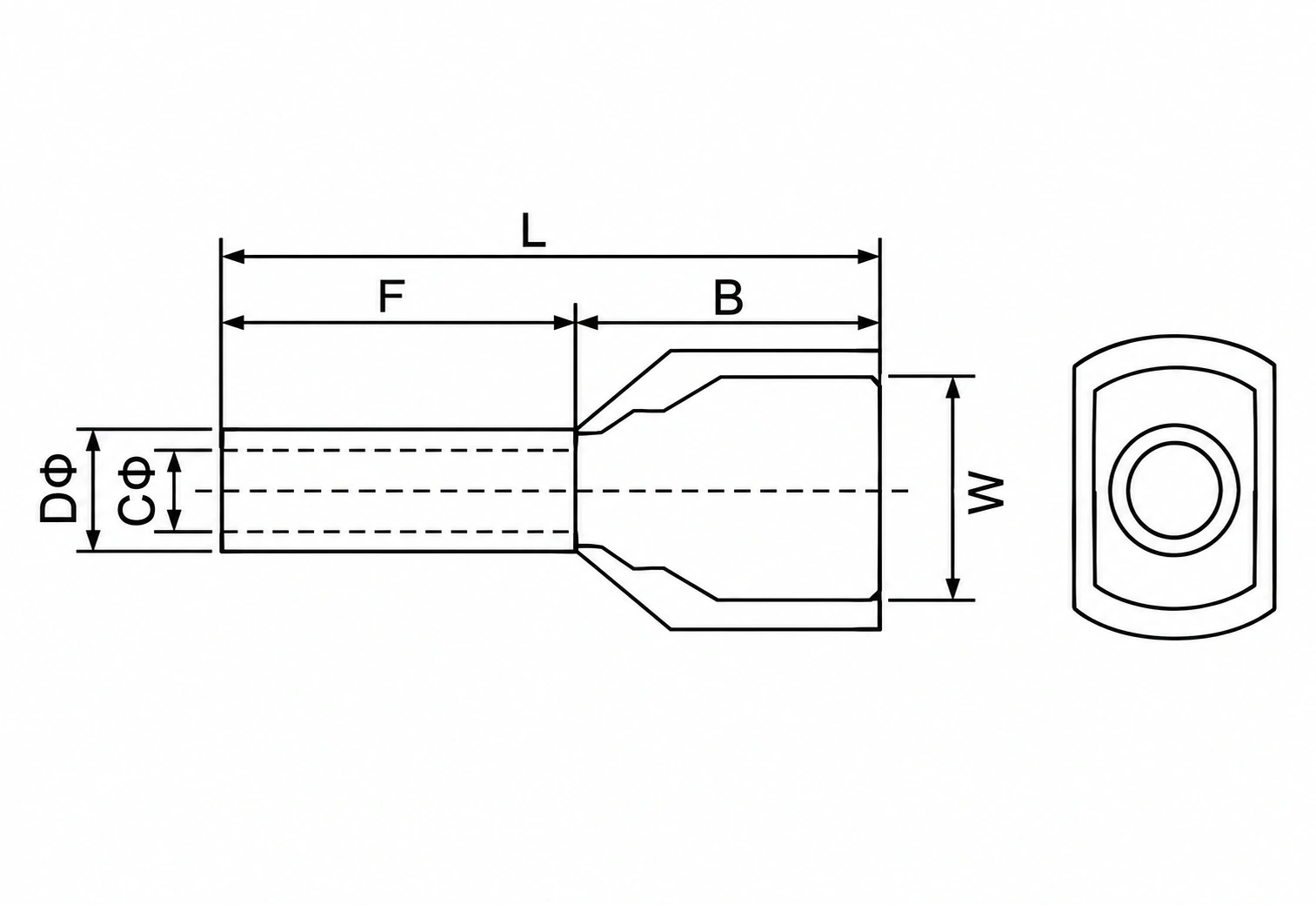

Dimension
Dimensions are in millimeters; conductor sections are in mm². Values such as 2 × 1.5 mm² describe two conductors, each of the stated section.
| Model | Lead section (mm²) | F (mm) | L (mm) | W (mm) | B (mm) | DΦ (mm) | CΦ (mm) | German color | French color | DIN color |
|---|---|---|---|---|---|---|---|---|---|---|
| TE0508 | 2×0.5 | 8.0 | 14.5 | 5.0 | 6.5 | 1.8 | 1.5 | Orange | White | White |
| TE7508 | 2×0.75 | 8.0 | 14.7 | 5.5 | 6.7 | 2.1 | 1.8 | White | Blue | Grey |
| TE7510 | 2×0.75 | 10.0 | 16.7 | 5.5 | 6.7 | 2.1 | 1.8 | White | Blue | Grey |
| TE1008 | 2×1.0 | 8.0 | 15.1 | 5.5 | 7.1 | 2.3 | 2.0 | Yellow | Red | Red |
| TE1010 | 2×1.0 | 10.0 | 17.1 | 5.5 | 7.1 | 2.3 | 2.0 | Yellow | Red | Red |
| TE1508 | 2×1.5 | 8.0 | 15.5 | 6.4 | 7.2 | 2.6 | 2.3 | Red | Black | Black |
| TE1512 | 2×1.5 | 12.0 | 19.5 | 6.4 | 7.5 | 2.6 | 2.3 | Red | Black | Black |
| TE2510 | 2×2.5 | 10.0 | 18.5 | 8.0 | 8.5 | 3.3 | 2.9 | Blue | Grey | Blue |
| TE2513 | 2×2.5 | 13.0 | 21.5 | 8.0 | 8.5 | 3.3 | 2.9 | Blue | Grey | Blue |
| TE4012 | 2×4.0 | 12.0 | 23.1 | 8.8 | 11.1 | 4.2 | 3.8 | Grey | Orange | Grey |
| TE6014 | 2×6.0 | 14.0 | 26.1 | 9.5 | 12.1 | 5.3 | 4.9 | Black | Green | Yellow |
| TE10-14 | 2×10.0 | 14.0 | 26.6 | 12.6 | 12.0 | 6.9 | 6.5 | Ivory | Brown | Red |
| TE16-14 | 2×16.0 | 14.0 | 31.3 | 19.0 | 17.3 | 8.7 | 8.3 | Green | Ivory | Blue |
Selection Guide
Match both conductor sections to the twin ferrule, then compare sleeve length with terminal insertion depth and clamping space. Confirm the receiving terminal permits the intended two-conductor assembly. Use suitable ferrule crimp tooling, follow the specified strip length and inspect the completed crimp. Select color by the requested convention and model.
Applications
Enquiry examples include terminal-block wiring, control panels, equipment assemblies and electrical maintenance. Twin ferrules can gather two compatible conductors into one prepared wire end where the receiving terminal allows that arrangement. Match the ferrule, conductor and terminal to the finished-assembly requirements.
Ordering Information
Send the full TE model, both conductor sections, sleeve length, receiving-terminal details, color convention and order quantity. Specify terminal material, insulation, packaging and labeling requirements for OEM and wholesale supply.
