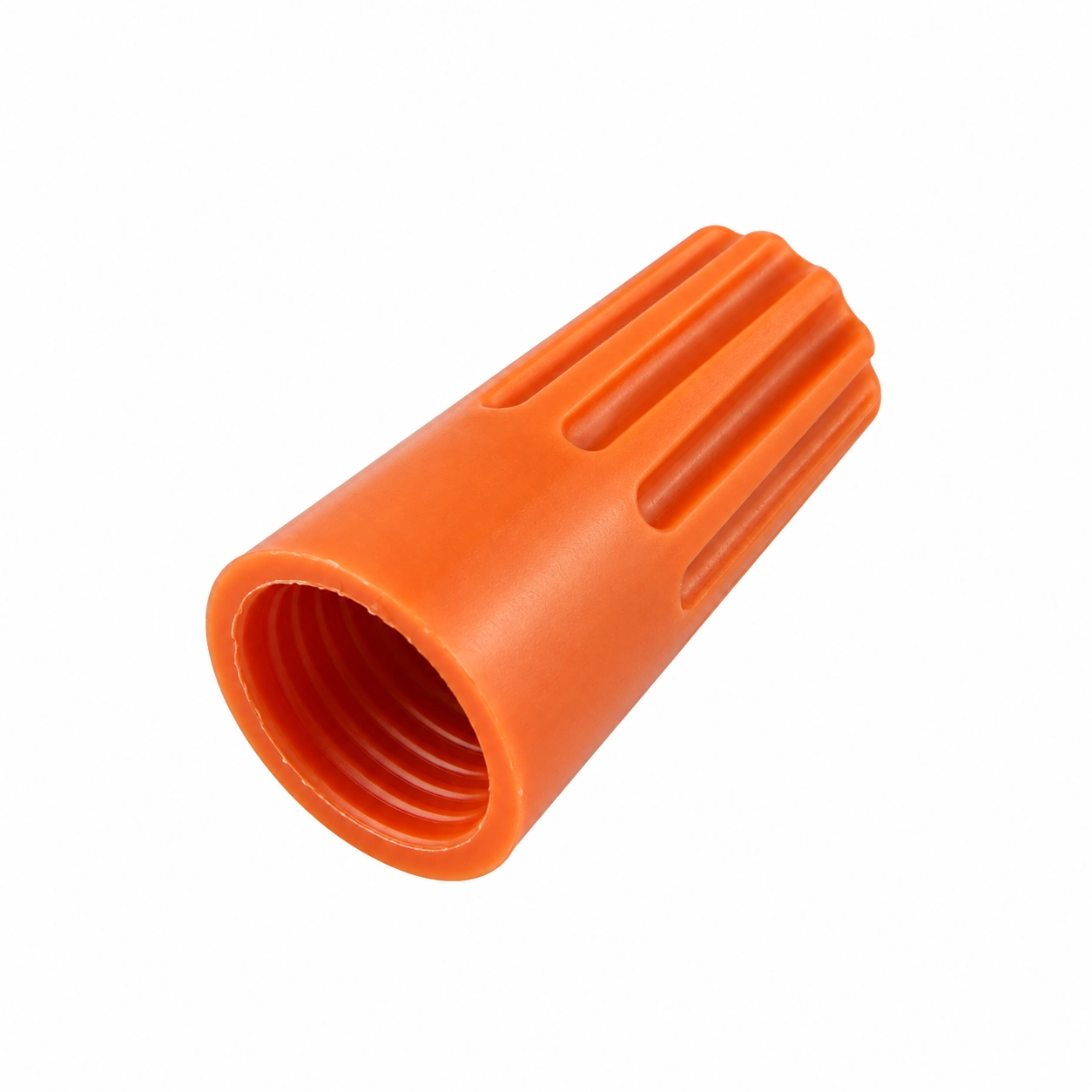

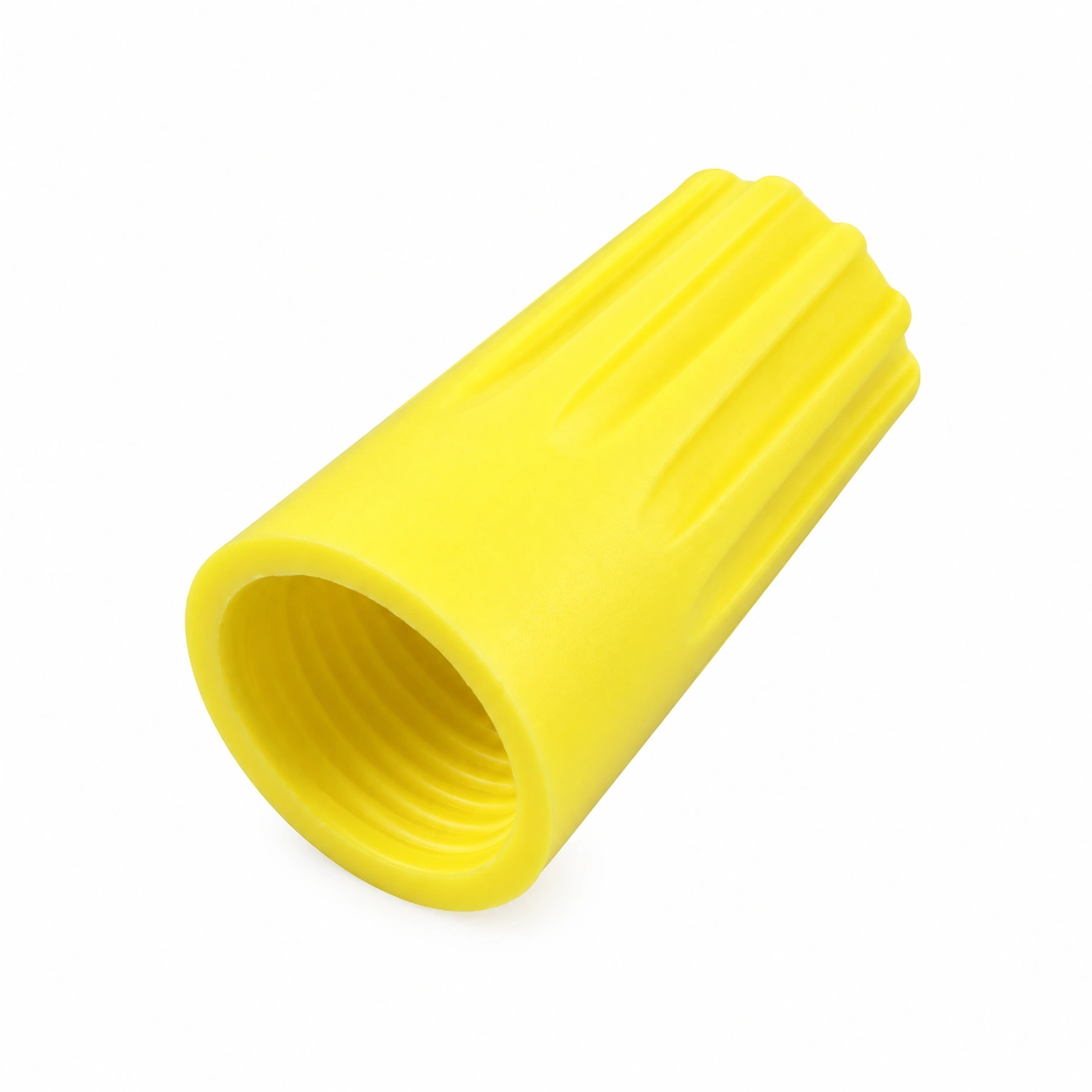

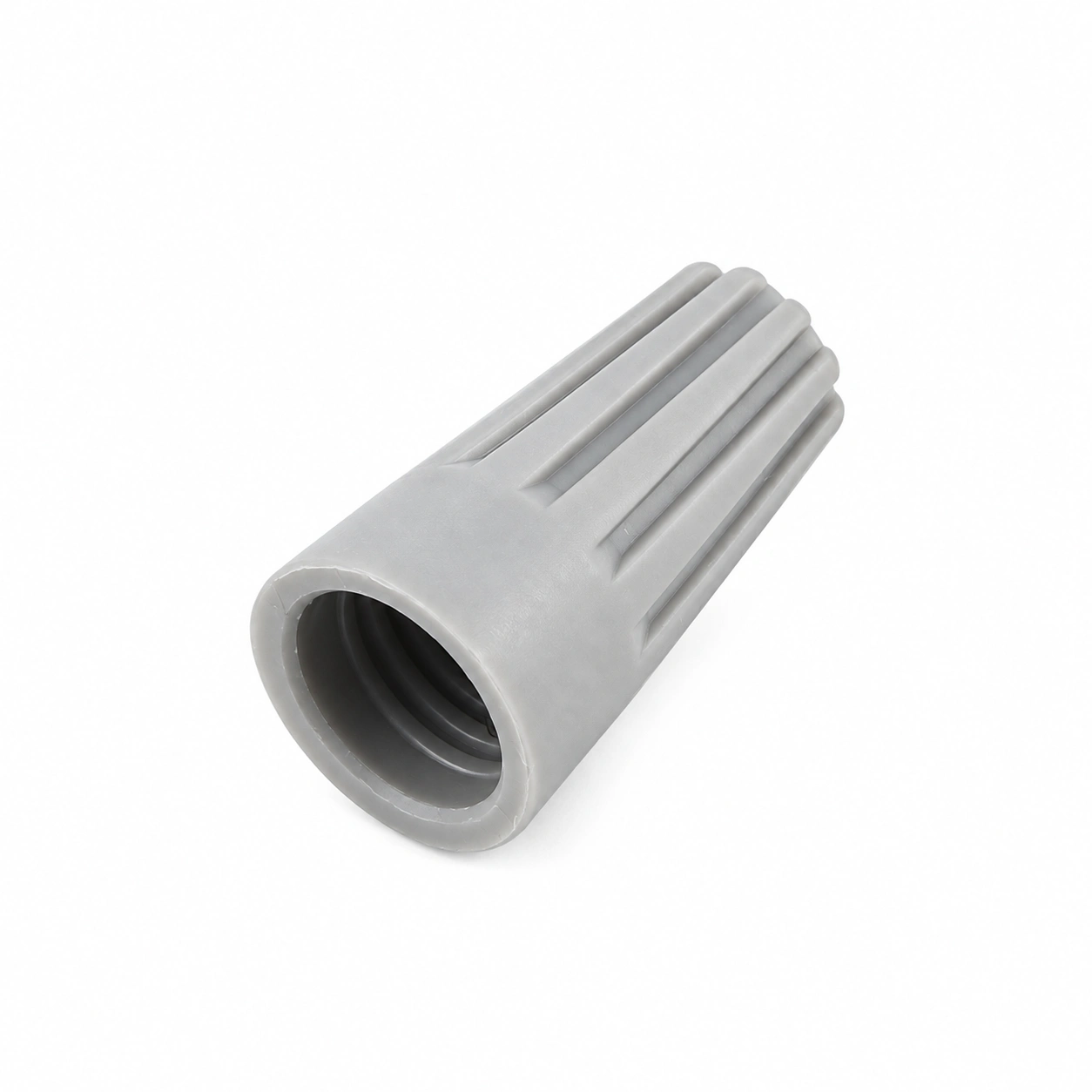

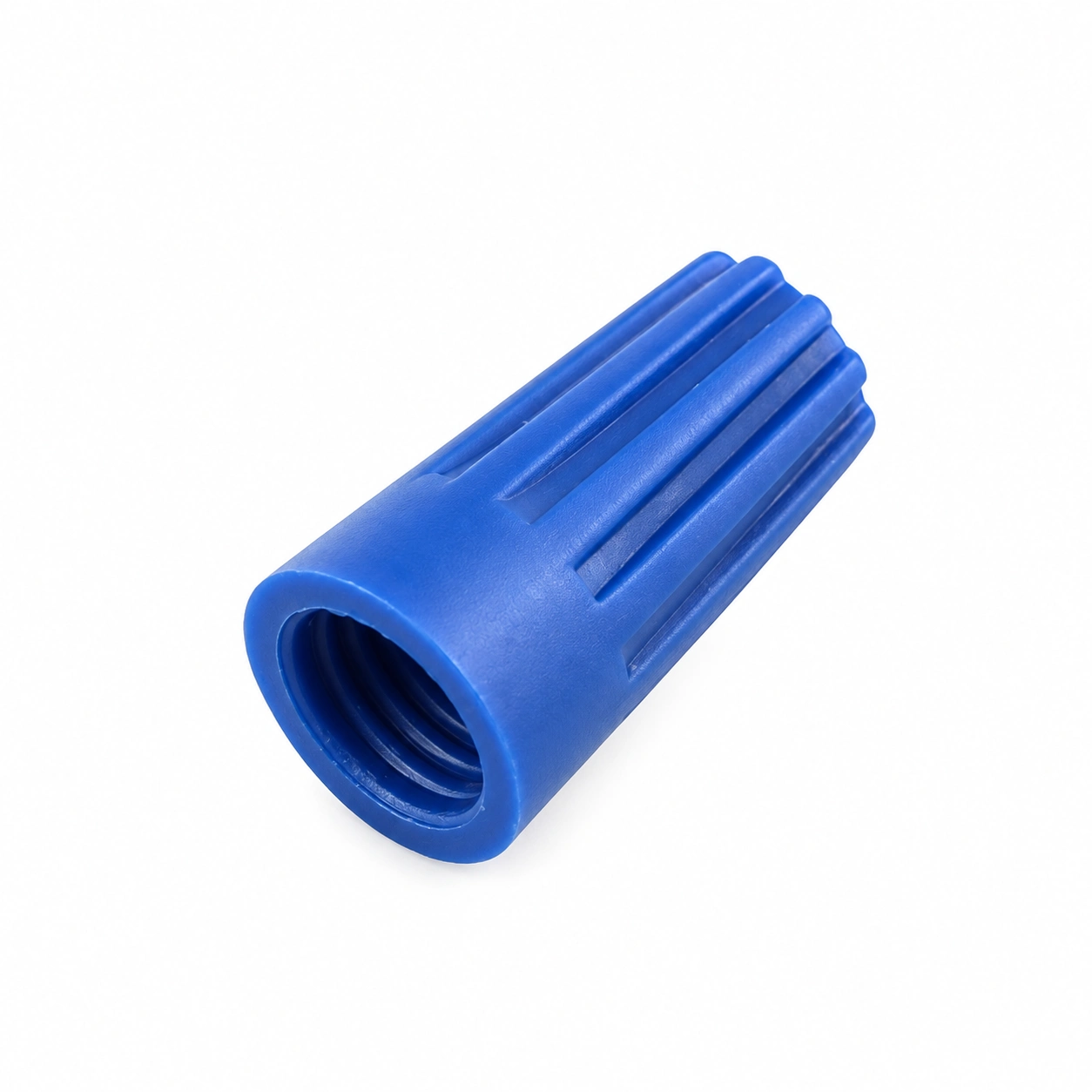

Join wire conductors with TONFUL SP wire nuts. The ribbed nylon shell and internal metal connecting element form a compact insulated connection; select by the complete wire combination rather than colour alone.
- Ribbed nylon shell for handling
- Internal metal element for conductor connection
- Grey, blue, orange, yellow and red catalogue colours
Send your requirements, we will quote for you within 12 hours
Tel:+8613655777486
Overview
Join wire conductors with TONFUL SP wire nuts. The ribbed nylon shell and internal metal connecting element form a compact insulated connection; select by the complete wire combination rather than colour alone.
Features
- Ribbed nylon shell for handling
- Internal metal element for conductor connection
- Grey, blue, orange, yellow and red catalogue colours
- Five original SP model references
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | SP1, SP2, SP3, SP4, SP6 |
| Housing | Nylon |
| Original catalogue contact description | Copper tube |
| Legacy descriptive contact term | Metal spring; confirm approved construction |
| Selection basis | Complete conductor combination and model dimensions |
Confirm the model, installation conditions and required documentation before approving an order.
Dimension

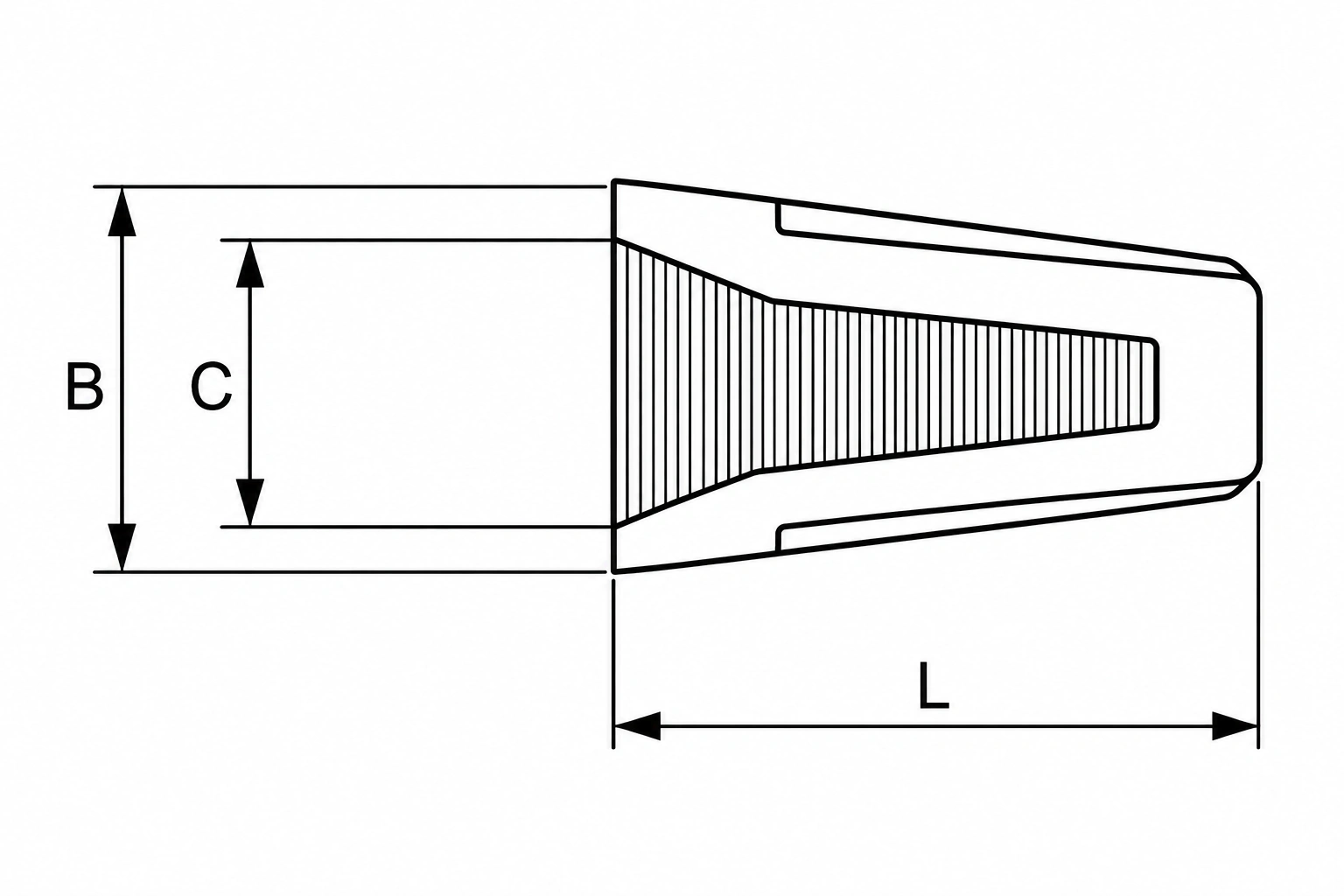

Dimensions are in millimeters. Original catalogue values are retained below; confirm the approved drawing for the selected model.

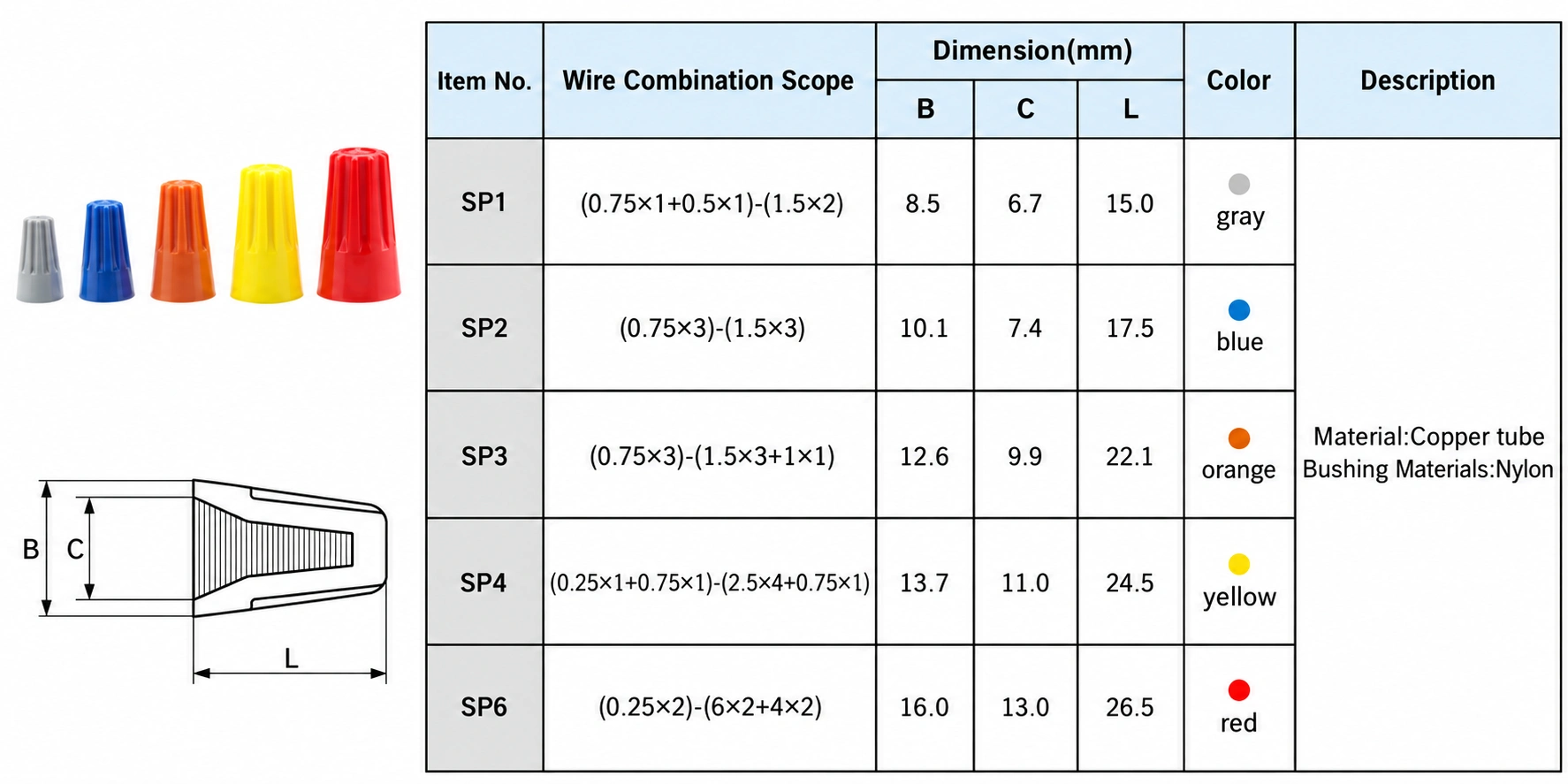

| Model | Original wire combination scope | B mm | C mm | L mm | Colour |
|---|---|---|---|---|---|
| SP1 | (0.75×1+0.5×1)–(1.5×2) | 8.5 | 6.7 | 15.0 | Grey |
| SP2 | (0.75×3)–(1.5×3) | 10.1 | 7.4 | 17.5 | Blue |
| SP3 | (0.75×3)–(1.5×3+1×1) | 12.6 | 9.9 | 22.1 | Orange |
| SP4 | (0.25×1+0.75×1)–(2.5×4+0.75×1) | 13.7 | 11.0 | 24.5 | Yellow |
| SP6 | (0.25×2)–(6×2+4×2) | 16.0 | 13.0 | 26.5 | Red |
The original Wire Nut page incorrectly included a Quick Splice Connector specification image. It is replaced with the corresponding SP wire-nut dimension illustration while preserving the image count. The original descriptive text says metal spring, whereas the catalogue image says copper tube; confirm actual internal construction. Model SP6 is retained exactly as supplied; no SP5 is invented.
Selection Guide
Provide conductor count, sizes, material and stranded or solid construction. Confirm the model’s approved wire combination, stripping length and connection method before installation. The original wire-combination expressions below are catalogue references, not a universal minimum-to-maximum range.
Applications
Potential uses include equipment, lighting and junction-box connections where the selected wire nut and conductor combination meet the installation requirements. This standard wire nut page does not establish a waterproof or direct-burial rating.
Ordering Information
Send the complete SP model reference, conductor sizes and count, application, quantity and required documents. Include sample, inspection and packaging preferences.
Contact TONFUL Electric to confirm product selection and quotation details.
Product images are high-definition illustrative recreations of the original photos. Verify construction against the approved drawing or sample.
