3.6 mm width
4 × 150 · 150 mm length · 35 mm maximum bundle diameter · 90 N catalogue minimum tensile strength.
Releasable Cable Ties
Manufacturer
Bundle, release and reorganise. Explore Nylon 66 cable ties with an integrated release head, a serrated strap and an easy-entry tip. Compare 12 catalogue sizes and choose the width, bundle diameter and tensile-strength listing that fit your project.
Releasable Cable Ties Product Range
One releasable construction, three actual strap widths. Catalogue item names are nominal size identifiers; use the measured width column when comparing models.
4.8 mm width
5 × 150, 5 × 200 and 5 × 300 · 130 N catalogue minimum tensile strength. The 5 × 300 length listing requires confirmation.
7.6 mm width
Eight sizes from 8 × 150 to 8 × 600 · listed lengths from 150 to 600 mm · 220 N catalogue minimum tensile strength.
Choose the width and bundle size
All 12 model rows below follow the supplied catalogue, including its original mm, inch, N and kg columns. Asterisks identify entries that need clarification.
| Item No. | Width | Length | Thickness | Max. bundle dia. | Min. tensile strength | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | N | kg† | |
| 4 × 150 | 3.6 | 0.142 | 150 | 5.91 | 1.2 | 0.047 | 35 | 1.3 | 90 | 9.2 |
| 5 × 150 | 4.8 | 0.189 | 150 | 5.91 | 1.3 | 0.051 | 35 | 1.3 | 130 | 13.3 |
| 5 × 200 | 4.8 | 0.189 | 200 | 7.87 | 1.3 | 0.051 | 50 | 1.9 | 130 | 13.3 |
| 5 × 300 | 4.8 | 0.189 | 350* | 11.81* | 1.3 | 0.051 | 82 | 3.2 | 130 | 13.2* |
| 8 × 150 | 7.6 | 0.299 | 150 | 5.91 | 1.9 | 0.075 | 35 | 1.38 | 220 | 22.4 |
| 8 × 200 | 7.6 | 0.299 | 200 | 7.87 | 1.9 | 0.075 | 50 | 1.97 | 220 | 22.4 |
| 8 × 250 | 7.6 | 0.299 | 250 | 9.84 | 1.9 | 0.075 | 66 | 2.60 | 220 | 22.4 |
| 8 × 300 | 7.6 | 0.299 | 300 | 11.81 | 1.9 | 0.075 | 82 | 3.23 | 220 | 22.4 |
| 8 × 350 | 7.6 | 0.299 | 350 | 13.78 | 1.9 | 0.075 | 109.9* | 4.33* | 220 | 22.4 |
| 8 × 400 | 7.6 | 0.299 | 400 | 15.75 | 1.9 | 0.075 | 105 | 4.1 | 220 | 22.4 |
| 8 × 450 | 7.6 | 0.299 | 450 | 17.72 | 1.9 | 0.075 | 118 | 4.6 | 220 | 22.4 |
| 8 × 600 | 7.6 | 0.299 | 600 | 23.62 | 1.9 | 0.075 | 170 | 6.7 | 220 | 22.4 |
Catalogue checks before ordering
- 5 × 300: the source prints 350 mm and 11.81 inch in the length columns; these values do not match. Its kg entry is 13.2, while the other 4.8 mm rows show 13.3. Original values are retained for confirmation.
- 8 × 350: the source lists 109.9 mm / 4.33 inch maximum bundle diameter, above the following 8 × 400 row’s 105 mm / 4.1 inch. Confirm the applicable bundle range.
- † kg: this is the catalogue’s original tensile-strength column label, not a product weight or an approved working load. No test method or reuse-cycle rating is supplied.
Release the lock.
Keep the flexibility.
The integrated release feature allows the strap to be withdrawn and repositioned instead of cutting the tie for every adjustment. The one-piece nylon construction keeps the locking head and strap together, while the tapered end helps guide the strap into the head.

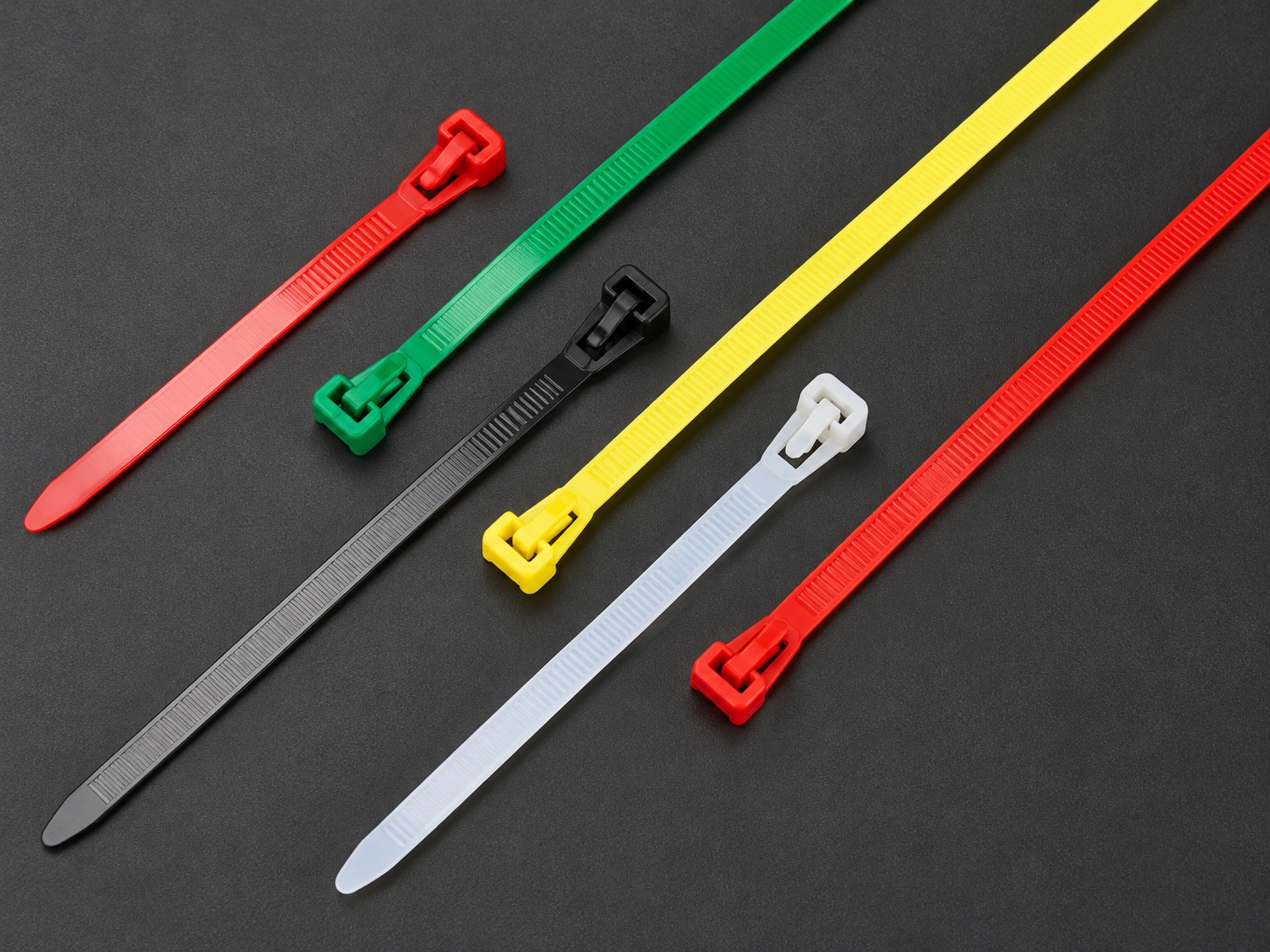

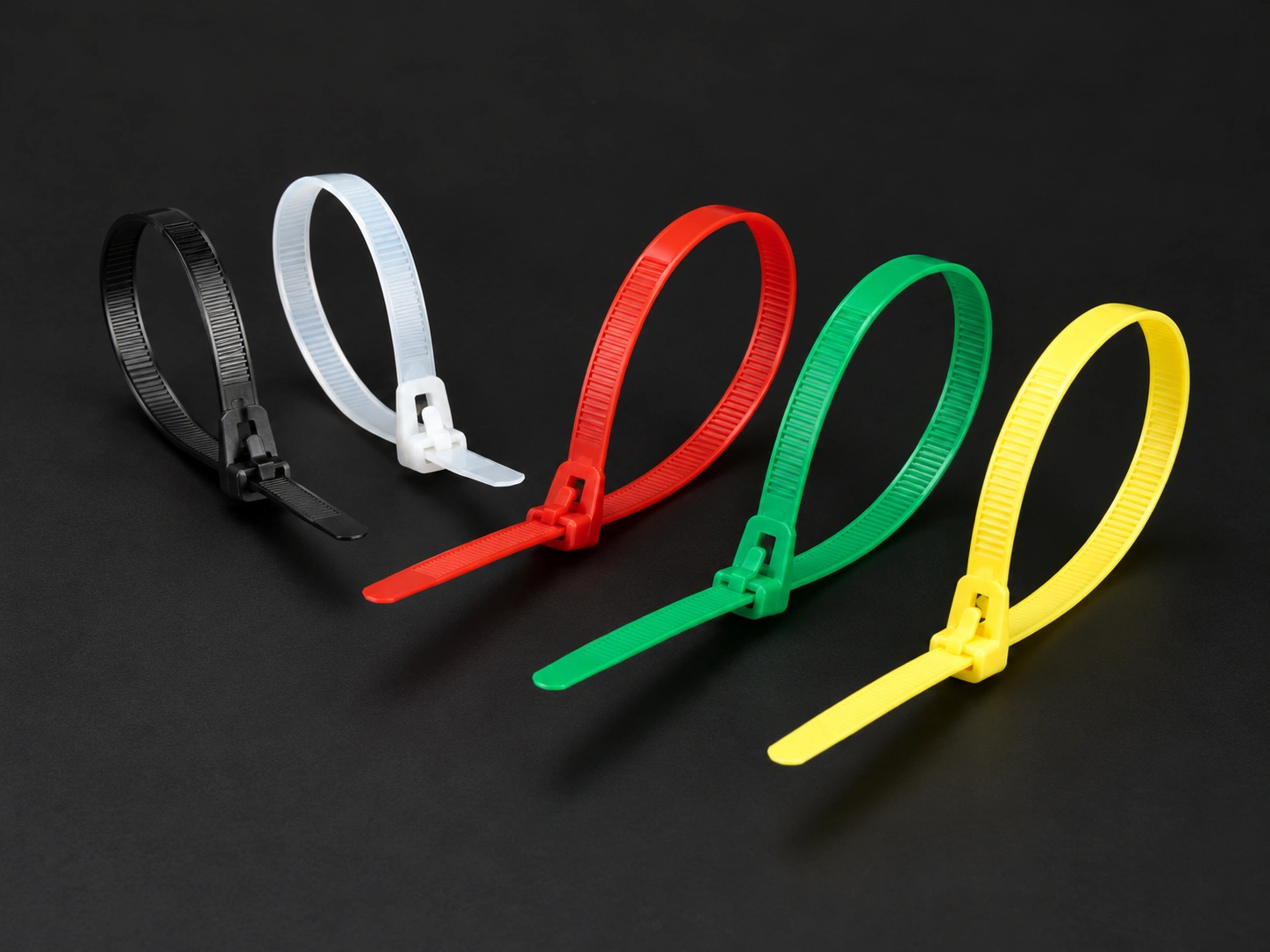

HD illustrative recreation of the supplied catalogue photo. Natural and black are the listed colours; coloured examples require availability confirmation.
Nylon 66 material
The supplied technical information specifies Nylon 66 for this releasable tie family. Confirm the selected grade, colour and batch documentation for your order.
−40°C to +85°C
Working-temperature range listed in the catalogue. Confirm installation conditions, exposure and the selected grade before approval.
Natural or black
These are the stated standard colour options. Red, green and yellow appear in the photos but are not confirmed as standard supply colours.
Material properties to confirm
The catalogue lists UL94 V-2, halogen-free and UV-resistant properties. Request grade-specific supporting information; these statements are not a blanket certification or an outdoor service-life guarantee.
Match the tie to the bundle.
Measure the bundle
Compare the bundle diameter with the selected row. Allow for the head, routing and the intended installation.
Choose actual width
Use 3.6, 4.8 or 7.6 mm actual strap width, not only the nominal 4, 5 or 8 item prefix.
Review reuse conditions
The catalogue describes a reusable structure but gives no cycle count. Check the strap teeth and head condition before reuse.
Confirm the environment
Discuss temperature, sunlight and chemical exposure. Outdoor use requires confirmation of the specific UV-resistant grade.

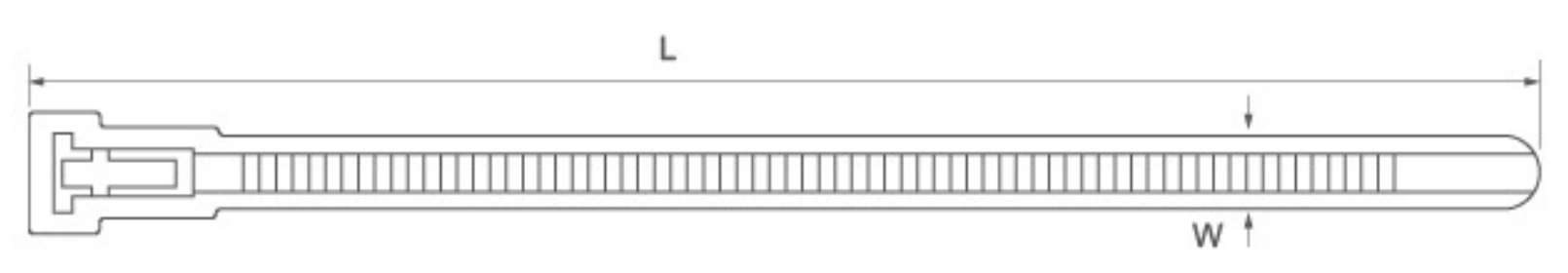

L = overall length; W = strap width. Source illustration only; not a scaled production drawing. Thickness and dimensional tolerances require model-specific confirmation.
Send your releasable
cable tie requirements.
Share item numbers, quantities, bundle sizes and environmental requirements.
Prepare an enquiryPrepare a model-by-model order.
Releasable cable ties can help organise bundles that need periodic access or adjustment. Discuss indoor cable organisation, equipment assembly and temporary bundling against your actual requirements.
Explore the cable tie rangeItem schedule
List each nominal item size, actual width and quantity. Resolve the starred catalogue entries before approving samples or production.
Colour & material
Specify natural, black or the colour you need. Confirm any UV-resistant grade and the relevant material documentation.
Application details
Provide the bundle diameter, routing, ambient conditions and planned release frequency. Minimum tensile strength is not a working-load rating.
OEM & PACKING
Your specification.
Your packing plan.
Discuss packaging and identification requirements for your selected sizes.
Model separation
Keep item numbers and actual dimensions clear on each pack to simplify receiving and assembly.
Labels & documentation
Provide label artwork, language, material statements and traceability requirements for review.
Packing quantities
Confirm pieces per bag, inner packing, carton quantities and destination in the quotation. No fixed MOQ or standard pack quantity is stated in the supplied sheet.
Releasable Cable Ties
buying questions.
Can these cable ties be reused?
The catalogue describes a releasable structure that can be reopened and reused. It does not specify a guaranteed reuse count; inspect the head and strap and follow the selected product instructions.
What material and temperature are listed?
The source specifies Nylon 66 and a working range of −40°C to +85°C. Confirm the exact grade and installation conditions.
Are all colours shown available as standard?
The technical text lists natural or black. Red, green and yellow are shown in photographs and should be requested separately for availability confirmation.
What needs checking for 5 × 300?
The source row prints 350 mm and 11.81 inch for length and 13.2 in the kg strength column. Those original entries are flagged in the table rather than silently corrected.
Is UL94 V-2 a product certification claim?
It is the flammability classification stated in the supplied catalogue. Request material-grade and applicable product documentation; no blanket approval or certification is inferred.
Can they be used outdoors?
The source mentions indoor/outdoor use and UV resistance. Confirm the specific material grade, colour and exposure requirements; outdoor life is not established by the attachment.
Draft based on the supplied 地团扎带_08.png catalogue sheet, printed page 04. Product photos are illustrative HD recreations; model parameters retain the original catalogue values and flagged inconsistencies. No supplier logo, website or unsupported factory claim has been added.
