Self-Locking Cable Tie
Manufacturer
Secure your cable bundles with one-piece Nylon 66 ties. Compare natural, black and coloured options, then select the width, length, bundle diameter and tensile strength for your application.

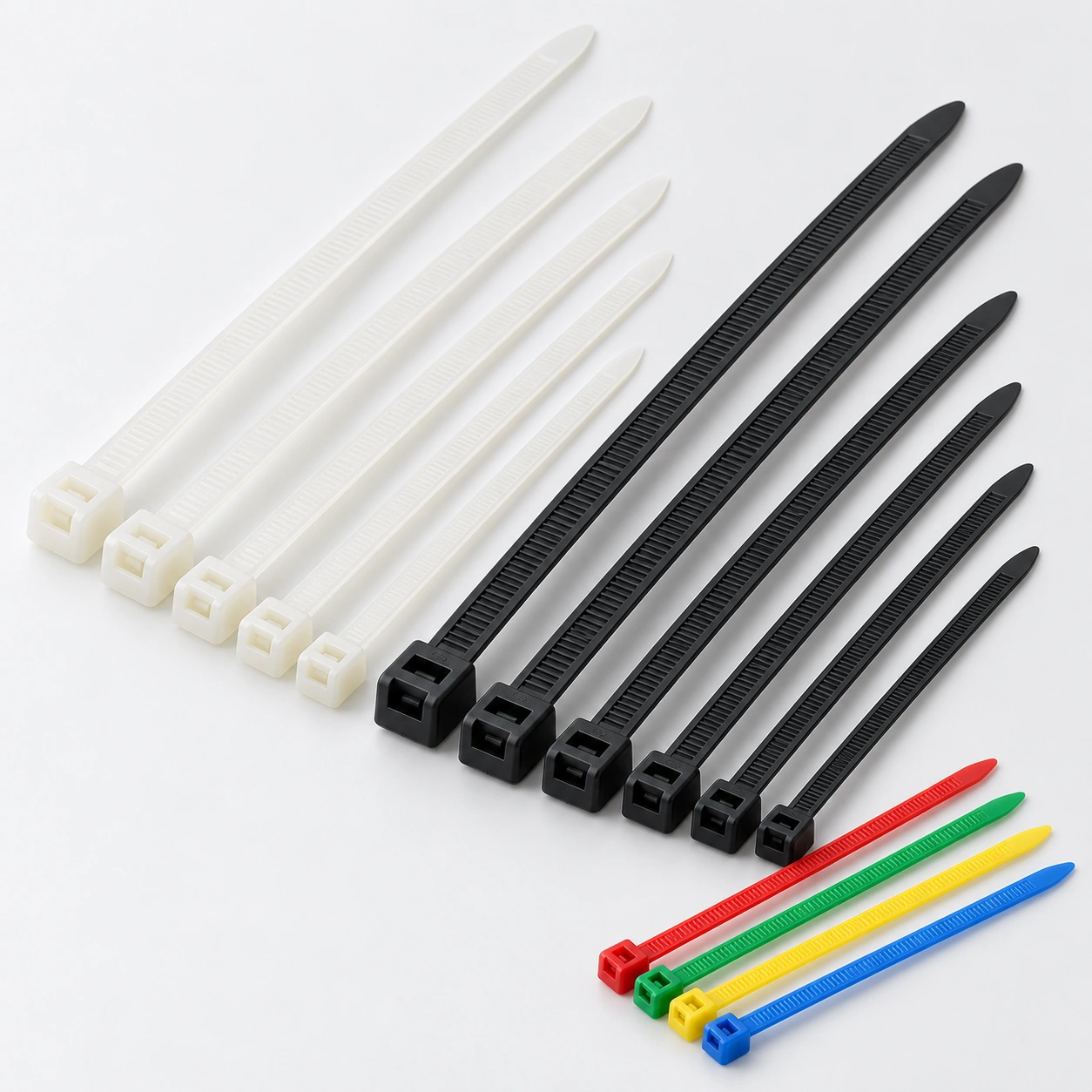

Self-locking cable tie series
View all 69 models

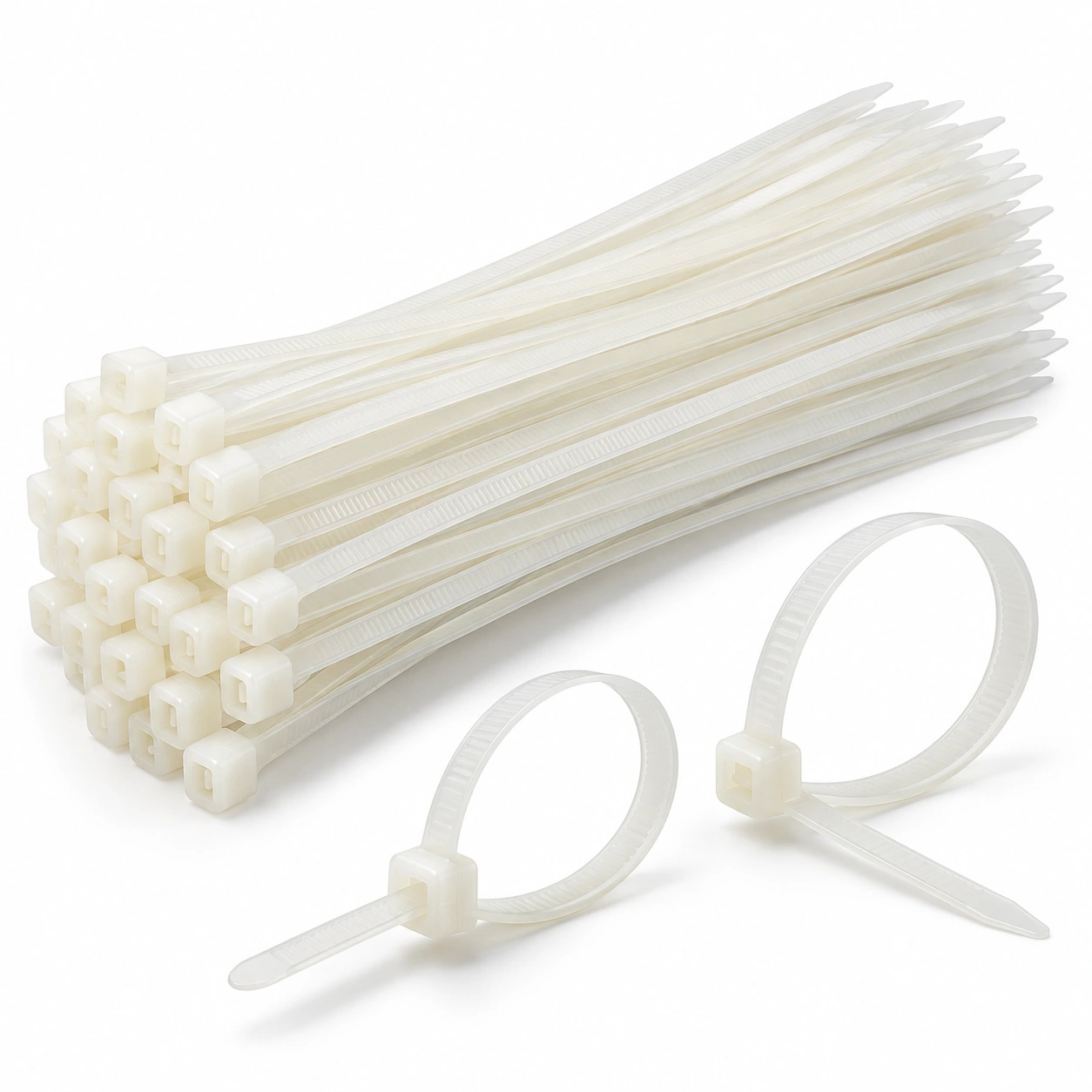

Natural Nylon Cable Ties
Natural translucent nylon for general cable bundling. Select the actual strap width, length and listed minimum tensile strength.

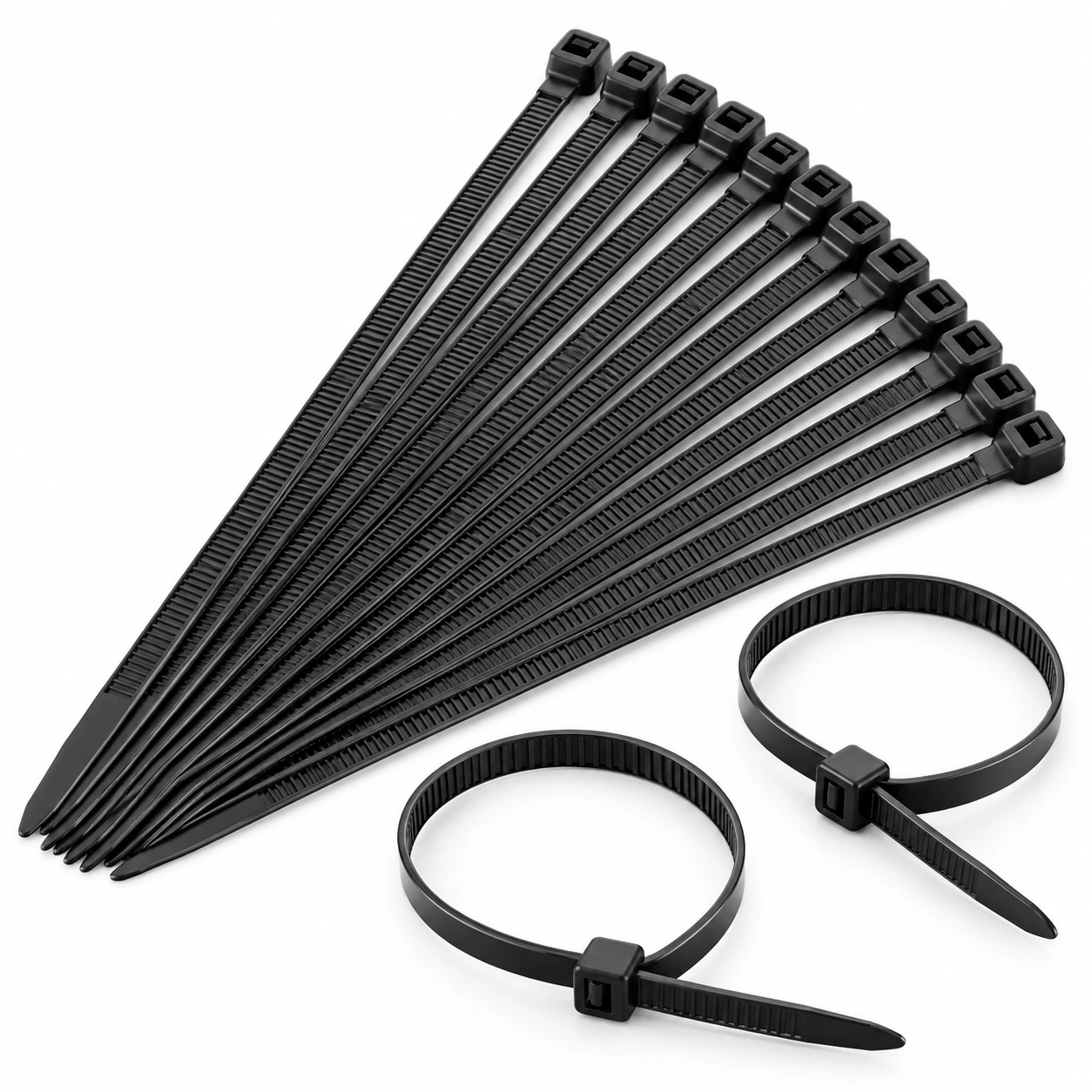

Black Nylon Cable Ties
Black colour option with the same self-locking construction. For outdoor exposure, specify and confirm a UV-resistant material grade.

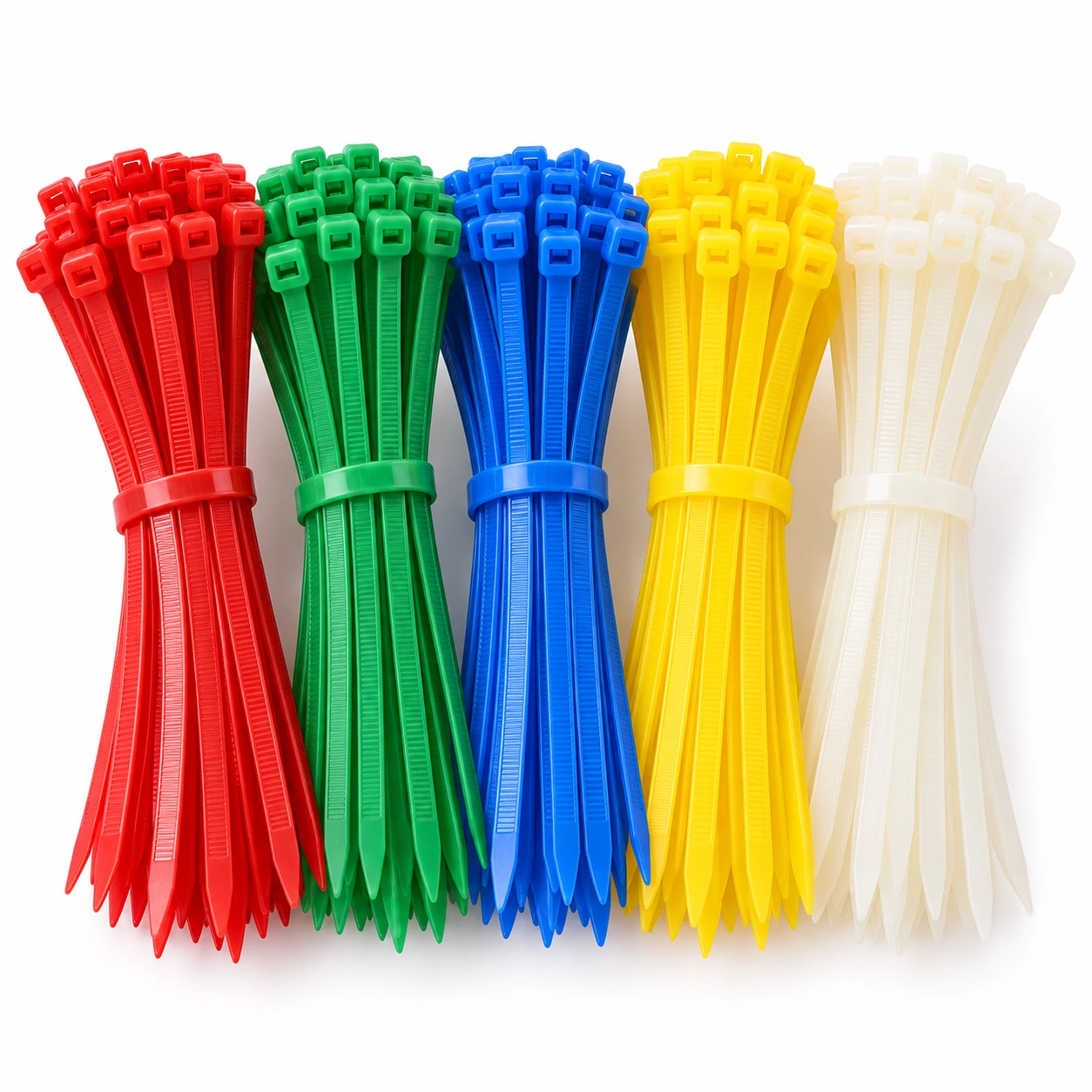

Coloured Nylon Cable Ties
Red, green, blue and yellow ties are illustrated in the catalog. Confirm the required colour, model and available material option in your enquiry.
Compare the strap size.
| Catalog series | Actual width | Length options | Minimum tensile strength | Min. bundle diameter |
|---|---|---|---|---|
| 3 × length | 2.5mm | 60–200mm | 80N / 8kg (catalog) | 2mm |
| 4 × length | 3.6mm | 100–500mm | 180N / 18.4kg (catalog) | 3mm |
| 5 × length | 4.8mm | 100–700mm | 222N / 22.7kg (catalog) | 3.5mm |
| 8 × length | 7.6mm | 150–550mm | 560N / 57.1kg (catalog) | 8mm |
| 10 × length | 9mm | 350–1500mm | 778N / 79.4kg (catalog) | 10mm |
| 12 × length | 12mm | 300–900mm | 900N / 91.8kg (catalog) | 12mm |
The item number uses a nominal series size. Actual widths are listed separately: 3 → 2.5mm, 4 → 3.6mm, 5 → 4.8mm, 8 → 7.6mm, 10 → 9mm and 12 → 12mm. The catalog prints tensile strength in N and “kg”; the latter is retained as its listed load-equivalent value.

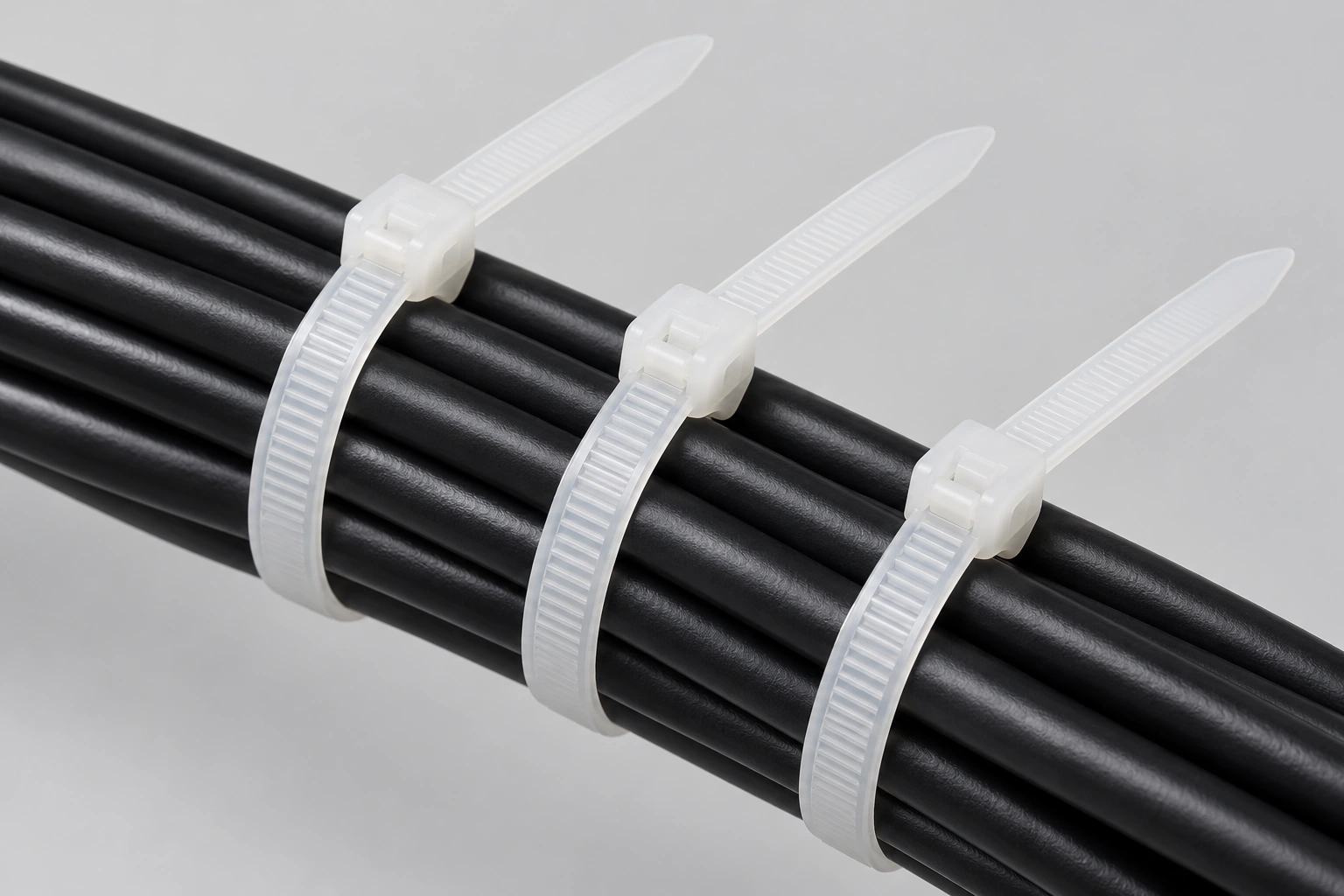

One piece.
A positive locking action.
The serrated strap feeds through an integral locking head to form an adjustable loop. The tapered tip helps guide the strap into the head for straightforward installation.
Choose the tie to suit the bundle and apply suitable installation tension. Standard self-locking ties are intended for a permanent fastening; replace the tie after cutting it off.
Catalog technical information
| Property | Listed information |
|---|---|
| Material | Nylon 66 |
| Working temperature | −40°C to +85°C |
| Standard colours | Natural or black |
| Flammability | UL94 V-2 (catalog material classification) |
| Other listed properties | Halogen-free; UV-resistant grade to be confirmed for the selected order |
Special material requirements
The catalog also describes UL94 V-0 material, anti-UV material for outdoor use, and heat-stabilised material rated up to 105°C. Specify these separately when requesting a quotation.
Request the selected material grade’s data and any required supporting test evidence. A flammability classification is not a claim that every tie or colour holds UL product certification.
Model-by-model parameters.
Compare the exact model dimensions and bundle range. Values below follow the three supplied catalog pages, including their rounded inch values.
2.5mm actual width · 3 series · 6 models
| Item No. | Width mm / in | Length mm / in | Thickness mm / in | Max. bundle Ø mm / in | Min. bundle Ø mm / in | Min. tensile N / kg | Packing |
|---|---|---|---|---|---|---|---|
| 3 × 60 | 2.5 / 0.098 | 60 / 2.36 | 1.00 / 0.039 | 11 / 0.43 | 2 / 0.079 | 80 / 8 | Confirm |
| 3 × 80 | 2.5 / 0.098 | 80 / 3.15 | 1.00 / 0.039 | 16 / 0.63 | 2 / 0.079 | 80 / 8 | Confirm |
| 3 × 100 | 2.5 / 0.098 | 100 / 3.94 | 1.00 / 0.039 | 22 / 0.87 | 2 / 0.079 | 80 / 8 | Confirm |
| 3 × 120 | 2.5 / 0.098 | 120 / 4.72 | 1.00 / 0.039 | 30 / 1.18 | 2 / 0.079 | 80 / 8 | Confirm |
| 3 × 150 | 2.5 / 0.098 | 150 / 5.91 | 1.00 / 0.039 | 35 / 1.38 | 2 / 0.079 | 80 / 8 | Confirm |
| 3 × 200 | 2.5 / 0.098 | 200 / 7.87 | 1.00 / 0.039 | 50 / 1.97 | 2 / 0.079 | 80 / 8 | Confirm |
3.6mm actual width · 4 series · 13 models
| Item No. | Width mm / in | Length mm / in | Thickness mm / in | Max. bundle Ø mm / in | Min. bundle Ø mm / in | Min. tensile N / kg | Packing |
|---|---|---|---|---|---|---|---|
| 4 × 100 | 3.6 / 0.142 | 100 / 3.94 | 1.20 / 0.047 | 22 / 0.87 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 120 | 3.6 / 0.142 | 120 / 4.72 | 1.20 / 0.047 | 33 / 1.30 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 150 | 3.6 / 0.142 | 150 / 5.91 | 1.30 / 0.051 | 35 / 1.38 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 180 | 3.6 / 0.142 | 180 / 7.09 | 1.30 / 0.051 | 42 / 1.65 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 200 | 3.6 / 0.142 | 200 / 7.87 | 1.30 / 0.051 | 50 / 1.97 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 250 | 3.6 / 0.142 | 250 / 9.84 | 1.30 / 0.051 | 65 / 2.56 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 280 | 3.6 / 0.142 | 280 / 11.02 | 1.30 / 0.051 | 70 / 2.76 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 300 | 3.6 / 0.142 | 300 / 11.81 | 1.30 / 0.051 | 80 / 3.15 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 350 | 3.6 / 0.142 | 350 / 13.78 | 1.30 / 0.051 | 100 / 3.94 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 370 | 3.6 / 0.142 | 370 / 14.57 | 1.30 / 0.051 | 105 / 4.13 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 400 | 3.6 / 0.142 | 400 / 15.75 | 1.30 / 0.051 | 117 / 4.6 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 450 | 3.6 / 0.142 | 450 / 17.72 | 1.30 / 0.051 | 133 / 5.2 | 3 / 0.118 | 180 / 18.4 | Confirm |
| 4 × 500 | 3.6 / 0.142 | 500 / 19.69 | 1.20 / 0.047 | 148 / 5.8 | 3 / 0.118 | 180 / 18.4 | Confirm |
4.8mm actual width · 5 series · 18 models
| Item No. | Width mm / in | Length mm / in | Thickness mm / in | Max. bundle Ø mm / in | Min. bundle Ø mm / in | Min. tensile N / kg | Packing |
|---|---|---|---|---|---|---|---|
| 5 × 100 | 4.8 / 0.189 | 100 / 3.94 | 1.30 / 0.051 | 30 / 1.18 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 120 | 4.8 / 0.189 | 120 / 4.72 | 1.30 / 0.051 | 30 / 1.18 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 150 | 4.8 / 0.189 | 150 / 5.91 | 1.30 / 0.051 | 40 / 1.57 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 180 | 4.8 / 0.189 | 180 / 7.09 | 1.30 / 0.051 | 42 / 1.65 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 200 | 4.8 / 0.189 | 200 / 7.87 | 1.30 / 0.051 | 50 / 1.97 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 250 | 4.8 / 0.189 | 250 / 9.84 | 1.30 / 0.051 | 65 / 2.55 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 280 | 4.8 / 0.189 | 280 / 11.02 | 1.30 / 0.051 | 70 / 2.76 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 300 | 4.8 / 0.189 | 300 / 11.81 | 1.30 / 0.051 | 80 / 3.15 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 350 | 4.8 / 0.189 | 350 / 13.78 | 1.30 / 0.051 | 90 / 3.54 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 380 | 4.8 / 0.189 | 380 / 14.96 | 1.30 / 0.051 | 102 / 4.02 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 400 | 4.8 / 0.189 | 400 / 15.75 | 1.30 / 0.051 | 105 / 4.13 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 430 | 4.8 / 0.189 | 430 / 16.93 | 1.30 / 0.051 | 120 / 4.72 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 450 | 4.8 / 0.189 | 450 / 17.72 | 1.30 / 0.051 | 130 / 5.12 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 500 | 4.8 / 0.189 | 500 / 19.69 | 1.30 / 0.051 | 150 / 5.91 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 550 | 4.8 / 0.189 | 550 / 21.65 | 1.30 / 0.051 | 162 / 6.3 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 600 | 4.8 / 0.189 | 600 / 23.62 | 1.30 / 0.051 | 178 / 7 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 650 | 4.8 / 0.189 | 650 / 25.59 | 1.30 / 0.051 | 194 / 7.6 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
| 5 × 700 | 4.8 / 0.189 | 700 / 27.56 | 1.30 / 0.051 | 207 / 8.1 | 3.5 / 0.138 | 222 / 22.7 | 100 pcs |
7.6mm actual width · 8 series · 10 models
| Item No. | Width mm / in | Length mm / in | Thickness mm / in | Max. bundle Ø mm / in | Min. bundle Ø mm / in | Min. tensile N / kg | Packing |
|---|---|---|---|---|---|---|---|
| 8 × 150 | 7.6 / 0.299 | 150 / 5.91 | 1.40 / 0.055 | 41 / 1.6 | 8 / 0.315 | 560 / 57.1 | Confirm |
| 8 × 200 | 7.6 / 0.299 | 200 / 7.87 | 1.40 / 0.055 | 54 / 2.12 | 8 / 0.315 | 560 / 57.1 | Confirm |
| 8 × 250 | 7.6 / 0.299 | 250 / 9.84 | 1.40 / 0.055 | 65 / 2.56 | 8 / 0.315 | 560 / 57.1 | Confirm |
| 8 × 300 | 7.6 / 0.299 | 300 / 11.81 | 1.40 / 0.055 | 80 / 3.15 | 8 / 0.315 | 560 / 57.1 | Confirm |
| 8 × 350 | 7.6 / 0.299 | 350 / 13.78 | 1.40 / 0.055 | 90 / 3.54 | 8 / 0.315 | 560 / 57.1 | Confirm |
| 8 × 380 | 7.6 / 0.299 | 380 / 14.96 | 1.40 / 0.055 | 100 / 3.94 | 8 / 0.315 | 560 / 57.1 | Confirm |
| 8 × 400 | 7.6 / 0.299 | 400 / 15.75 | 1.40 / 0.055 | 105 / 4.13 | 8 / 0.315 | 560 / 57.1 | Confirm |
| 8 × 450 | 7.6 / 0.299 | 450 / 17.72 | 1.40 / 0.055 | 110 / 4.33 | 8 / 0.315 | 560 / 57.1 | Confirm |
| 8 × 500 | 7.6 / 0.299 | 500 / 19.69 | 1.40 / 0.055 | 150 / 5.91 | 8 / 0.315 | 560 / 57.1 | Confirm |
| 8 × 550 | 7.6 / 0.299 | 550 / 21.65 | 1.40 / 0.055 | 165 / 6.50 | 8 / 0.315 | 560 / 57.1 | Confirm |
9mm actual width · 10 series · 16 models
| Item No. | Width mm / in | Length mm / in | Thickness mm / in | Max. bundle Ø mm / in | Min. bundle Ø mm / in | Min. tensile N / kg | Packing |
|---|---|---|---|---|---|---|---|
| 10 × 350 | 9 / 0.354 | 350 / 13.78 | 1.50 / 0.059 | 98 / 3.8 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 400 | 9 / 0.354 | 400 / 15.75 | 1.50 / 0.059 | 105 / 4.13 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 450 | 9 / 0.354 | 450 / 17.72 | 1.50 / 0.059 | 118 / 4.65 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 500 | 9 / 0.354 | 500 / 19.69 | 1.50 / 0.059 | 150 / 5.91 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 550 | 9 / 0.354 | 550 / 21.65 | 1.50 / 0.059 | 160 / 6.30 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 600 | 9 / 0.354 | 600 / 23.62 | 1.50 / 0.059 | 170 / 6.69 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 650 | 9 / 0.354 | 650 / 25.59 | 1.50 / 0.059 | 185 / 7.28 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 720 | 9 / 0.354 | 720 / 28.35 | 1.50 / 0.059 | 190 / 7.48 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 760 | 9 / 0.354 | 760 / 29.92 | 1.50 / 0.059 | 200 / 7.87 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 800 | 9 / 0.354 | 800 / 31.50 | 1.50 / 0.059 | 205 / 8.07 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 850 | 9 / 0.354 | 850 / 33.46 | 1.50 / 0.059 | 230 / 9.06 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 900 | 9 / 0.354 | 900 / 35.43 | 1.50 / 0.059 | 240 / 9.45 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 1000 | 9 / 0.354 | 1000 / 39.37 | 1.50 / 0.059 | 265 / 10.43 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 1100 | 9 / 0.354 | 1100 / 43.31 | 1.50 / 0.059 | 300 / 11.81 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 1200 | 9 / 0.354 | 1200 / 47.24 | 1.50 / 0.059 | 335 / 13.19 | 10 / 0.394 | 778 / 79.4 | Confirm |
| 10 × 1500 | 9 / 0.354 | 1500 / 59.06 | 1.50 / 0.059 | 370 / 14.57 | 10 / 0.394 | 778 / 79.4 | Confirm |
12mm actual width · 12 series · 6 models
| Item No. | Width mm / in | Length mm / in | Thickness mm / in | Max. bundle Ø mm / in | Min. bundle Ø mm / in | Min. tensile N / kg | Packing |
|---|---|---|---|---|---|---|---|
| 12 × 300 | 12 / 0.47 | 300 / 11.81 | 2.00 / 0.079 | 80 / 3.15 | 12 / 0.47 | 900 / 91.8 | Confirm |
| 12 × 600 | 12 / 0.47 | 600 / 23.62 | 2.00 / 0.079 | 170 / 6.7 | 12 / 0.47 | 900 / 91.8 | Confirm |
| 12 × 650 | 12 / 0.47 | 650 / 25.59 | 2.00 / 0.079 | 185 / 7.2 | 12 / 0.47 | 900 / 91.8 | Confirm |
| 12 × 720 | 12 / 0.47 | 720 / 28.35 | 2.00 / 0.079 | 190 / 7.4 | 12 / 0.47 | 900 / 91.8 | Confirm |
| 12 × 760 | 12 / 0.47 | 760 / 29.92 | 2.00 / 0.079 | 200 / 7.8 | 12 / 0.47 | 900 / 91.8 | Confirm |
| 12 × 900 | 12 / 0.47 | 900 / 35.43 | 2.00 / 0.079 | 240 / 9.4 | 12 / 0.47 | 900 / 91.8 | Confirm |
“Confirm” means no packing count is shown for that group in the supplied pages. The 5-series group lists 100 pcs. Inch values and N/kg pairs are reproduced as printed; use the approved metric drawing and test specification for final selection.
Match the tie and the bundle.
Use the catalog dimensions and your installation conditions to prepare the order.
Bundle diameter
Measure the complete bundle, then compare both minimum and maximum diameters for the selected model. Leave room for installation and routing.
Width & tensile requirement
Use the actual strap width and the catalog’s listed minimum tensile strength. Select for the fastening load and the cable bundle’s needs.
Operating conditions
State temperature, sunlight, moisture and chemical exposure. Specify UV-resistant or heat-stabilised material when required.
Installation method
Confirm hand or tool installation, the appropriate tension setting and flush tail trimming. Avoid overtightening sensitive cables.
Send your cable tie
requirements.
Share the model list, material grade, colours and quantities.
Prepare a model-by-model order.
Agree the specification and required evidence before placing your order.
Model schedule
List the catalog item number, actual width, length, bundle diameter and quantity for each model.
Material requirements
Confirm Nylon 66 grade, colour, working temperature, UV exposure and any special flammability requirement.
Documentation
Identify the drawings, material declarations, tensile test conditions and batch information required for the selected ties.
Your specification.
Your packing plan.
Build your self-locking cable tie order around the selected models, identification and supply requirements.
Model & colour mix
Provide the quantity for each item and colour. Keep standard and special material versions identified separately.
Labels & identification
Share your part numbers, label artwork and required batch or traceability information.
Pack quantities
Confirm bag counts, outer carton quantities and destination. The catalog explicitly lists 100 pcs for the 5-series; discuss packing for other sizes.
Self-locking cable tie
buying questions.
What material is listed for these cable ties?
The catalog specifies Nylon 66 with a standard working temperature of −40°C to +85°C. Special material requirements should be stated separately.
Why is a 3-series tie listed as 2.5mm wide?
The catalog item number uses a nominal size. The actual-width column lists 2.5mm for the 3-series, 3.6mm for the 4-series and 4.8mm for the 5-series, for example. Order against both the item number and actual dimensions.
Are all black cable ties suitable for outdoor use?
Do not select by colour alone. The catalog describes anti-UV material for outdoor use; specify and confirm that grade, its evidence and the intended exposure.
Are 105°C and UL94 V-0 standard for every model?
No. The catalog lists these under special material requirements. The standard technical section states −40°C to +85°C and UL94 V-2. Confirm the exact material version for the order.
How many ties are packed per bag?
The 5-series section lists 100 pcs. No count is printed for the other supplied groups, so agree their packing quantities in the quotation.
What should I include in a quotation request?
Send item numbers, actual widths, lengths, quantities, colours, material requirements, bundle diameters, packaging details and delivery destination.
