Precision Square Non-Insulated Terminals Manufacturer
TONFUL Electric is a premier manufacturer of heavy-duty Square Non-Insulated Terminals (Bare Terminals), engineered for highly reliable, space-constrained wire terminations. Designed with a unique square or rectangular profile, these terminals sit perfectly flush within barrier terminal blocks, preventing accidental rotation and short circuits when mounting screws are tightened.
Without the bulk and temperature limitations of plastic insulation, our bare square terminals are ideal for extreme high-temperature environments, custom heat-shrink applications, and automated solder dipping. Manufactured from high-purity electrolytic copper with precision tin plating, TONFUL delivers maximum conductivity, superior corrosion resistance, and uncompromising mechanical strength for industrial machinery, automotive harnesses, and power distribution systems.
Certified By
Our Range of Square Non-Insulated Terminals

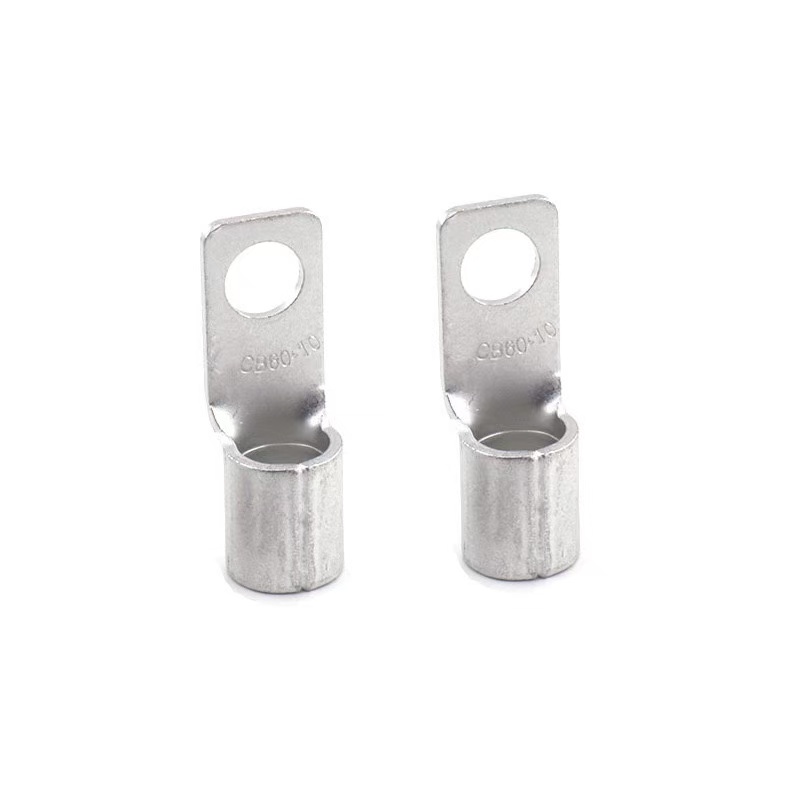

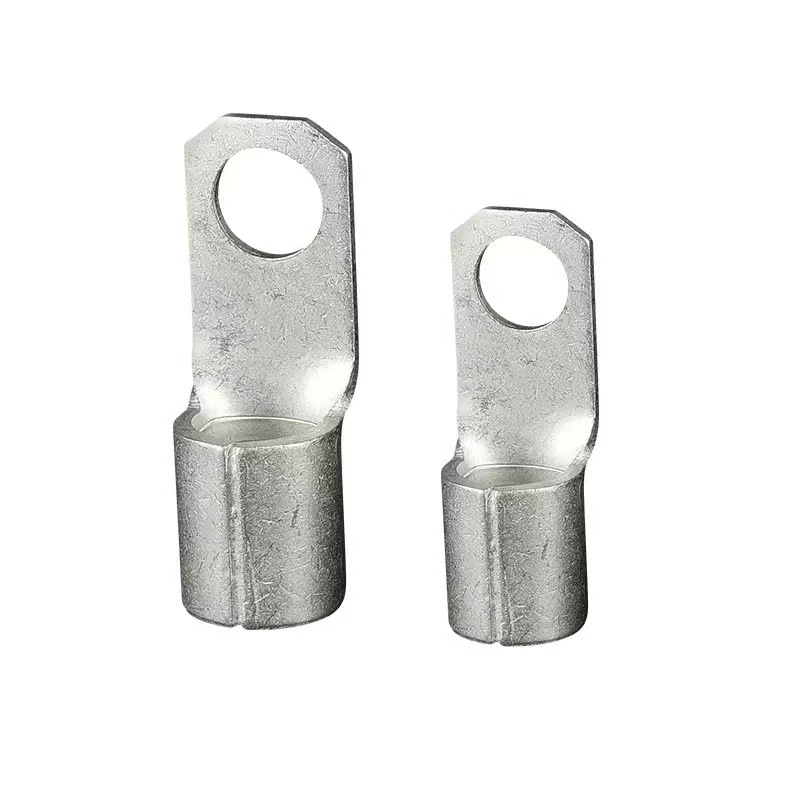

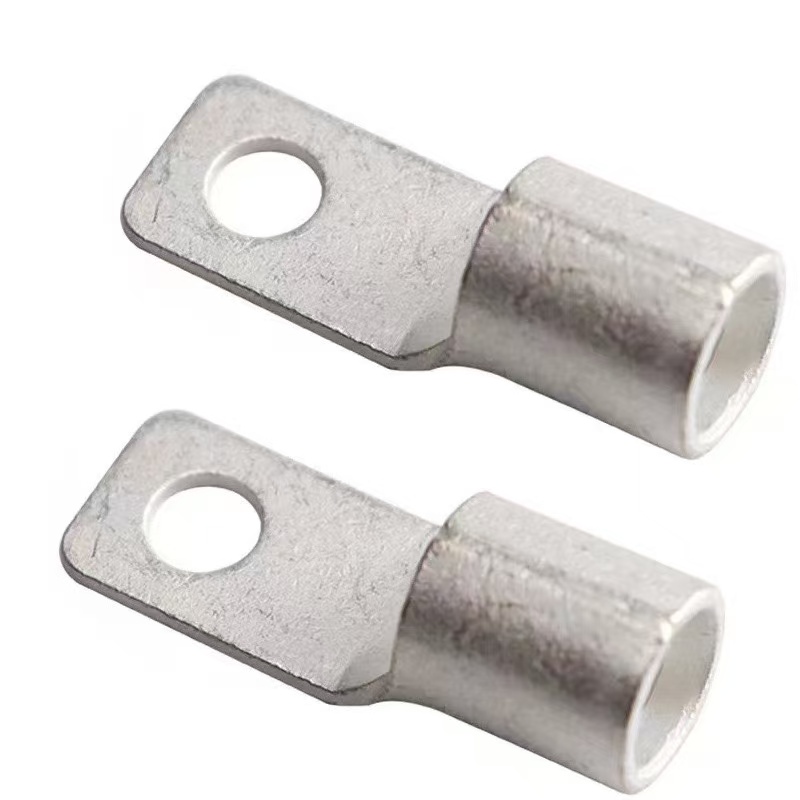

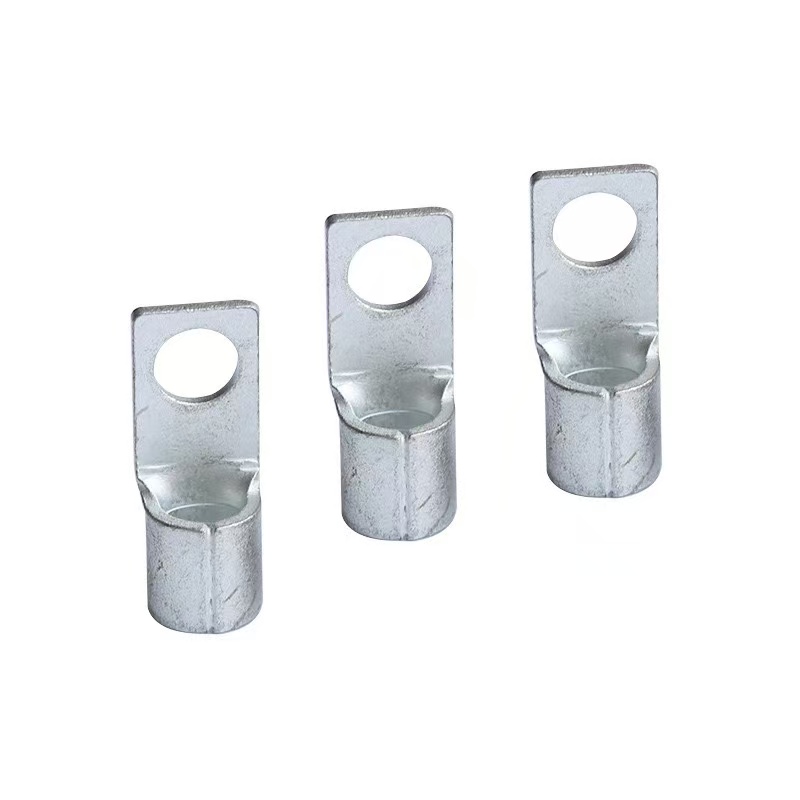

Square Non-Insulated Terminals
Square Non-Insulated Terminals
Technical Specifications: Square Non-Insulated Terminals
| Specification | Available Options / Parameters |
|---|---|
| Terminal Type (端子类型) | Square Non-Insulated Ring / Square Spade Terminal (Bare) |
| Wire Gauge Range (适用线径) | 22 AWG to 2/0 AWG (0.5mm² to 70mm²) |
| Material (材质) | High-Purity Electrolytic Copper / Brass |
| Contact Plating (表面镀层) | Electro-Tin Plated (Standard), Bare Copper, Silver Plated (Custom) |
| Operating Temperature (工作温度) | Up to +150°C (Tin-plated) / Up to +340°C (Bare Copper) |
| Termination Method (接线方式) | Crimp (Indent/Dimple style) or Solder |
| Insulation (绝缘) | None (Designed for use with Heat Shrink Tubing or bare applications) |
| Anti-Rotation Design (防转动) | Square edges lock into barrier strips |
| Compliance & Standards (认证) | RoHS, CE, ISO 9001 |
| OEM Customization (定制服务) | Custom stud hole sizes, specific metal thicknesses, custom angles |
Why Choose TONFUL Square Non-Insulated Terminals
Anti-Rotation Square Design
Standard round ring terminals can twist when the mounting screw is torqued down, potentially touching adjacent terminals and causing a short. Our square profile fits snugly within the walls of standard barrier terminal blocks, completely eliminating rotation and ensuring a safe, locked-in connection.
Extreme High-Temperature Tolerance
Standard insulated terminals use PVC or Nylon sleeves that melt at 105°C. By utilizing a completely non-insulated bare copper design, our terminals can operate safely in high-heat environments like engine compartments, industrial ovens, and heavy-duty power supplies without degrading.
Maximum Electrical Conductivity
We manufacture our terminals using premium high-purity electrolytic copper, not cheap alloys. This ensures the lowest possible electrical resistance, allowing for maximum current flow with minimal heat generation under heavy electrical loads.
Versatile Crimp & Solder Capabilities
Unlike insulated terminals that can only be crimped, our bare terminals offer total manufacturing flexibility. They can be mechanically crimped using a standard indent tool, or they can be fluxed and dip-soldered for an absolute gas-tight, corrosion-proof electrical bond.
Seamless Heat Shrink Integration
Many OEMs prefer to use bare terminals and apply their own heavy-duty Dual-Wall Adhesive Heat Shrink Tubing after crimping. Our non-insulated square terminals provide the perfect smooth, burr-free barrel for heat shrink to grip onto, creating an IP68 waterproof seal.
Factory-Direct Custom Stamping
As a direct manufacturer, TONFUL is not limited to standard catalog sizes. We possess in-house tooling capabilities to stamp custom square terminals with specific metal thicknesses, non-standard stud hole sizes, or custom bend angles (e.g., 45° or 90°) to fit your exact engineering drawings.
Professional Selection Guide
Step 1: Match the Wire Gauge (AWG / mm²)
The most critical step is ensuring the terminal barrel matches your wire size perfectly. Whether you are using thin 22 AWG signal wire or thick 2/0 AWG battery cable, select the exact barrel size to guarantee a secure crimp without wire strand breakage.
Step 2: Determine the Stud / Screw Size
Measure the diameter of the mounting stud or screw on your terminal block. The hole in the square terminal must be just large enough to fit over the stud tightly. Common sizes include #6, #8, #10, 1/4", and Metric sizes like M4, M5, M6, and M8.
Step 3: Measure the Terminal Block Width
Since this is a square terminal designed to sit inside a barrier strip, the outer width of the square terminal pad must be slightly smaller than the distance between the plastic dividing walls of your terminal block.
Step 4: Choose the Termination Method
Decide if your assembly line will mechanically crimp the terminals or solder them. If crimping bare terminals, ensure your technicians are using a specialized "non-insulated terminal crimper" (which creates a deep dimple/indent), rather than a standard insulated crimp tool.
Step 5: Plan for Post-Installation Insulation
Since the terminal is bare, evaluate if your application requires secondary insulation. If there is a risk of accidental contact or moisture, plan to slide a piece of Polyolefin Heat Shrink Tubing over the wire and the terminal barrel before making the connection.
Step 6: Confirm the Plating Requirement
Our standard electro-tin plating provides excellent corrosion resistance for 95% of applications. However, for extremely corrosive environments or highly specialized high-frequency signals, consult with us regarding custom silver or gold plating options.
| Item NO | Cable Size A.W.G | Thickness (mm) | Max Current | USA Screw | Screw Dia. d2(mm) | Dimension (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | L | F | E | DΦ | dΦ | ||||||
| CB 22-5 | 16~25 (4) | 1.7 | 115A | #10 | 5.3 | 12.5 | 33.0 | 14.2 | 12.0 | 11.6 | 8.2 |
| CB 22-6 | 1/4 | 6.4 | |||||||||
| CB 22-8 | 5/16 | 8.4 | |||||||||
| CB 38-5 | 35~50 (2) | 1.8 | 160A | #10 | 5.3 | 13.0 | 38.0 | 16.2 | 14.0 | 13.3 | 9.4 |
| CB 38-6 | 1/4 | 6.4 | |||||||||
| CB 38-8 | 5/16 | 8.4 | |||||||||
| CB 60-8 | 50~70 (1/10) | 1.7 | 215A | 5/16 | 8.4 | 16.0 | 48.5 | 20.7 | 18.0 | 15.4 | 12.0 |
| CB 60-10 | 3/8 | 10.5 | |||||||||
| CB 70-8 | 70~95 (2/0) | 2.0 | 235A | 5/16 | 8.4 | 19.5 | 49.0 | 20.0 | 19.0 | 17.5 | 13.5 |
| CB 70-10 | 3/8 | 10.5 | |||||||||
| CB 80-8 | 95~120 (1/0) | 2.2 | 255A | 5/16 | 8.4 | 22.0 | 52.0 | 20.7 | 20.0 | 19.5 | 15.0 |
| CB 80-10 | 3/8 | 10.5 | |||||||||
| CB 80-12 | 1/2 | 13.0 | |||||||||
| CB 100-8 | 120~150 (4/0) | 2.6 | 300A | 5/16 | 8.4 | 22.0 | 53.5 | 20.3 | 21.0 | 22.5 | 17.0 |
| CB 100-10 | 3/8 | 10.5 | |||||||||
| CB 100-12 | 1/2 | 13.0 | |||||||||
| CB 150-8 | 150~185 (250/300) | 3.2 | 395A | 5/16 | 8.4 | 28.0 | 62.5 | 21.0 | 27.0 | 27.0 | 20.0 |
| CB 150-10 | 3/8 | 10.5 | |||||||||
| CB 150-12 | 1/2 | 13.0 | |||||||||
| CB 180-10 | 185~240 (300/350) | 3.5 | 440A | 3/8 | 10.5 | 29.0 | 65.5 | 21.2 | 28.5 | 28.6 | 21.0 |
| CB 180-12 | 1/2 | 13.0 | |||||||||
| CB 200-10 | 240~300 (400/500) | 4.0 | 470A | 3/8 | 10.5 | 33.0 | 73.0 | 24.3 | 31.5 | 32.6 | 24.0 |
| CB 200-12 | 1/2 | 13.0 | |||||||||
