Premium Step-Down Butt Connectors Manufacturer | Heat Shrink & Marine Grade
TONFUL Electric is a premier manufacturer of high-reliability step-down butt connectors (also known as transition or reducing splices). Engineered specifically to seamlessly connect wires of different gauges (e.g., 12 AWG to 16 AWG), our connectors eliminate the dangerous practice of wire folding and ensure a perfectly secure, low-resistance electrical transition.
Manufactured with highly conductive, seamless tinned copper tubes and available with premium IP67 dual-wall heat shrink insulation, TONFUL step-down connectors are the ultimate choice for marine, automotive, aerospace, and industrial wiring. As a direct factory, we provide uncompromising quality, full OEM customization, and competitive wholesale pricing.
Certified By

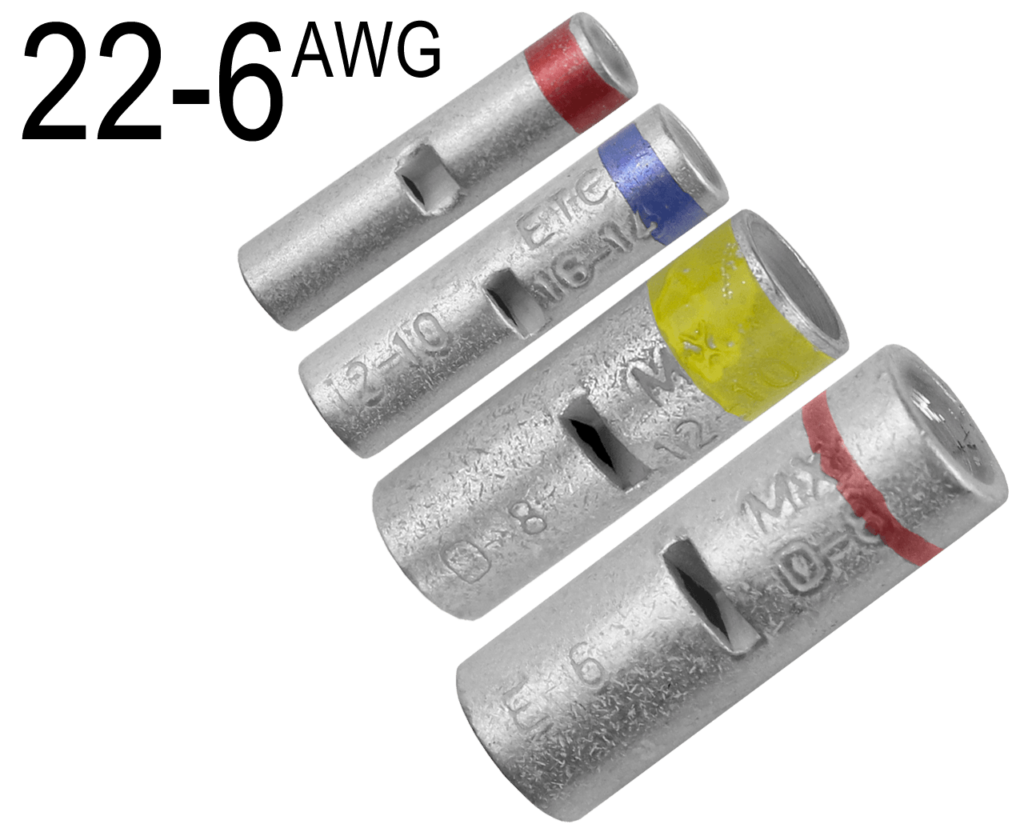

Our Step-Down Butt Connectors Range
Heat Shrink Step-Down Connector (AWG 16-14 to 22-18, Blue/Red)
Heat Shrink Step-Down Connector (AWG 12-10 to 16-14, Yellow/Blue)
Heat Shrink Step-Down Connector (AWG 8 to 12-10, Red/Yellow)
Non-Insulated Step-Down Connector (AWG 22-18 to 16-14)

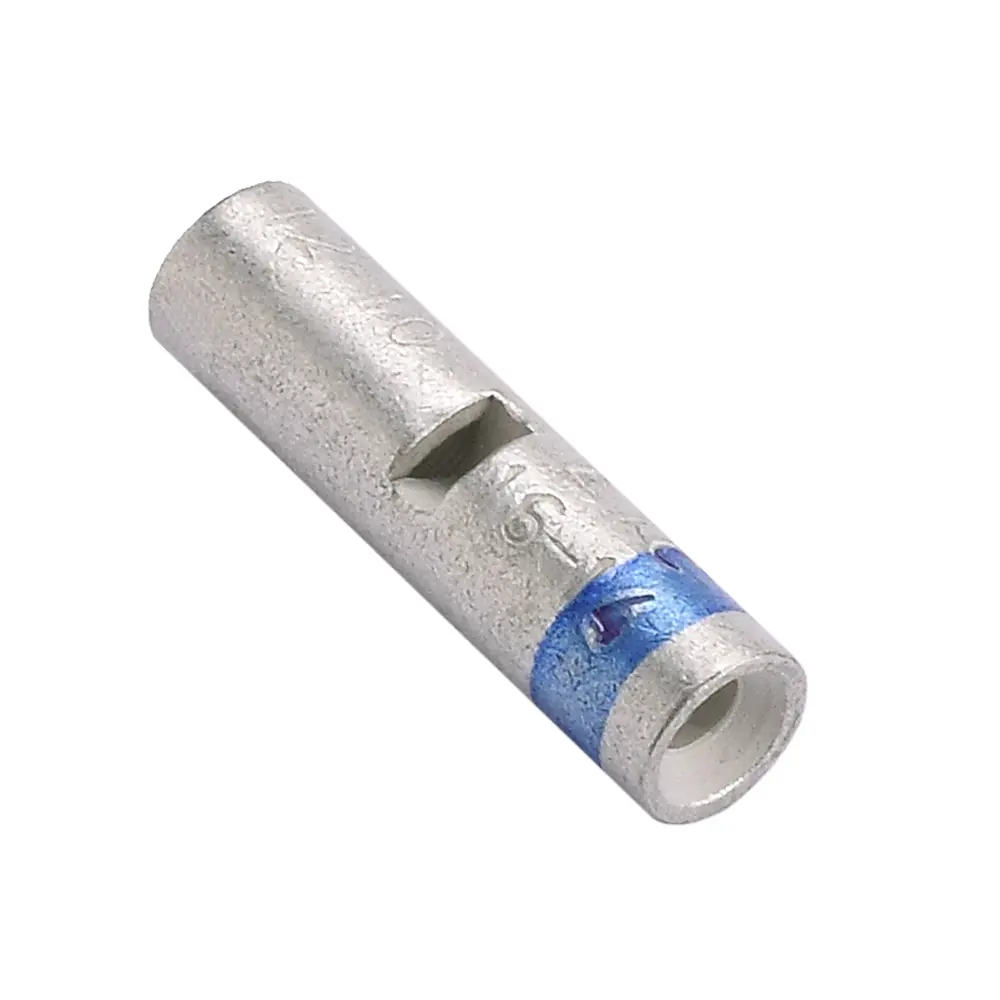

Non-Insulated Step-Down Connector (AWG 16-14 to 12-10)
Non-Insulated Step-Down Connector (AWG 12-10 to 8)

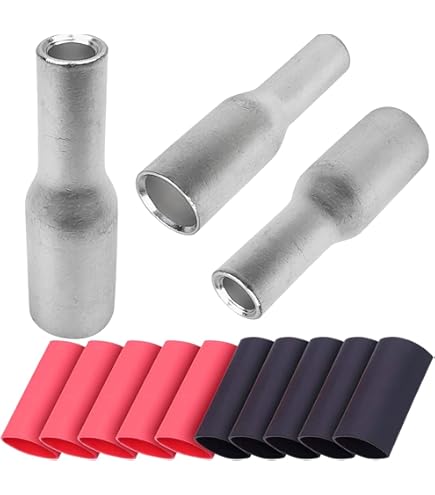

Non-Insulated Step-Down Connector (AWG 8 to 6)

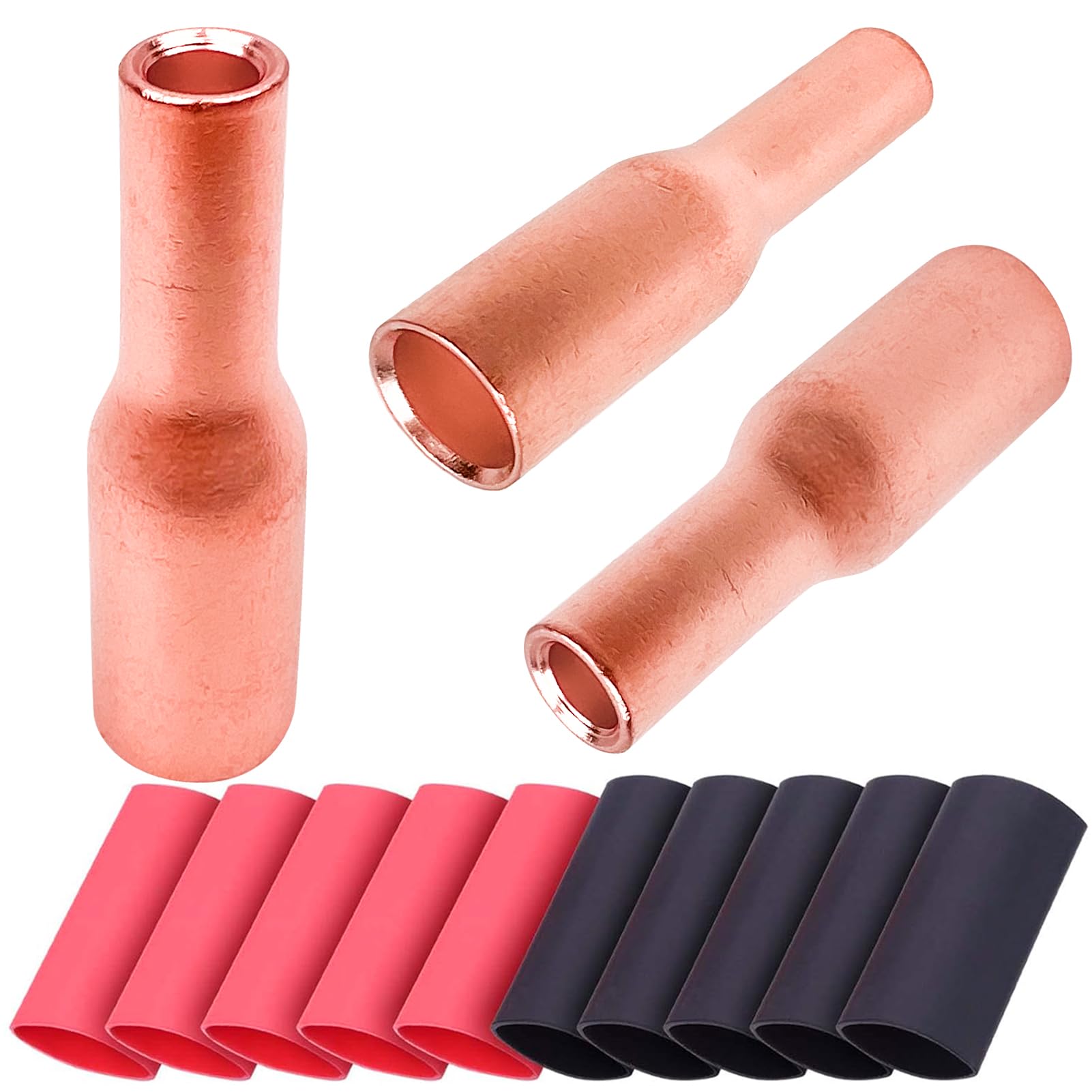

Non-Insulated Step-Down Connector (AWG 6 to 4)
Technical Specifications: Step-Down Butt Connectors
| Specification Property | Performance Standards / Parameters |
|---|---|
| Wire Gauge Transitions (适用线规) | AWG 12-10 to 16-14 (Yellow to Blue) / AWG 16-14 to 22-18 (Blue to Red) / Custom |
| Terminal Material (端子材质) | High-Conductivity Seamless Copper, Fully Tin-Plated (Corrosion Resistant) |
| Insulation Material (绝缘材质) | Adhesive-Lined Polyolefin Heat Shrink / Premium Nylon / PVC |
| Shrink Ratio (热缩比率) | 3:1 (For heat shrink variants with dual-wall hot melt adhesive) |
| Waterproof Rating (防护等级) | IP67 Marine-Grade Sealing (For heat shrink models only) |
| Maximum Voltage (额定电压) | 600V Max (Building wiring) / 1000V Max (Signs and fixtures) |
| Operating Temperature (工作温度) | -55°C to +125°C |
| Shrink Temperature (收缩温度) | Starts at 80°C, Fully recovered at 130°C |
| Quality Compliance (认证标准) | UL Listed, RoHS, REACH, CE |
Why Choose TONFUL Step-Down Connectors
1. Seamless Pure Copper Construction
Unlike standard split-barrel connectors that can crack or open up under heavy crimping pressure, TONFUL utilizes premium seamless oxygen-free copper tubes. This industrial-grade design allows for maximum crimping force from any angle, ensuring an unbreakable mechanical bond and completely eliminating the risk of wire pull-outs.
2. Marine-Grade IP67 Waterproof Sealing
Our heat-shrink step-down connectors are pre-lined with a high-viscosity, dual-wall hot-melt adhesive. When heated, the polyolefin tubing shrinks tightly while the inner adhesive flows to encapsulate every microscopic wire strand, creating a permanent 100% water-tight seal that fully blocks out saltwater, oil, and harsh automotive fluids.
3. Error-Proof Dual-Color Coding
To drastically reduce assembly errors on fast-paced manufacturing lines or complex field installations, our connectors feature industry-standard dual-color tubing (e.g., Yellow for the 12-10 AWG side and Blue for the 16-14 AWG side). This smart design provides workers with an immediate visual cue for flawless wire placement before crimping.
4. Premium Dense Tin Plating
To guarantee long-term electrical signal integrity and prevent galvanic corrosion, every copper barrel undergoes a dense electro-tin plating process. This protective barrier completely stops oxidation, ensuring flawless conductivity and a long lifecycle even in highly humid, corrosive marine or chemical environments.
5. Strict Compliance & Certified Security
A critical wire-gauge transition demands certified security. TONFUL step-down butt connectors are fully compliant with international export and safety standards, including UL Listed, RoHS, REACH, and CE. Every production batch undergoes automated tensile strength and electrical resistance testing to give global procurement managers total peace of mind.
6. Factory-Direct Pricing & OEM Scalability
By operating fully automated high-speed stamping and insulation assembly lines, TONFUL completely eliminates the middleman. We deliver premium OEM-grade transition splices at highly competitive factory-direct wholesale prices, backed by a massive raw material inventory to ensure your global supply chain never experiences downtime.
Professional Selection Guide
Step 1: Determine the Wire Gauges (AWG)
Accurately measure the outer diameter or AWG of the two wires you intend to splice. Select a step-down connector that perfectly matches this transition (e.g., AWG 12 to AWG 16) to ensure the copper barrel securely grips both wires without excessive empty space.
Step 2: Choose the Insulation Type
For marine, outdoor, or under-hood automotive applications, you must select Adhesive-Lined Heat Shrink connectors for IP67 waterproof protection. For dry, indoor control panels, Nylon or PVC insulated connectors offer a cost-effective alternative.
Step 3: Verify the Crimping Tool
Ensure you have the correct crimping tool designed for the insulation type. Heat shrink connectors require a specialized crimper that won't puncture the polyolefin tubing, while non-insulated connectors require a different jaw profile for optimal mechanical strength.
Step 4: Assess Environmental Needs
Consider the operating temperature and chemical exposure. TONFUL's heat shrink polyolefin tubing provides excellent resistance against diesel, battery acid, and extreme temperatures ranging from -55°C to +125°C.
Step 5: Review Voltage Ratings
Confirm the voltage of your application. Our step-down connectors are rated for up to 600V for building wiring and up to 1000V for signs and lighting fixtures, easily accommodating all standard low-voltage DC and AC circuits.
Step 6: Request Samples and Certifications
For large-scale manufacturing or critical infrastructure projects, always verify compliance. Contact TONFUL to request free samples and UL/CE certification documents to test the pull-out strength and sealing performance in your own facility.
Get Your Free Sample!
We provide samples for free, you just need to tell us what you need
MORE THAN JUST AN ELECTRICAL CONNECTOR MANUFACTURER
Service Consultation
Whether your Step-Down Connector requirements are straightforward or complex, our team provides expert advice and technical consultation. For more intricate projects, we offer in-depth engineering support to ensure optimal product selection and application, guaranteeing safety and efficiency in your electrical systems.
Product Recommendations
Unsure which Step-Down Connector suits your system? Our specialists provide free, customized recommendations based on your specific operational and environmental requirements, ensuring you get the perfect fit for your electrical protection needs.
Installation Support
Need help with installation? Our technical team is available to answer your questions or provide hands-on support. For larger projects, we can even dispatch an engineer to your site for on-the-ground assistance, ensuring your terminals are installed correctly and function seamlessly within your electrical network.
Logistics Support
If you lack a reliable freight forwarder, we can arrange transportation from our factory to your project site at no extra cost. Our logistics team ensures timely and secure delivery to keep your project on schedule, minimizing downtime and delays.
Frequently Asked Questions
We have compiled some common questions from our clients. If your question isn’t included here, our customer service is always available to help. We’d love to talk with you.
Q1: Why can't I just fold a thin wire to fit into a standard butt connector?
Folding a thin wire to artificially increase its diameter creates poor surface contact and high electrical resistance. Under heavy loads, this concentrated resistance generates excessive heat, which can melt the insulation and start an electrical fire. A step-down connector resolves this by providing an exact barrel size for both wires.
Q2: What is the difference between a seamless and a seamed barrel?
A seamed barrel is made from a flat piece of metal rolled into a tube; it has a weak point where the edges meet and can split open during crimping. TONFUL uses a seamless barrel made from a solid copper tube, which provides ultimate structural integrity and prevents wire pull-outs regardless of the crimping angle.
Q3: How do I properly seal a heat shrink step-down connector?
After firmly crimping both ends with the appropriate tool, use a heat gun (starting at 80°C and moving evenly up to 130°C) to shrink the tubing. Apply heat until the polyolefin tightens around the wire and a small ring of adhesive squeezes out from the ends. This visual cue indicates a perfect IP67 waterproof seal.
Q4: Can these connectors be used in marine environments?
Yes. Our heat-shrink step-down models are specifically designed for marine applications. The combination of tin-plated copper (to prevent salt corrosion) and the dual-wall adhesive heat shrink tubing (to block moisture ingress) makes them perfect for boats and offshore equipment.
Q5: Does TONFUL offer custom wire gauge combinations?
Yes. While the most common transitions are 12-to-16 AWG and 16-to-22 AWG, we are a direct manufacturer equipped to produce custom internal barrel diameters to meet your specific industrial or automotive wiring requirements.
