The useful answer to PVC vs nylon insulated terminals is not “nylon always wins” or “PVC is only for cheap repairs.” Both names describe insulation materials used in terminal constructions. The finished part also contains a metal conductor termination and may contain a separate insulation-support arrangement. Those construction details can change fit, tooling and application suitability as much as the polymer label.
Compare exact parts for the same conductor, equipment interface and exposure conditions. Use this guide to decide when retaining a PVC-insulated design makes sense, when a nylon-insulated alternative deserves evaluation, and what evidence is needed before a substitution becomes an approved production change.
Jump to: Construction · Fit and tooling · Exposure · Scenarios · Change review · RFQ

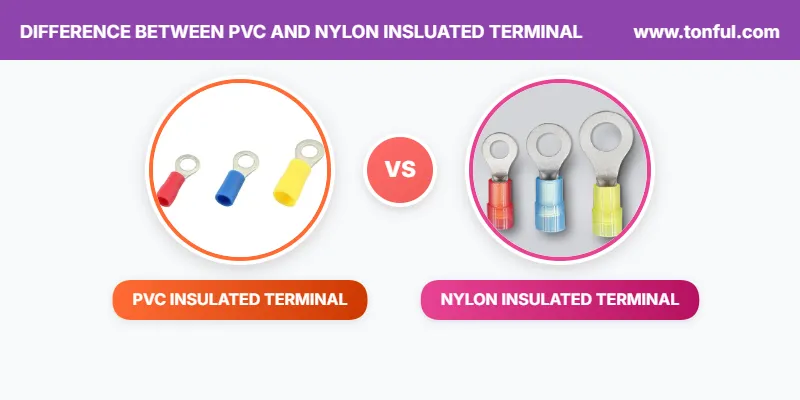

PVC vs Nylon Insulated Terminals: Compare the Finished Construction
Separate insulation from metal support
PVC means polyvinyl chloride; nylon describes a family of polyamide materials. In terminals, either name is only the start of the specification. The grade, sleeve geometry, wall arrangement and method of supporting the wire insulation must be reviewed on the selected part.
Some terminal families include a metal sleeve that supports the wire insulation as well as the conductor barrel. Others use a different support construction. Do not attribute a complete terminal’s wire-support behavior to its plastic alone. A nylon sleeve is not proof that a separate metal support exists, and a PVC sleeve is not proof that it does not.
For a manufacturer example, TE’s PIDG family description identifies nylon or PVC insulation alongside a metal insulation-support sleeve. That is useful evidence that polymer and support construction are separate variables. It is not evidence that every TONFUL terminal shares that design or its application approvals.

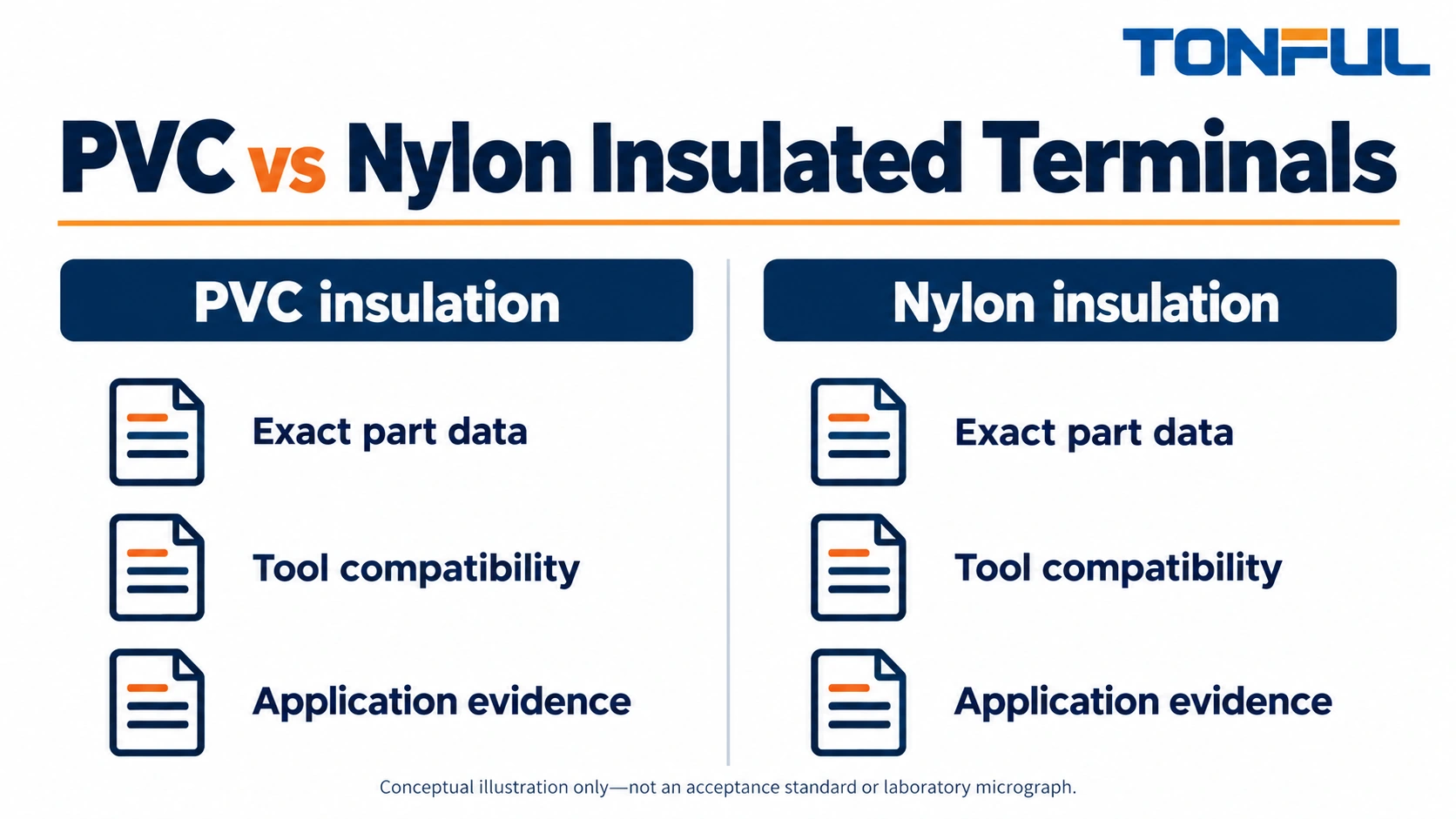

Use a like-for-like comparison
Match terminal function, conductor range and equipment interface before evaluating the insulation. A nylon ring with a larger stud opening is not a direct alternative to a PVC ring with a smaller opening. A fully insulated receptacle also changes the protected envelope compared with a sleeve that covers only the barrel.
| Comparison field | PVC-insulated candidate | Nylon-insulated candidate | Required decision |
|---|---|---|---|
| Exact part | Record drawing and revision | Record drawing and revision | Are the functions comparable? |
| Conductor termination | Identify barrel and wire range | Identify barrel and wire range | Is the same wire supported? |
| Insulation support | Identify actual construction | Identify actual construction | Is support equivalent or changed? |
| Sleeve geometry | Record entry and installed envelope | Record entry and installed envelope | Does either interfere with assembly? |
| Application evidence | Record part-specific scope | Record part-specific scope | Does evidence cover the intended use? |
TONFUL’s nylon-insulated terminal category provides a starting point for candidate identification. Select a specific part before comparing dimensions or claiming a performance advantage. A family page cannot settle the application decision by itself.
Check Wire Fit and Tooling Before Comparing Material Benefits
Verify conductor and insulation dimensions independently
Record the conductor material, nominal size, strand construction and insulation outside diameter. A wire can be within the stated conductor range while its jacket is too large for the sleeve entry or support region. Do not force the wire through the sleeve or shave the insulation to create a fit.
Do not select by color alone. Sleeve colors can help identify controlled stock within a family, but they do not specify the stud opening, tab interface, insulation diameter or tool cavity. Two same-colored terminals can have materially different application requirements.
Check the stripped conductor’s position against the selected instructions. The plastic entry shape may make loading easier, but every strand still needs to enter the metal barrel as specified. A translucent sleeve, where present, can help observe some features; it cannot prove the complete crimp is acceptable.
Review the tool as part of the change
A change from PVC to nylon insulation can also involve a different sleeve thickness, support construction or barrel geometry. Do not assume the existing crimper remains correct because the terminal is in the same nominal wire range. Request the exact tool, cavity or applicator reference and required preparation.
Use TONFUL’s crimping-tool sourcing information to frame that request. Provide both the existing and proposed part numbers plus the actual wire specification. Ask whether the process changes, rather than asking only whether the same tool can physically close around the sleeve.
Compare operation count and inspection access. A terminal may require defined conductor and insulation-support forming regions, a locator or a particular loading orientation. Count those features from the application instructions rather than assuming that every insulated terminal uses one identical compression step.
Translate the Application Into Exposure and Protection Requirements
Temperature and chemicals need part-level evidence
Do not assign a universal operating temperature to PVC or nylon terminals. Polymer grade, formulation, terminal construction and the manufacturer’s application limits matter. Compare the selected finished-part specification against the actual exposure, including nearby heat sources and the operating condition of the assembly.
Chemical suitability also needs specific information. Identify the fluid or cleaner, concentration where known, contact duration and temperature. A broad statement such as oil-resistant is not enough to cover every lubricant, solvent or cleaning process. Ask for evidence within the proposed exposure scope or define an engineering review plan.
Avoid claiming that one sleeve has a measured longer life without comparative evidence. A material may be selected for a particular design requirement, but the purchasing record should identify that requirement and its support rather than replacing it with a generic premium-versus-budget ranking.
Insulation is not the same as sealing
A standard insulated terminal does not automatically seal the conductor entry, stud attachment or blade interface. If the assembly faces condensation, washdown or outdoor water exposure, define the protection system for the completed connection. Do not infer an ingress rating from a plastic sleeve.
Heat-shrink products are another construction, not simply a third interchangeable polymer name. They can require a separate heating process, compatible wire insulation and defined installation conditions. Adding tubing over a standard terminal does not automatically reproduce a qualified sealed product.
If the surrounding enclosure supplies insulation and protection, a non-insulated terminal may be an engineering option. That decision must account for exposed metal, spacing and assembly controls. It is not an invitation to omit protection merely to avoid choosing between PVC and nylon.
Keep work and application boundaries explicit
Perform installation and replacement on isolated equipment under the applicable safe-work procedure, including verification and stored-energy controls. Insulated terminals are not live-work protective equipment. This comparison does not authorize generic substitutions in traction systems, restraint circuits or other safety-related assemblies; use the equipment authority’s approved parts and repair procedures.
Choose by Application Scenario, Not a Universal Winner
Retain a documented PVC design when it meets the requirement
A PVC-insulated terminal can remain the appropriate choice when its exact wire compatibility, equipment interface, environmental limits and process documentation satisfy the application. A polymer change is not automatically an improvement if the existing design is qualified and the alternative introduces new tooling or clearance questions.
Review the current process evidence before changing it. If operators report cracked sleeves or difficult insertion, contain affected material and inspect the actual combination. Wrong tooling, a mismatched insulation diameter or damaged stock can produce symptoms that should not be blamed on the polymer name without investigation.
Keep terminal sleeves distinct from the entry collars on TONFUL’s cord end terminals. A ferrule collar guides a stranded conductor into a thin sleeve for a compatible receiving terminal; it is not the same construction as an insulated ring or receptacle. Comparing polymer names across those different product types would conceal the more important interface and tooling differences.
Evaluate nylon where a specific candidate solves a defined problem
A nylon-insulated alternative deserves review when its documented construction offers a useful difference for the application: an appropriate entry geometry, a supported wire range, a suitable insulation-support arrangement or compatible assembly tooling. State the benefit as a part-level feature to verify, not as a universal nylon property.
For example, if the problem is jacket entry on an identified wire, compare the permitted insulation diameter and entry geometry of both candidates. If the problem is wire movement at the barrel exit, compare the support arrangement and routing. Merely changing sleeve material may leave the original cause unchanged.
| Application question | Useful comparison | Decision boundary |
|---|---|---|
| Existing controlled assembly | Current evidence versus change benefit | Do not change solely for a material label |
| Difficult wire insertion | Entry dimensions, jacket diameter, preparation | No forced fit or strand removal |
| Concern about wire movement | Support construction and assembly routing | Do not assume polymer alone provides strain relief |
| Wet or chemical exposure | Finished assembly protection and exposure evidence | No implied sealing or universal resistance |
| Limited production tooling | Exact compatible tools and operation sequence | No substitution based on gauge range alone |
Control a PVC-to-Nylon or Nylon-to-PVC Substitution
Create an engineering difference list
Compare drawings side by side. Record conductor range, insulation diameter, barrel geometry, support construction, equipment interface, overall envelope, materials and tooling. Include labels and packaging if look-alike parts could be mixed in assembly.
Then identify which existing evidence remains applicable and which changes need review. A trial that confirms physical fit does not establish every electrical, mechanical or environmental requirement. Engineering should define any necessary verification, including methods, sample identity, conditions and acceptance sources. Do not invent universal pull-force, crimp-height or resistance limits for this comparison.
Keep supplier material declarations, component approvals and completed-assembly qualification separate. Check exact part numbers and document scope. Marketing certification icons are not sufficient evidence that a proposed substitution is covered for the intended conductor and application.
Control the transition in production
Identify old and new inventory, update work instructions and train the affected operators before the change becomes routine. If tooling or preparation changes, define first-piece and restart checks. Avoid a transition where both materials enter the same bin under one informal color description.
Record who approves the change and when it becomes effective. Include the assembly revision, affected circuits and disposition of remaining stock. A reversible purchasing choice still needs a controlled production boundary so quality teams can trace which part was installed.
Prepare a Part-Level RFQ and Release Record
Give the supplier a comparable requirement
State whether the request is a new design or a replacement for an existing part. Include wire construction and jacket diameter, connection-point drawing, installed space, exposure conditions and available assembly equipment. Attach the current part drawing where a substitution is proposed.
Request a response with an exact part number, controlled drawing, insulation material identification, support construction, compatible tooling and application limitations. Ask for relevant evidence at the same level as the claim. If the supplier cannot confirm a requirement, keep it open rather than recording an assumption as approval.
Compare total installed effort after technical compatibility is established. Include tooling changes, extra protection steps, operator instruction changes and stock control. Do not claim that either material always produces lower installed cost without a defined production model.
Discuss the actual candidates with TONFUL
Send the comparison record to TONFUL’s wire-terminal sourcing team. Request PVC and nylon candidates only where both could meet the same connection requirement, and ask for differences to be stated explicitly. Choose the documented terminal-wire-tool combination that fits the application. The useful result is an approved part and repeatable assembly process, not a material winner detached from the circuit it must serve.
