Power Window Switch Fitment Checklist is not a decision that should be made from appearance, one catalog field, or a supplier statement alone. For distributors, technicians, buyers, and catalog managers, the practical objective is to provide a photo-led, field-level fitment checklist before ordering or approving inventory. That requires a controlled record connecting the vehicle or product requirement to the physical sample, electrical behavior, source document, and approval decision.
Power window switches range from direct-current reversing contacts to resistance-coded controls and networked door electronics. They can also integrate window lock, door lock, mirror, illumination, one-touch, and other functions. Because architecture varies by vehicle, this guide does not provide a universal pinout, acceptance value, or service shortcut. Use the current drawing, customer specification, qualification plan, and vehicle service information for the application.
On this page: Vehicle and OE Identity | Physical and Electrical Fit | Verification and Supplier Evidence | Fitment Release
Vehicle and OE Identity
Quick Decision Framework

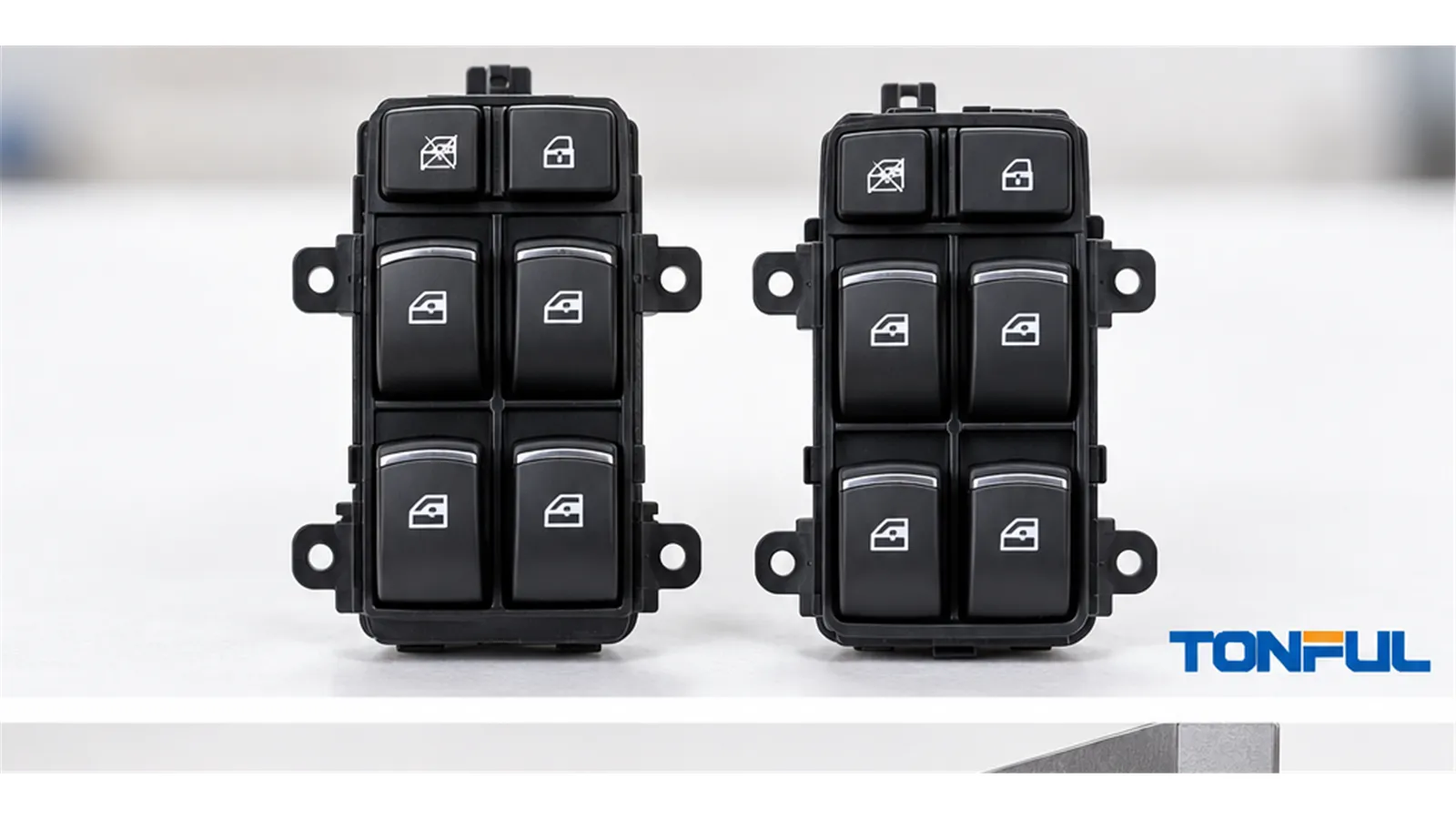

This TONFUL-branded image shows the article-specific inspection or verification step; use controlled application documents for final decisions.
| Control area | Objective evidence | Main risk | Required action |
|---|---|---|---|
| 1. Vehicle Identity | Vehicle record and source date. | Model-year boundaries and market configurations can differ. | Do not convert a broad catalog statement into exact fitment without evidence. |
| 2. Door and Steering Position | Vehicle photo and removed-part location. | Left and right may be described from different viewpoints. | Use unambiguous labels and market context. |
| 3. OE Reference and Supersession | Label photo and authoritative catalog note. | A shared base number may hide suffix-dependent functions. | Retain the full chain and conditions. |
| 4. Face and Mounting Geometry | Scaled photos and measured critical dimensions. | A switch may connect electrically but not seat or retain correctly. | Check installed clearance, trim engagement, and rocker movement. |
| 5. Connector End View | Straight-on connector photos with orientation mark. | Mirrored views frequently cause catalog errors. | Require the same reference direction for old and proposed parts. |
| 6. Functions and Final Verification | Function matrix and vehicle-specific completion record. | A plug-in part may still be functionally wrong. | Verify every feature after installation under the approved service procedure. |
The table is a control framework, not proof that a particular part fits or passes. Each line needs an evidence ID, responsible person, status, and acceptance source. Unknown information should remain marked Unknown until it is verified; changing it to Yes for convenience destroys traceability.
Vehicle Identity
Capture make, model, production date or range, body, trim, market, and VIN context. This matters because power window systems differ by model year, market, door position, steering configuration, trim, and electronic architecture. The decision should be based on the named application rather than a generic product family.
Evidence to collect: Vehicle record and source date. Record the evidence identifier, revision or date, sample quantity where applicable, and the person who reviewed it. Photographs should use a consistent viewing direction and show enough context to connect the image to the sample.
Risk and control: Model-year boundaries and market configurations can differ. Do not convert a broad catalog statement into exact fitment without evidence. If information conflicts, quarantine the decision, preserve both sources, and obtain engineering or customer clarification. Do not solve a conflict by selecting the more convenient source.
Door and Steering Position
Record front/rear, driver/passenger, physical left/right, and LHD/RHD. This matters because power window systems differ by model year, market, door position, steering configuration, trim, and electronic architecture. The decision should be based on the named application rather than a generic product family.
Evidence to collect: Vehicle photo and removed-part location. Record the evidence identifier, revision or date, sample quantity where applicable, and the person who reviewed it. Photographs should use a consistent viewing direction and show enough context to connect the image to the sample.
Risk and control: Left and right may be described from different viewpoints. Use unambiguous labels and market context. If information conflicts, quarantine the decision, preserve both sources, and obtain engineering or customer clarification. Do not solve a conflict by selecting the more convenient source.
Physical and Electrical Fit
OE Reference and Supersession
Copy every character and identify whether the number is original, alternate, or replacement. This matters because power window systems differ by model year, market, door position, steering configuration, trim, and electronic architecture. The decision should be based on the named application rather than a generic product family.
Evidence to collect: Label photo and authoritative catalog note. Record the evidence identifier, revision or date, sample quantity where applicable, and the person who reviewed it. Photographs should use a consistent viewing direction and show enough context to connect the image to the sample.
Risk and control: A shared base number may hide suffix-dependent functions. Retain the full chain and conditions. If information conflicts, quarantine the decision, preserve both sources, and obtain engineering or customer clarification. Do not solve a conflict by selecting the more convenient source.
Face and Mounting Geometry
Compare bezel, curvature, tabs, clips, screw points, depth, and button arrangement. This matters because power window systems differ by model year, market, door position, steering configuration, trim, and electronic architecture. The decision should be based on the named application rather than a generic product family.
Evidence to collect: Scaled photos and measured critical dimensions. Record the evidence identifier, revision or date, sample quantity where applicable, and the person who reviewed it. Photographs should use a consistent viewing direction and show enough context to connect the image to the sample.
Risk and control: A switch may connect electrically but not seat or retain correctly. Check installed clearance, trim engagement, and rocker movement. If information conflicts, quarantine the decision, preserve both sources, and obtain engineering or customer clarification. Do not solve a conflict by selecting the more convenient source.
Connector End View
Compare shell, keying, latch, terminal count, populated cavities, and viewing orientation. This matters because power window systems differ by model year, market, door position, steering configuration, trim, and electronic architecture. The decision should be based on the named application rather than a generic product family.
Evidence to collect: Straight-on connector photos with orientation mark. Record the evidence identifier, revision or date, sample quantity where applicable, and the person who reviewed it. Photographs should use a consistent viewing direction and show enough context to connect the image to the sample.
Risk and control: Mirrored views frequently cause catalog errors. Require the same reference direction for old and proposed parts. If information conflicts, quarantine the decision, preserve both sources, and obtain engineering or customer clarification. Do not solve a conflict by selecting the more convenient source.
Verification and Supplier Evidence
Functions and Final Verification
Confirm manual/auto stages, lockout, locks, mirrors, illumination, retained power, and initialization needs. This matters because power window systems differ by model year, market, door position, steering configuration, trim, and electronic architecture. The decision should be based on the named application rather than a generic product family.
Evidence to collect: Function matrix and vehicle-specific completion record. Record the evidence identifier, revision or date, sample quantity where applicable, and the person who reviewed it. Photographs should use a consistent viewing direction and show enough context to connect the image to the sample.
Risk and control: A plug-in part may still be functionally wrong. Verify every feature after installation under the approved service procedure. If information conflicts, quarantine the decision, preserve both sources, and obtain engineering or customer clarification. Do not solve a conflict by selecting the more convenient source.
A Repeatable Verification Workflow
This TONFUL-branded image shows the article-specific sample or test evidence required before release; acceptance remains project-specific.
- Define the application, decision, scope, and responsible approver.
- Collect source documents and record revision, date, market, and viewing conventions.
- Identify the sample by part number, lot, build status, and photographs.
- Compare mechanical, connector, electrical, and functional requirements separately.
- Perform only the tests authorized by the relevant procedure, using suitable calibrated equipment and controlled fixtures.
- Record actual results, limits, failure modes, deviations, invalid tests, and retest authorization.
- Review residual risk and classify the result as approved, conditionally approved, rejected, or unverified.
- Control the approved sample, data, packaging, and future changes.
This sequence prevents an early assumption from becoming a catalog claim or production release. It also creates a useful record if a warranty return, engineering change, or mixed shipment is investigated later. TONFUL’s automotive combination-switch contact-resistance guide provides related product context, while the wiper-switch failure diagnosis guide explains interface considerations that can affect automotive switch assemblies.
Evidence, Sampling, and Acceptance Rules
A useful record states how many samples were reviewed, how they were selected, and what population the conclusion covers. A prototype may support dimensional discussion but not prove production consistency. A qualification lot may support a defined release but not every future material or tooling change. Keep design validation, process validation, incoming inspection, routine production test, and field diagnosis as separate evidence categories.
For measurements, record equipment ID, calibration status, range, resolution, fixture, software version where relevant, operator, environment, test points, sequence, and raw results. Define invalid-test and retest rules before testing. Never discard an unexpected result without documenting why it was invalid. Acceptance must come from the product drawing, customer requirement, approved plan, vehicle procedure, or applicable standard; this article does not create a substitute limit.
The authoritative NHTSA vPIC vehicle data service is useful background for the relevant regulatory, audit, vehicle-data, or test-method context. Its scope must still be checked before applying it to a product. The automotive switch manufacturing overview, automotive PCB connector guide, and terminal push-out force guide offer adjacent guidance on electrical evidence, materials, connector retention, or diagnosis.
Fitment Release
Supplier and Change-Control Questions
Ask who owns the drawing, application table, test plan, fixtures, software, approved sample, and release decision. Confirm how incoming materials, sub-suppliers, tooling, assembly parameters, test equipment, nonconforming product, rework, packaging, and shipment labels are controlled. Where statistical evidence is relevant, request the named characteristic, measurement-system study, data period, subgroup logic, capability method, and reaction plan rather than accepting an unexplained capability number.
Change control should cover design, material, color, symbols, contact system, plating, PCB or electronics, firmware where present, tooling, process, site, sub-supplier, test method, packaging, and labeling. The supplier should identify affected stock and orders, provide risk analysis and validation evidence, and obtain approval before implementation when the agreement requires it. A controlled golden sample can support appearance and configuration, but it does not replace drawings or test requirements.
Release Checklist
- Application and scope are explicit, with no unresolved market, door, or steering-position ambiguity.
- OE references, drawings, photographs, and sample identities are traceable.
- Mechanical fit, connector interface, electrical architecture, and functions were reviewed separately.
- Every test has a sample quantity, method, fixture, conditions, result, limit, and acceptance source.
- Deviations, invalid tests, retests, and conditional approvals are documented.
- Packaging and labels prevent similar configurations from being mixed.
- Change notification, warranty coding, and record retention responsibilities are agreed.
- Final approval identifies the reviewer, date, revision, and residual risk.
