A cable tie looks like a trivial strip of plastic with a small head on one end. Behind that simplicity, however, sits a tightly engineered manufacturing process that combines polymer science, precision toolmaking, and high-speed injection molding. At TONFUL Electric, we produce millions of cable ties every month, and the same process governs every size from a 100 mm miniature tie to a 1200 mm heavy-duty strap. This article walks through how cable ties are made, from raw nylon pellets to the packaged product, with the technical details engineers and sourcing managers need to evaluate a supplier.
1. The Raw Material: Nylon 66 (PA66)
The standard cable tie is made from Polyamide 66, commonly called Nylon 66 or PA66. PA66 is selected because it offers the best balance of tensile strength, flexibility, chemical resistance, and heat resistance for the price. Some manufacturers substitute PA6 with modified masterbatch to lower cost, but PA66 remains the industry benchmark for cable ties because its higher crystallinity delivers a stronger, more consistent ratchet lock.
Moisture is the single biggest variable in nylon tie production. PA66 is hygroscopic, meaning it absorbs water from the air. Before molding, the pellets must be dried to below 0.2% moisture content; otherwise, the water turns to steam inside the 260°C barrel, causing splay marks, brittleness, and dimensional instability. Proper drying and storage are so critical that we cover them separately in our cable tie moisture content and storage guide.
2. Mold Design: The “Tree and Branches” Cavity Layout
Each cable tie size requires its own dedicated multi-cavity steel mold. A typical production mold for a 200 × 2.5 mm tie may hold 32 to 64 cavities laid out in a pattern technicians describe as “tree and branches”: a central sprue feeds a main runner, which branches into sub-runners, each feeding a single cavity shaped like a flat strap with a head at one end.
The cavity defines everything the customer sees: length, width, tooth profile, head geometry, and the angle of the internal pawl that catches the teeth. Because the pawl and teeth are molded in a single shot, the mold steel must hold tolerances measured in hundredths of a millimeter across thousands of cycles. Hot-runner molds reduce runner waste and improve fill consistency, while cold-runner molds remain common for lower-cost tooling.
3. Injection Molding: Where the Tie Is Born
Injection molding is the heart of the process. Dried PA66 pellets are fed from the hopper into the screw barrel of a dedicated injection molding machine. As the screw rotates, the barrel’s heater bands raise the nylon to a melt temperature of roughly 250–280°C. The screw then plunges forward, injecting the molten nylon through the nozzle, sprue, and runners into the closed steel mold at high pressure and high speed.
Cable tie molding is more demanding than ordinary plastic molding for three reasons. First, the part is long, narrow, and thin, so the melt must race from gate to cavity tip before it freezes. Second, PA66 has high fluidity at melt temperature, which means insufficient clamping force or worn toggles will produce flash at the parting line. Third, the product sells at very low unit cost, so the machine must run cycle times of 6 seconds or less while still holding dimensional tolerance. This is why cable tie factories use specialized high-speed machines with reinforced clamping units and PA66-specific screws and nozzles.
After injection, the mold holds pressure for a brief packing phase, then cools until the nylon solidifies. The mold opens, the part—still connected as a “pad” or tree of dozens of ties—is stripped off, and the cycle repeats.
4. The Ratchet: How the Lock Actually Works

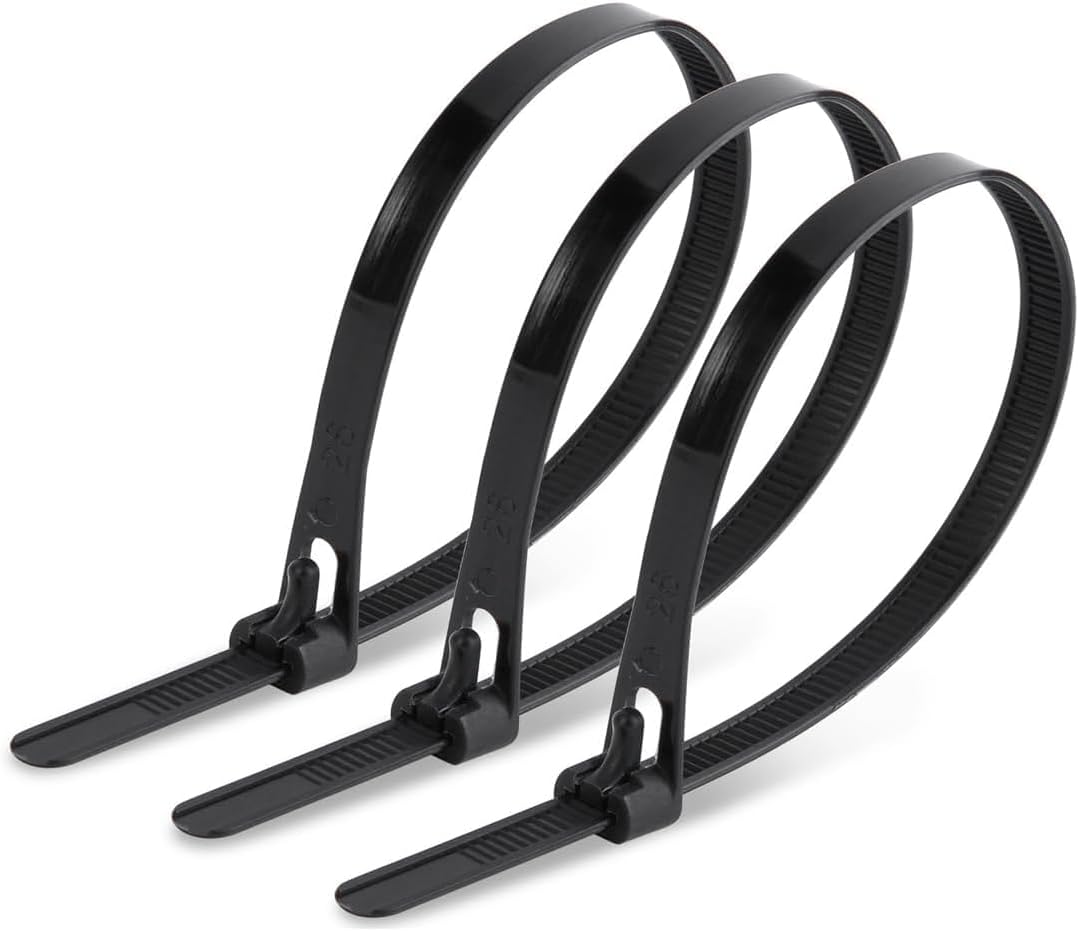

A cable tie locks because of a one-way ratchet. The strap carries a row of angled teeth along one face. Inside the head sits a flexible pawl (also called a latch or tongue) molded at an angle that mirrors the teeth. When the tail is threaded into the head and pulled, the pawl rides up over each tooth and clicks into the gap behind it. Pull harder, and the pawl flexes back to let the tooth pass; release, and the pawl springs down to bite against the tooth flank, preventing reverse motion. The result is a loop that tightens but never loosens—unless the tie is a releasable reusable cable tie with a release lever that lifts the pawl.
Tooth geometry—pitch, flank angle, and tip radius—directly determines loop tensile strength. A poorly cut cavity produces teeth that shear under load; a well-maintained mold produces ties that hold their rated cable tie tensile strength cycle after cycle.
5. Moisture Conditioning: The Step Most Buyers Miss
A freshly molded nylon tie is not ready to use. During injection, the 260°C barrel drives off the water that gives PA66 its toughness. The tie that drops out of the mold is dry, hard, and brittle—drop it on the floor and it may snap. To restore the polymer’s molecular mobility and its rated tension, the tie must reabsorb moisture to an equilibrium of roughly 2.0–2.5%.
Factories achieve this by “cooking” the ties. Traditional lines steam the freshly molded pads in large vats; modern lines vacuum-seal the ties in poly bags, inject a measured amount of water, and let the nylon absorb it over hours. Skip this step and a tie that tests fine on day one may fail in service. This is also why dry-storage guidance matters once the ties reach the customer—covered in detail in our moisture content and storage guide.
6. Deflashing, Sorting, and Quality Control
After conditioning, the pads are broken into individual ties and the runner stub is removed. Workers or automated sorters inspect for flash, short shots, sink marks, and bent pawls. Each cavity carries an identification mark—letters, numbers, or a logo—so a defective tie can be traced back to the exact cavity that produced it, and a blocked or worn cavity can be taken out of service without scrapping the whole mold.
Final quality control subjects samples from each batch to a standardized test matrix:
| Test | Standard / Method | Typical Requirement | Why It Matters |
|---|---|---|---|
| Loop tensile strength | ASTM D3933 / ISO 9264 | 18 lb (4″) up to 250 lb+ for heavy-duty | Confirms the tie holds its rated load |
| Buckle insertion force | In-house, calibrated fixture | < 5 N to start the pull-through | Ensures easy installation |
| Pawl retention (reverse force) | In-house pull-back test | Survives 80% of forward tensile | Confirms the ratchet locks |
| Heat aging | 85°C × 1000 h | No brittling, > 70% strength retention | Validates long-term thermal service |
| Cold impact | −40°C × 24 h then drop | No cracking | Critical for cold-weather cable ties |
| UV / weathering | ASTM G154 cycle | < 30% strength loss after 1000 h | Required for solar and outdoor use |
| Moisture content | Karl Fischer / weigh-dry | 1.8–2.5% at ship | Prevents brittleness in the field |
For specialty grades, additional tests apply: metal-detectable ties for food lines (metal-detectable cable ties guide), plenum-rated ties for HVAC (plenum rated cable ties UL 2043 guide), and Tefzel/ETFE ties for high-temp or chemical service (Tefzel ETFE cable ties).
7. Specialty Cable Tie Manufacturing Routes
Not every tie is molded in natural PA66. Several specialty variants follow modified production paths, and understanding them helps buyers source the right product:
| Cable Tie Type | Material / Process Difference | Best Application | Learn More |
|---|---|---|---|
| Standard nylon tie | PA66, injection molded + moisture conditioned | General bundling, harness | cable ties |
| UV-stabilized nylon tie | PA66 + UV masterbatch, black | Solar, outdoor | nylon 66 vs nylon 12 solar cable ties |
| Stainless steel tie | SS304/SS316 band + ball-lock mechanism | High-temp, corrosive | stainless steel cable ties |
| Edge-clip / push-mount tie | PA66 strap + metal or molded edge clip | Automotive harness routing | edge-clip cable ties |
| Heat-stabilized / high-temp tie | PA66 + heat stabilizer or ETFE | Engine bays, furnaces | Tefzel ETFE cable ties |
| Ladder / releasable tie | Modified pawl with release lever | Reusable bundling | releasable reusable cable ties |
| Metal-detectable tie | PA66 + detectable additive, blue | Food & pharma | metal-detectable cable ties |
For customers comparing plastic and metal options, our stainless steel vs plastic cable ties and 304 vs 316 stainless steel cable ties breakdowns cover the trade-offs in detail. For identification and branding, custom printed cable ties add a laser-marked or molded logo and sequence number after molding.
8. Packaging and Shipping
After conditioning and QC, ties are counted and bagged—typically 100 pieces for standard sizes, fewer for large heavy-duty ties. Bags are heat-sealed with a small amount of moisture to maintain humidity during transit, then packed into cartons. For automotive and OEM accounts, ties can be packaged in assortments or kitted with related hardware—see our assorted boxes program for examples.
Why Manufacturing Discipline Matters to the Buyer
A cable tie is a safety product. A failed tie in a solar farm drops live conductors onto a roof; a failed tie in an engine bay chafes a fuel line; a failed tie in a data center severs a fiber run. The difference between a tie that holds and one that snaps is not the polymer alone—it is the drying, the mold maintenance, the clamping force, the moisture conditioning, and the batch testing. That is the process TONFUL Electric runs every day, and it is why the same blue bag of ties behaves consistently from order one to order one thousand.
FAQ
What are cable ties made of?
Standard cable ties are made from Nylon 66 (PA66). Specialty ties use PA6, PA12, heat-stabilized nylon, ETFE/Tefzel, or stainless steel (SS304/SS316) depending on the operating environment. See our cable ties product page for the full material range.
How are cable ties manufactured?
Dried PA66 pellets are melted at roughly 260°C and injected at high pressure into a multi-cavity steel mold. After cooling, the parts are moisture-conditioned, deflashed, sorted, and batch-tested for tensile strength and pawl retention.
Why do new cable ties sometimes feel brittle?
Freshly molded ties are dry and brittle because the high molding temperature drives off moisture. They must be conditioned to roughly 2% moisture before they reach rated tension. Dry storage after delivery is equally important—see our moisture content guide.
How much weight can a cable tie hold?
Loop tensile strength ranges from about 18 lb for a 4-inch miniature tie to 250 lb or more for a heavy-duty 1200 mm tie. Our how much weight can a zip tie hold guide explains the ratings.
What are cable ties used for?
Bundling, routing, securing, and labeling wire harnesses, cables, hoses, and lightweight mechanical assemblies across automotive, solar, data center, HVAC, food, and marine industries. See our what are cable ties used for guide.
Are stainless steel or nylon cable ties better?
It depends on the environment. Stainless steel wins at sustained high temperature and around chemicals; nylon wins on cost, ease of installation, and insulation. Our stainless steel vs plastic cable ties comparison walks through the decision.
